4.3'' TFT Innolux Panel LCD 480*272 for Electronic Game Machine
| Price: |
US $ 4.9-5.4/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,D/P |
KA-TFT043IT003 is 480x272 dots 4.3" Innolux TFT lcd module display with driver IC ST7282,which has optional Capacitive Touch Panel and Touch Panel of resistance.All materials are in conformity with the RoHS standard for environmental protection.It can be widely used in car navigation, medical equipment, IMD tablet PC, electronic game machine and industrial control equipment. | Gross Weight(kg) | 0.127 |
| Manufacturer | Kawo Display |
| Continuity Supply | We promise the long term continuity supply for this product no less than 5 years since 2016 |
| Part Number | KA-TFT043IT003 |
| Display Format | 480*272 dots |
| Interface | RGB |
| IC or Equivalent | ST7282 |
| Appearance | RGB |
| Diagonal Size | 4.3'' |
| Connection | FPC-Connector |

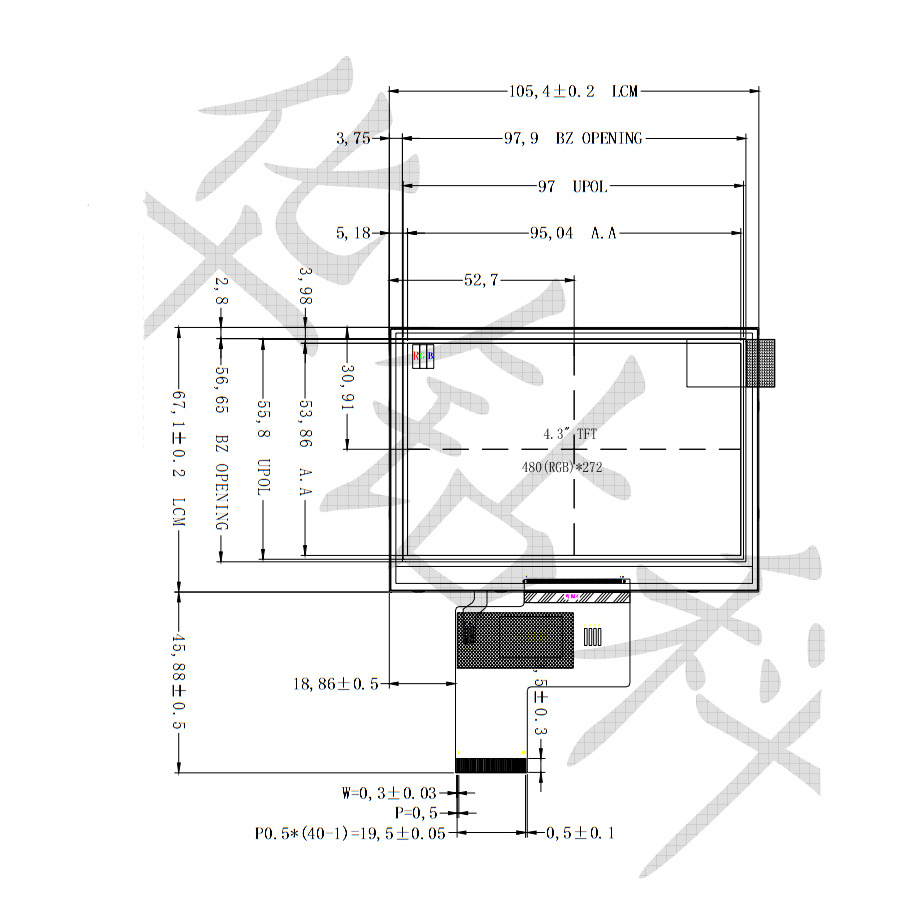

| Outline Dimension | 105.4(W)*67.1(H)mm |
| Visual Area | 97.9(W)*56.65(H)mm |
| Active Area | 95.04(W)x53.85(H)mm |
| Dot (Pixel) Size | 0.198(W)x0.198(H)mm |
| Display Type | TFT-LCD Color |
| Optional Touch Panel | Yes |
| Sunlight Readability | No |
| Response Time(Typ) | 15ms |
| Contrast Ratio(Typ) | 500:1 |
| Colors | 65K/262K/16.7M |
| Viewing Direction | 6 o'clock |
| Viewing Angle Range(U/D/L/R) | 40/60/60/60 |
| Brightness(Typ) | 500cd/m2 |
| Backlight Color | White |
| Backlight Current(Typ) | 40mA |
| Operating Temperature | -10ºC-60ºC |
| Storage Temperature | -20ºC-70ºC |
| Series Number | KA-TFT043IT003 |
| POL Meterial | 0.17TV |
| Voltage/Power | 16V/40mA 0.64W |
StockThe general recommendation model of our company will be prepared for part of the stock. If no inventory is made, 3-7 working days will be required to be decided by the product. The regular delivery of a batch order takes 15 working days, for example, for the first delivery of a new case, it takes 30 working days. Please communicate and coordinate with our sales under special circumstances.WarrantyLong Term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time.Kawo gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller IC may stop the production,we'll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long.
Shipping1.Shipping Carriers
We cooperate with DHL ,UPS,FEDEX, TNT,EMS,HongKong Post and Singapore Post for shipment and choose the most appropriate one for the destination .
2. Shipping Time

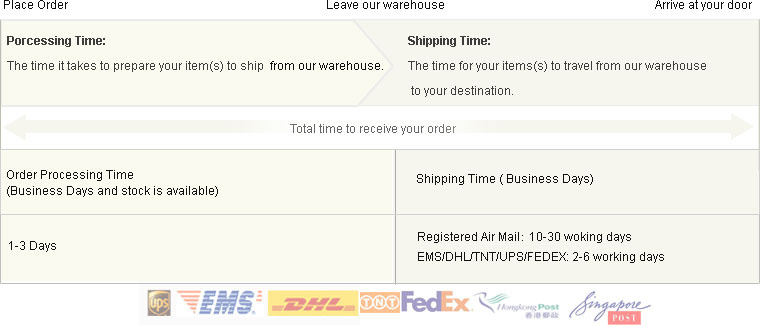

Please use the chart below to help how long it will take to recive your order.
3. Rates
A shipping cost estimate is displayed during online checkout based on the "Ship to" address you provide. If that estimate is significantly lower than the actual cost determined after your order is packed, we will notify you by email and wait for your approval before shipping.If significantly higher,we will reduce your shipping charge.
4. Charge for Packages Returned or Rerouted
In addition to the original shipping cost, we charge you for packages returned to us or that require rerouting when caused by your error (for example,providing an incorrect shipping address) or refusal of a package.
5.Customs and Import Duties
Customs fees and import duties for exports are your responsibility. We cannot predict or prepay these fees.We will charge you for any duties or customs fees erroneously charged to us.Return1.Selecting the Part You Need
To ensure that a product will meet your requirements, please read its products manual or get the products details from our sales. If you have any questions after that, we provide free technical support.
2.Repair or Replacement for Defective Products
We will provide 12 months warranty after sales service, and the defective products in the warranty period can be returned to repair or replace. Before returning the product, you must first contact our salesman to make a good registration record for the later goods to follow.
3.Returning Non-Defective Products
We will only consider return requests when the request is made within 30 days of delivery. There is a restocking fee of up to 30% of the purchase price depending on the circumstances. You can avoid a restocking fee by reviewing your order confirmation to ensure the correct parts have been ordered. Shipping charges are nonrefundable.
4.How to Return a Product
After we receive the product, we inspect it to determine the cause of any defect, then update by email with our findings. This process usually takes five business days. It takes 15 working days to repair after the report is confirmed.
| Prod Model: |
KA-TFT043IT003 |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| 3D: |
Not 3D |
| Screen Size: |
4.3'' |
| Application: |
Electronic Game Machine |
| Optimum Resolution: |
480*272 |
| Response Time: |
15ms |
| Interface Type: |
RGB |
