3D Printer and Sewing Machine Parts Linear Bearing Lm Series

Name: 3D Printer and Sewing Machine Parts Linear Bearing Lm Series
Brand: tool-buy.com
SKU: 711910372
Availability: InStock
Rating: 4.4 (47 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

KORTON INDUSTRIAL LIMITED

Showroom Product Company Profile

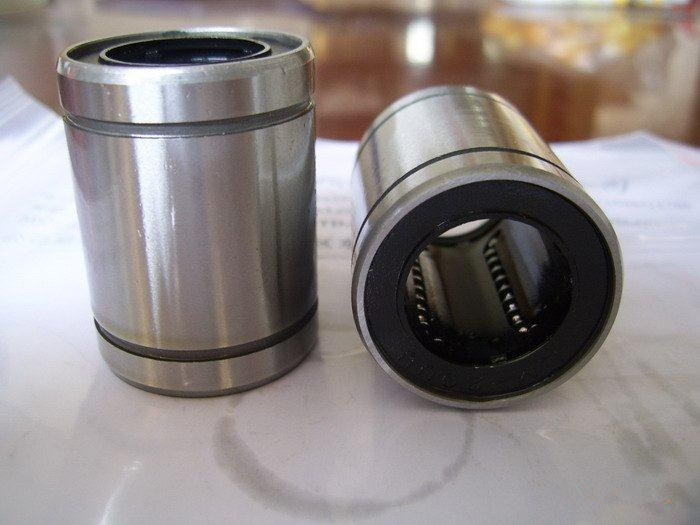

3D printer and sewing machine parts linear bearing LM series

NO 1. our adwantages

1. 14 years bearing products manufacturing and exporting experiences.

2. OEM order and non-standard bearing order can be accepted.

3. Many sizes of bearing are available. Large quantity bearing can be provided.

4. To respect customers, you can choose the loading port.

5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.

NO 2. Description: Linear bearing

Metal linear bearing is a low-cost production of linear motion system for unlimited travel with the cylinder axis. Since the ball bearing point contact with the shaft, so use the load is small. Minimal friction ball rotation, thereby to obtain smooth movement precision. Plastic linear bearings are self-lubricating properties of a linear motion system, the biggest difference is that the metal in the metal linear bearings linear bearings are rolling friction, is the point contact between the bearing and the cylinder axis, so this suited for low load speed movement; while plastic linear bearings are sliding friction is between the bearing surface contact with the cylinder axis, so this low-speed movement for high loads.

Linear bearings are used in conjunction with hardened linear drive shaft. For infinite linear motion systems. Load the ball and quenching transmission shaft because it is the point contact, allowing the load is small, but linear motion, friction smallest, high precision, fast movement.

The linear ball bearing (also called ball bushing or shaft guiding) consists of a polymeric cage with raceway segments made of hardened steel to guide the ball sets within the complete system. Recirculating balls provide unlimited stroke at low friction movement.

1.Smooth movement,low friction,high rigidity and long life.

2.We can make non-standard linear bearing according to clients samples or drawings.

3.Prompt delivery and OEM service.

4.Nice appearance,complete product system.

LM - UU series

LM - UU OP series

LM - LUU series

LME - UU series

LMF - UU series

LMK - UU series

LMH - UU series

LMF - LUU series

LMK - UU series

LMH - LUU series

SCS - UU series

SCS - LUU series

SBR - UU series

TBR - UU series

SK (SHA) series

NO 3. OEM all brand bearing

1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS

2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33

3. cylindrical roller bearing N,NU,NJ,NN,NUP,E,ECP,ECM,ECJ

4. taper roller bearing 30200,30300,32200,32300,31300,32000

5. Aligning ball bearing 1200,1300,2200,2300,

6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN

7. thrust ball bearing 51100,51200,51300,51400,E,M

8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C

9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP

10.Wheel hub bearing /ceramic bearing/plastic bearing/lazy susan bearing

NO 4. Linear Bearing Specification:

Seals Types	OPEN/2RS
Vibration Level	Z1V1,Z2V2,Z3V3
Clearance	C2,C0,C3,C4,C5
Tolerance Codes	ABEC-1,ABEC-3,ABEC-5
Materral	GCr15-China/AISI52100-USA/Din100Cr6-Germany
MOQ	1Set at least
Delivery Time	5-15 days after contract
Payment Terms	TT/PAPAL/WESTERN UNION
Pavkage	Tube package+outer carton+pallets;Single box+outer carton+pallets;Tube pavkge+middle box+outer carton+pallets;According to your requirement

NO 5. Linear Bearing Models:

MODEL NO.	NUMBER OF BALL ROWS	MAIN DIMENSIONS													ECCEN-TIRICITY(MAX.)	BASIC LOAD RATING		WEIGHT(g)
		INSCRIBED CIRCLE DIAMETER		OUTER DIAMETER		LENGTH		OUTER LOCKING GROOVE			W	H	H1	θ		DYNAMIC	STATIC
		dr	TOLERANCE	D	TOLERANCE	L	TOLERANCE	B	TOLERANCE	D1	W	H	H1	θ		c(kgf)	Co(kgf)
LM3	4	3	0	7	0	10	0								0.01
LM4	4	4	-0.008	8	-0.009	12	-0.12									9	13	3
LM5	4	5		10		15		10.2	0	9.6	1.1					17	21	4
LM6	4	6	0	12	0	17	0	13.5	-0.2	11.5	1.1	1			0.01	21	27	6	6
LM8S	4	8	-0.009	15	-0.011	19	-0.2	11.5		14.3	1.1	1				18	23	9
LM8	4	8		15		24		17.5		14.3	1.1	1				27	41	14	14
LM10	4	10		19	0	29		22		18	1.3	1	6.8	80°		38	56	28	27
LM12	4	12		21	-0.013	30		23		20	1.3	1.5	8	80°		42	61	32	31	24
LM13	4	13		23		32		23		22	1.3	1.5	9	80°		52	79	38	39	32
LM16	5	16		28		37		26.5		27	1.6	1.5	11	80°		79	120	74	73	58
LM20	5	20	0	32	0	42		30.5		30.5	1.6	1.5	11	60°	0.02	88	140	80	80	72
LM25	6	25	-0.01	40	-0.016	59	0	41	0	38	1.9	2	12	50°		100	160	206	205	177
LM30	6	30		45		64	-0.3	44.5	-0.3	43	1.9	2.5	15	50°		160	280	240	230	196
LM35	6	35	0	52	0	70		49.5		49	2.1	2.5	17	50°	0.02	170	320	370	366	320
LM40	6	40	-0.012	60	-0.019	80		60.5		57	2.1	3	20	50°		220	410	589	549	464
LM50	6	50		80		100		74		76.5	2.6	3	25	50°		390	810	1480	1440	1180
LM60	6	60	0	90	0	110		85		86.5	3.2	3	30	50°	0.03	480

SCS..UU/SCS..LUU														Slide bush	Basic load rating
Type Designation	Dimension (mm)													Type	dynamic CN	static CoN	Weight (kg/m)
Type Designation	T	h	E	W	L	F	G	B	C	K	S1	S2	L1	Type	dynamic CN	static CoN	Weight (kg/m)
SCS 6 UU	6	9	15	30	25	18	15	20	15	5	M4	3.4	8	LM 6UU	206	265	34
SCS 8 UU	6	11	17	34	30	22	18	24	18	5	M4	3.4	8	LM 8UU	274	392	52
SCS 10 UU	8	13	20	40	35	26	21	28	21	6	M5	4.3	12	LM10UU	372	549	92
SCS 12 UU	8	15	21	42	36	28	24	30.5	26	5.75	M5	4.3	12	LM 12UU	510	784	102
SCS 13 UU	8	15	22	44	39	30	24.5	33	26	5.5	M5	4.3	12	LM 13UU	510	784	120
SCS 16 UU	9	19	25	50	44	38.5	32.5	36	34	7	M5	4.3	12	LM 16UU	774	1180	200
SCS 20 UU	11	21	27	54	50	41	35	40	40	7	M6	5.2	12	LM 20UU	882	1370	255
SCS 25UU	12	26	38	76	67	51.5	42	54	50	11	M8	7	18	LM 25UU	980	1570	600
SCS 30UU	15	30	39	78	72	59.5	49	58	58	10	M8	7	18	LM 30UU	1570	2740	735
SCS 35UU	18	34	45	90	80	68	54	70	60	10	M8	7	18	LM 35UU	1670	3140	1100
SCS 40UU	20	40	51	102	90	78	62	80	60	11	M10	8.7	25	LM 40UU	2160	4020	1590
SCS 50UU	25	52	61	122	110	102	80	100	80	11	M10	8.7	25	LM 50UU	3820	7940	3340
SCS 60UU	30	58	66	132	122	114	94	108	90	12	M10	10.7	25	LM 60UU	4700	10000	4270

SCS 8LUU	6	11	17	34	58	22	18	24	42	5	M4	3.4	8	LM 8LUU	274	392	0.1
SCS 10LUU	8	13	20	40	68	26	21	28	456	6	M5	4.3	12	LM 10LUU	372	549	0.18
SCS 12LUU	8	15	21	42	70	28	24	30.5	50	5.75	M5	4.3	12	LM 12LUU	510	784	0.2
SCS 13LUU	8	15	22	44	75	30	24.5	33	50	5.5	M5	4.3	12	LM 13LUU	510	784	0.23
SCS 16LUU	9	19	25	50	85	38.5	32.5	36	60	7	M5	4.3	12	LM 16LUU	774	1180	0.39
SCS 20LUU	11	21	27	54	96	41	35	40	70	7	M6	5.2	12	LM 20LUU	882	1370	0.49
SCS 25LUU	12	26	38	76	130	51.5	42	54	100	11	M8	7	18	LM 25LUU	980	1570	1.165
SCS 30LUU	15	30	39	78	140	59.5	49	58	110	10	M8	7	18	LM 30LUU	1570	2740	1.43
SCS 35LUU	18	34	45	90	155	68	54	70	120	10	M8	7	18	LM 35LUU	1670	3140	2.13
SCS 40LUU	20	40	51	102	175	78	62	80	140	11	M10	8.7	25	LM 40LUU	2160	4020	3.09

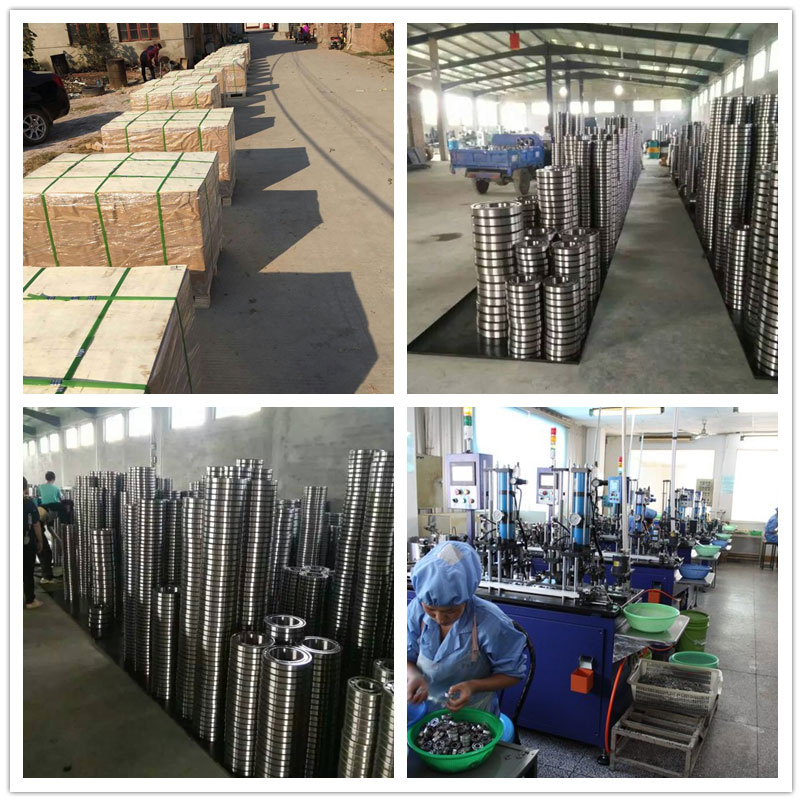

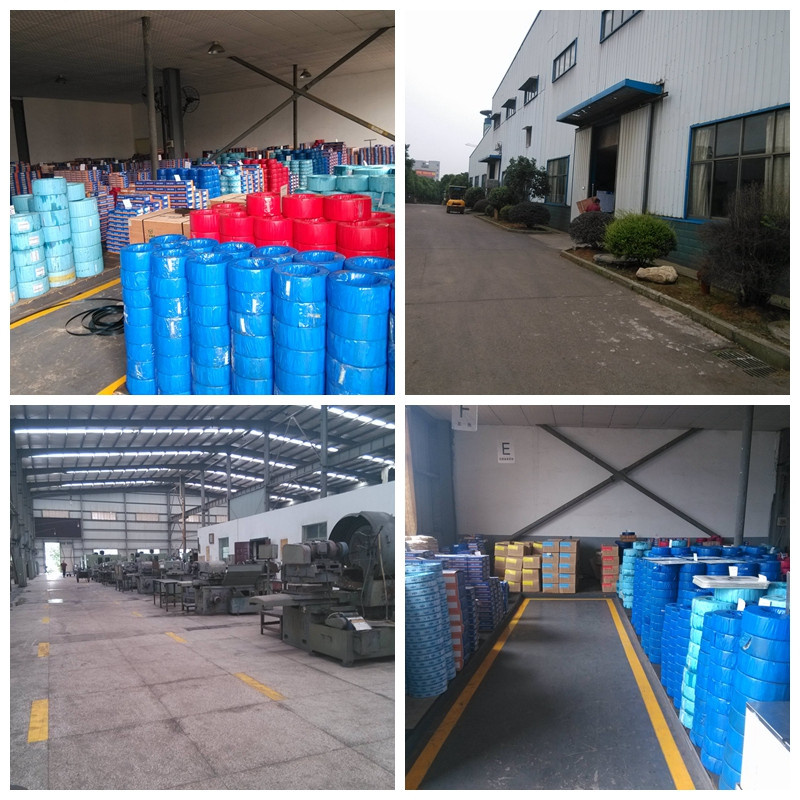

NO 6. Our Bearing Factory:

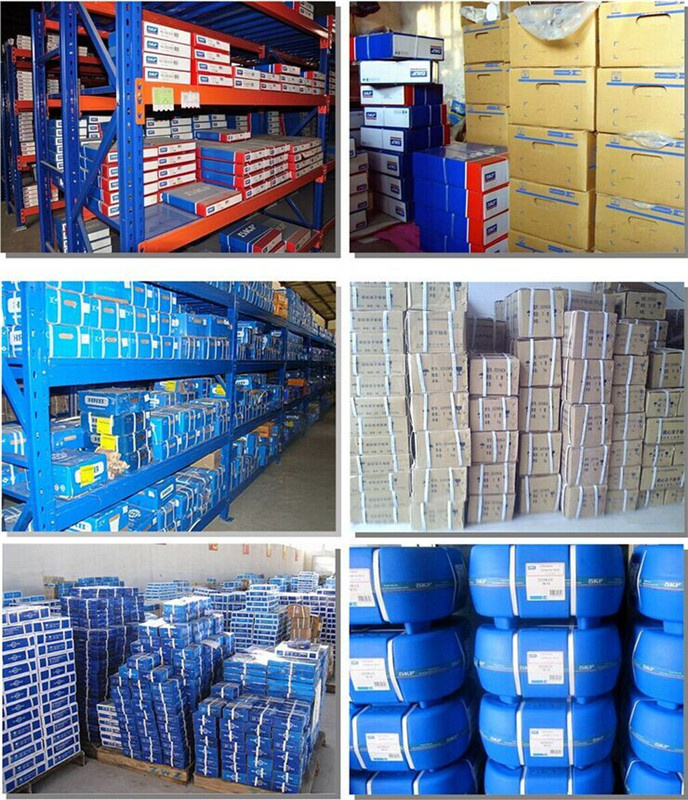

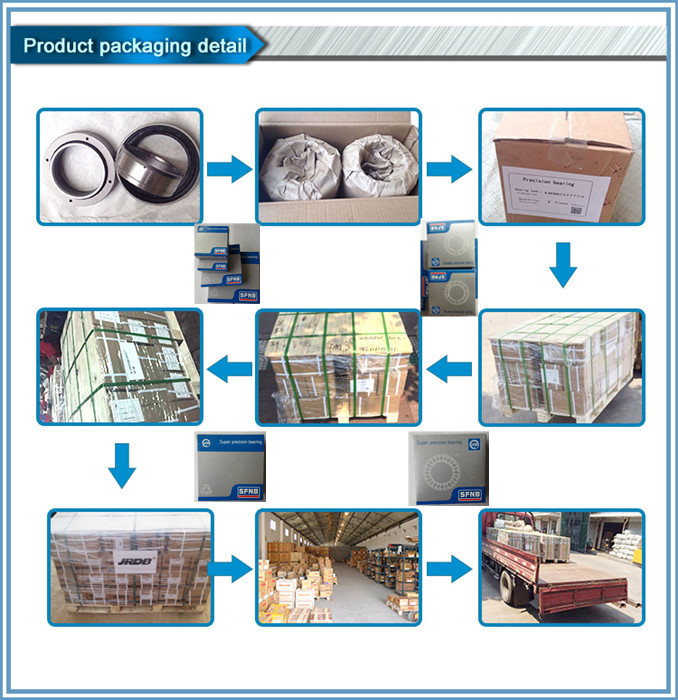

NO 8. Our Bearing Packaging Box:

Why Choose Us:

We are an industrial company.We have our own brand: SFNB .If you interested in our product,I can take you to visit our factory.
Our factory have advanced testing equipment,before the every product leave the factory,we will be testing.We can send samples to you,you can test the quality,and if you accept the sample quality,we can promise: the follow-up orders' quality will be the same as samples.
About ordinary standard type of bearing ,We have rich inventory,not have MOQ,if your need a product is Non-standard size,need customize,we will according the product size to determine the MOQ.
Our company can accept OEM,you can send sample to me,we can manufacturing products the same as sample.Meanwhile,we also can accept some well-known brands of OEM,
If the amount of money is less,you can pay it by Paypal or Alipay.Of course you can payment by TT or Western Union etc.

Inner:	8-80mm
Outer:	15-100mm
Thickness:	10-50mm
Rolling Body:	Ball Bearings
The Number Of Rows:	Multi-column
Outer Dimension:	Small (28-55mm)
Spherical:	Non-Aligning Bearings
Load Direction:	Radial Bearing
Separated:	Unseparated

SFNB bearing company was founded in March 2008. We are not only principally engaged in the research, development and manufacture of bearings but also engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.

Main product:

1, Deep groove ball bearings

2, Ceramic ball bearings

3, Angular contact ball bearings

4, Self-aligning ball bearings

5, Thrust ball bearings

6, Linear bearings

7, Needle bearings

8, Pillow block bearings

9, Rod end bearings

10, Cylindrical roller bearings

11, Spherical roller bearings

12, spherical Thrust roller bearings

13, Taper roller bearings

14, Slewing bearings

15, sliding bearings

16, Excavator bearings

17, Blender bearings

18, Other bearings

In addition, our company can customize according to customers' needs of various types of products.

Our bearings have been widely used in various industries, such as

1) Mining, mineral processing, and cement

2) Motors and generators

3) Wind

4) Industrial pumps

5) Industrial transmission

6) Industrial fans

7) Aerospace

8) Buildings

9) Two rounds of cars

10) Skidding of the wheel

11) Food and drink

12) Plastic and rubber

13) Railway

14) Line drive control

15) Compressors

16) Printing equipment

17) Pulp and paper

18) Bicycle

In order to meet the needs of the masses of customers and improve the market competitiveness of our company, we can provide OEM service according to our customers' needs. We have gained ISO9001 certificate, CE certificate, GOST certificate and SGS certificate. Our target is to carry out the strategic investment along with the development of market and need of new products. With our strategic, excellent products, top technology and outstanding service, we sincerely expect cooperation with more customers and friends for a better future.
