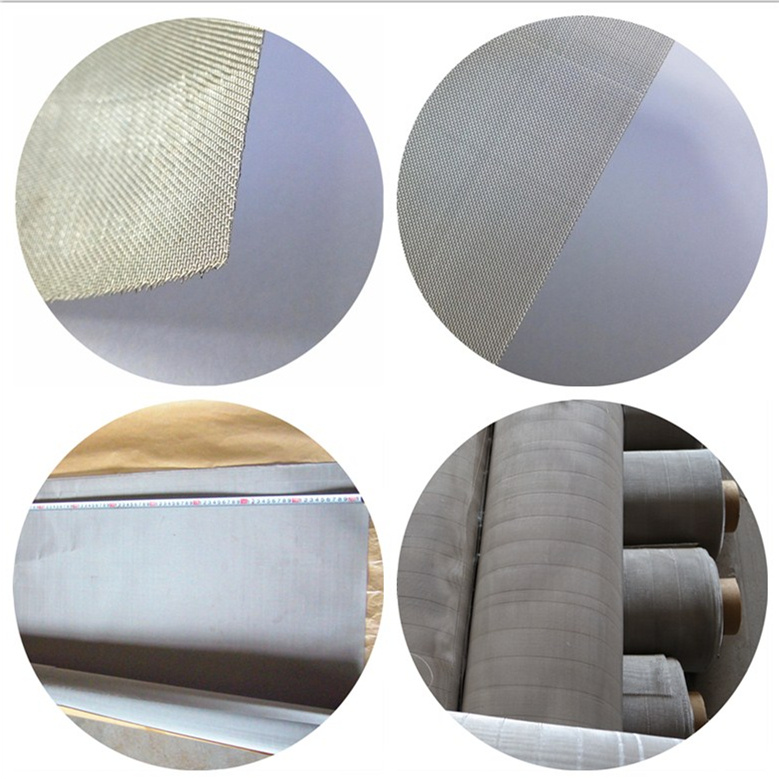

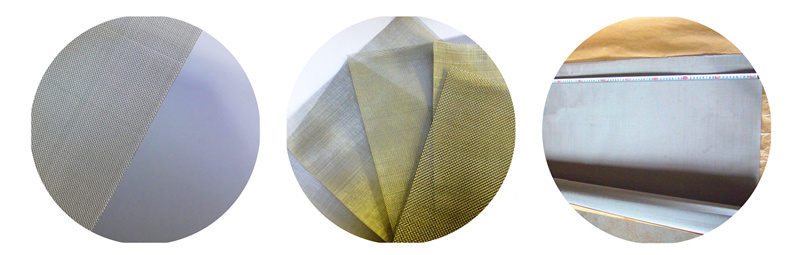

304, 304L, 316, 316L Plain/Twill/Dutch Weave Stainless Steel Woven Wire Mesh 1-635 Mesh

Price:	US $ 200-300/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Roll
Pay Type:	T/T,Western Union

Contact Supplier

Hengshui Zhongbao Wire Mesh Co., Ltd.

Showroom Product Company Profile

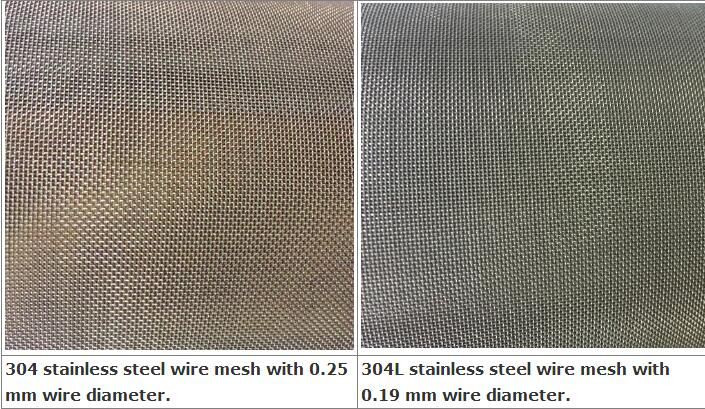

Stainless Steel Woven Wire Mesh Material

Stainless steel wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.

SS 430: Non Nickel and have magnetic;
SUS 202: non-magnetic, low anti-corrosion resistence;
SUS 304/304L: low-magnetic, good anti-corrosion resistence;
SUS 316/316L: low-magnetic, better anti-corrosion resistence;
SUS 310S: anti-oxidization,anti-corrosive and high temperature resistence

Stainless Steel Woven Wire Mesh Count

SUS 202/310s sutiable for mesh count from 1 to 100( plain weave);
SUS 304/304L suitable for mesh count from 1 to 400(plain/dutch weave);
SUS 316/316L 430 suitable for mesh count from 1 to 600(plain/twill/dutch weave .

Stainless steel wire mesh is heat-resisting, acid-resisting and corrosion-resisting. This kind of wire mesh is widely used in mining, chemicals, food products and others.

Stainless Steel Woven Wire Mesh Specification

Plain Weave Technical Data
Meshes Per Linear Inch	Wire Diameter			Aperture Size		Open Area, %
Meshes Per Linear Inch	Inches	mm		Inches	mm	Open Area, %
1	0.135	3.5	0.865		21.97	74.8
1	0.120	3.0	0.880		22.35	77.4
1	0.105	2.5	0.895		22.73	80.1
1	0.080	2.0	0.920		23.36	84.6
3/4"	0.120	3.0	0.630		16.00	70.5
3/4"	0.080	2.0	0.670		17.01	79.8
2 × 2	0.120	3.0	0.380		9.65	57.8
2 × 2	0.105	2.5	0.395		10.03	62.4
2 × 2	0.080	2.0	0.420		10.66	70.6
2 × 2	0.063	1.6	0.437		11.10	76.4
2 × 2	0.047	1.2	0.453		11.50	82.1
3 × 3	0.080	2.0	0.253		6.42	57.6
3 × 3	0.063	1.6	0.270		6.85	65.6
3 × 3	0.047	1.2	0.286		7.26	73.6
4 × 4	0.080	2.0	0.170		4.31	46.2
4 × 4	0.063	1.6	0.187		4.75	56.0
4 × 4	0.047	1.2	0.203		5.15	65.9
5 × 5	0.047	1.2	0.153		3.88	58.5
5 × 5	0.041	1.0	0.159		4.01	63.2
6 × 6	0.063	1.6	0.104		2.64	38.9
6 × 6	0.047	1.2	0.120		3.04	51.8
6 × 6	0.035	0.9	0.132		3.35	62.7
8 × 8	0.063	1.6	0.062		1.57	24.6
8 × 8	0.047	1.2	0.078		1.98	38.9
8 × 8	0.035	0.9	0.090		2.28	51.8
8 × 8	0.032	0.8	0.093		2.36	55.4
8 × 8	0.028	0.7	0.097		2.46	60.2
10 × 10	0.047	1.2	0.053		1.34	28.1
10 × 10	0.035	0.9	0.065		1.65	42.3
10 × 10	0.032	0.8	0.068		1.27	46.2
10 × 10	0.025	0.63	0.075		1.90	56.3
12 × 12	0.041	1.0	0.042		1.06	25.4
12 × 12	0.035	0.9	0.048		1.22	33.2
12 × 12	0.032	0.8	0.051		1.29	37.5
12 × 12	0.028	0.7	0.055		1.39	43.6
12 × 12	0.023	0.58	0.060		1.52	51.8
14 × 14	0.032	0.8	0.039		1.52	29.8
14 × 14	0.025	0.63	0.046		0.99	41.5
14 × 14	0.023	0.58	0.048		1.22	45.2
14 × 14	0.020	0.5	0.051		1.30	51.0
16 × 16	0.028	0.7	0.035		0.89	30.5
16 × 16	0.023	0.58	0.040		1.01	39.9
16 × 16	0.018	0.45	0.045		1.14	50.7
18 × 18	0.020	0.5	0.036		0.91	41.1
18 × 18	0.018	0.45	0.038		0.96	48.3
20 × 20	0.023	0.58	0.027		0.68	29.2
20 × 20	0.020	0.5	0.030		0.76	36.0
20 × 20	0.018	0.45	0.032		0.81	41.0
20 × 20	0.016	0.40	0.034		0.86	46.2
24 × 24	0.014	0.35	0.028		0.71	44.2
28 × 28	0.010	0.25	0.026		0.66	51.8
30 × 30	0.013	0.33	0.020		0.50	37.1
30 × 30	0.012	0.30	0.021		0.53	40.8
35 × 35	0.012	0.30	0.017'		0.43	33.8
35 × 35	0.010	0.25	0.019		0.48	42.4
40 × 40	0.014	0.35	0.011		0.28	19.3
40 × 40	0.012	0.30	0.013		0.33	27.4
40 × 40	0.010	0.25	0.015		0.38	36.0
40 × 40	0.0095	0.24	0.016		0.40	38.4
50 × 50	0.009	0.23	0.011		0.28	30.3
60 × 60	0.0075	0.19	0.009		0.22	30.5
70 × 70	0.0065	0.17	0.008		0.20	29.8
80 × 80	0.0070	0.18	0.006		0.15	19.4
80 × 80	0.0055	0.14	0.007		0.17	31.4
90 × 90	0.0055	0.14	0.006		0.15	25.4
100 × 100	0.0045	0.11	0.006		0.15	30.3
120 × 120	0.0040	0.10	0.0043		0.11	26.6
120 × 120	0.0037	0.09	0.005		0.12	30.7
150 × 150	0.0026	0.066	0.0041		0.10	37.4
165 × 165	0.0019	0.048	0.0041		0.10	44.0
180 × 180	0.0023	0.058	0.0032		0.08	33.5
180 × 180	0.0020	0.050	0.0035		0.09	41.1
200 × 200	0.0020	0.050	0.003		0.076	36.0
200 × 200	0.0016	0.040	0.0035		0.089	46.0
220 × 220	0.0019	0.048	0.0026		0.066	33.0
230 × 230	0.0014	0.035	0.0028		0.071	46.0
250 × 250	0.0016	0.040	0.0024		0.061	36.0
270 × 270	0.0014	0.040	0.0022		0.055	38.0
300 × 300	0.0012	0.030	0.0021		0.053	40.1
325 × 325	0.0014	0.040	0.0017		0.043	30.0
325 × 325	0.0011	0.028	0.0020		0.050	42.0
400 × 400	0.0010	0.025	0.0015		0.038	36.0
500 × 500	0.0010	0.025	0.0011		0.028	25.0
635 × 635	0.0009	0.022	0.0006		0.015	14.5

Twill Weave Technical Data
Items	Mesh	Wire Diameter (mm)	Aperture (mm)	Material (AISI)
SSTW01	250 × 250	0.040	0.063	SUS316
SSTW02	300 × 300	0.040	0.044	SUS316
SSTW03	325 × 325	0.035	0.043	SUS316L
SSTW04	350 × 350	0.030	0.042
SSTW05	400 × 400	0.030	0.033
SSTW06	450 × 450	0.028	0.028
SSTW07	500 × 500	0.025	0.026

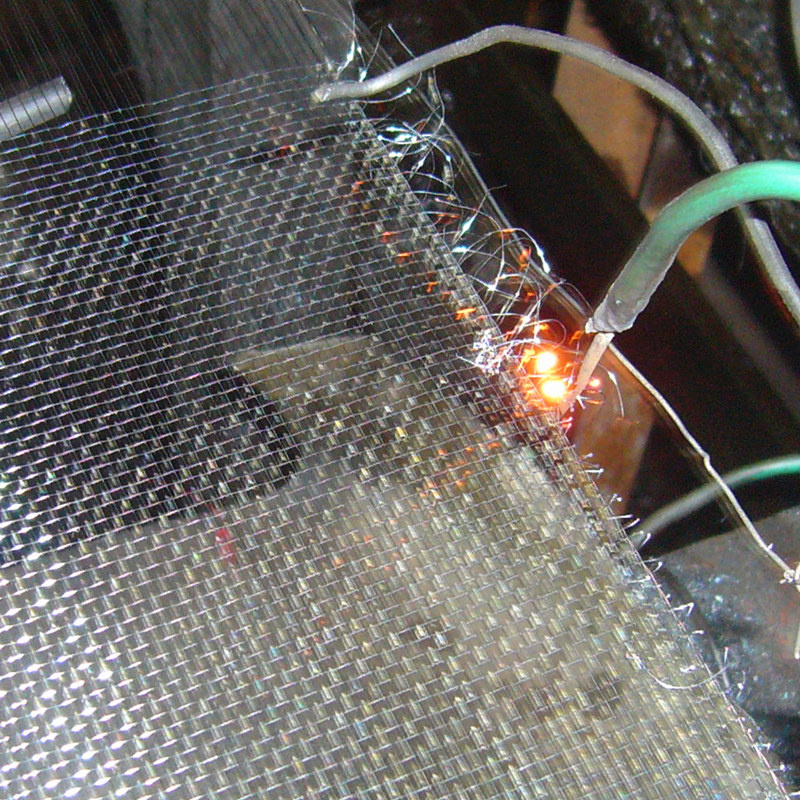

Stainless Steel Woven Wire Mesh Making Process

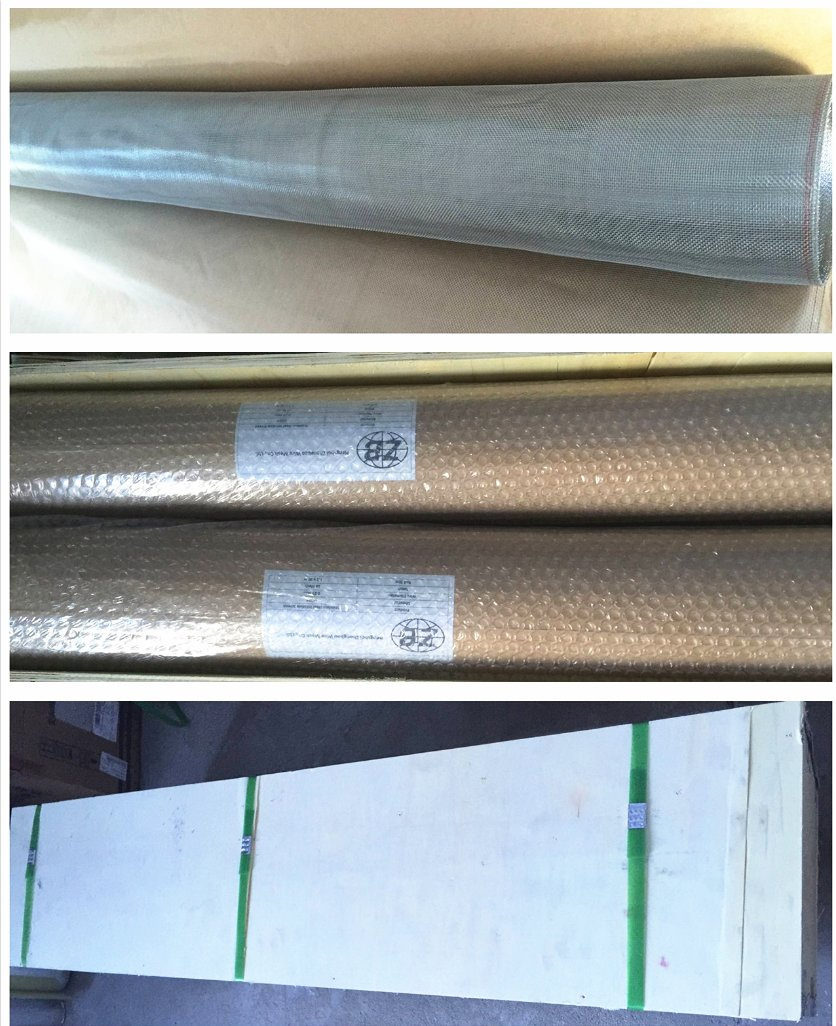

Stainless Steel Woven Wire Mesh Packing

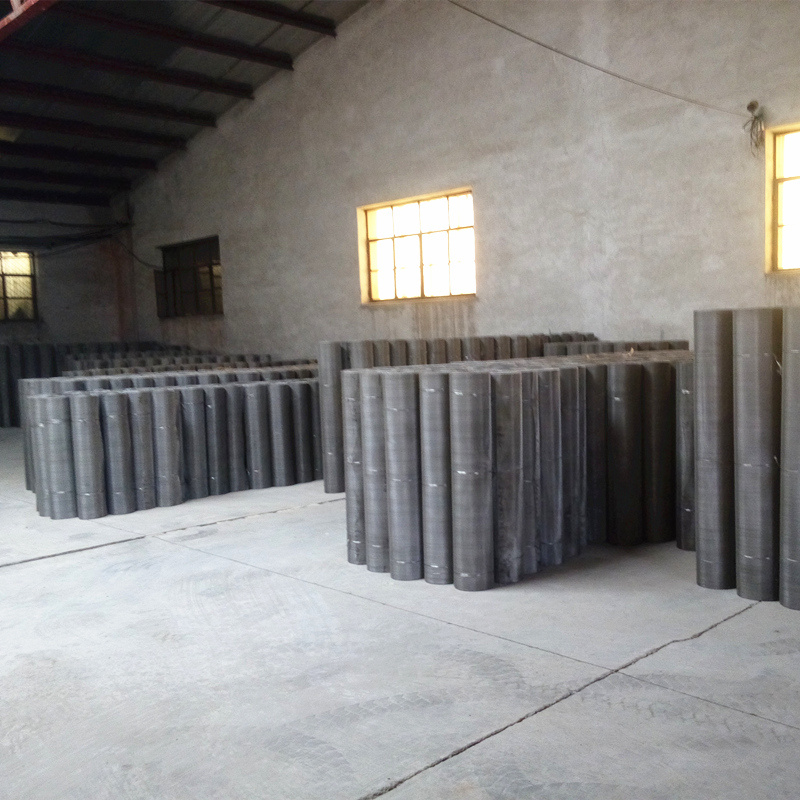

Stainless Steel Woven Wire Mesh in Warehouse

Prod Model:	ZB-WM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Other Material:	Copper, Brass, Black Iron Wire, etc.
Wire Diameter:	0.025- 3.5 mm
Overall Dimension:	1m X 30m, 1.2 M X 30m, 1.5 M X 30m
Hole Shape:	Square
Application:	Window Curtain
Type:	Stainless Steel Plain Wire Mesh
Material Type:	Stainless Steel Wire
Technique:	Woven
Certification:	ISO9001
Material:	304, 304L, 316, 316L, 201, 202, 430, etc.
Weave Technique:	Plain, Twill, Dutch, etc.
Wire Mesh Width:	1 M, 1.2 M, 1.5 M, etc.
Nickels:	8%-10%

Hengshui Zhongbao Wire Mesh Co., Ltd. Specializes in the customized manufacture of high quality and unique water and oil filters and filtration equipment. We also specialize in the design and production of decontamination plants. Oil, gas and water separation units are our specialty. Our mainly products are structured packing, wire mesh demister, stainless steel filter mesh, filter element, and so on.

Our company brings together a large number of outstanding scientific, technical and managerial personnel who are specifically trained in the research and development of unique filtration and purification techniques. Our company is equipped with advanced production, monitoring and self-contained testing equipment. Our products are widely used in the petroleum and chemical manufacturing industries, textile manufacturing, energy and electric power generation, heavy construction equipment, transportation and many other customized commercial needs.

We welcome your special requirements, and we can produce your prototypes or production runs on time due to flexible manufacturing schedules.
