| Price: | US $ 10.95-13/Piece |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |

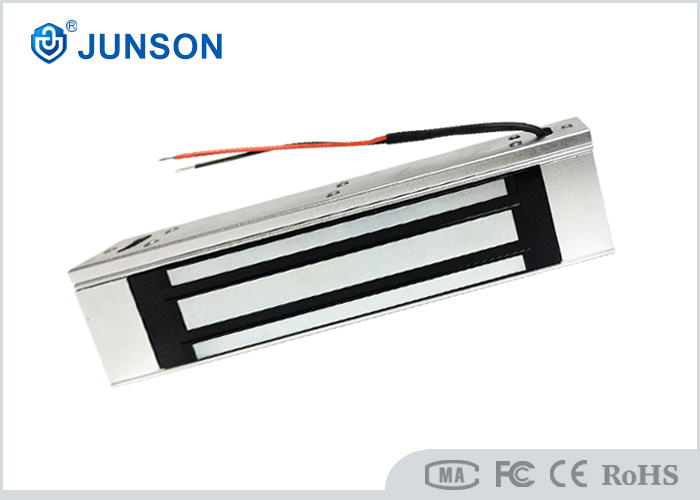

Single Door Gate Electromagnetic Lock 180kg 300lbs Access Control
Junson is very competitive in electric locks industry for access control system. Comparing to other factories in China, we have some advantages as follow.
Specifications:
Lock Dimension: | 170L * 40W * 21H (mm) |
Armature plate dimension: | 130L * 33W *12 H (mm) |
Holding force | 180Kg (300lbs) |
Voltage : | 12 / 24V DC |
Current : | 12V / 310mA, 24V / 160mA |

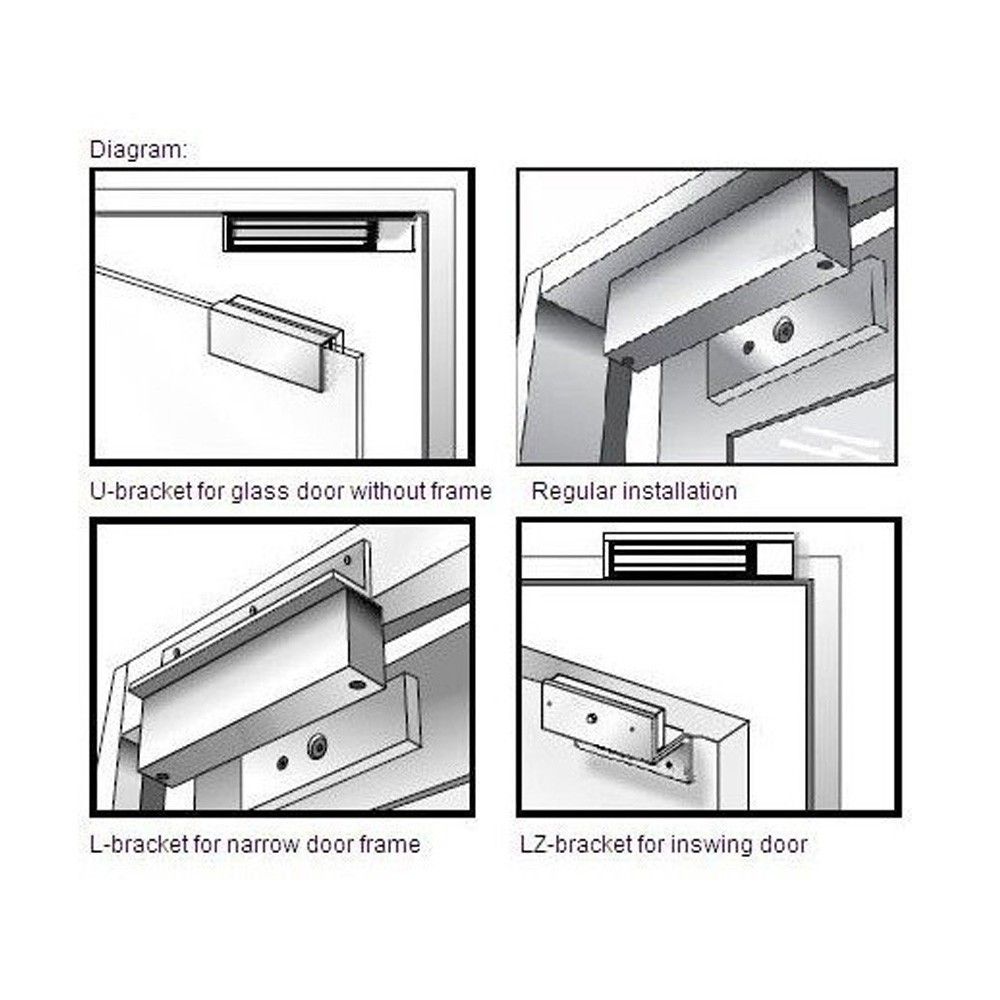

Available bracket | JS-18U, JS-18ZL, JS-18L |
Surface Temp: | ≤20ºC |
Operating Temp: | -10ºC - 55ºC |
Suitable Humidity: | 0-90% (non-condensing) |
Finishing for lock and Armature | Zinc |
Weight: | 1.2kg |
Standard Packing: | 20pcs |
Cartons size: | 40L * 18.2W * 28H (cm) |
1. Fail safe, Power to lock
2. Collinear Load Test 180kg, 300pounds
3. Dual Voltage 12 or 24 VDC(optional)
4. The Standard Voltage is 12VDC when Finished
5. MOV Provides Reverse Current Protection
6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
7. High Strength Material(kasolite steel), Anodized Aluminum Housing
8. Design with no Mechanical Bolt
9. Increase the holding Force, Dual Insulative Hosing
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.
FAQ
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty
for relative products. On the contrary, JUNSON will charge extra if repair.
More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt,
Electronic lock. Door lock. Access control.
| Prod Model: | JS-180 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: | 1.2kg/PCS |
| Holding Force: | 180kg(300lbs) |
| Voltage: | 12/24VDC |
| Materials: | Anodized Aluminum |
| Operating Temp: | -10~+55 °c (14-131f) |
| Suitable Humidity: | 0~90%(Non-Condensing) |
