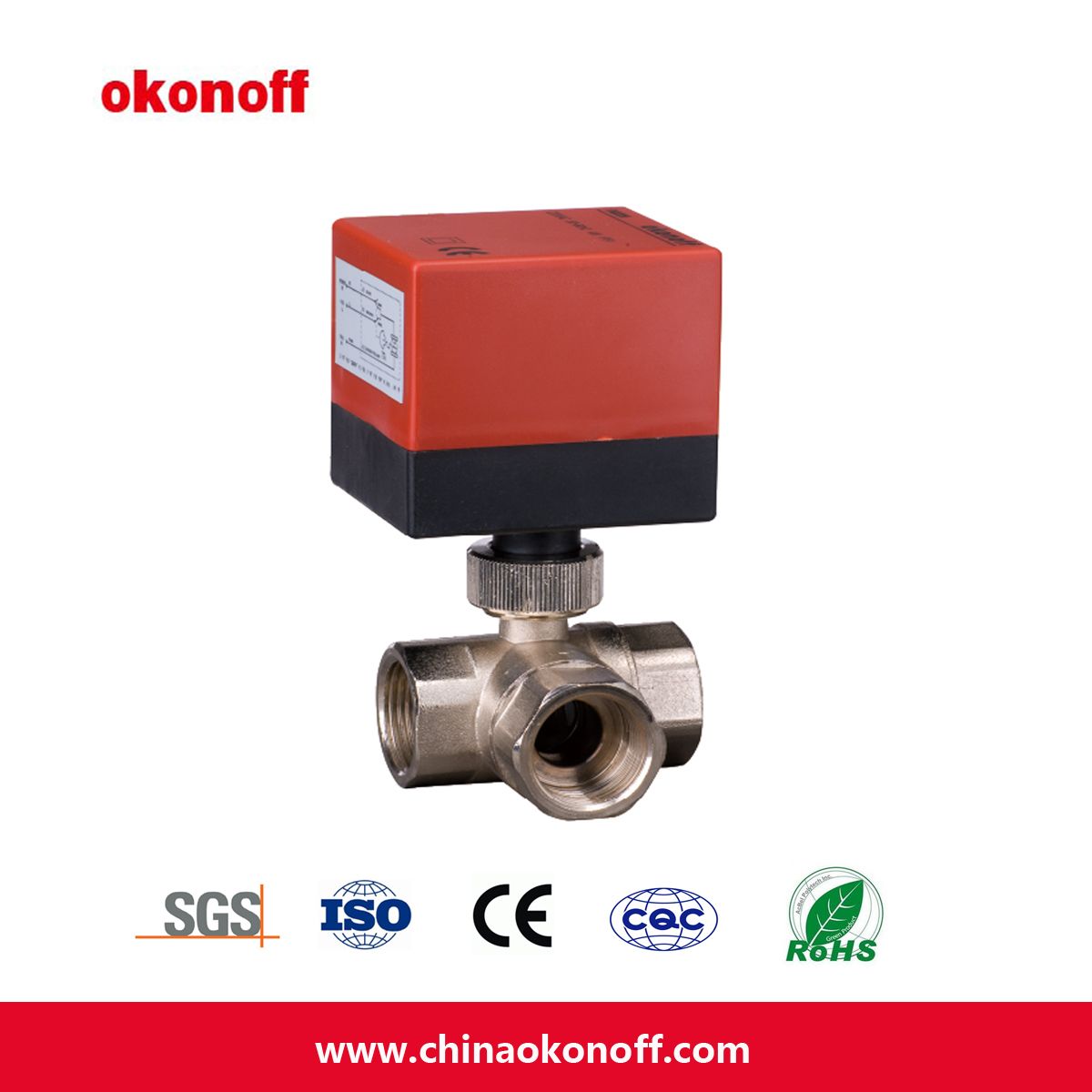

3-Way Brass Motorized Ball Valve (DQ320)

3-Way Brass Motorized Ball Valve (DQ320)
Price: US $ 18-20.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 200/Piece
Pay Type: L/C,T/T,Western Union


*DQ series of motorized ball valve are applied to controlling the on/off in the heating system and air-conditioning fan coil system, consist of ball valve and actuator.
*Actuator drives the ball valve rotate 90 degrees.
*Actuator adopts synchronous motor driver, internal limit contacts, can cut off the power when the valve is fully opened or closed, the action is stable.
*DQ series of motorized ball valve are widely used in the heating system, air-conditioning system and floor-heating system etc.

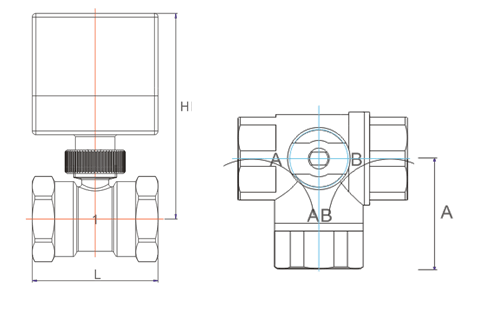

Model Spec.

Model
Spec.Dimension(mm)
Kv(m³/h)
DN (mm)Internal threadLHA

Two-way
DQ215151/2"62106.5 3.8
DQ220203/4"60.3106.5 7.3
DQ225251"70.2109 11.8
Three-wayDQ320203/4"64.5110436.0

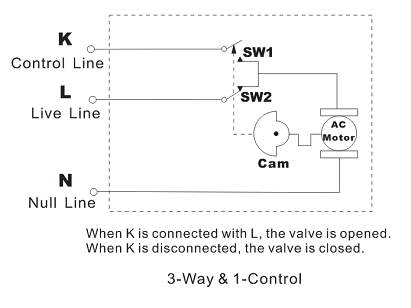

 Principle diagram
Prod Model: DQ320
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Consumption: 4W (Only When You Open and Close The Valve)
Running Time Of Each Action: <18s (Valve-on); <15s (Valve-off)
Applied Medium: Cold or Hot Water, Ethylene Glycol Liquor <50%
Medium Temperature: 0~90ºC
Working Environment Temperature: -5~50ºC
Grade Of Protection: IP54
Security Class: II (Double Insulation)
Material Of Valve Body: Precision Forging Brass (Surface Is Plated with Ni
Outer Material Of Actuator: ABS+PC Engineering Plastic
Base: Enhanced PBT (Fire-Resistant)
Material: Brass
Connection Form: Thread
Channel: Tee Type
Structure: Floating Ball Valve
Type: Flexible Ball Valve
Application: Household Usage
Nominal Pressure: 2.5MPa
Okonoff Company was founded in 2002, whose headquarter of Asia-Pacific areas is in Shanghai, China. It is an enterprise with new and high technology and integrates with design, manufacture and distribution of the HVAC auto-controlling products\heating (floor heating) auto-controlling products, building (accounting) auto-controlling systems, intelligent home systems and so on.

Okonoff has about 200 workers, plant area reach 26680 M2. Having 30 research staff, it is 15% of all staff. Investment of R&D is about 600 thousands RMB, it is about 20% of total investment. In many cities, okonoff set up offices, like Beijing, Hang Zhou, Guangzhou and so on.

Okonoff Company persists in enhancing the capacity of scientific and technological innovation as basis, humanistic knowledge-based as their duty and try best to make the living environments be comfortable and economic. Besides the present R & D team.

Okonoff Company set up okonoff Auto Control. INC in the United States by cooperating with some famous university and research institutions, the main purpose is to study and master the advanced auto-controlling technology and latest information about products. Now, the product developmental system has been in sync with international level and successfully developed six major productions ranges, more than 1, 000 varieties of products.

Okonoff Company treats the quality as the main principle of survival and development, strictly implements the IS9001 quality management system, increases the investment of advanced manufacturing and testing facilities, tries hard to structure accurate production system. Okonoff Company has been authorized the Quality-Trust Enterprise, one of ten Famous Brands in the industry, Shanghai High-Tech Enterprise, Scientific and Technological Demonstration Enterprise and so on. Most of our products have got CE, UL, TUV, RoHS certifications, test licenses, test reports, and over fifty products got patent protections, three products won High-tech Transformation Award, also we established the fund for the projects support and two products got "Software Copyright Registration" certification.

Okonoff Company always treats customers as the important core, we believe quality + service = customer satisfaction, and always remembers that "Serve every customers sincerely" is our first guideline, improves the marketing system gradually and makes the sale network cover the major cities. Now, our products have been widely applied in some large and important projects in China. The marketing aim of Okonoff Company is to achieve the simultaneous growth both on the domestic and international markets. Through the sustained investments, we gain good effects in the overseas markets; Products have been exported to Europe, the United States, Southeast Asia, Africa and so on.

Facing the global economy, we persist in the spirit of "Hard Work, Insist Principles, Keep Innovation, and Pursue Excellence". Now, Okonoff Company is carrying out the development strategy of "Specialization, Science and Technicalization, Internationalization ", try our best to enhance our company from the End-controlling device to the whole system integration.

We expect that in the HVAC area in the world, there is famous brand comes from China, her name is "okonoff"
