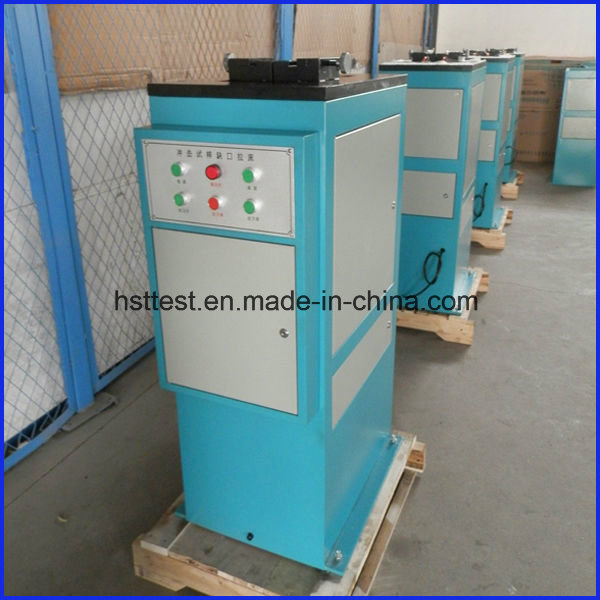

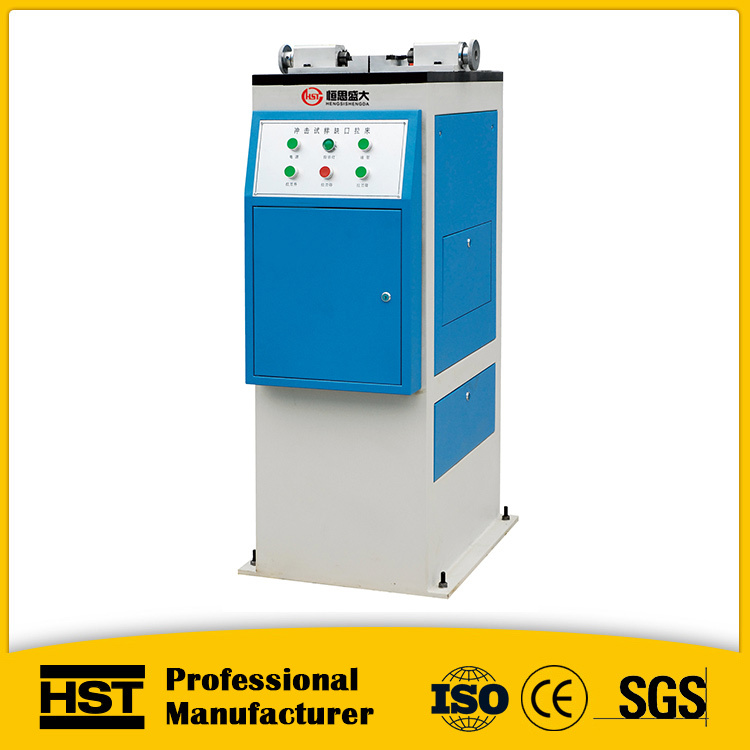

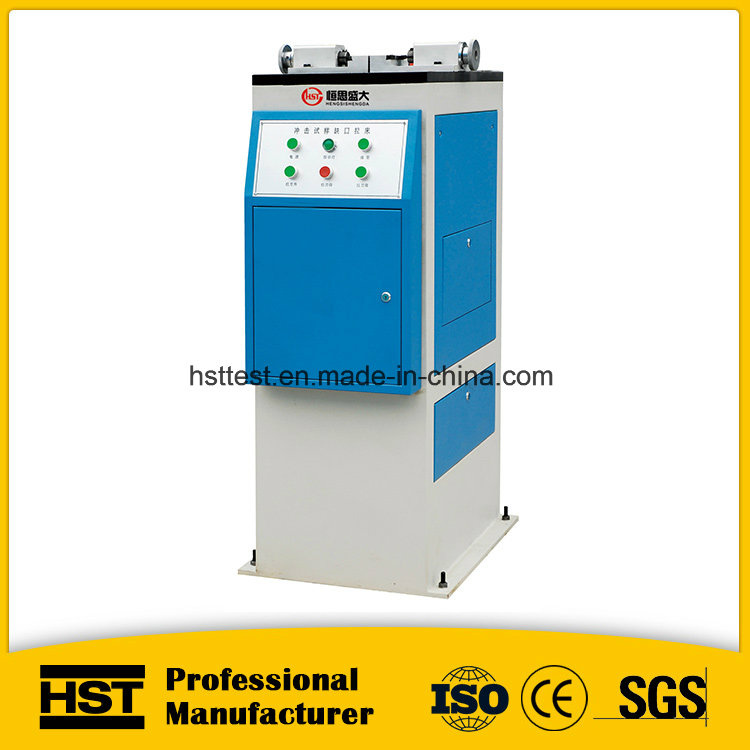

Home Toolbuy Products 2mm Vu Charpy Notch Cutter for Impact Testing Machine (VU-2Y)

2mm Vu Charpy Notch Cutter for Impact Testing Machine (VU-2Y)

2mm Vu Charpy Notch Cutter for Impact Testing Machine (VU-2Y)
Price: US $ 1500-3000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
charpy notch cutter for impact testing

Contact: sunny for more informations  Phone: +8615866777590
The machine is special processing equipment "metal Charpy notched impact test method" in the impact of the sample produced V-and U-requirements and developed according to GB / T229-2007, fully meet GB229-2007, ASTM, E23-02a, indicators specified in the standard EN10045, ISO148, ISO083 and so on.
The machine consists of working parts, hydraulic drive parts, electrical control, lubrication and cooling section, and other auxiliary section. Random configuration 2mm V type and 2mm U type broaches, a notch forming, one time can successfully draw two standard notch, broaches the use of special materials, special technology precision manufacturing, high hardness, wear resistance, long service life.
Main Technical Specifications:
Shape of sample notch2 mm V type,2 mm U type,
(U 3 mm, U 5 mm is optional )
Sample size(10, 7.5, 5 mm) x 10 mm x 55 mm
Cutting modeHydraulic
Journey of broachV2, U2, U3 350mm; U5 380mm
Broaching Speed2.5 m/min
Broach materialW18 Cr4V
Power supply220V 60Hz 400W
Max. Dimension660x500x1240mm

Dear Customer, with enough technical engineers and skilled workers, we could supply high quality machines with moderated prices. All the machines could be OEM and customized according to your special requests. Welcome to visit our factory in Jinan city, for more informations please contact Sunny for more details :
Jinan Hensgrand Instrument Co., Ltd
ADD: NO. 4915, West Jingshi Road, Jinan 250012, PR CHINA.
Tel: +86-531-58618759 82351201
Fax: +86-531-81901323
Mobile: +86-15866777590
Prod Model: VU-2Y
Delivery Time: 2 Days After Get Payment
Control And Deal Mode: Hydraulic Automatic Control
Certifications: Ce and ISO
Color: Gray or Green for Choice
Type: Impact Testing Machine
Weight: 100-500Kg
Power Source: AC220V
Load Way: Hydraulic
Control: Digital
Jinan Hensgrand Instrument Co., Ltd. Was established in 2001, is specialized in developing and manufacturing of testing equipment used for metal, non-metal and composite materials mechanic performance testing.

Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories. Most of them comes with CE and ISO certifications.

Products are widely used in steel metallurgy, machinery manufacturing, space flight and aviation, military, auto manufacturing, rubber industry, plastic industry, etc. UAS, UK, Germany, Italy, Canda, Singapore, Philippines etc. Are our main exporting countries.

"To make high quality products" is our manufacturing philosophy!

With scrupulous manufacturing process, large-scale production, strict quality management, normative user training and improved service system, our company is specialized in providing customers with humanized products which customers can rest assured to buy and use with ease.
