280kg/600lbs DC12V Aluminum Copper Coil Electronic Magnetic Door Lock for Single Door
| Price: |
US $ 14.5-18.2/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
280kg/600lbs DC12V Aluminum Copper Coil Electronic Magnetic door Lock for Single doorSpecification| Holding Force | 280kg (600Lbs) |
| Lock Status Indicator | Red and Green, double color LED |
| Lock Status Sensors | NO,NC,COM |
| Rated Operating Voltage | 12/24VDC |
| Current consumption | 12V/500mA 24V/250mA |
| Optional Functions | Relock Delay Timer,Buzzer |
| Surface finish for magnet | Zinc plated |
| Surface finish for armature plate | Zinc plated |
| Ambient temperature in °C | -10~+55ºC(14-131F) |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal |

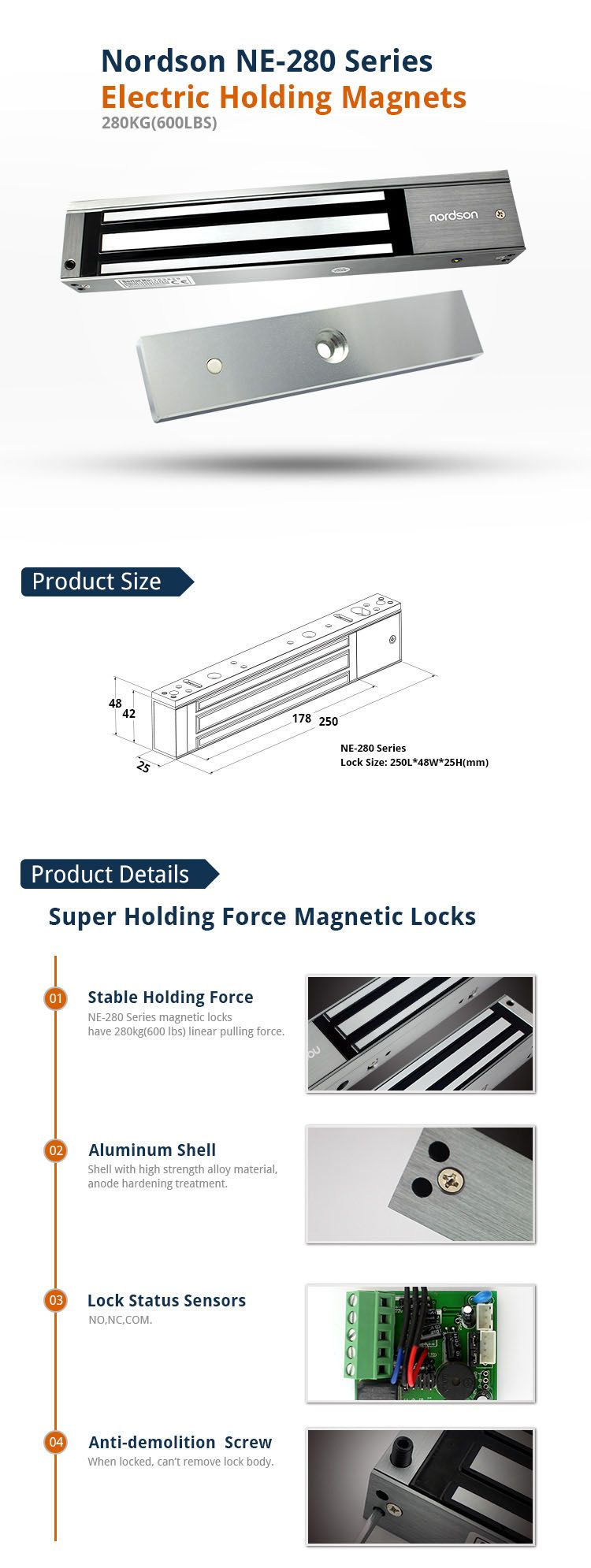

| Magnets Dimensions(L x W x D) | 250Lx48Wx25H(mm) |
| Armature Plate Dimensions(L x W x D) | 180L*38W*11H(mm) |
| Weight in kg | 2.0kg |
| CE-mark for building | Yes |
| Rohs-mark for building | Yes |

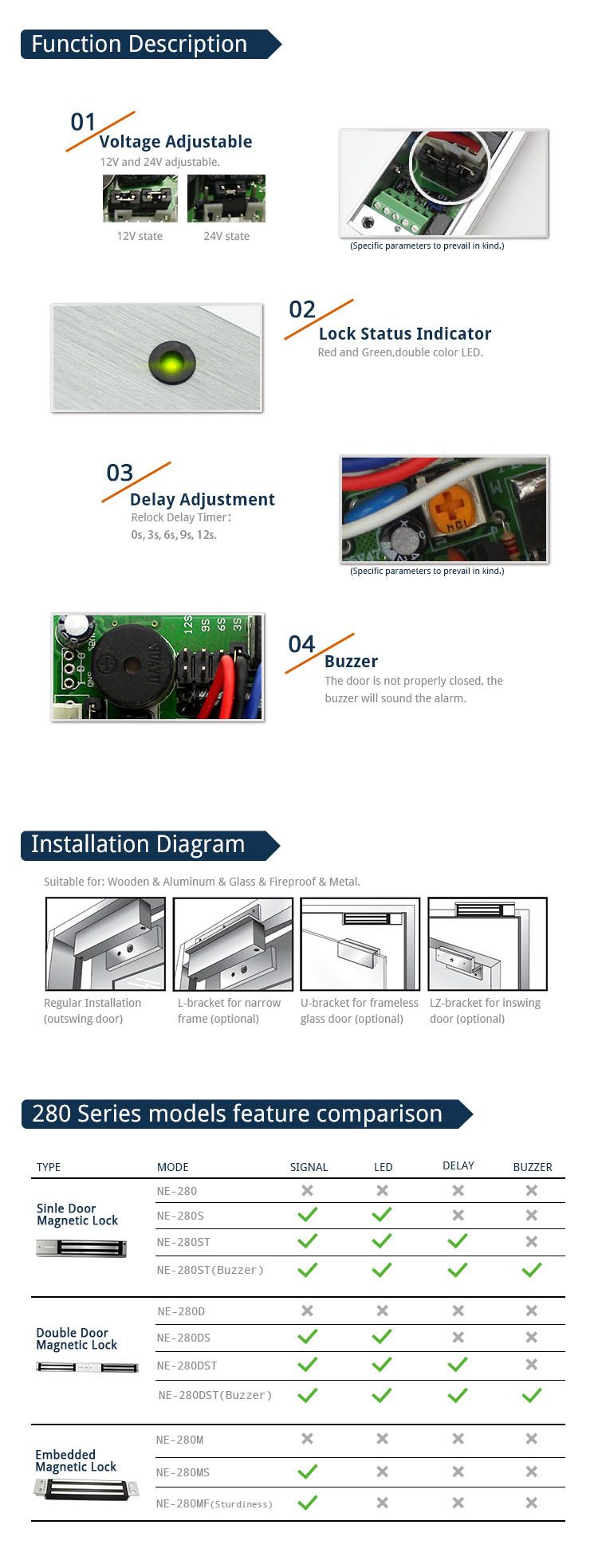

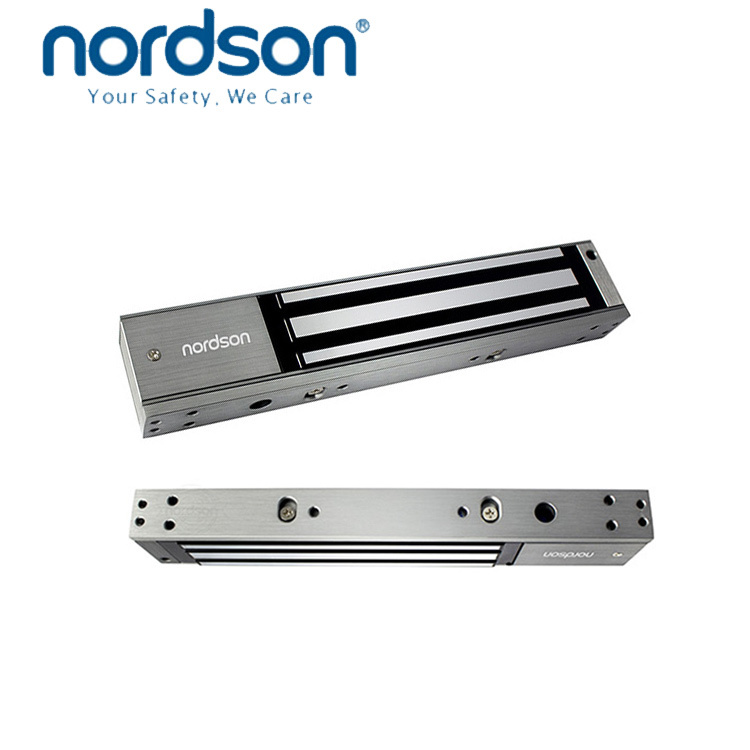

Product pictures show:
Packaging & Shipping
Packaging: Neutral Package.
Shipping: Small quantity within 1-5 work days after receipt of remittance, large quantity within 14 work days after receipt of remittance.
Our Services
For the non-human factors of product quality issues, NORDSON offer three-year warranty services for electromagnetic lock; 3-year warranty for access control panel, electric bolt and electric strike; 1 year warranty for exit button, bracket, and power supply. The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
| Prod Model: |
NE-280S(LED) magnetic door lock |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Holding Force: |
280kg (600lbs) |
| Relock Delay Timer: |
0,3,6,9 Seconds Open Time Delay Is Adjustable |
| Lock Status Indiccustomization Available: |
Red and Green, Double Color LED |
| Lock Status Sensors: |
No,Nc,COM |
| Rated Operating Voltage: |
12/24VDC |
| Optional Functions: |
Buzzer |
| Surface Finish For Magnet: |
Zinc Plated |
| Suitable For: |
Wooden & Aluminum & Glass & Fireproof &Metal |
| Magnets Dimensions(L X W X D): |
250lx48wx25h(mm) |
| Weight In Kg: |
2.0kg |
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China. After years of arduous pioneering, we create a powerful capabilities of product development and manufacturing. Ourbusiness scope involves magnetic lock, bolt lock, strike lock, door contract, accesscontroller, automatic door operator and access control solution.
Nordson pursuited for excellence all the time. We makethe brand to be top-ranking in China with advanced crafts and rigoroustechnologies. Up to now, all our products pass the certifications of CE, RoHS, andalso pass the quality test of security products by China's Ministry of PublicSecurity. Nordson's products sell and be agent in more than 100 countries andregions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India, Russia etc...Besides, Nordson provides OEM and ODM services also. Nordson'sproducts are widely used in business institutions, government agencies, residentialcommunities, universitiesand so on.
In future, Nordson will pursuite for more excellent performance, and provide more new items and better services. Our customers will growtogether with us, to be strong in the process Nordson become the most powerfulenterprise of security system in China.
History
2006 Nordson wasfouned.
We were agent to sell electric locks andaccess control system products.
2008 Nordson Electronicsopened a factory.
We supplied electric locks for buildingprojects and customized production for OEM customers.
2010 NordsonElectronics Co., Limited was founded in HongKong.
We fully entered theHongKong market.
2012 InternationalTrade Department of Nordson Electronics(Shenzhen) is founded.
We were absorbedto oversea marketing and development.
2014 The trademark "Nordson"was registered in China mainland.
We wereconcentrated on product development and branding.
2015 We are opening upa new age of access control.
