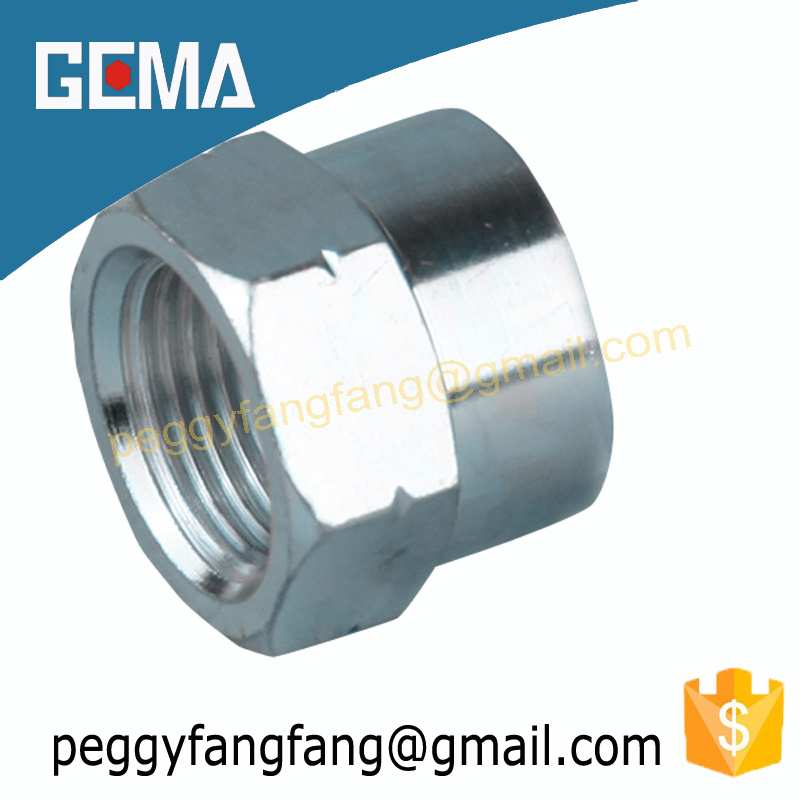

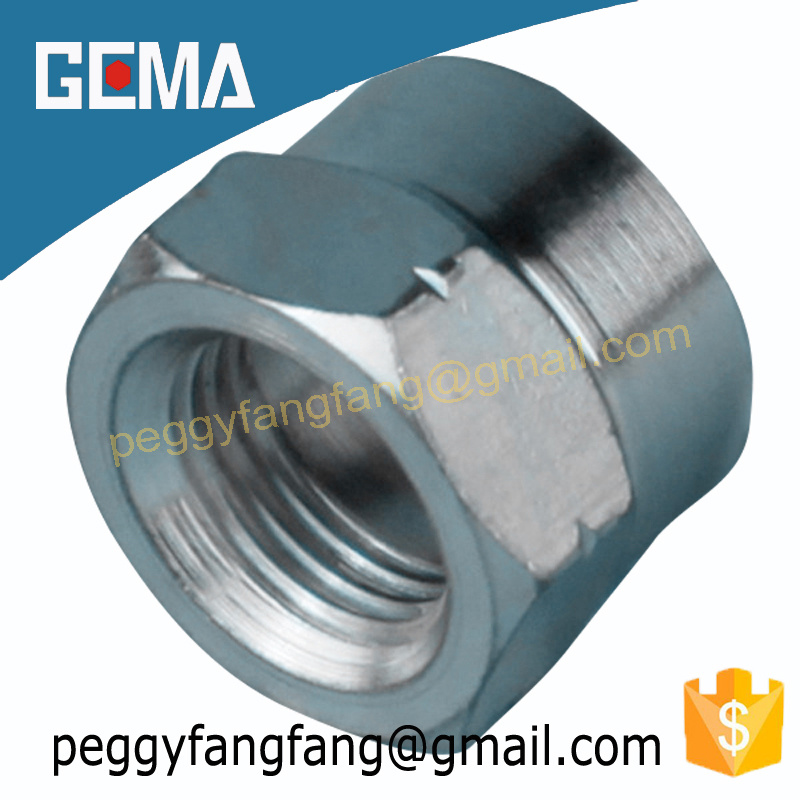

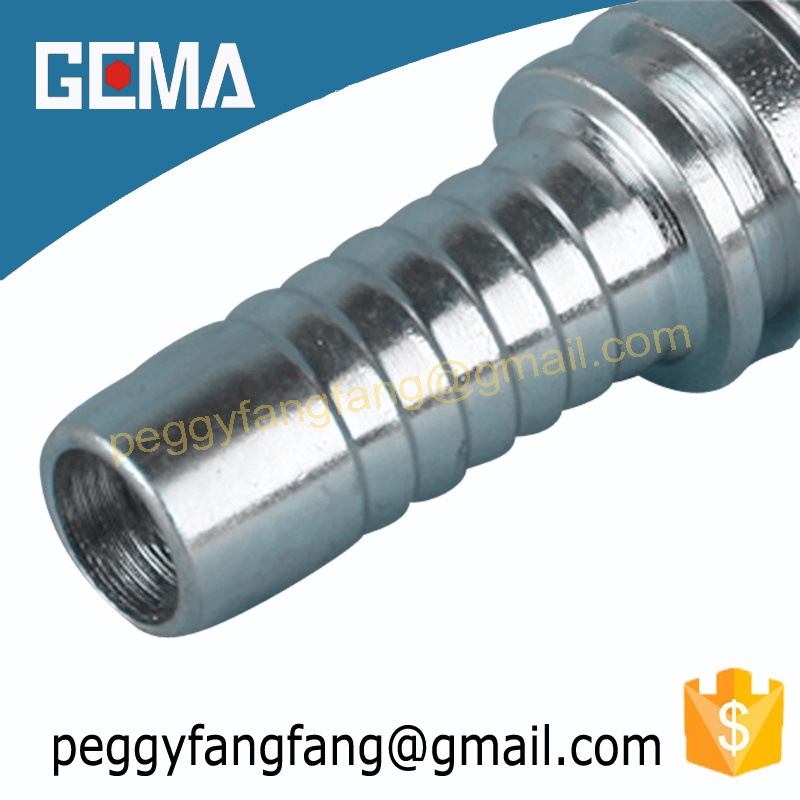

22611 standard carbon steel zinc BSP female hydraulic hose fitting for machineryWe are manufacturing and marketing all kinds of hydraulic fittings, we can also produce according to customers' drawings or samples.| Description: | | | | | | |
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | C | S2 |
| 22611-02-03 | G1/8"X28 | 5 | 3 | 15 | 5.5 | 14 |
| 22611-02-04 | G1/8"X28 | 6 | 4 | 15 | 5.5 | 14 |
| 22611-04-03 | G1/4"X19 | 5 | 3 | 17 | 5.5 | 19 |
| 22611-04-04 | G1/4"X19 | 6 | 4 | 18 | 5.5 | 19 |
| 22611-04-05 | G1/4"X19 | 8 | 5 | 18 | 5.5 | 19 |
| 22611-04-06 | G1/4"X19 | 10 | 6 | 18 | 5.5 | 19 |
| 22611-06-04 | G3/8"X19 | 6 | 4 | 19 | 6.3 | 22 |
| 22611-06-05 | G3/8"X19 | 8 | 5 | 19 | 6.3 | 22 |
| 22611-06-06 | G3/8"X19 | 10 | 6 | 19.5 | 6.3 | 22 |
| 22611-06-08 | G3/8"X19 | 12 | 8 | 19.5 | 63 | 22 |
| 22611-08-08 | G1/2"X14 | 12 | 8 | 21.5 | 7.5 | 27 |
| 22611-10-08 | G5/8"X14 | 12 | 8 | 22 | 9.5 | 30 |
| 22611-10-10 | G5/8"X14 | 16 | 10 | 23.5 | 9.5 | 30 |
| 22611-12-10 | G3/4"X14 | 16 | 10 | 24 | 10.9 | 32 |
| 22611-12-12 | G3/4"X14 | 20 | 12 | 24 | 10.9 | 32 |
| 22611-16-14 | G1"X11 | 22 | 14 | 26 | 11.7 | 41 |
| 22611-16-16 | G1"X11 | 25 | 16 | 27 | 11.7 | 41 |
| 22611-08-06T | G1/2"X14 | 10 | 6 | 21 | 7.5 | 27 |
| 22611-12-08T | G3/4"X14 | 12 | 8 | 22 | 10.9 | 32 |
| 22611-16-12T | G1"X11 | 20 | 12 | 24 | 11.7 | 41 |
| 22611-20-16T | G1.1/4"X11 | 25 | 16 | 27.5 | 11 | 50 |
| 22611-24-20T | G1.1/4"X11 | 32 | 20 | 32 | 13 | 55 |
| 22611-32-24T | G2"X11 | 40 | 24 | 30 | 16 | 70 |
| 22611-20-20W | G1.1/4"X11 | 32 | 20 | 30.5 | 11 | 50 |
| 22611-24-24W | G1.1/2"X11 | 40 | 24 | 32 | 13 | 55 |
| 22611-32-32W | G2"X11 | 50 | 32 | 31.9 | 16 | 70 |
Main Product
1. Swaged Metric Fittings
Mertic Flat Seal Fittings
Metric Multiseal Fittings
Metric 60°Cone Seal Fittings
Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T Fittings
Metric 24°Cone O-RING Seal H.T.Fittings
Metric Standpipe Straight Fittings
JIS Metric 60°Cone Seal Fitting
2. Swaged British Fittings
BSP O-RING Seal Fittings
BSP Flat Seal Fittings
BSP Multiseal Fittings
BSP 60°Cone Seal Fittings
BSPT Fittings
JIS BSP 60°Cone Seal Fittings
3. Swaged American Fittings
SAE O-RING Seal Fittings
ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings
JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittiings
SAE Flange H.T.Fittings
4. Staplelok Fittings
Banjo Double connection
Interlock Hose Fittings
5. Ferrule
Ferrule for SAE100R1AT/ EN 853 1SN Hose
Ferrule for SAE100R1A EN 853 1ST Hose
Ferrule for SAE100R2AT/DIN20022 2SN Hose
Ferrule for SAE100R2A/EN 853 2SN Hose
Ferrule for SAE100R1AT-R2AT, EN853 1SN-2SN and EN 857 2SC
Ferrule for 4SP, 4SH/10-16,R12-06-16 Hose
Ferrule for 4SH, R12/32 Hose
6. Metric Adapters
Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
JIS Metric Thread 60°Cone Adapters
Metric Thread 74°Cone Flared Tube Adapters
7. British Adapters
BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8. American Adapters
ORFS Adapters JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample. Please contact our sales person for the free sample.
Specifications:

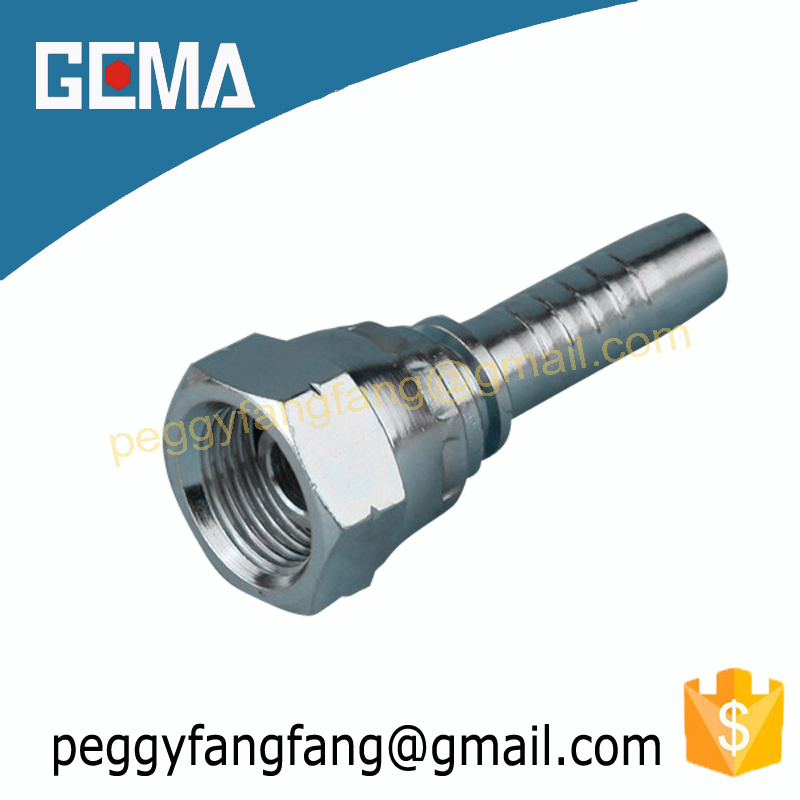

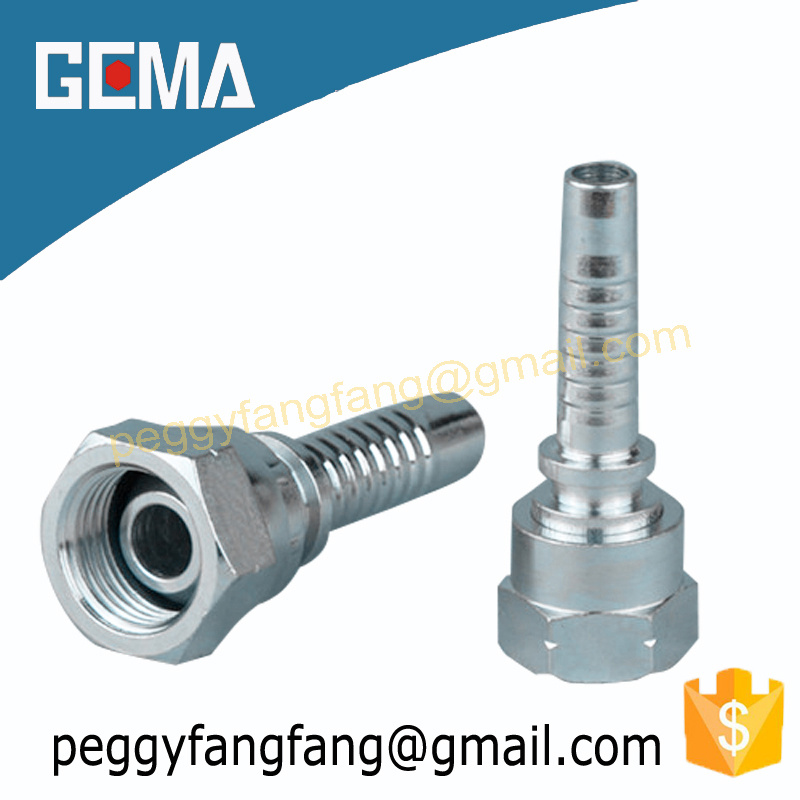

JIC Female 74 Degree Swivel Hose End (26791)
| Part No. | Thread E | Hose Bore | Dimensions | |
| DN | DASH | A | C | H | S2 |
| 26791-04-03 | 7/16"x20 | 5 | 03 | 26.5 | 9 | 30.5 | 15 |
| 26791-04-04 | 7/16"x20 | 6 | 04 | 30 | 9 | 33.5 | 15 |
| 26791-05-04 | 1/2"x20 | 6 | 04 | 30 | 9.5 | 34 | 17 |
| 26791-05-05 | 1/2"x20 | 8 | 05 | 33 | 9.5 | 37 | 17 |
| 26791-05-06 | 1/2"x20 | 10 | 06 | 35.3 | 9.5 | 39.3 | 17 |
| 26791-06-04 | 9/16"x18 | 6 | 04 | 30 | 10.5 | 34 | 19 |
| 26791-06-05 | 9/16"x18 | 8 | 05 | 33 | 10.5 | 37 | 19 |
| 26791-06-06 | 9/16"x18 | 10 | 06 | 35.3 | 10.5 | 39.3 | 19 |
| 26791-06-08 | 9/16"x18 | 12 | 08 | 35.8 | 10.5 | 39.8 | 19 |
| 26791-08-06 | 3/4"x16 | 10 | 06 | 35.3 | 11 | 41.3 | 24 |
| 26791-08-08 | 3/4"x16 | 12 | 08 | 41 | 11 | 47.5 | 24 |
| 26791-08-10 | 3/4"x16 | 16 | 10 | 49 | 11 | 47.5 | 24 |
| 26791-10-08 | 7/8"x14 | 12 | 08 | 41 | 13 | 48 | 27 |
| 26791-10-10 | 7/8"x14 | 16 | 10 | 56 | 13 | 52.5 | 27 |
| 26791-10-12 | 7/8"x14 | 20 | 12 | 64.9 | 13 | 62 | 27 |
| 26791-12-08 | 1.1/16"x12 | 12 | 08 | 41 | 15 | 49.5 | 32 |
| 26791-12-10 | 1.1/16"x12 | 16 | 10 | 56 | 15 | 54 | 32 |
| 26791-12-12 | 1.1/16"x12 | 20 | 12 | 65.5 | 15 | 63.5 | 32 |
| 26791-12-16 | 1.1/16"x12 | 25 | 16 | 74 | 15 | 63.5 | 32 |
| 26791-14-12 | 1.3/16"x12 | 20 | 12 | 65.5 | 15 | 63.5 | 36 |
| 26791-16-12 | 1.5/16"x12 | 20 | 12 | 65.5 | 16 | 63.5 | 41 |
| 26791-16-16 | 1.5/16"x12 | 25 | 16 | 76.7 | 16 | 70 | 41 |
| 26791-20-20W | 1.5/8"x12 | 32 | 20 | 91.5 | 17 | 80.5 | 50 |
| 26791-24-20W | 1.7/8"x12 | 32 | 20 | 91.5 | 20 | 80.5 | 55 |
| 26791-24-24W | 1.7/8"x12 | 40 | 24 | 109.4 | 20 | 94 | 55 |
| 26791-32-32W | 2.1/2"x12 | 50 | 32 | 133.1 | 23.5 | 121.8 | 75 |
Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 26792-**-**.
