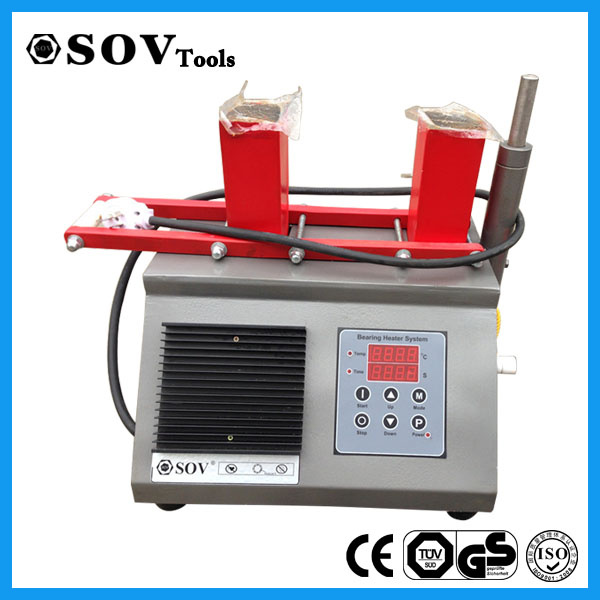

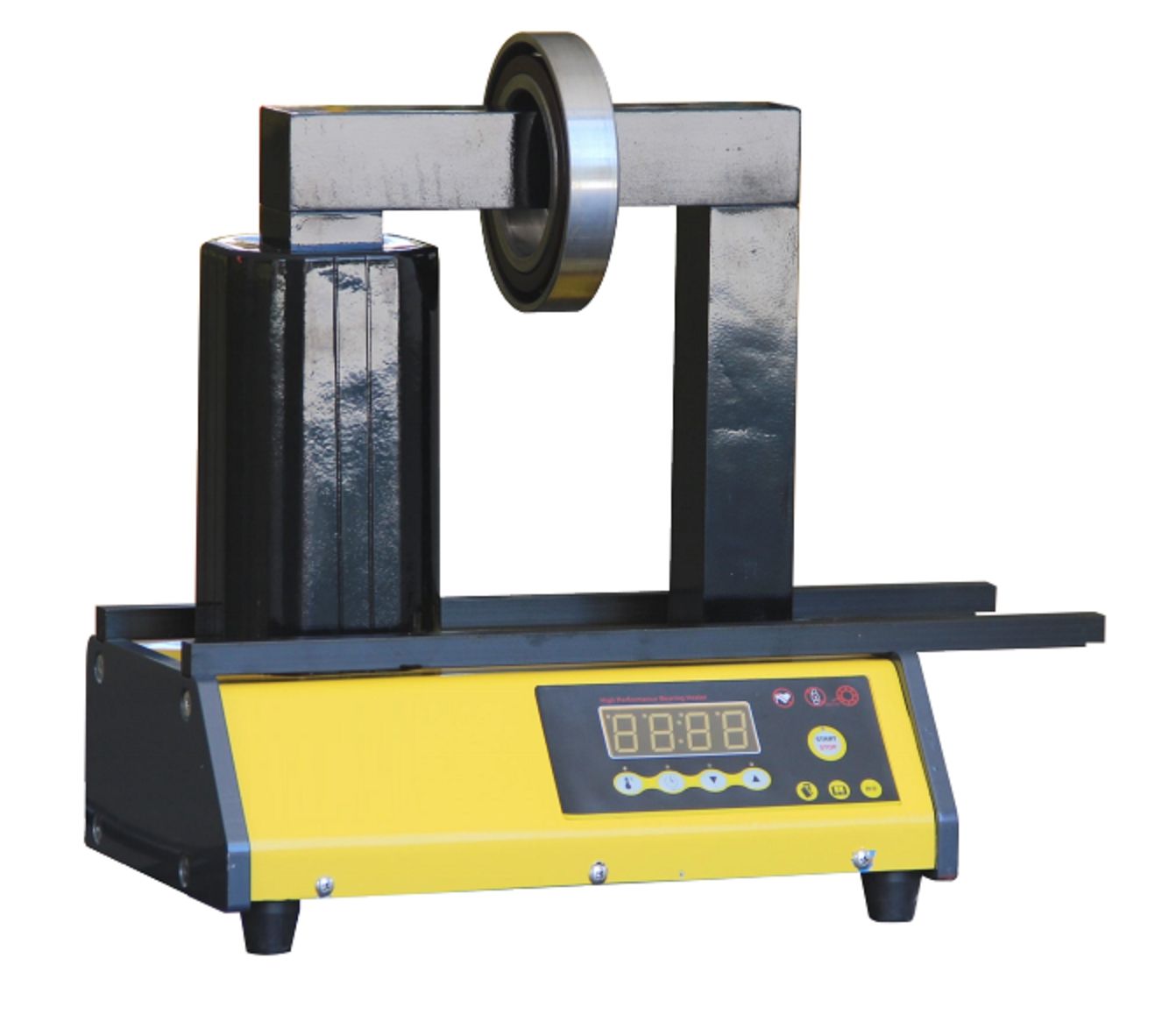

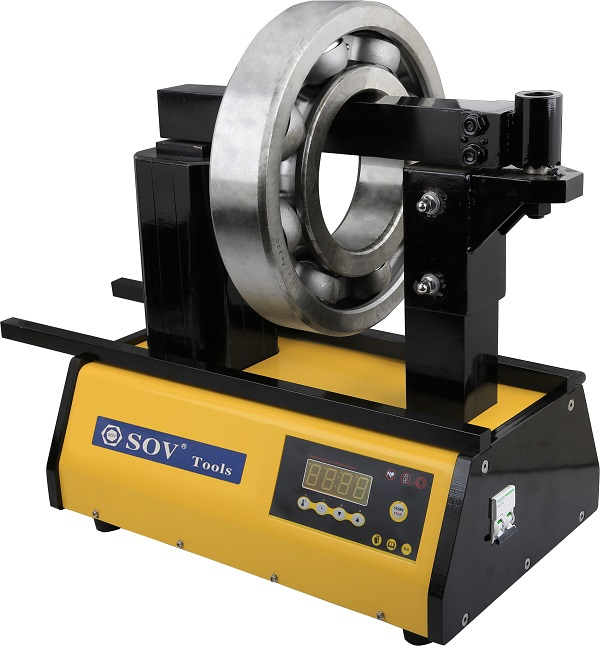

220V/380V Electric Induction Coil Heater for Workshop

220V/380V Electric Induction Coil Heater for Workshop
Price: US $ 1000-4800/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Features:
Adopt electromagnetic induction heating mode, so that the work-piece is heated directly, heating more evenly, has constant temperature and timing two heating methods, with the characteristics of automatic heat preservation, manual/automatic demagnetization, over-heat protection and so on. Safe, convenient and quick operation.

SOV-RMD-22 model:
*Compact design, strong power, microcomputer control;
*Mainly used for bearing or circle metal work-piece weighing less than 12kg, equipped with four heating rods, total weight within 16kgs.

SOV-RMD-40 model:
*Small size, intelligent control, strong power,microcomputer control;
*Intelligent adjustment of output power;
*Easy to heat 25kg bearing or other circle metal parts, equipped with 4 heating rods, the total weight is within 26kg.

SOV-RMD-100 model:
*Rotary heating rod, intelligent control, strong power,microcomputer control;
*In the operation process, only need to operate work-piece, because the heating rods do not need to be promoted manually, therefore avoids unnecessary operation, reduces possibility of work-pieces being polluted by dust, iron chips and so on.

SOV-RMD-120 model:
*Rotary heating rod, intelligent control, movable, microcomputer control;
*Generally used in the maintenance workshop and production field. It is easily to move and can be used to heat bearing within 350kg or other circle metal.

SOV-RMD-150 model:
*Rotary heating rod, intelligent control, movable, microcomputer control;
*Generally used in the maintenance workshop and production field. It is easily to move and can be used to heat bearing within 500kg or other circle metal.

SOV-RMD-240 model:
*Rotary heating rod, movable, microcomputer control;
*Easy to move, mainly used for heating the non-standard work piece which is quite width and large inner diameter;
*The heating work piece width up to 600mm.

SOV-RMD-400 model:
*Electric moving heating rod, turbine propulsion type, microcomputer control;
*Mainly used for the heating of the outer wheel of EMU and high-speed rail, bearing cover, wind power bearing seat and so on;
*The heating work piece width up to 500mm.

SOV-RMD-600 model:
*Mainly used for the heating bearing cover, wind power bearing seat and so on;
*The width of heating work piece is up to 400mm.

SOV-RMD-800 model:
*Two points temperature control, internal and external circles to be heated at same time;
*Mainly used for heating the PMSG main bearing (combined), pipe welding preheating;
*The diameter range of heating bearing is 1000-3000mm, heat and detect inner and outer circle temperature, evenly heated and expanded.

Technical Parameters:
ModelVoltageCurrentCurrent FrequencyPowerDimensionsWeightWorking Range
(V)(A)(HZ)(KW)(mm)(kg)Min. internal
Diameter of
Work-piece
(mm)
Max.
Diameter of
Work-piece
(mm)
Max.
Width of
Work-piece
(mm)
Max.
Weight of
Work-piece
(mm)
Max.
Temperature

(°)
SOV-RMD-222201050/602.2300×210×30016.6Hang: 15
Level: 60
220Hang: 65
Level: 95
Bearing: 15
Others: 9
240
SOV-RMD-402201850/604480×270×34027Hang: 20
Level: 120
480Hang: 130
Level: 175
Bearing: 50
Others: 35
240
SOV-RMD-100Two
phase
380
2550/6010540×330×50085Hang: 45
Level: 140
720Hang: 195
Level: 215
Bearing: 150
Others: 100
240
SOV-RMD-120Two
phase
380
3050/6012920×450×930180Hang: 45
Level: 110
860Hang: 295
Level: 305
Bearing: 350
Others: 240
240
SOV-RMD-150Two
phase
380
3850/60151460×700×1100275Hang: 60
Level: 180
1020Hang: 375
Level: 315
Bearing: 450
Others: 600
240

ModelVoltage
(V)
Current
Frequency
(HZ)
Heating
Power
(KW)
Min. Internal
Diameter
(mm)
Max.Internal
Diameter
(mm)
Width of The
Work-piece
(mm)
Heating Rod Size

(mm)
SOV-RMD-24038050241451300630100×100×750
SOV-RMD-400Two phase
380
40301500500150×150×800
SOV-RMD-600Two phase
380
602001500400200×200×825
140×140×825
SOV-RMD-800Three phase
380
8010003000400/





Package and Delivery

1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery

Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.

Company information
Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.



Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.


Main Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions (4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


FAQ
Q1:How can contact sales?
A1:Please call:0086 21 685 61366 for pre-sales or click the contact find our website and email address.

Q2:How can I buy SOV products in my country?
A2:Please send us an inquiry or email, we will reply to your if there is distributor in your country.

Q3:Can I have SOV products catalog and price list?
A3:Please visit our English website:Www.Sovhydraulic.COM to download our E-catalog, and send us an email for price list

Q4:How long does it take to get the product If I place an order?
A4:If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days.If you select international parcel service, it can be arrived in 3-7 days.If it is by sea shipment, it will take 15-45 days depending on different locations.

Q5:How to make payment?
A5:First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.

Q6:Manufacturing time?
Q6:Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days.If it is customized, not our standard products, it will take 20-45 days to produce.

Why Choose SOV?
Quality --- SOV has been in the industry for than 20 years.We have been trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands.We put quality as lifeline.We never manufacture or sale defected product, or lowering our price at the cost of products quality.
Service --- SOV promised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.

Prod Model: RMD Series
Name: Induction Bearing Heater
Min. Diameter (mm): 60-180
Power (Kw): 15
Rated Voltage(V): 380
Frequency(Hz): 50
Extending Rod: Customized
Warranty: 1 Year
OEM: Yes
