2017 Wire Straightener Hand Tool Another Word for Wedding Arch Machine

2017 Wire Straightener Hand Tool Another Word for Wedding Arch Machine
Price: US $ 380/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Technical specification of 24-wheel straightening device
Model: JZQ--24/7AV.
Specification of straightening wire 0.05-0.2MM
Application: Solid material for 0.05-0.2MM
Material of straightening wire:Carbon steel, aluminum, copper and solid material.
Diameter of straightening wheel:Φ7mm
Groove type of straightening wheel:V-type R-type U-type
Quantity of straightening wheel:24 wheels
Straightening wire form:A group of horizontal, A group of vertical, each group have 12 wheels.
Adjustment of straightening wheel:The mobile part of straightening wheel is independent.
Dimension of straightening device: 220mm(L)*120mm(W)*120mm(H),.

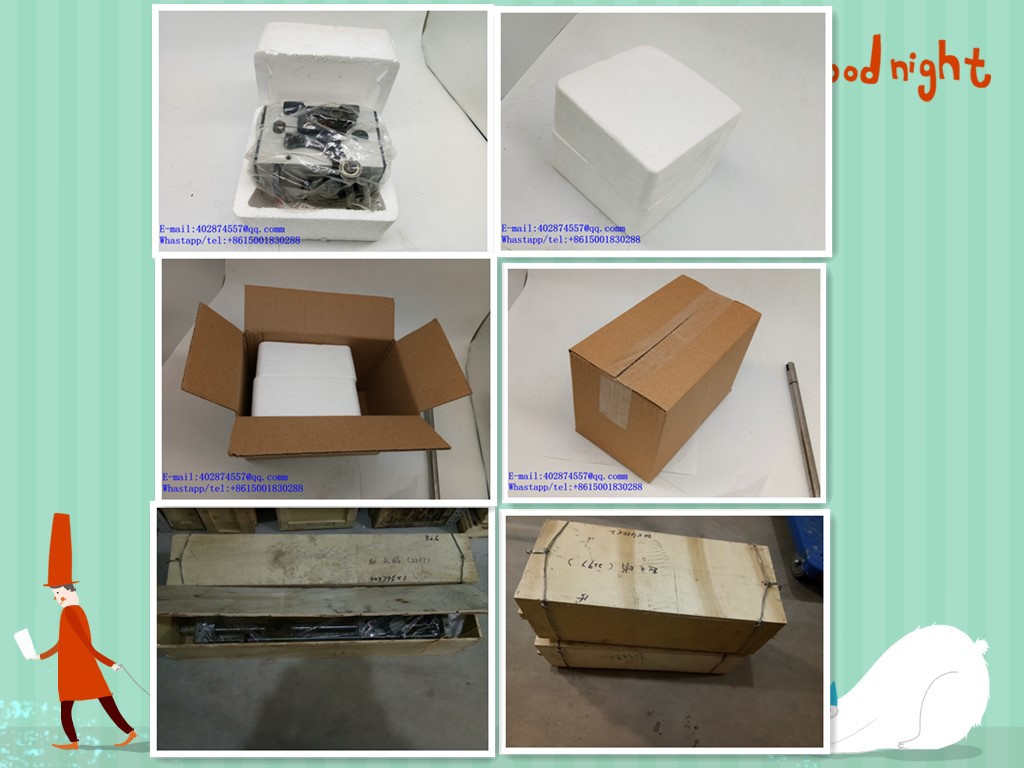

Packaging: Wooden case.
Net weight: Approx.2.8KG.
Letter explanation of straightening device: For example: J Z Q---24/7AV
JZQ--- straightening device (The first letter).
24-----The quantity of straightening wheel;
7-----Diameter of straightening wheel.
A----- A type straightening wheel is the overall opening and closing form;
B----B type is single straightening wheel independent mobile regulation;
T---- T type is a special straightening device

Straightening adjustment method: It is related to the center distance between the straightening wheels, either the horizontal or vertical straightening wheel, in the longitudinal direction (i.e., along the forward direction of the copper tube), the distance between two adjacent wheels should be small (but not equal to zero), and the straightening effect will be better, however, the center distance in this direction is fixed and can not be adjusted. However, the center distance in the other direction (For the horizontal straightening wheel is horizontal; for the vertical straightening wheel is vertical ) is adjustable. In this direction, the center distance between adjacent wheels is adjustable. In this direction, the center distance between the two rounds is too large or too small is not enough. Too large is not straight, when too small, after the completion, it will appear the wave shape in the full length. Since the copper tube is hard, the elasticity is bigger, you can adjust the center distance between the two wheels to slightly smaller than the theoretical size, when transferred to a certain extent, it will be straight.







Detailed Images





FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

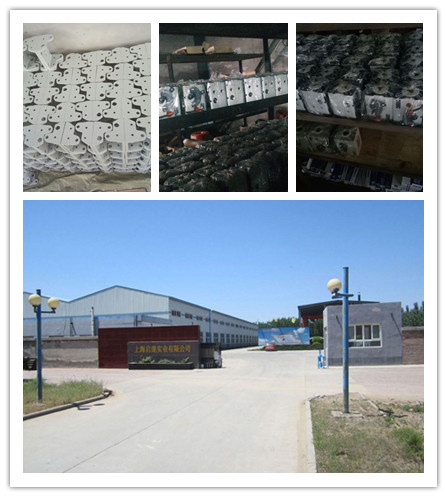

Our company
Kunshan Qipang mechanical and electrical equipment Co., Ltd was established in 2013. Our company is a high-tech enterprise that develops and make the series polished shaft rolling ring drive and wire straightener earliest in China. The company is located in the JiaDing, Anting auto city, which is the world financial center in Shanghai. It is very convenient.
We always adhere to the talent oriented and honest business principles since our company established . Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.
We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.

Main products
We are producing and selling: rolling ring drives, linear drives, linear drives nut, wire straightener, automatic wire straightening and cutting machine, automatic coiling & packaging machine, drawing and rolling machine, automatic yarn winding machine and accessories for rolling ring drives.


Contact




Prod Model: JZQ-24/7AV
Type: Rotating Anti-Bending and Straightening Machine
Usage: Bar
1. Kunshan rev pang mechanical and electrical equipment Co., Ltd is specialized in the production of polished rod domestic wiring device manufacturers, is located in kunshan international flower bridge development zone, the factory technical force is abundant, the strong independent development. Product design is reasonable, the performance is perfect, the factory for many years continuously upgrade, the technique and technology and the introduction of Germany this year, produce aluminium alloy material of the third generation of products, performance is more outstanding, more beautiful models. Precision is high, the infinite speed, instantaneous commutation, high-speed work, good housing assembly easy disassembly, to our factory: " Quality first, credit first, customer first" For business purposes, to establish and perfect the huge sales and service network, providing customers with quick and convenient services, over the years products have been in the domestic leading position, we warmly welcome new and old customers work together to create a better future.

The main business scope: JZD series straightening device, GP series polished rod thread

2. GP15-60 type of polished rod wire - some (series ribbon cable, type B series ribbon cable, C series, rows of three poles platoon line, parallel bars, rows of make to order according to the drawing wiring, iron shell ribbon cable, aluminum wire)
3, Coiling machine winding machine
4, Automatic winding machine for ribbons
Atuomatic coiling packaging machine
5, Qi Pang Industrial Co., Ltd is a professional manufacturer which is specialized in making rolling ring linear drives (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), The company is located in the JiaDing district, Anting Town, which is the world financial center in jiangsu

6, Take-up machine and paying off machine
7, Wire guide accessories linear drive nut
8,
High-speed automatic wire-arranging coiler is suitable for coiling of 0.5-6mm2 cable wires and a small section cables. It is characterized by high production efficiency and superiority in high quality wire-arranging among its peers.
Wire coil winding machine
1. Automatic wire-arranging: The take-up rate is 2-3 times that of traditional models.
2. Rapid coiling installation: Loop after being coiled can be removed quickly and easily, reducing labor intensity an saving time.
3. Three processes of wire coiling, reeling and plastic film packaging by one person can reduce the labor intensity and labor costs.
4. The wire tension in wire-arranging can guarantee that the wire-arranging space will not be affected by cable diameter and wire-arranging is in order and in better quality.
The use of automatic wire-arrange won't be affected by manmade faction.

The use of automatic wire-arrange won't be affected by manmade faction.
With over 10 years of experience in this industry, Shanghai Qipang Co., Ltd. Understands the needs and expectations of our customers well and we strive to accommodate them. We take pride in our work and you can trust our ability to get your job done right at the first time. With a courteous and knowledgeable Sales Team, we can answer any of your questions or concerns with confidence and our service technicians are trained to understand all of the dynamics of the quality equipment we sell and serve, guaranteeing customer satisfaction every time.
Qipang has developed a vast collection of polished shaft rolling ring drives, wire straightener,
Wire straightening and cutting machine, linear drive nut, wire guide accessories, Take-up machine and paying off machine
Automatic winding machine for ribbons automatic coiling With the accumulated expertise and versatile service unit and the totally development of product based on customers' requirements, Qipang services are provided for the customers around the world.
