Home Toolbuy Products 2017 High Quality Drilling Machine DTH Drilling Rig 600 Meters

2017 High Quality Drilling Machine DTH Drilling Rig 600 Meters

2017 High Quality Drilling Machine DTH Drilling Rig 600 Meters
Price: US $ 1-9999SET
Min Order: 1SET
Pay Type: L/C,T/T,D/P,Western Union,Paypal
2017 High Quality Drilling Machine DTH Drilling Rig 600 Meters

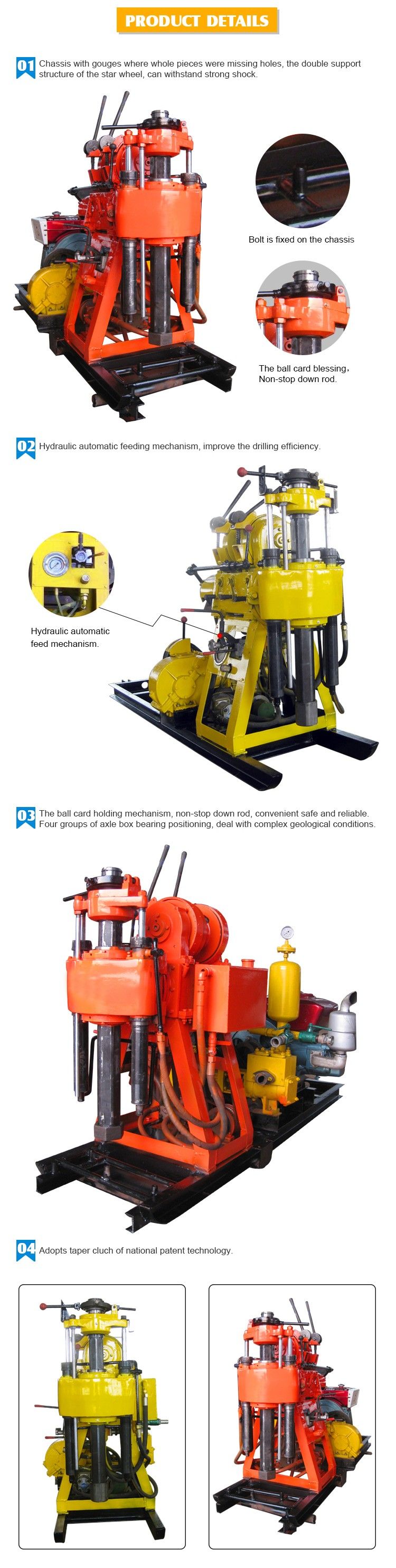

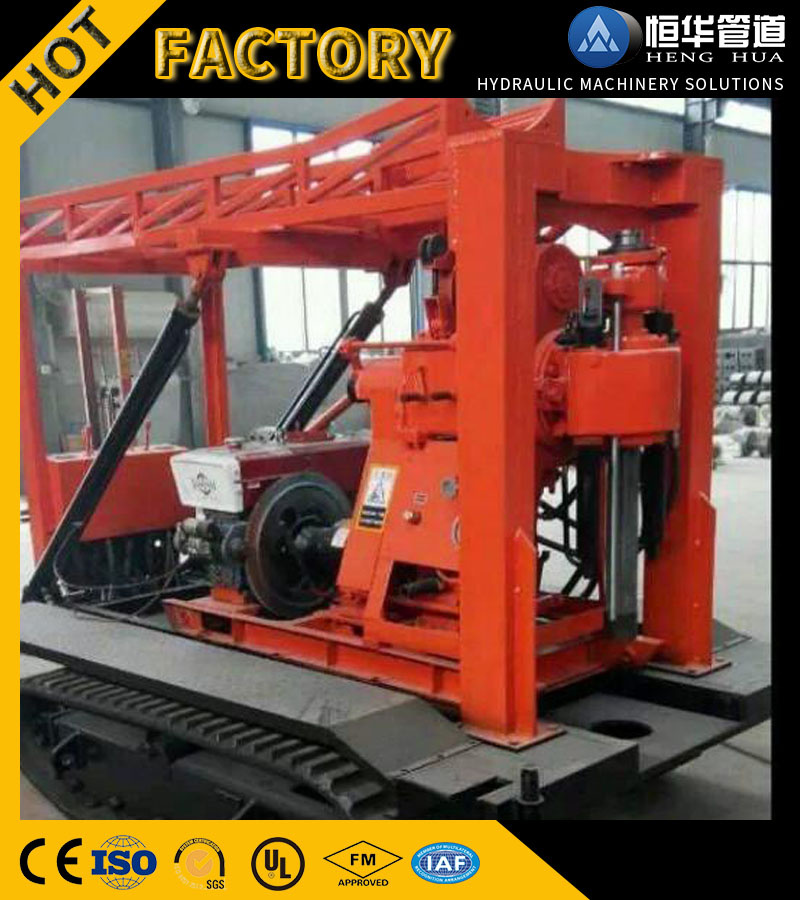

Our Drilling Rig Photo



Drilling Machine Technical Parameter
ModelHH130YHH180YHH200Y
Drilling Depth(m)130180200
Open hole dia.(mm)220220325
End hole dia.(mm)757575
Drill rod dia.42-6042-6042-60
Drilling angle(°)90-7590-7590-75
Matching power(kw)13.213.214.7
Weight without power600/740620/750880/970
Dimension(m)2.4*0.8*1.42.4*0.8*1.32.7*0.9*1.5
Spindle Speed(r/min)142/285/570

130/300/480/730

/830/1045

64/128/287/557

Spindle Stroke(mm)450

450

450

Winch max. pull force(kg)200021002500
Winch pull speed(m/s)0.41-1.640.35-2.230.12-0.95
Winch rope dia.(mm)Φ9.3Φ9.3Φ12.5
Winch roll capacity(m)272735
Drill mast rated loat(ton)181818
Drill mast Height(m)6.56.56.5
Mud pump flow(l/min)9595145
Mud pump max. pressure(Mpa)1.21.22
Mud pume times/min939393
Intel hos dia.(mm)515151
Outlet hose dia.(mm)323238

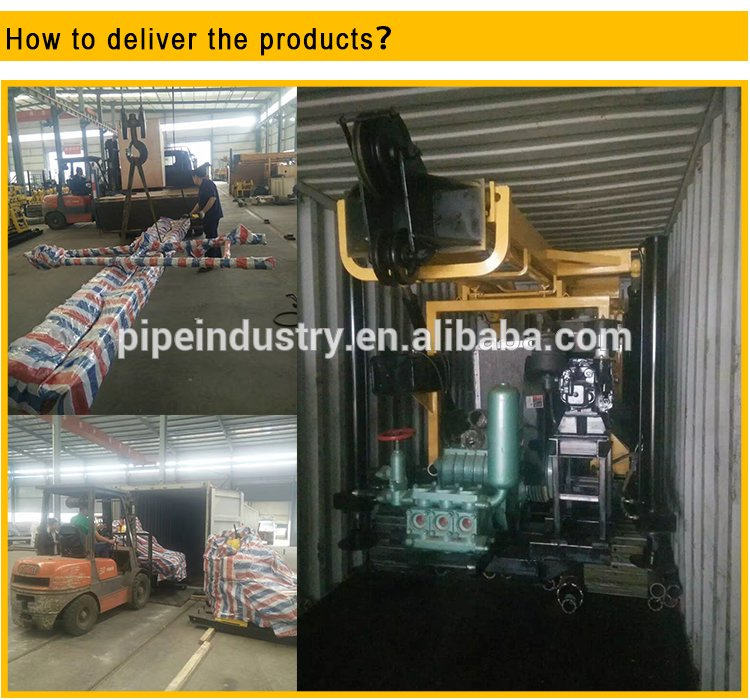

Packaging & Shipping



Our Sales Region
Why Choose Us HENGHUA ?
Customer's satisfaction is our success. HENGHUA will assist customers to build product lines at any time any place. We can supply our customers products, at the same time with technical support and professional service. HENGHUA endeavor ourselves to render best relationship, friendship and high reputation from overseas customers.

What Certificate & Quality Assurance We Have?


Why We Are Popular in Global Market ?


1. Quality Guarantee and High Reputation in Global Market

           100% environmental protection material, easy to deal with all environmental requirements

           100% quality warranty and maintenance

2. Rich Experience and Focus on Machines Manufacturing for Many Years

            We are professional drilling rig machine manufacturer and have been engaged in this field for many years.

3. Strict Process Control and Advanced Management

            We have our own process control system and under the joint effort of workers and engineers, we build and supply perfect machines.

4. High Quality, Best Service and Competitive Price

           "Honesty is the best policy and quality is the best honesty" is our motto. So we always provide our products with high quality and best service.

5. Various drilling rigs with different types and models

            We can provide you machines in different models and functions as your specified demand.

6. Perfect Equipment and Superior Technology

           We have our own factory and first-class equipment and our own engineers.

7. Meet International Standard and Passed the ISO9001:2000 and CE Certificate

           We have the related certificates and provide our customer for reference.

8. Prompt Response & Delivery

           Nearby Tianjin port and we can delivery faster. Once you have any question, we will give you reply on time.


FAQ

Q1: Are you a manufacturer?

A: Yes, we are a professional drilling rig and its parts manufacturer.

Q2: What does your company produce?

A: The main products of our company include rotary drilling rig, Kelly bar, drilling bucket, drilling auger, casing oscillator, desander and tricone bit, etc.

Q3: How about your delivery time?

A: Normally the delivery time is about 35 days. For some special case, we can make it within 2 weeks, it depends on different products.

Q4: What methods of payment do you accept?

A: We accept T/T, L/C, Western Union or as customer requested

Q5: What is the MOQ?

A: Small trial order is acceptable, like 1 set, 2 sets…

Q6: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price.

Contact Information
Contact Us Now!


Prod Model: HH-X5
Power Type: Diesel
Usage: Coal, Ore, Water Well, Geotechnical Investigation
Voltage: 380V
Power (W): 13.2
Dimension: 2400*800*140
Weight Without Power: 620kgs
Warranty: 12 Months
After-Sales Service: Overseas 3-Party Support
Dilling Depth: 180m
Drill Rod Dia.: 42-60mm
Tianjin Henghua Pipeline Technology Co., Ltd is the member of HeBei Bohai GROUP a professional manufacturer. As far, we have three branches for 3 main machines. We adhere to "quality oriented, credibility first" business philosophy, striving to provide users around the world perfect machines at the advantages of our strong brand, technology and services.

We have skillful production people and strong R&D technicians who have accumulated over 26 years experience in machinery, "Best quality, best service and most competitive price" is our principle.

Drilling rigs

Our brand is recognized worldwide for our high quality, reliability and our customer service. Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Henghua has a professional team of engineers with rich experience in the design, production and inspection.

Hydraulic Machines

We produce high quality Hose crimping machine, hose cutting machine, hose assembly, hose skiving machine, flexible axle crimping machine, and nut crimping machine and so on. They are widely used in navigation, military industry, engineering machinery, and mine exploitation, steel, shipping manufacture, oil field, drilling rigs, flexible axle produce, agricultural equipment etc. Our products are well accepted all over the country and in Southeast, Asia, Africa etc.

Concrete grinding machine

We had been engaged in developing and manufacturing floor polishing machines, floor washing machines, vacuum cleaners, floor scarifier, diamond tools and various accessories. We have our own manufacture bases in Tianjin and some other well cooperation partners. Some of our products have passed the CE, ISO9001 quality control system certificates.

We strongly believe that the friendship and trust given by our customers are the great treasure we have and the constant improvement & innovation in quality, cost and service will continue our group's growing.
