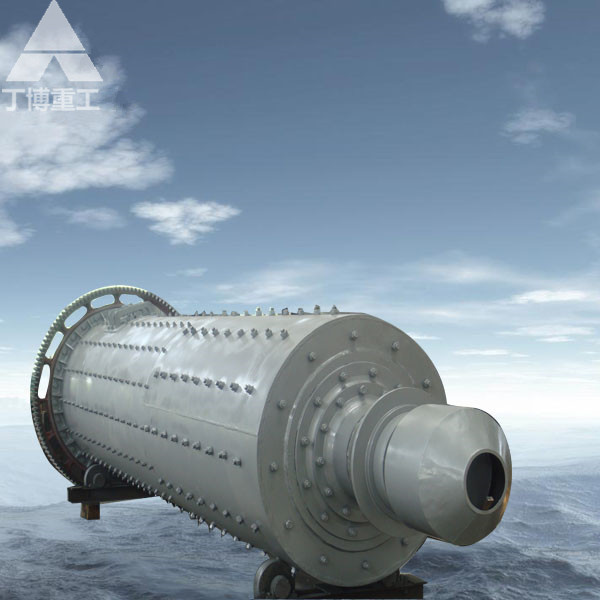

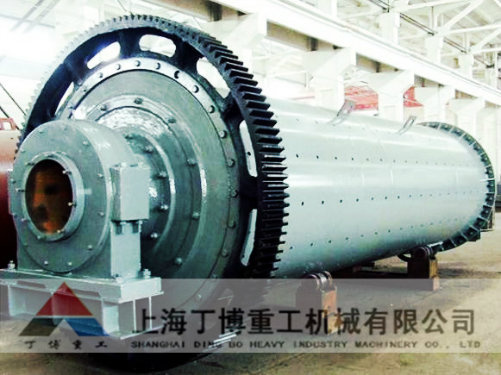

By absorbing the advanced technology from the world, Shanghai Dingbo researched and designed ball mill. Ball mill is a key equipment for
regrinding, it is widely used for the dry type or wet type grinding of all kinds of ores and other grind-able materials in cement, silicate product,
new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.
Ball Mill Features
1.The transmission machinery of grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to
start and saves energy up to 20-30%
2.Adopt groove-type circular lining plate which is instrumental in increasing contact areas of iron balls and ores, and enhances grinding action
and ore lifting capacity and decreases energy consumption.
3.Adopt overall frame, which makes it easy for construction and installation.
4.Large discharge opening, high capacity.
5.Equipped with oil-mist lubrication device which guarantees smooth operation of gears.
Ball Mill features and Benefits :

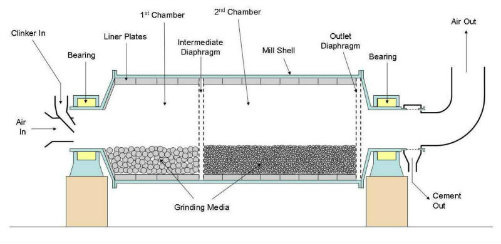

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the
quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force
caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged
through the discharging board thus the grinding process is finished.
| Model | Speed of rotary(r/min) | Weight of ball | Size of
feed opening
(mm) | size of outputting feed(mm) | Production(t/h) | Power(kw) | Weight(T) |
| Φ900×1800 | 37 | 1.9 | ≤ 15 | 0.075-0.89 | 0.5-2 | 15 | 3.4 |
| Φ900×2100 | 37 | 2.3 | ≤ 15 | 0.075-0.4 | 0.4-2 | 18.5 | 3.9 |
| Φ1200×2000 | 35 | 3 .85 | ≤ 25 | 0.075-0.4 | 1.1-2.5 | 30 | 7.78 |
| Φ1200×2400 | 35 | 4.6 | ≤ 25 | 0.074-0.4 | 1.3-3.2 | 30 | 8.65 |
| Φ1200×2800 | 35 | 5 .4 | ≤ 25 | 0.075-0.4 | 1.5-3.7 | 37 | 10.02 |
| Φ1200×4500 | 35 | 8.6 | ≤ 25 | 0.075-0.4 | 2.7-6.79 | 45 | 14 |
| Φ1500×3000 | 29 | 9 | ≤ 25 | 0.047-0.4 | 3.3-8.2 | 75 | 14.122 |
| Φ1500×3500 | 29 | 10.5 | ≤ 25 | 0.047-0.4 | 3.3-8.5 | 45 | 15.636 |
| Φ1500×4500 | 29 | 13.5 | ≤ 25 | 0.047-0.4 | 4.5-12 | 90 | 20 |
| Φ1500×5700 | 29 | 17 | ≤ 25 | 0.047~0.4 | 2.6-14 | 110 | 25 |
| Φ1830×3000 | 24 | 13.5 | ≤ 25 | 0.047~0.4 | 4-15 | 135 | 28 |
| Φ1830×4500 | 24 | 20 | ≤ 25 | 0.047~0.4 | 4-19 | 155 | 32 |
| Φ1830×7000 | 24 | 31.5 | ≤ 25 | 0.047~0.4 | 6.22 | 210 | 337.5 |
| Φ2100×3000 | 22 | 18 | ≤ 25 | 0.047-0.4 | 6.4-28 | 210 | 40.79 |
| Φ2100×3600 | 22 | 21.5 | ≤ 25 | 0.047-0.4 | 7.6-28 | 210 | 43.454 |
| Φ2200×3600 | 20.7 | 25 | ≤ 25 | 0.047-0.4 | 5.2-32 | 245 | 44 |
| Φ2200×7000 | 20.8 | 46 | ≤ 25 | 0.047-0.4 | 15-38 | 380 | 54 |
| Φ2400×3600 | 19 | 28 | ≤ 25 | 0.047-0.4 | 8-60 | 320 | 47 |
| Φ2400×4500 | 19 | 35 | ≤ 25 | 0.047-0.4 | 8.5-60 | 380 | 65 |
| Φ2700×4000 | 20.7 | 40 | ≤ 25 | 0.047-0.4 | 12-80 | 400 | 94 |
| Φ2700×4500 | 20.7 | 48 | ≤ 25 | 0.047-0.4 | 12-90 | 430 | 102 |
| Φ3200×4500 | 18 | 65 | ≤ 25 | 0.047-0.4 | according | 800 | 137 |
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.
The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.
Our main products include:
1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.
2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.
3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.
Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.
Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.
We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
