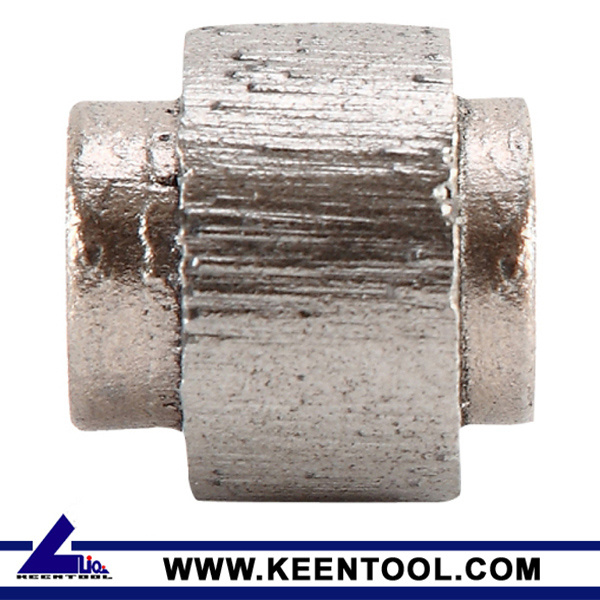

We developed kinds of diamond wire segment with different formula and specification of Ø 6.4/7.2/8.0/8.5/9.0/10.5/11.0/11.5 to be widely used for granite, marble, limestone, sandstone, slate, and travertine quarry cutting, block squaring and shape cutting; As well as special application of cutting reinforced concrete.
We developed different kinds of diamond wire segment with different bond system and specification to be widely used for Granite, Marble, Limestone, Sandstone, Slate and Travertine quarry cutting, block squaring and contouring, as well as special application of cutting reinforced concrete.
Remarks:
1. Other specifications are available as per customer requirement.
2. Different types of wire saw beads special for different material are available.
Packaging: Carton with water proof plastic.
Pieces/Box: 500 Pieces/Box
NW: /GW: 2.5KGS/2.6KGS.
Sample lead time: In 3 working days.
Delivery time: In 7 days for quantity of 100, 000 pieces wire beads.
Company Information
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
Diamond Wire for stone quarry, blocks trimming and profiling.
Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
Conventional Diamond Tools for processing stone and other construction materials.
Welcome to visit our website of www.keendiamantwire.com or http://keentool.en.alibaba.com to know more about us.
|
Diamond wire segment |
|
Technology |
Application |
Out Diameter |
Inner diameter |
|
Sintered |
For granite/marble / Travertine |
11.5/11.0/10.5/9.0/8.5/7.2mm |
5.1/4.8mm |
|
Vacuum Brazed |
For marble / limestone / Travertine |
10.8/9.8mm |
5.1/4.8mm |
|
Electroplated |
For marble/
limestone |
10.5/9.0/8.5mm |
5.1/4.8mm |
|
Vacuum Brazed Diamond wire segment |
|
Model |
Diameter |
Inner hole |
Height |
Cutting Material |
|
VDB-KT98 |
9.8mm |
5.1/4.8mm |
12.5mm |
Soft Granite
Marble, Limestone, Travertine |
|
VDB-KT88 |
8.8mm |
5.1/4.8mm |
12.5mm |
|
Electroplated Diamond wire segment |
|
Model |
Diameter |
Inner hole |
Height |
Cutting Material |
|
EDB-KT105 |
10.5mm |
5.1/4.8mm |
10mm |
Marble, Limestone, Travertine |
|
EDB-KT90 |
9.0mm |
5.1/4.8mm |
10mm |
|
EDB-KT85 |
8.5MM |
5.1/4.8mm |
10mm |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
