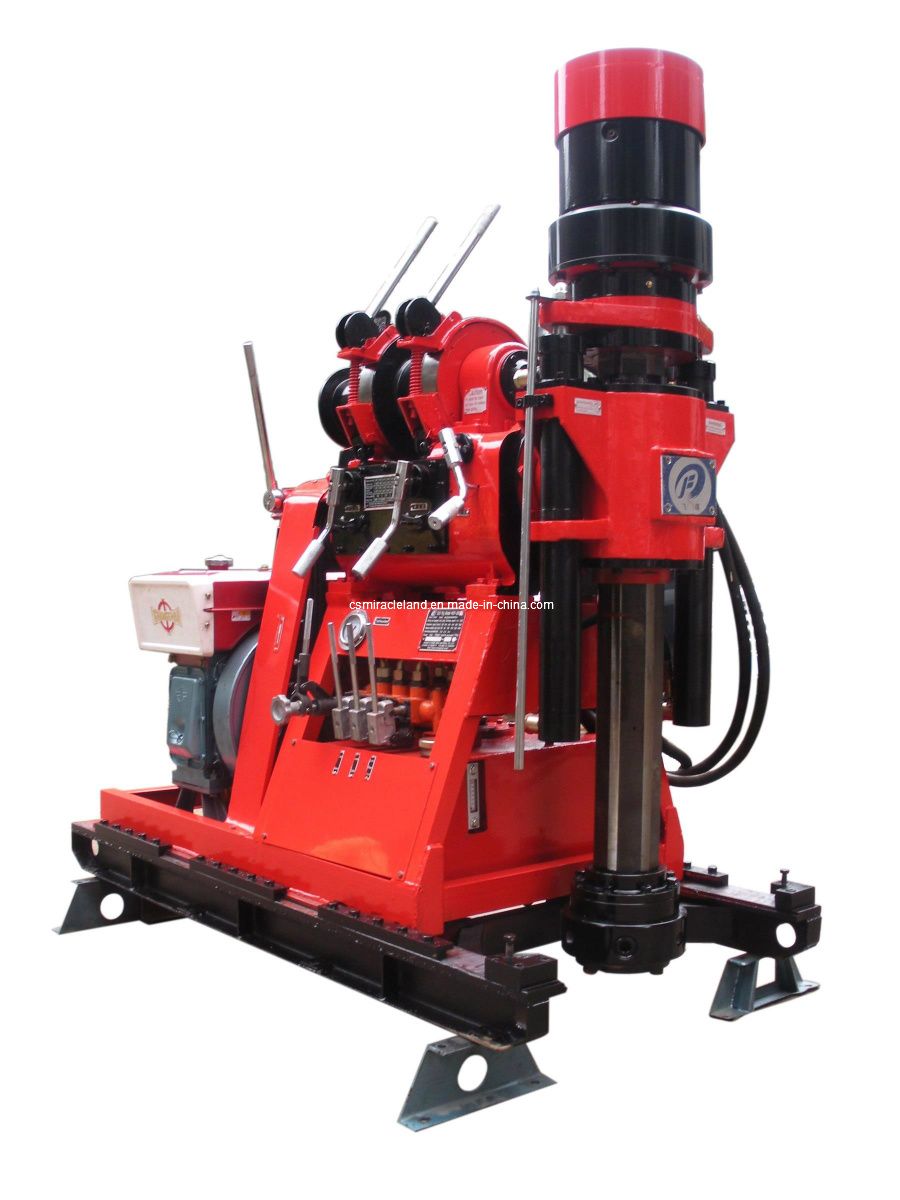

200m Diamond Core Drilling Equipment (HGY-200)

200m Diamond Core Drilling Equipment (HGY-200)
Price: US $ 6800-8000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
HGY-200 Core Drilling Rig:

Drilling depth(m): 200;
LxWxH(mm): 1860X800X1400;
Spindle stroke(mm): 500;
Diesel engine: Zs1110(14.7 KW);
Electromotor: Y160L-4(15KW);

Product Features:

Good stability and high reliability.
Multilevel positive and reverse rotate speed.
The complete hydraulic chuck and vertical spindle.
Convenient to transport with the small volume and light weight.
Perfect frame's rigidity, low center of gravity and good stability.

Product Application:

It is widely used in the construction of the projects e. g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.


TypeHGY-200 Drilling Rig
Drilling depth(m)200
Drilling rod diameter(mm)Φ50
Head angle range360°
Cylinder stroke(mm)360
Spindle speed(r/min)Positive rotation rate: 60\150\240\340\550\830
Reverse rotation rate: 35\85\135\195\330\480
Spindle hole diameter(mm)Φ65
Spindle output torque(N.M)2140
Spindle stroke(mm)500
Spindle driving force max.(KN)37
Spindle lifting power max.(KN)50
Lifting speed (m/s)0.6\2.3\3.4
Single rope lifting power(KN)20
Steel wire rope diameter(mm)Φ11
Mode of chuckFull hydraulic chuck or ball-type chuck
Weight(power unit excepted)(kg)750
Dimensions(LxWxH)(mm)1860x800x1400
Diesel engineZS1110(14.7KW)
ElectrometerY160L-4(15KW)
Prod Model: HGY-200 Core Drilling Rig
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chuck: Hydraulic Chuck
Stability: Good
Changsha Miracleland Import & Export Co., Ltd is a professional and credible international trading company. We are specialized in manufacturing & exporting many types of drilling rigs, the products including drilling rigs for mining exploration, water well drilling rigs, coal mine drilling rigs, borehole drilling rigs, geological drilling machine, construction drilling rigs, core drilling rig, drill accessories & diamond core bits series and etc. We can supply the truck mounted drilling rigs, wheel mounted drilling rigs, crawler drilling rigs and so on to meet all customers' Requirements. We exported many type of drilling rigs to many countries with the best quality and good service, which gained an excellent credibility among all the clients. We can supply drilling rigs with the drill depth from 50 meters and 3000 meters.

Our company also manufactured and exported all kind of drilling accessories, such as core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshot, drill rods, casing tubes and other drilling tools.

We are quite pleased to enter into business cooperation with your firm on the basis of equality and mutual benefit, we believe that we shall be, by joint efforts, able to promote friendship as well as business.

As a successful and whole-hearted dedication team for customers, we shall provide satisfactory products and the most advantageous price for you.

If you had any requirements for any type drilling rigs & drilling tools, kindly please feel free to contact with us, we would be quite pleased to show all the details you asked for.
