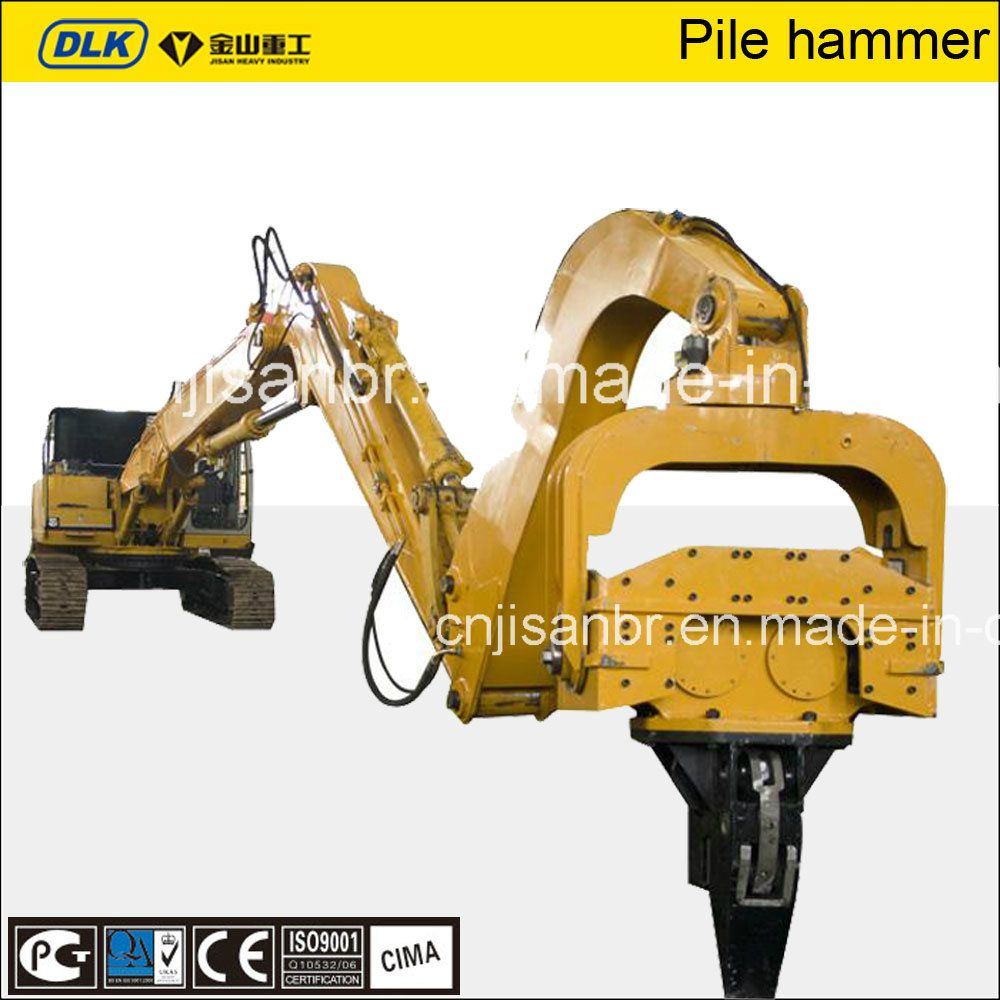

20 Ton Pile Driver Hammer and Hydraulic Vibratory Pile Hammer
| Price: |
US $ 23500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Description1. Suitable for different soil condition.
2. Powerful, Reliable, Versatility
3. High productivity & efficiency
4. Less environmental affection
DLK series vibro hammers are suitable for foundation engineering. It can be used to drive steel piles, piles or other elements into soil by vertical vibrations, the adjacent soil particles are put into motion and thus the soil is "loosened", the dynamic weight of the hammer will drive the elements into the soil.
DLK series pile driver can hammer different type of I-steel piles, Cement pile, concrete sheet pile and many otherswe are chins wholesaler, main components of vibro hammer includes:-main body
-goose neck
- Hydraulic Rotator
-gearbox
- Hydraulic sheet pile clampWe have many models of clamps and vice arms for your selection.Key parameters of vibro hammer
Model | Unit | DLKP28 | DLKP38 | DLKP645 | DLKP850 | DLKP955 | DLKP1270 |
| Suitable excavator | set | 12-15T | 20-22T | 25-30T | 24-36 | 35-40 | 40-45 |
| Eccentric moment | kgm | 3.3 | 5 | 6 | 8 | 9 | 12 |
| Max. Centrifugal force | kn | 280 | 380 | 450 | 500 | 619 | 700 |
| Max. Frequency | rpm | 2800 | 2800 | 2500 | 2500 | 2500 | 2300 |
| Max. Amplitude(without clamp) | mm | 11 | 14 | 17.5 | 15 | 24.5 | 17 |
| Max. Amplitude(with clamp) | mm | 8.5 | 10 | 13 | 11 | 17 | 13.5 |
| Max. Line-pull | kn | 120 | 120 | 120 | 120 | 150 | 180 |
| Max. Hydraulic power | kw | 48 | 71 | 83 | 83 | 150 | 184 |
| Mar. Operating pressure | bar | 350 | 350 | 350 | 350 | 350 | 350 |
| Max. Oil flow | l/min | 110 | 170 | 200 | 200 | 200 | 300 |
| Dynamic weight(without clamp) | kg | 576 | 552 | 590 | 700 | 740 | 1145 |
| Dynamic weight(with clamp) | kg | 750 | 840 | 880 | 1040 | 1160 | 1725 |
| Clamp force | kn | 350 | 500 | 500 | 500 | 500 | 1000 |
| Total weight with clamp | kg | 1080 | 1332 | 1470 | 1490 | 1690 | 2760 |
| Transportation weight | kg | 1130 | 1412 | 1520 | 1540 | 1740 | 2860 |
DLK series vibro hammer will fit every Excavator made today :PC270 ,DOOSAN,VOLVO,CAT,SNAY ,HYUNDAI R ,BOBCAT,CAT PALLET ,VOLVO ,KOBELCO ,KATO ,KUBOTA ,JCB,CASE ,GEHL ,ZOOMLION,YUCHAI,LG etc.The packaging and shipping
The stander set of pile hammer include:- The body of pile driver
- Goose neck (vice arm)
- Clamp;
- Accessories.
- The pile diver will be packed by plywood pallet or case
-The pile diver Will be dispatched within 5 workdays after orderOur service-Limited one year warranty of rock breaker
-One-stop serviceContact wayIf you are interested in our products, please feel free to contact me.
Ms. Coffee
Mobile: 0086-13964589686
Website: www.jisanbr.net
| Prod Model: |
DLKP2000 pile drive |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Pile Sheet Piles, I-Steel Piles, Cylinder Piles |
| Suitable: |
20-30 Ton |
| Type: |
Vibration Piling Machine |
Jisan Heavy Industry Ltd. Is a modernized manufacture enterprise specializing in independent R & D, manufacturing of all the excavators matching equipments. The company is equipped with Plasma Cutting Machine, Edge Milling Machine, Welding Machine, CNC Machine, Sand and Spraying Equipment, Flaw Detector those processing and testing equipment, to lay a solid foundation for ensuring the advancing production capacity.
The company mainly produces all kinds of excavator front-end equipments: Quick Coupler, Ripper, Hydraulic Compactor, Hydraulic Breaker, Hydraulic Wood Grapple, Stone Grapple and Hydraulic Shears. The company has JISAN and DLK two series brand, which can suit all domestic and foreign excavators, Komatsu, Hitachi, CAT, Kobelco, Doosan, Sany, Liugong, XCMG, etc. Meanwhile tailor special devices under different working conditions according to customer's operating environment.
The company has independent import and export rights. Products are sold all over the world. The company provides supporting and processing services for the domestic and foreign many excavator manufacturers to maximize meet customers' requirements.
The company has high-quality technical team, perfect quality control system and service network; Quality is the life of enterprise. Grasp the quality source, in terms of production, strictly control of the homemade quality and production process. The company implemented 6S management, and continually improve the quality awareness of staff, combined with the assessment mechanism to supervise and inspect, and carry out quality one-vote veto to ensure product durability, reliability, fundamentally set up the concepts of Quality First.
In the future, JISAN Company will make full use of rich experience accumulated and the core competitive advantage formed in the past few years. Through the implementation of Elaboration- Diversity-Globalization the three strategic goals, promote enterprise development; Make a professional excavator front-end equipment manufacturers to stride forward the world first-class enterprise.
