2.5X8X50HRC45-68 Tungsten Carbide 4/6 Flute Flat End Mills

Name: 2.5X8X50HRC45-68 Tungsten Carbide 4/6 Flute Flat End Mills
Brand: tool-buy.com
SKU: 797232535
Availability: InStock
Rating: 4.8 (62 reviews)

Price:	US $ 1.18-53/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.

Showroom Product Company Profile

☆Tungsten carbide end mill

Products Name	Tungsten carbide end mill
Raw Material (HRC)	HRC45 , HRC55 , HRC60 , HRC65 , HRC68
Coating Type	ALTIN , TiAIN and so on
Size	Standard sizes or customized sizes
Logo	According your requests, with logo or without logo
MOQ	1 pcs
Samples time	7 dyas
OEM	Acceptable
Stock	Rich
Certification Available	ISO 90001
Production Capacity	500000 pcs per month
Payment terms	T/T, PAYPAL, WESTERN UNION,MONEY GRAM
Packing Details	Plastic pipe in carton box with full of bubble paper and foam with 33cmx23cmx19cm

Introduction of the carbide materials of the End mill

Carbide Grade	Technical Details of tungsten carbide rod
10U	Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U	Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40	Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44	Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um

The materials to be cut

Carbide Grade	HRC of End mill	Materials to be cut
10U	HRC45-50	For cutting the materials under HRC35
12U	HRC55-58	For cutting the materials under HRC50
K40	HRC60-62	For cutting the materials under HRC55
K44	HRC65-70	For cutting the materials under HRC63

Corresponding Coating

Carbide Grade	HRC of End mill	Corresponding Coating
10U	HRC45-50	AlTiN
12U	HRC55-58	TiAlN
K40	HRC60-62	TiSlN
K44	HRC65-70	Nano

Introduction of carbide materials of the End mill

	AlTiN	TiAlN	TiSlN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coefficient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

☆Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: WALTER, ANCA, ROLLOMATIC
Testing equipment: ZOLLER

☆Coating

Coating	Color	Coating Temperature	Thickness (um)	HV	Application Temperature	Friction coefficient
TiAlN	Purple-Gray	<600°C	3-5	3300	800 °C	0.3
AiTiN	Black	<600°C	3-5	3500	900 °C	0.3
TiXco	Copper	<600°C	3-5	3500	1500 °C	0.4
NaNo	Blue	<600°C	3-5	3800	1200 °C	0.4
AiCrN	Silver Gray	<480 °C	2-2.5	2500	700 °C	0.3

☆Payment
T/T, Western Union, Paypal (Choose your convenient way)

☆Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)

☆Packing
Laser print brand name on cutter shank, 1 PCS in a plastic tube, 10 PCS per group

☆Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days

Standard Sizes:

Order No.	Flute dia (d)	Cutting length ( l )	Shank dia (D)	Overall length(L)
1.0×2.5×4D×50L	1.0	2.5	4	50
1.5×4×4D×50L	1.5	4	4	50
2.0×5×4D×50L	2.0	5	4	50
2.5×7×4D×50L	2.5	7	4	50
3.0×8×4D×50L	3.0	8	4	50
3.5×10×4D×50L	3.5	10	4	50
4.0×10×4D×50L	4	10	4	50
4.5×11×6D×50L	4.5	11	6	50
5.0×13×6D×50L	5.0	13	6	50
5.5×13×6D×50L	5.5	13	6	50
6.0×15×6D×50L	6.0	15	6	50
6.5×15×8D×60L	6.5	15	8	60
7.0×17×8D×60L	7.0	17	8	60
7.5×17×8D×60L	7.5	17	8	60
8.0×20×8D×60L	8.0	20	8	60
8.5×25×10D×75L	8.5	25	10	75
9.0×25×10D×75L	9.0	25	10	75
9.5×25×10D×75L	9.5	25	10	75
10.0×25×12D×75L	10.0	25	12	75
10.5×25×12D×75L	10.5	25	12	75
11.0×28×12D×75L	11.0	28	12	75
11.5×28×12D×75L	11.5	28	12	75
12.0×30×12D×75L	12.0	30	12	75
13.0×33×16D×100L	13.0	33	16	100
14.0×40×16D×100L	14.0	40	16	100
15.0×40×16D×100L	15.0	40	16	100
16.0×40×16D×100L	16.0	40	16	100
17.0×40×20D×100L	17.0	40	20	100
18.0×40×20D×100L	18.0	40	20	100
19.0×40×20D×100L	19.0	40	20	100
20.0×40×20D×100L	20.0	40	20	100
25.0×40×25D×100L	25.0	40	25	100

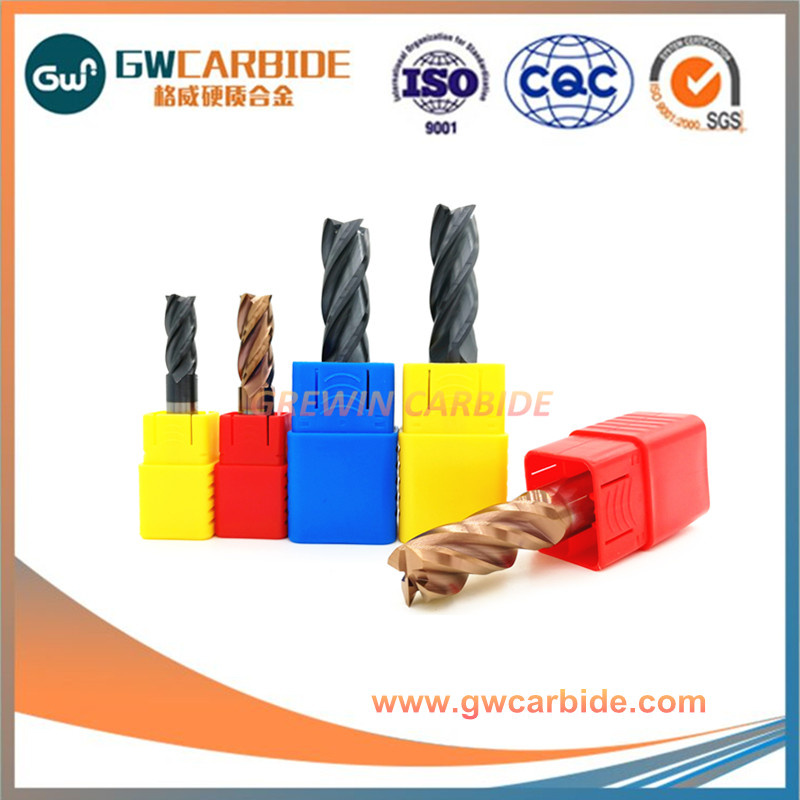

☆Product Show

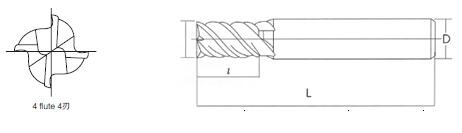

4 flutes Flat End Mill

HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.

Code No.	Diamter d	Cutting length l	Total length L	Shank D	Flutes Z
4GW1-01003050	1	3	50	4	4
4GW1-01504050	1.5	4	50	4	4
4GW1-02050500	2	5	50	4	4
4GW1-02507050	2.5	7	50	4	4
4GW1-03008050	3	8	50	4	4
4GW1-04010050	4	10	50	4	4
4GW1-04015075	4	15	75	4	4
4GW1-04020100	4	20	100	4	4
4GW1-05013050	5	13	50	6	4
4GW1-06015050	6	15	50	6	4
4GW1-06020075	6	20	75	6	4
4GW1-06030100	6	30	100	6	4
4GW1-06020060	8	20	60	8	4
4GW1-08025075	8	25	75	8	4
4GW1-08035100	8	35	100	8	4
4GW1-010025075	10	25	75	10	4
4GW1-010040100	10	40	100	10	4
4GW1-012030075	12	30	75	12	4
4GW1-012040100	12	40	100	12	4
4GW1-014030080	14	30	80	14	4
4GW1-014100100	14	40	100	14	4
4GW1-016040100	16	40	100	16	4
4GW1-018040100	18	40	100	18	4
4GW1-020040100	20	40	100	20	4
4GW1-06040150	6	40	150	6	4
4GW1-08050150	8	50	150	8	4
4GW1-010050150	10	50	150	10	4
4GW1-012050150	12	50	150	12	4
4GW1-014060150	14	60	150	14	4
4GW1-016060150	16	60	150	16	4
4GW1-018060150	18	60	150	18	4
4GW1-020060150	20	60	150	20	4

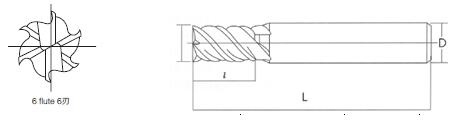

6 flutes Flat End Mill

Code No.	Diamter d	Cutting length l	Total length L	Shank D	Flutes Z
6GW1-06016050	6	16	50	6	6
6GW1-06025075	6	25	75	6	6
6GW1-06036100	6	36	100	6	6
6GW1-0802060	8	20	60	8	6
6GW1-08032075	8	32	75	8	6
6GW1-08042100	8	42	100	8	6
6GW1-10025075	10	25	75	10	6
6GW1-10042100	10	42	100	10	6
6GW1-012030075	12	30	75	12	6
6GW1-012042100	12	42	100	12	6
6GW1-012055155	12	55	155	12	6
6GW1-014040100	14	40	100	14	6
6GW1-014065150	14	65	150	14	6
6GW1-016040100	16	40	100	16	6
6GW1-016065150	16	65	150	16	6
6GW1-020045100	20	45	100	20	6
6GW1-020070150	20	70	150	20	6

☆Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.

☆Company Information
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.

The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.

Waiting for your contact !

Prod Model:	All Sizes
Package:	1 PCS in a Plastic Tube, 10 PCS Per Group
Coating Opitional:	Altin,Tialn,Tisin,Naco,Diamond
Flute Diameter:	0.5mm-25mm,Customized
Shipment:	FedEx,DHL,TNT,UPS,EMS,etc.
Length:	50mm-150mm,Customized
Cutting Form:	Flat, Ball Nose, Corner Radius, Roughing
Usage:	General High Speed Cutting
HRC:	45-55 55-65,etc
Flutes Number:	2, 3, 4, 5, 6
Delivery Time:	7-10 Days

What we do is not a deal, but create mutual happy cooperation!

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc

The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.

With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.

The company is dedicated to " Do the best to customer". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
