| Price: | US $ 2999-3999/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
Specification Parameter
Description | Paramater |
TZJD-9090 | |
Working Area (X*Y*Zmm) | 900mmx900mmx200mm |
X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
Z Structure | Ball Screw, Shaft Linear Bearings |
Table Surface | T-Slot Table with PVC board |
Max Engraving Speed | 20000mm/min |
Frame | Cast Square tube welding |
Spindle power(KW) | 2.2kw/3kw/4.5kw |
Max. Power Consumption(Without spindle) | 2.0KW |
Spindle Speed | 0-24000rpm |
Resolution | 0.005mm |
Repeatability | 0.01mm |
Voltage | AC220V,50/60Hz,1PH(option,380V 3PH) |
Drive motor | Stepper/servo |
Working Dictate | G Code*.u00*.mmg*.plt |
Operating system | Ncstudio/Dsp System/Syntec/LNC |
Necessary function | Auto-oiling system |
Interface | USB |
Flash memory | 128M(U Disk) |
Software Compatability | Type3,Ucancam, Artcam Software |
Running Environemt | Temperature: 0ºC~45ºC |
Relative humidity: 30%~75% | |
Working software | Windows98/2000/xp/7 |
Applicable industry
Wood industry,i wood door making and furniture making, relief, double-color board, bamboo crafts,
Advertising industry,breastplate,doorplate, aluminum, marble/stone industry.
Applicable material
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board, PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.
Product Features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed drive motor, also servo motors for optional.
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.
7. This type machine can support these functions: drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power.
Many gear speed regulation and control function & Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system automatically.

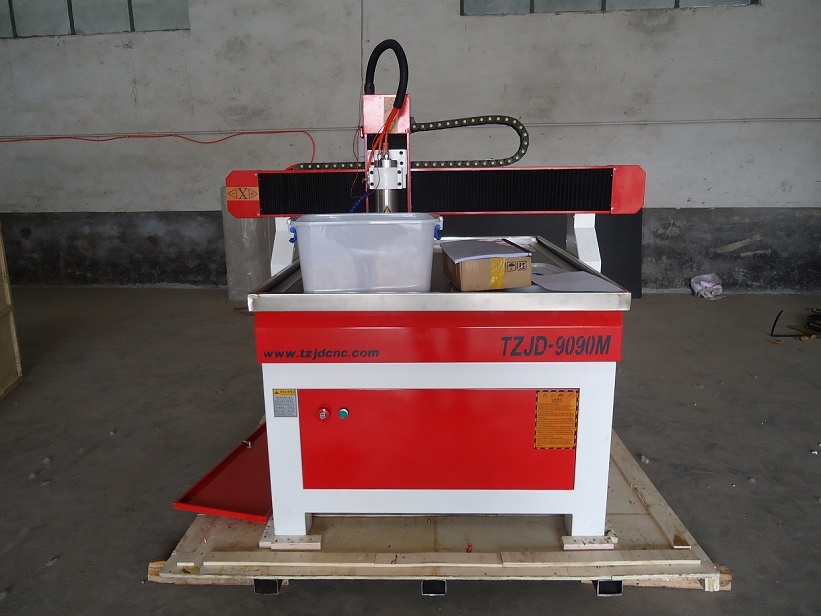

| Prod Model: | TZJD-9090M |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: | 900mm*900mm*800mm |
| Machine Color: | White, Red, as Demands |
| Working Table: | Bakelite Table Combined Aluminum T-Slot Extrusion |
| Motor Driver: | Stepper/Servo |
| Inverter: | Fulling |
| Guide: | Taiwan Hiwin Square Linear Bearings |
| Controller: | Ncstudio |
| Spindle: | 2.2kw Water-Cooling |
| Accessory: | Oil Lubrication System |
| Software: | Type3 and Artcam |
| Movement Method: | Point to Point Control |
| Control Method: | Open-Loop Control |
| Numerical Control: | NC |
| Performance Classification: | High-End CNC Machine Tools |
| Application: | Advertisement |
| Process Usage: | CNC Carving Machine |
| Certification: | FDA |
