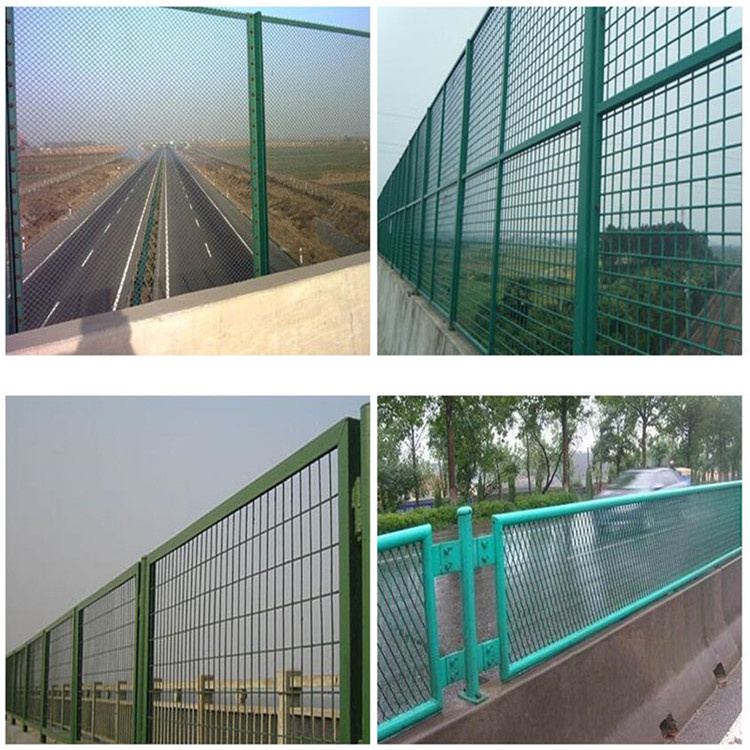

1000mm*2500mm Economic safety wire mesh fence1:The safety fencing is made by galvanized or PVC coated welded mesh panel or chain-link mesh or expanded steel/aluminum panel or barbed wire fence or knotted wire fence. Which have more than 100 specification.2.They are usually applied to as the railway fence,residential area fencing, garden fencing, factory area fencing, public fencing, building construction fencing, school fencing, farming animal fencing,sport court fencing, airport fencing. Temporary fencing.

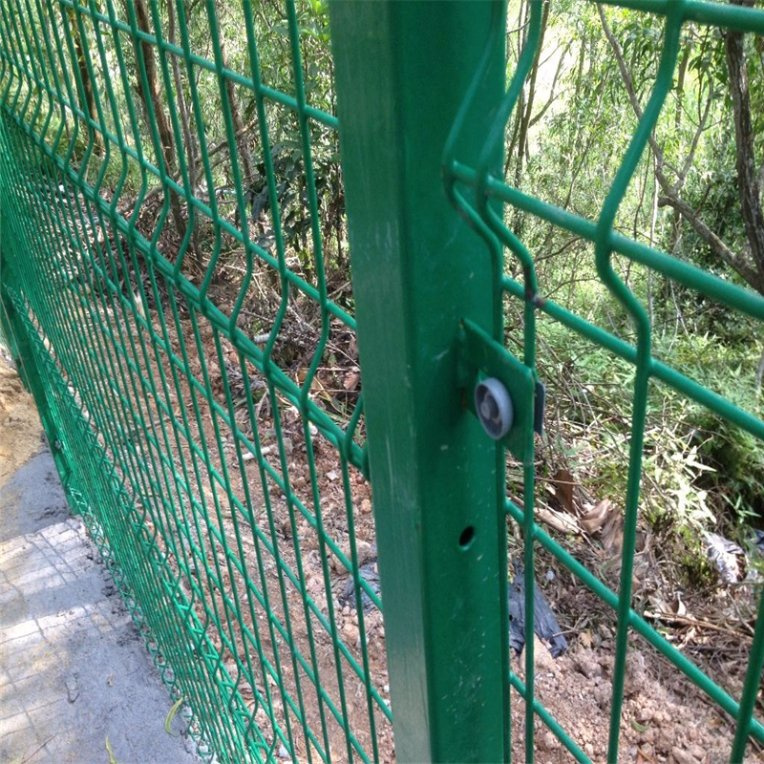

3.We can produce 5 different kinds of safety fencing:1): welded mesh panel security fencing | No | Item | Specification |
| 1 | surface treatment | galvanized +power coated/galvanized +pvc coated |
| 2 | Wire diameter | powder coated 3.5mm to 6mm/3.65mm to 6.15mm
Pvc coated 3-6mm/4-7mm |
| 3 | Mesh size | 50mm X100mm to 200mm |
| 4 | Panel height | 1000mm,1200mm.1500mm,1700mm,2400mm |
| 5 | Panel width | 2500mm,3000mm |
| 6 | Installation height | 1100mm to 3000mm |
| 7 | Post height | 1400mm to 3000mm |
| 8 | Post distance | 2440mm,2450mm |
2): Chain-link security fencing | No | Item | Specification |
| 1 | surface treatment | galvanized +power coated/galvanized +pvc coated |
| 2 | Wire diameter | powder coated 3.5mm to 6mm/3.65mm to 6.15mm
Pvc coated 3-6mm/4-7mm |
| 3 | Mesh size | 50m50mm,60mm,70mm |
| 4 | Panel height | 11000mm,1200mm.1500mm,1700mm,2200mm |
| 5 | Panel width | 2500mm |
| 6 | Installation height | 1100mm to 3000mm |
| 7 | Post height | 1400mm to 3000mm |
| 8 | Post distance | 2440mm,2450mm |
3)Barbed wire fencing: | No | Item | Specification |
| 1 | surface treatment | galvanized +power coated /galvanized +pvc coated /hot dipped galvanized |
| 2 | Wire diameter | powder coated 2.5*2.2 2.0/3.0 |
| 3 | barbed wire spacing | 15cm to 25cm |
| 4 | Panel height | 1100mm,1200mm.1500mm,1700mm,2200mm |
| 5 | Panel width | 2500mm |
| 6 | Installation height | 1100mm to 3900mm |
| 7 | Post height | 1400mm to 4500mm |
| 8 | Post distance | 2450mm |
4)expanded steel /aluminum steel fencing | No | Item | Specification |
| 1 | surface treatment | pvc coated galvanized |
| 2 | Wire diameter | 1.0mm 1.2mm 1.5mm |
| 3 | Thickness of inter bar | 4-5mm |
| 4 | Panel height | 1000mm,1200mm.1500mm,1700mm,2100mm |
| 5 | Panel width | 2500mm |
| 6 | Installation height | 1100mm to 2200mm |
| 7 | Post height | 1400mm to 4500mm |
| 8 | Post distance | 2450mm |
5)Rail fence/barrier fencing | No | Item | Specification |
| 1 | surface treatment | pvc coated galvanized |
| 2 | horizontal bar | 32mm*32mm 40mm*60mm |
| 3 | Thickness of inter bar | 4-5mm |
| 4 | vertical bar | 16mm*16mm 25mm*25mm |
| 5 | Post size | 2500mm |
| 6 | Post height | 1100mm to 2200mm |
| 7 | Post height | 1100mm 1200mm 1500 1700mm 2100mm |
| 8 | railing width | 2500mm 3000mm |

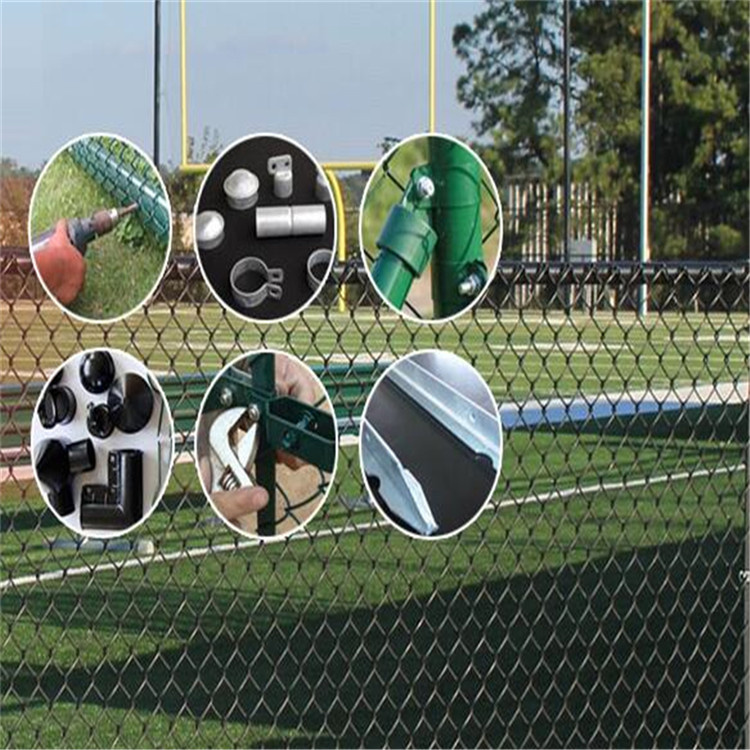

4. The accessories of different kinds of security fences:
a:Post types: quick post, square post, round post, bekaclip post, concrete post A post, T post
b:Optional parts: post crank arm , anti-climb fence, barbed wire, razor wire
c:Plates: flange plate, pre-buried, welded joining plate, plastci plate and metal plate

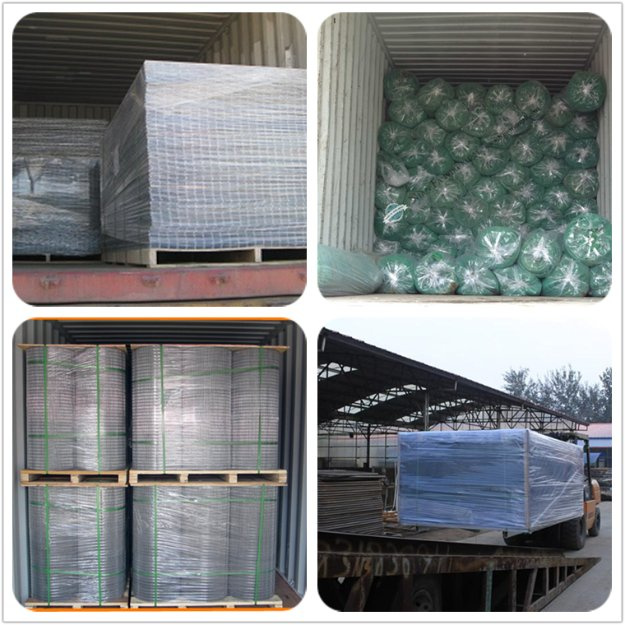

5.Package and loading of the pvc coated galvanized safety fences:
a) for welded mesh panel: pe film covered and loaded with wooden pallet
b) for weaved mesh fence: pe film covered and covered waterproof craft
c: loading capacity is: about :7-10 tons for 20ft container. 20 tons for 40HQ container.

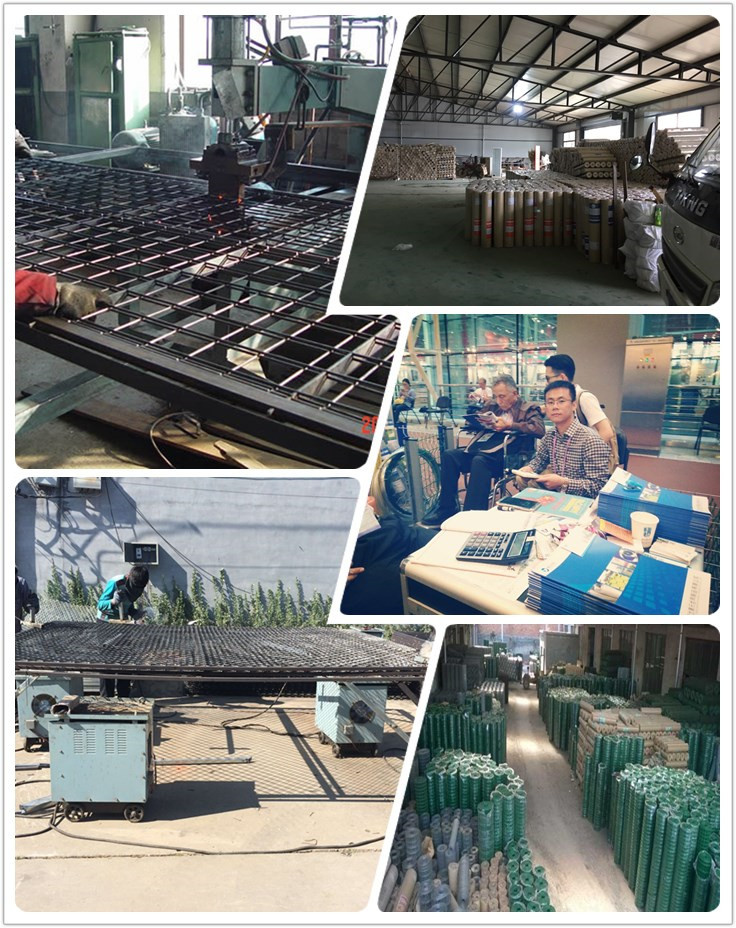

6. The factory and exhibition:

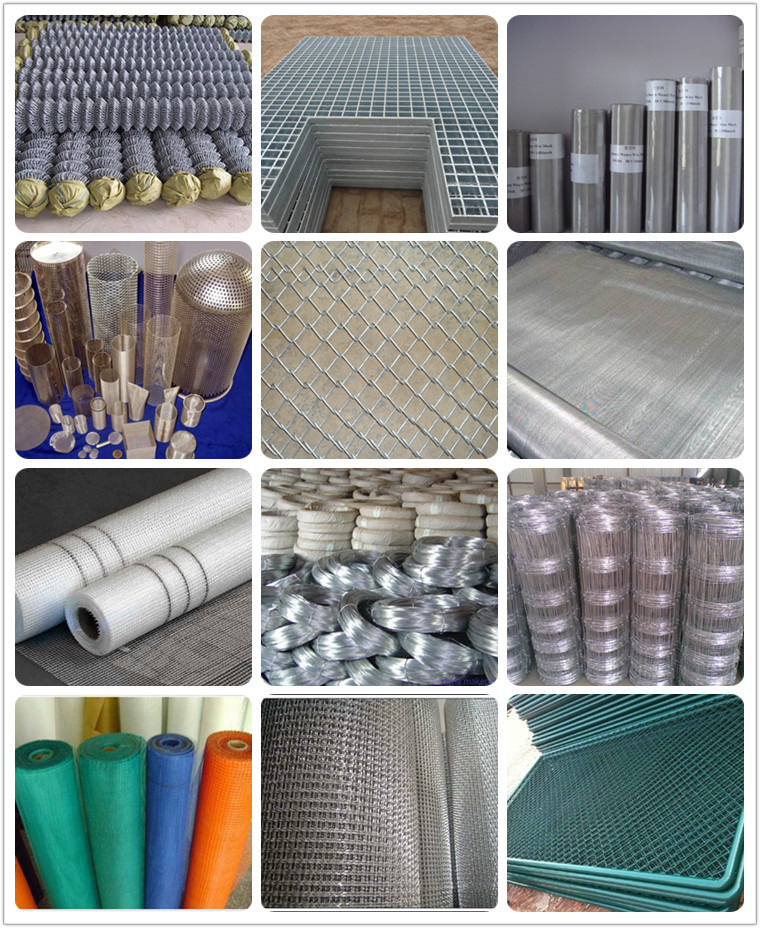

7.Other products we provide: galvanized barbed wire mesh, fiberglass wire cloth. Galvanized or pvc coated welded wire mesh. Window screening or netting. Gabion box mesh, security fence and posts. Crimped wire mesh, steel grate panels.
