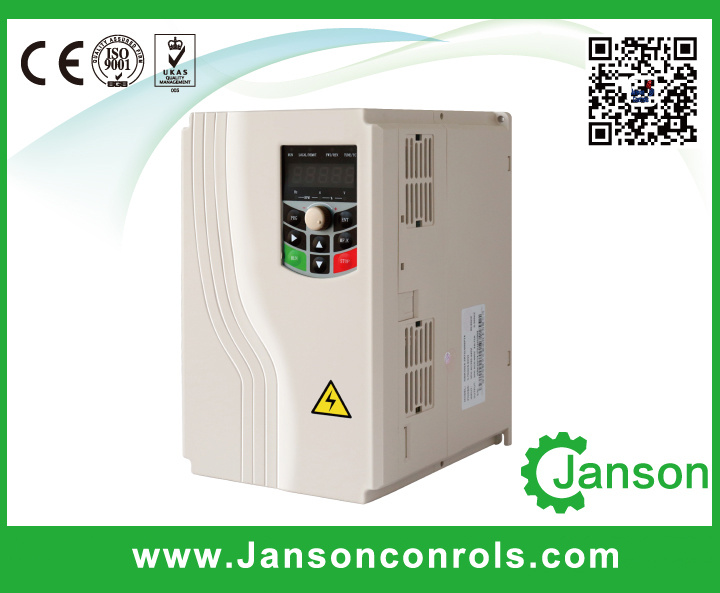

FC155 series frequency inverter has the following features:

FC155 Series AC drive Features
Multiple Control Modes:
*Supports multiple control modes: vector V/F control, sensorless vector speed control,
sensorless vector torque control, sensor vector speed control and sensor vector torque
control .
Advanced Vector Control Algorithm:
*The optimized VF control and sensorless vector control is more stable at low speed,
more powerful in the ability of low frequency torque output and with better dynamic
response and both the sensorless vector and sensor vector mode support speed
control and torque control.

24 Months Warranty 0.7kw~500kw Frequency Inverter (Single Phase, Three Phase)

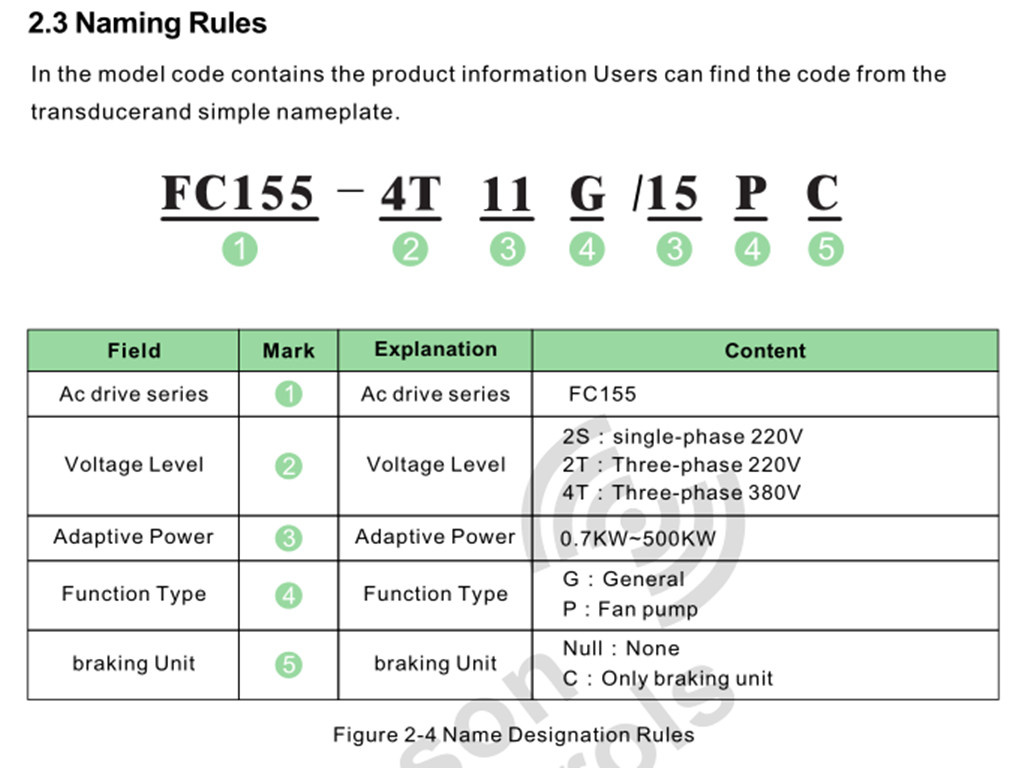

FC155 Series Frequency Inverter Model and Datasheet: ( voltage Range: -15%~20%)

ModelAdoptable Motor(kw)Input Current(A)Output Current(A)Size&Weight
Three-phase 220V, 50/60Hz, also can be used in Single-phase
FC155-2T-0.7G0.753.8240*180*220
2.5kg
FC155-2T-1.5G1.55.85.1
FC155-2T-2.2G2.210.59330*235*270
4.5kg
FC155-2T-4G414.613
FC155-2T-5.5G5.52625410*305*295
9.5kg
FC155-2T-7.5G7.53532
FC155-2T-11G1146.545540*420*360
20kg
FC155-2T-15G156260
FC155-2T-18G187675650*470*490
30kg
FC155-2T-22G229291
FC155-2T-30G30113112740*575*490
45kg
FC155-2T- 37G37157150
FC155-2T-45G45180176740*575*570
58kg
FC155-2T-55G55214210
FC155-2T-75G75307304940*625*620
99kg
Three-phase 380V, 50/60Hz
FC155-4T-0.7G0.73.42.1240*180*220
2.5kg
FC155-4T-1.5G1.553.8
FC155-4T-2.2G2.25.85.1
FC155-4T-4G410.59330*235*270
4.5kg
FC155-4T-5.5G5.514.613
FC155-4T-7.5G7.520.517
FC155-4T-11G112625410*305*295
9.5kg
FC155-4T-15G153532
FC155-4T-18G1838.537
FC155-4T-22G2246.545540*420*360
20kg
FC155-4T-30G306260
FC155-4T-37G377675650*470*490
30kg
FC155-4T-45G459291
FC155-4T-55G55113112740*575*490
45kg
FC155-4T-75G75157150
FC155-4T-90G90180176740*575*570
58kg
FC155-4T-110G110214210
FC155-4T-132G132256253940*625*620
99kg
FC155-4T-160G160307304
FC155-4T-200G200385377940*625*620
167kg

Specifications:

Input and output

Featured Functions
Input Voltage1AC 220~240V(±15%)
3AC 220~240V(±15%)
3AC 380~460V(±15%)
Featured FunctionsInput&Output delay
Flexible parameters display
AVR(Automatic Volatage Regulation)
Timing Control,fixed length control, etc.
Simple PLC,16-Steeps Speed control
Torque control bulit-in
S curve acceleration.deceleration
Mulit functional programmable keypad
V/f separated control
Input Frequency50Hz/60Hz±5%)
Output Voltage0~input voltage, deviation<±3%
Output Frequency0~3200Hz
Control Characteristics

Control modeV/F control
Sensor-less vector control
Closed-loop vector control (CLVC) (+PG Card)
Speed accuracy± 0.5%(V/F SVC)
± 0.02% (CLVC)
Environment Limitation
Speed fluctuaion± 0.5%(SVC)
± 0.02% (CLVC)
Install locationWithout direct sunlight,free from dust, corrosive gas, oil mist,flammable gases,water vapor,water drop or salt, etc.
Torque Response<10ms( SVC)Altitude0~2000m derated 1% for every 100m when the altitude is above  1000 meters
Starting torque0.3Hz:150%(V/F SVC)
0 Hz:180% (CLVC)
Storage temperature-20°C~+70°C
Overload capacity150% Rated Current 60s       180% Rated Current 3s         200% Rated Current1s                                            Relative Humidity5~95%, no condensation
Simple PLC Multi-step speed16steps speed
External digital signal control Internal lock
PID function

Standard build-in
CommunicationModbus Canopen/Canbus(PG card)

Products Construction,

24 Months Warranty 0.7kw~500kw Frequency Inverter (Single Phase, Three Phase)24 Months Warranty 0.7kw~500kw Frequency Inverter (Single Phase, Three Phase)

Our Frequency Inverter Solution on Fan And Pumps

1, Load feature
  (1)  Both of them belong to fluid control.
  (2) If without VFD, the fluid is controlled by valve or baffles;
  (3) For less fluid required system, there will be more energy saving.
  (4) In theory, if the running frequency is H1, then
        Energy Saving = 1-(H1/50)3

2,  Requests for frequency inverters (VFD)
  (1) Soft start the motor, reduce the surge current.
  (2) VFD should work continuously without fault.
  (3) Speed tracking and start (flying start) function should be reliable.
  (4) In some systems, PID function is required.

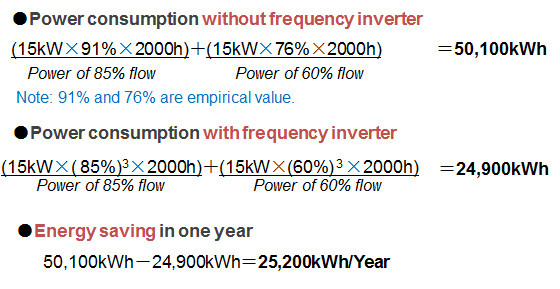

3,  Real example
 In a hotel, there is an central air-conditioner, the cooling fan is one PCS of 15kW motor, in one year,
    it runs 4000h, 2000h with the air flow of 85%, 2000h with the air flow of 60%.

24 Months Warranty 0.7kw~500kw Frequency Inverter (Single Phase, Three Phase)

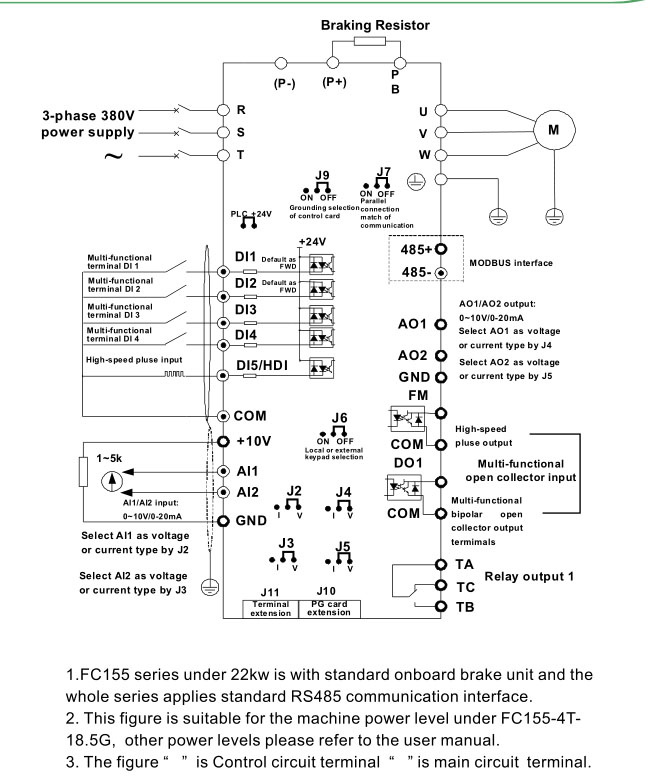

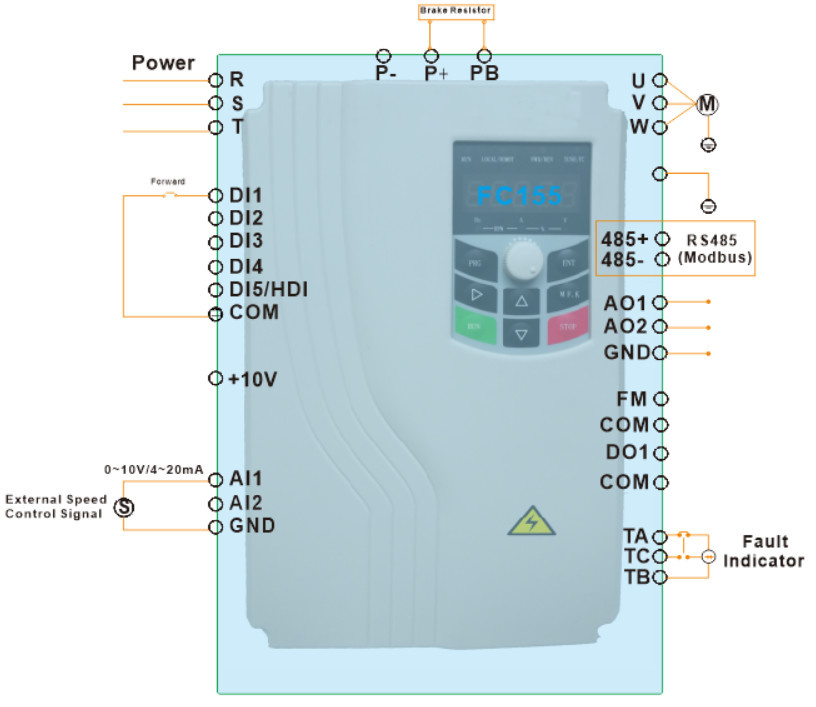

4,  Typical wiring diagram
24 Months Warranty 0.7kw~500kw Frequency Inverter (Single Phase, Three Phase)
5,  Parameters setting list

No.Function codesDefaultSetting valueExplanation
1F0-0101External start / stop signal
2F0-1012, 3, 4The motor speed is adjusted by potentiometer or external analog signal.
3F0-20Model depend20sSet the acceleration time based on real request
4F0-21Model depend20sSet the deceleration time based on real request
5F1-0701Coast to stop (if necessary)
6F1-0001Speed tracking and restart
(if customers want to restart running motor)
7F4-0233Fault output
24 Months Warranty 0.7kw~500kw Frequency Inverter (Single Phase, Three Phase)

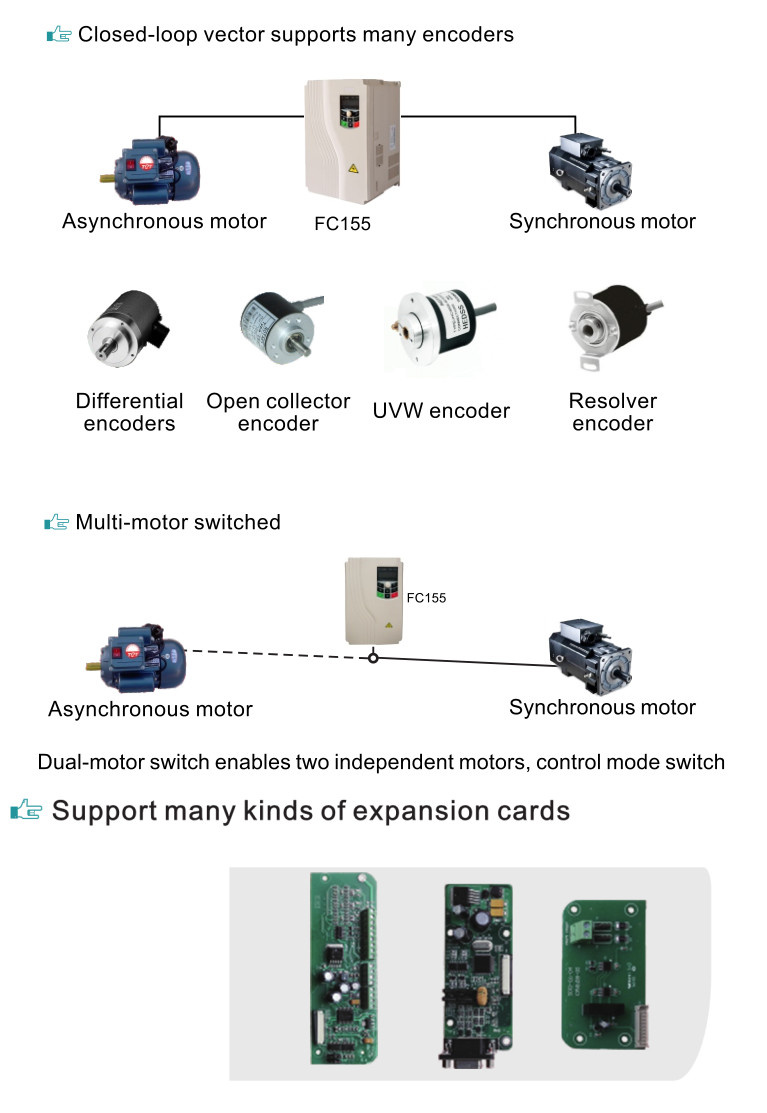

Differential Encoder PG CardPG1-V10A+/A-;B+/B-;Z+/Z- +5v, COM,PE Support the differential input and the collector
Rotary Transformer PG CardPG2-V10Support Encoder Interface, include pumping signal EXC+/-&Sin+/-, COS=/-,10KHZ
Open Conllector PG CardPG3-V10
A,BZ,+5V,COM,PE Support input open collector
Relay expension cardIO-KZ10Add One Relay and Two Analog Input
CANOPEN CardIO-KZ22For Canopen Communication
Expansion Card 1IO-KZ311 Relay/2 Digital input,1 Analog(0-10V/0-20mA)Input
Two way turn a 00-1-10V,thermistor detection(PT100/Pt1000), CAN bus
Expension Card 2PGH001 Realy/5 Digital Input, one Dif Encoder Interface
TCAN bus Outer supply 5v, and 12v




Our Service:

1.   Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.   What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.   What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.   What's your warranty terms?
We offer 24 months warranty time .
5.   Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.   Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.   How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8.   Can you sell spare parts ?
If you are using our products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .We have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request,and our factory can do soft starter by ourselves.
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
Our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail. and we will take all the responsibility once problem during warranty time.

Prod Model: FC155 Series
Place Of Origin: Shenzhen, China
Adaptable Motor Power: 0.2~3.7kw
Weight: 0.74~3.5kg
Power Capacity: 0.6~5.9kVA
Input Voltage: 220, 380 V
Output Current: 1.8~8.5A
Output Frequency: 0-1500Hz
Input Current: 3.2~10.5A
Application: High Frequency Converter Transducer
Principle Of Work: V/F Control Transducer
Switch Mode: PWM Control
Main Circuit Type: Voltage
Output Type: Single & Three Phase
Brand: Janson Controls or OEM
Located in Shenzhen, China, Janson Controls Company Limited is a factory that obtained ISO9001: 2008 and CE certificate, we are highly skilled in focusing on green energy of harmonic drive, including high frequency inverter, low voltage inverter, and different variable frequency inverter for general purpose.

As a council member of Inverter Branch of China Electric Appliance Industrial Association, all of our software and hardware are developed by its own D&R, and the main components are from top-brands in the world, e. g. IGBT from Infineon of Germany, capacitor from NCC of Japan, rectifier bridge from Microsemi, PCB board from TDK of Japan, and fan from NAIS of Taiwan and also NIDEC of Japan, MCU from DSP of IT in USA, MOS Tube from ST etc.

Our products mainly serve for Equipment Manufacturing, Energy-saving&Environmental protection, and New energy field, and are widely used in elevator, crane, machine tool, metal products, wire and cable, plastic cement, printing packaging, textile chemical fiber, construction materials, metallurgy, colliery, civicism and auto industry.

With timely service and superior quality, we have gained high reputation for its applicability and reliability in this industry, together with competitive price make us develop a word-wide market network and our products have been exported to southeast Asia, Russia, Europe, Pakistan and many other countries, and what we offer is not only products but also solutions and services to meet all customers' needs.

Janson is strived to become the best reliable supplier of automated products, our mission is to improve the industrial automation application, and our value is to establish a human-centric development platform.

A warm welcome is extended to visit Janson Controls when you are visiting China.
