| Price: | US $ 4589-4677/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
Biogas Power Generation Vacuum Blower Specifications
| Model | Power | Working Point | Internal Efficiency | Air Density | Rated Speed | N.W. | |
| Air Flow | Pressure | ||||||
| KW | m3/h | mbar | % | (kg/m3) | RPM | Kg | |
| TKS-025 | 18.5 | 1926 | 300 | 85 | 1.12 | 18000 | 220 |
| TKS-030 | 22 | 2267 | 300 | 85 | 1.12 | 18800 | 230 |
| TKS-040 | 30 | 2859 | 350 | 85 | 1.12 | 20000 | 250 |
| TKS-050 | 37 | 3270 | 400 | 85.5 | 1.12 | 20000 | 300 |
| TKS-060 | 45 | 3591 | 450 | 85.5 | 1.12 | 21000 | 320 |
| TKS-075 | 55 | 3848 | 500 | 85.5 | 1.12 | 22000 | 350 |

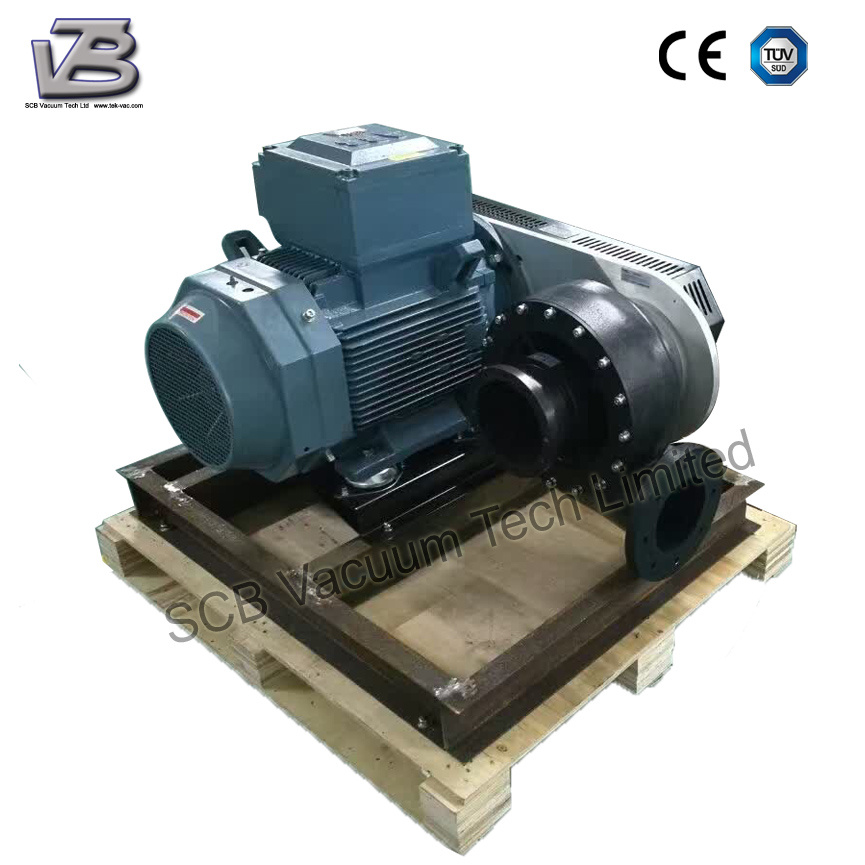

Model: TKS-025 Brand: SCB
Frequency: 50/60Hz Motor: IE2 / IE3
Power: 18.5kw Voltage: 220V / 380V
Air flow: 1926m3/h Pressure: 300 mbar
Packages: Packed in cartons Dimension: 1450*1250*1350
Installation ways: vertical and Horizontal Outlet: 360 around

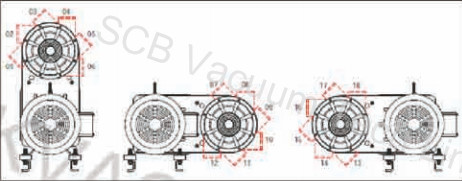

Biogas Power Generation Vacuum Blower Outlet Installation Ways
Biogas Power Generation Vacuum Blower Advantages
★ Energy Saving, Using ABB motor energy conversion reaches 85%
★ IE2 And IE3 Motor, High class protection
★ Easy to install and maintance free
★ Oil free and low noise
★ Competitive Price, good quality, Die-casting process
★ Both suction and blowing at the same time, Durable voltage

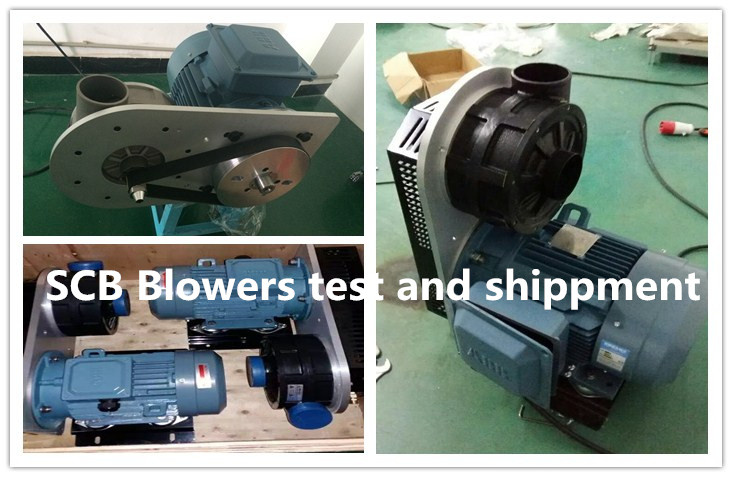

Biogas Power Generation Vacuum Blower Test and Shippment

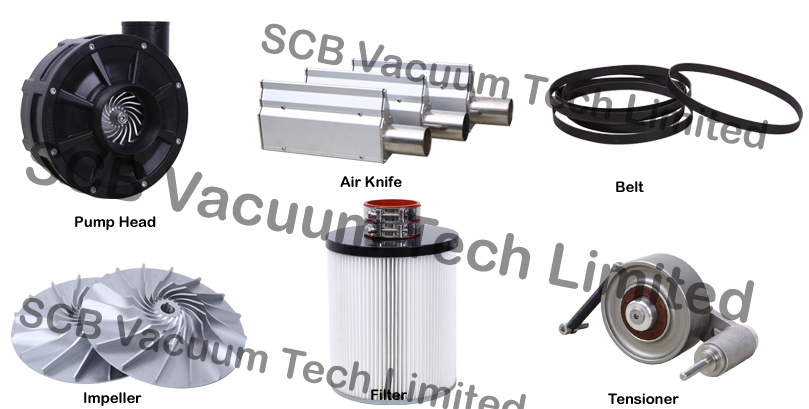

Biogas Power Generation Vacuum Blower Fittings

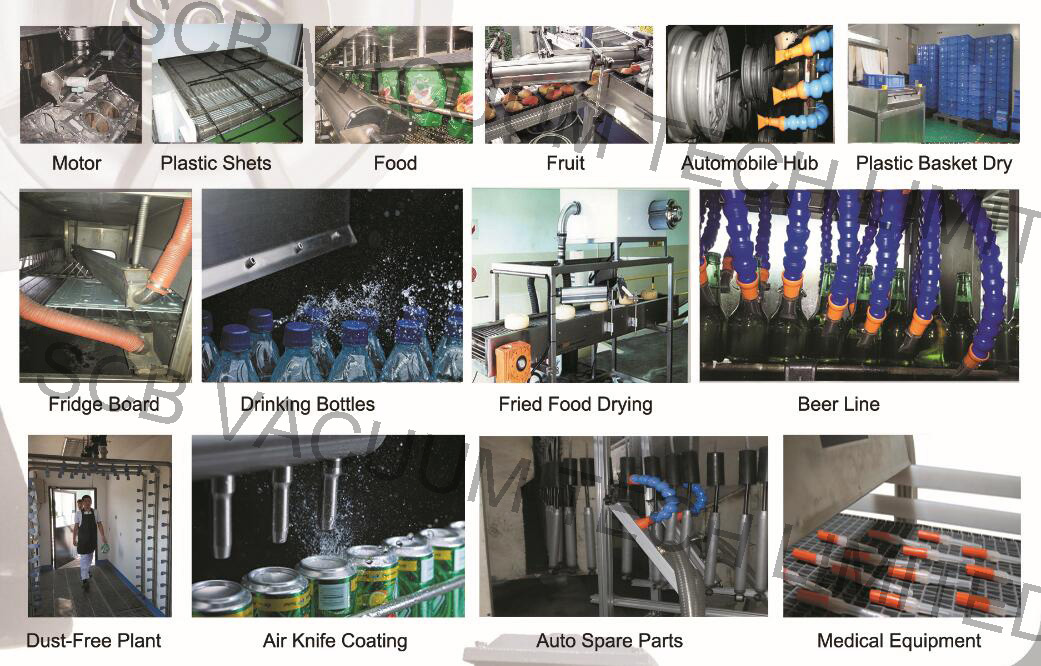

Biogas Power Generation Vacuum Blower Applications
△ Air Knife Cleaning and Drying System
△ Ultrasonic Washing & Cleaning & Drying Equipment
△ Fridge board drying; Auto part Drying
△ Electroplating parts Drying; Plastic sheet Drying
△ Plating Drying and Cleaning System
△ PCB & PCBA Cleaning and Drying Equipment
△ Vacuum Filling Equipment; Bottling drying system
△ Vacuum Package Machine; Material Handling and Conveying
△ Pneumatic Conveying system
△ Dust-Free Plant; Water Treatment
△ Tank Aeration; Aquaculture; Shrimp & Fish Farm
△ Spa Pool & Swimming Pool Equipment; Jacuzzi Spas
△ Air Coating; Spraying System
△ Biogas Transportation & Pressurization; Biogas Power Generation
△ Sand Blasting Machine
△ CNC Table
Etc.

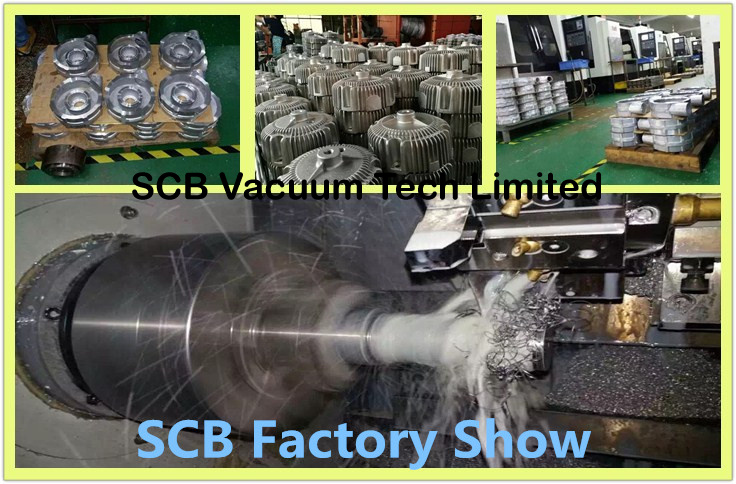

Biogas Power Generation Vacuum Blower Factory
SCB Vacuum Company service
A. Professional design and die-casting blowers make sure the stable capacity
B. Engineer Teams help you choosing the best suitable models
C. OEM service available
D. Full products range: ring blowers, belt-driven blowers, Atex blowers, IP55 etc
E. 1 year warrenty, 24hours service support
F. Super quality with Competitive Price
G. Delivery time is 1week after payment
Biogas Power Generation Vacuum Blower Introduction
SCB Vacuum are a company which develop blower for some years. Our main products is belt-driven blower, air pump, vacuum blower, regenerative blower, ring blower, side channel blower and all parts. The full range models will support you much well in the market.
Belt-driven blowers are using Die-casting technique, to make sure provide all blowers with stable the capacity and peformance.
The terms we appreciate is FOB, CFR, CIF and EXW etc.
Welcome contact us to get the latest datas and price!
| SCB | Mei | |
| SCB Vacuum Tech Limited | ||
Add: Room2114, Tenglong business center, Nancheng, Dongguan, Guangdon Province | ||
| Web: www.scbvacuum.com www.scbvblower.com |
| Prod Model: | TKS-025 |
|---|---|
| Frequency: | 50 & 60Hz |
| OEM: | Acceptable |
| Customized: | Acceptable |
| Protection: | IP55 |
| Internal Efficiency: | 85% |
| Material: | Aluminum |
| Flow Direction: | Centrifugal |
| Pressure: | High Pressure |
| Certification: | TUV |
| Usage: | Air Drying/ Cleanig System |
