15KN Rescue Boat Manual Release Hook with good price
Product Description

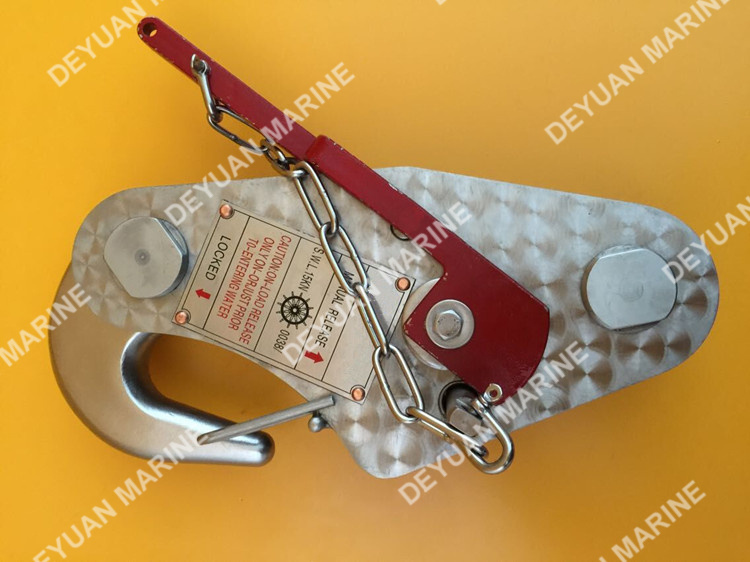

15kn Handle Release Hook For Rescue Boat
Working instruction:
1. Move the hook to the hooking position when the fork handle is at unhooking position.
2. Move the fork handle down to the hook protector position by a flexible push rod then insert the protector into the protecting hole.
3. Turn the torsion spring on the hook, put down the lifting steel cord or the ring. Keep the torsion spring in loose status to prevent the cord dropping then start lifting a heavy object.
4. To carry a unhooking operation, take the protector out of the protccting hole then use the flexible push rod move the fork handle upward to the unhooking position the heavy object can drop from the hook freely.
5. Repeat the above hooking and unhooking operation. The hook can work normally when using it.
Repair and maintenance:
1. If find any part that is worn and torn or deformed, it should be replaced.
2. The active position should be lubricated regularly with grease.
3. The hook surface should be cleaned with sewing machine oil per two months and smear with clean sewing machine oil after cleaning to prolong the serice life.
| Model | Specification
| Release
form | Safe working load
| Test
specification | Test load for
2.5 times | Test load
for 6 times
| On the pitch | Under the
aperture |
| KN | KN | KN | KN | KN | MM | MM |
| DY-15 | 15 | Manual
release | 15 | 15 | 37.5 | 90 | 32 | 25 |
Contact: Anna Wong
China Deyuan Marine Fitting Co., Ltd.
Subsidiary: Zhuhai City Deyuan Import & Export Co., Ltd.
Tel: +86-756-6302052
Fax: +86-756-8305812
MP: +86-13798955790
http://www.deyuanmarine.com
| Prod Model: |
Release Hook |
| Model No.: |
Dy-15 |
| Safe Working Load: |
15kn |
| Material: |
Oc20 |
| Certificate: |
Ec, CCS. |
| Release Form: |
Manual |
