| Price: | US $ 6800/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Features
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth.
3. The structure is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube.

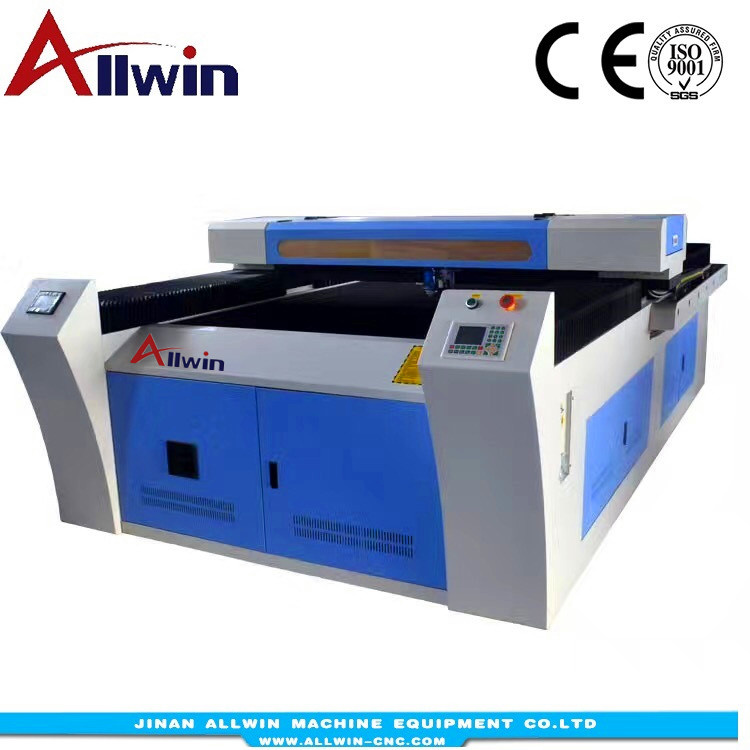

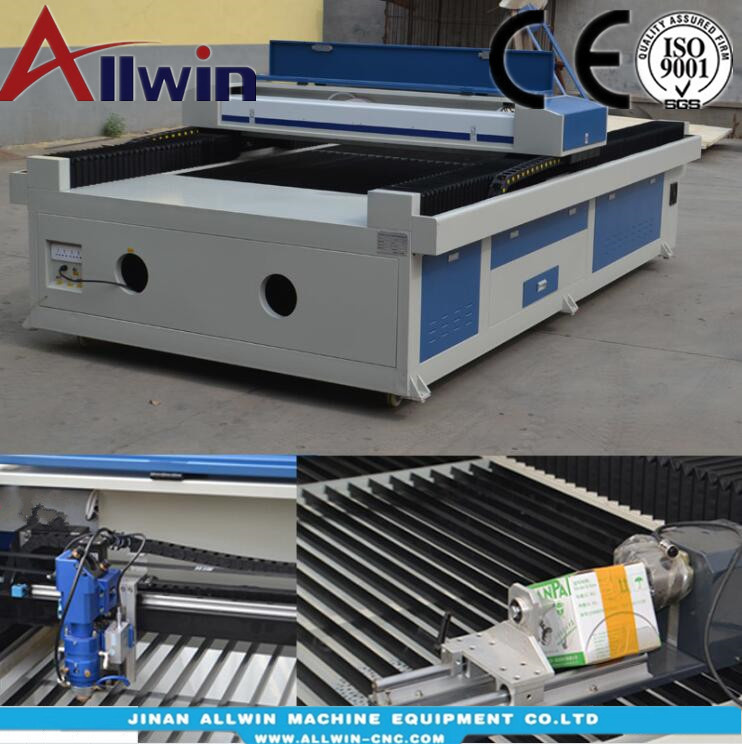

1325 big power metal laser cutting machine(Co2)
| No | Model | 2030 metal laser cutting machine |
| 1 | Effective working size | 2000*3000mm |
| 2 | Laser power | W80/ 150W/180W/200W RECI laser tube |
| 3 | Laser type | CO2 laser tube |
| 4 | Cutting speed | 0-200mm/s |
| 5 | Working accuracy | ±0.005mm |
| 6 | Control system | Ruida control system--model 6332 |
| 7 | Guide rail | Taiwan HIWIN square rail |
| 8 | Motor | Step motor and drivers |
| 9 | Cutting thickness | 0-2 mm |
| 10 | Table structure | Mesa of the blade |
| 11 | Dust collector | 550W x air exhaust fan with tube ducts |
| 12 | Transmission way | Shanghai Fulong Belt drive |
| 13 | Min. shaping character | Character 2*2mm, English 1 x 1mm |
| 14 | Graphic format supported | PLT, DXF, BMP, AI, DSP |
| 15 | Software supported | CorelDraw, Photoshop, AutoCAD |
| 16 | Driving system | Step motor |
| 17 | Cooling system | Water pump/Water chiller |
| 18 | Water chiller | CW5000/CW5200 |
| 19 | Laser tube lifetime | RECI laser tube:10000h |
| 20 | Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
| 21 | Operation temperature | 0 - 45°C |
| 22 | Operation humidity | 5 - 95% |
| 23 | Recommended spare part | Laser tube and lens |
| 24 | Main configuration | 1X Laser tube |
| 1set X Mirror and lens | ||
| 1X Water chiller 1X EXHAUST FAN 1x exhaust fan smoke pipe, 1X water pipe | ||
| 1x USB cable 1x communication cable 1x CD(Ruida software english version) | ||
| 25 | Warranty | 1)All the machines will be full tested before shipment. 2)Laser tube 10000 hours' working time. 3)The total machine guarantee for 18 month. Laser tube and Lens for 6 Months. 4)24 hours technical support-- email, telephone or video online. 5)User-friendly English manual for machine using and maintaining. |
Application of co2 laser engraving machine
Applicable Materials: wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, and other non-metal materious,plastic,
cloth toys,leather ,computer embroidery cutting ,mould ,crafts ,bamboo and wood ,advertising and building decoration ,packaging and printing ,paper products.
Typical Application: Acrylic crystal words,acrylic fish tank,ceramic crafts,rubber board printing,applique,special-shaped trademark,
engraving and hollowing out patterns or designs on garment and leather
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our years of experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, video call ,email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use", and we provide engineers available to service machinery overseas.

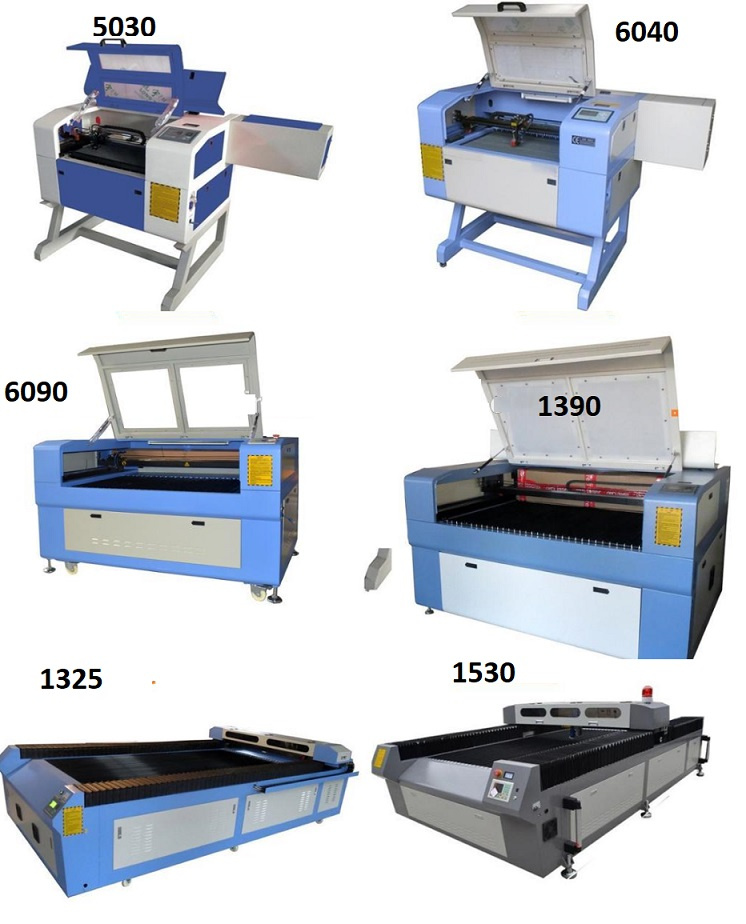

Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q5:What's the guarantee, in case the machine breaks down?
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q6:How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q8:How's the payment?
We provide L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal payments for offline orders and online orders
Q9:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q10:How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
| Prod Model: | 2030 |
|---|---|
| Laser Type: | CO2 |
| Service: | Supporiting Techical Oversea |
| Work Table: | Honeycomb or Blade |
| Laser Power: | 180/260W/300W/ Opitional |
| Cooling Mode: | Water Cooling |
| Cooled System: | Water Pump/Water Chiller |
| Control System: | Ruida Control System |
| Motor And Drivers: | Step Motor and Drivers |
| Transmission Way: | Belt Transmission |
| Flexible: | up and Down |
