120mm 120X120X38mm DC Fan for Welding Machine Cooling System

120mm 120X120X38mm DC Fan for Welding Machine Cooling System
Price: US $ 4.15/Piece
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: T/T,Western Union,Paypal

Specifications:

1.Size:120x120x38mm dc fan

2.Rated voltage: 12v 24v 48v

3.Ball bearing

4.OEM&ODM

5.2000000pcs monthly

ModelRated voltage
(VDC)
Startup voltage
(VDC)
Current
(A)
Speed
(RPM)
Air flow
(CFM)
Static pressure
(mmH2O)
Noise level(dBA)Weight
(G)
XYJ12B12038H1260.503000126.267.7847262.00
XYJ12B12038M1260.302400105.835.8741262.00
XYJ12B12038L1260.18200083.413.6337262.00
XYJ24B12038H24120.373000126.267.7847262.00
XYJ24B12038M24120.172400105.835.8741262.00
XYJ24B12038L24120.12200083.413.6337262.00
XYJ48B12038H48240.183000126.267.7847262.00
XYJ48B12038M48240.132400105.835.8741262.00
XYJ48B12038L48240.10200083.413.6337262.00

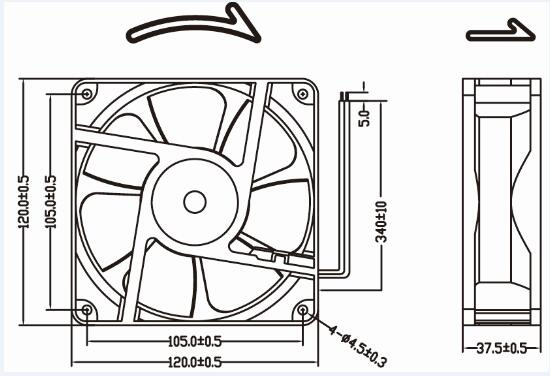

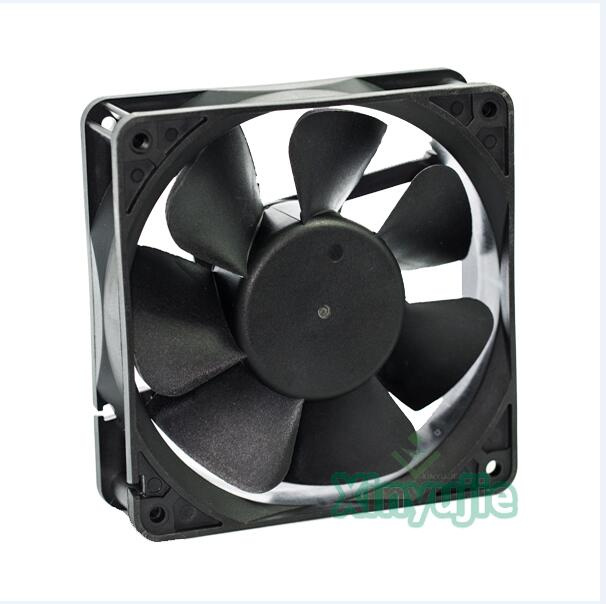

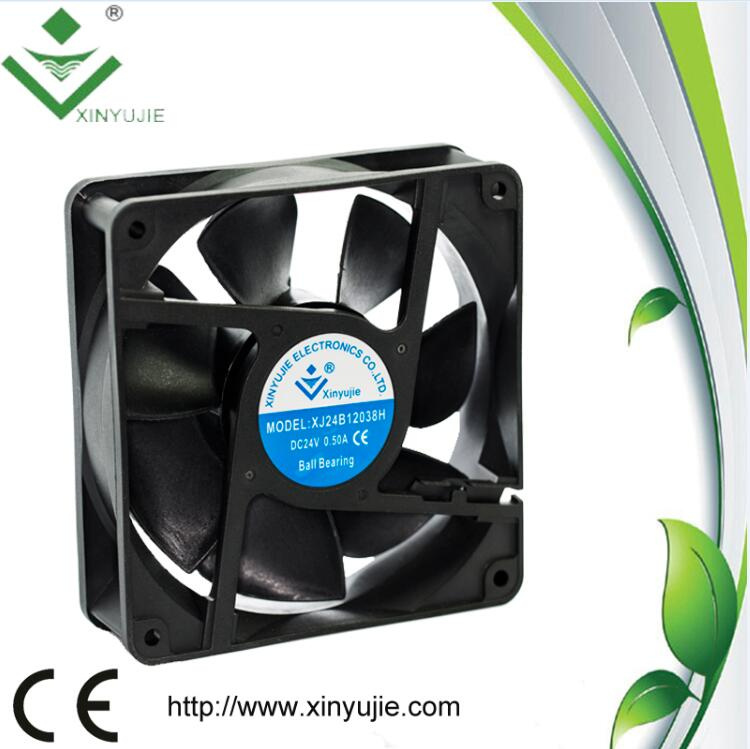

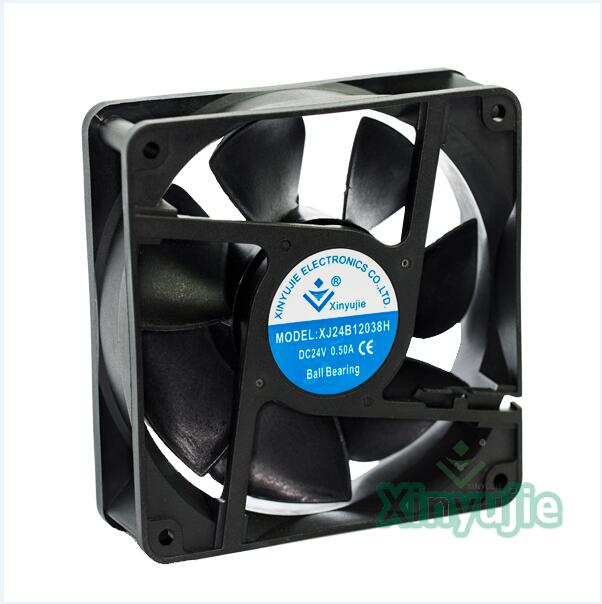

Main pictures:

The main advantage of our fan:

                                                       1.Reliable quality & Competitive price

                                                       2.Large air flow & long life expectancy

                                                       3.High speed & large air flow

                                                       4.Low noise & high efficiency

                                                       5.Ball bearing or sleeve bearing optional

                                                       6.Good after-sales services
Using environment:

Operating voltage10.2v~13.8v /20.4v~27.6v/40.8v~55.2v
Operating temperature/humidity-10ºC~70ºC   35%~85%RH
Storage temperature/humidity-40ºC~80ºC   35%~85%RH


Packaging details:

Two layer packaging, pcs/CTN

Packaging size:

43*28*43CM


Lead time:

1. Samples within 4 days

2. Mass production within 7-10 days

3. If do the waterproof fan need 1 week more


Optional functions:

-1. Waterproof function with IP55 or IP67 level

-2.Auto-restart function

-3.Stopage Alarm function(RD function with 3 lead wires)

-4.Speed detection function( FG function with 3 lead wires)

-5.Temperature control speed function(PWM function with 4 lead wires)

Optional bearing types:

-1.Sleeve bearing(lower price):The sleeve was inported from Germany with stalbe performance and easy installation

-2.Ball bearing(high price):we use the NSK ball which is imported from Japan,it is charactered with high quality,low noise level and easy installation.

Guarantee:

-3 years warranty for ball bearing fans

-1 year warranty for sleeve bearing fans

Certifications:



Our equipments and workshop:

 FAQ:

1. Who are we?

2.What can we do for you?

3. Payment terms:

Prod Model: 12038
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 120X120X38mm
Bearing Type: Ball Bearing
Rated Voltage: 12V 24V 48V
Current: 0.10-0.50A
Speed: 2000-3000rpm
Air Flow: 83.41-126.26cfm
Static Pressure: 3.63-7.78mmh2o
Noise Level: 37-47dba
Weight: 262.00g
Life Expectancy: 50,000hours
Blade Material: Plastic
Electric Current Type: DC
Mounting: Free Standing
Certification: CE
shenzhen xinyujie technology Co., Ltd was established in 2006. we specialized in developing and producing AC/DC/ec cooling fans. our products involving multiple fields such as armamentarium, communication device, big server machine, security and protection monitoring, professional air amplifier, indoor air ventilation, instrument and equipment etc.

our staff member adhere to the principle "the best quality, the best service", and won a good reputation among our industry, suppliers, customers...at present, we have two hundred employees, and the annual production is more than 20 million.

xinyujie fans have full series dimension ranging from 25X25X07mm to 172X172X51mm, including skeeve bearing, ball bearing, hydraulic bearing, and the current AMP, rated voltage, speed, air flow can all be customized. and our fans can be added additional function: auto restart, temperature control speed, speed detection(fg), stppage alarm(rd), waterproof etc.

xinyujie got an excellent R&D department, they developed several cooling fans collection-DC cooling fans, AC cooling fans, blower fans, chip cooling and cooling module for the solution of cooling system. we have dozens of patents of utility model and designs, for example: ec cooling fans module. it contains an isolaation type AC-DC converters can adjust the voltage from high to low based on the type of fans. the DC motor speed will change the wind power which can lead to higher speed and air flow. make the fan produces maximum air volume to reduce interntional heat resistance.
