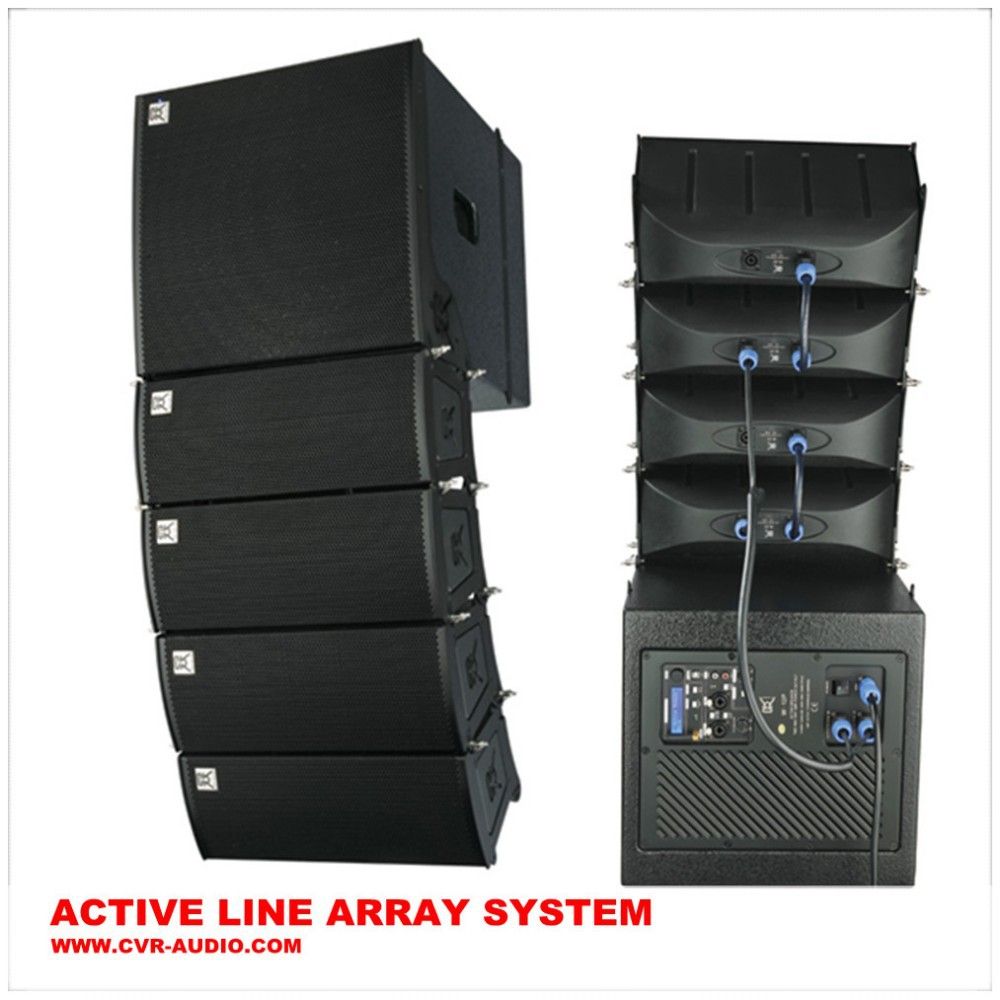

12 Inch Active Sub Bass Line Array \Wedding Sound System \Home Sound Speaker

    W-25 is a line array system which is made of two 5" woofers, a 1.4" compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-25 will integrate seamlessly with W-12P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-25 is very versatile and scalable for a wide range.

      W-12P is a dedicated high performance sub-bass system designed to augment the low frequency output of W-25. The W-12P features a highly efficient power amp module and incorporate DSP. This efficient design enables the flown combination of W-12P and W-25.The physical dimensions of W-12P are identical to the W-25 and it's equipped with the same proprietary rigging system.It's features with two 10 inch woofer with magnet structure and suspensions engineered for maximum.


Model	W-25 & W-12P(Active)
Type	Line arry system line arry sub-bass system(W-12P)
Frequency Response	80Hz-20KHz±3dB 45Hz-600Hz±3dB(W-12P)
Power handling	200W(RMS)400W(PEAK) 500W(RMS)1000W(PEAK)(W-12P)
Power amp	2X600W/4ohm + 1X900W/8ohm (W-12P)
Amplifier type	Switching power amp, class D circuit
Other functions	Bluetooth,DSP (W-12P)
Sensitivity	93dB(1W@1M) 100dB(1W@1M) (W-12P)
[email protected]	112dB(PEAK/1M) 131dB(1W@1M)(W-12P)
HF section	1×1.4"neodymium compression driver with34mm titanium diaphragm
LF section	2×5"(135mm)woofer 35mm(1.5in)coil 1×12"(310mm)woofer(W-12P) 100mm(4in)coil (W-12P)
Nominal impedance	16 ohm 8 ohm (W-12P)
Output section	2-channel
Dispersion pattern	110º H×9º V
Surface finish	Black paint
Array design	Arrays of less than 3×W-25 will provide poor dispersion control and are neither recommended nor supported
Speaker cables	1(+)1(-) Built in crossover
Rigging system	Please refer to the W-25 user's manual before any operation
Input connectors	2×NL4MP speakon
Recommend crossover	80Hz-20KHz 40Hz-120Hz(W-12P)
Dimensions	410×163×248mm(W×H×D) 408×392×494mm(W×H×D)(W-12P)
Package dimensions	480×230×320mm/0.04cbm 480×460×565mm/0.1cbm(W-12P)
Enclosure	HLPE(W-25)/Plywood(W-12P)
Net weight	7.8kg(W-25)/25kg(W-12P)
Gross weight	9kg(W-25)/27.5kg(W-12P)
