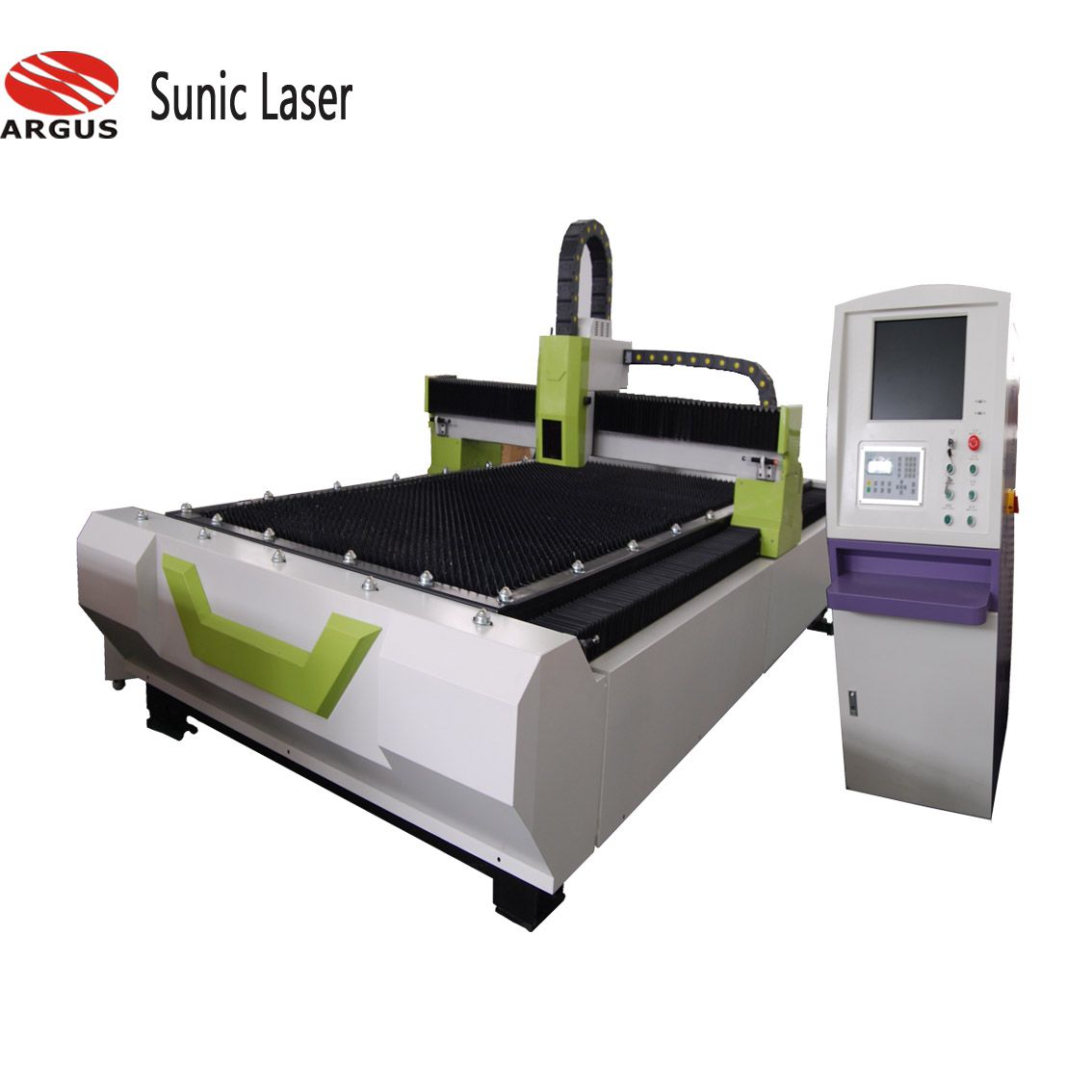

1000W Fiber Laser Cutting Machine 2mm Bronze Metal Cutter

1000W Fiber Laser Cutting Machine 2mm Bronze Metal Cutter
Price: US $ 3000-8000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

1000W Fiber Laser Cutting Machine 2mm Bronze Metal Cutter

Machine Description

1, Equipment Performance

SYC/SFC series laser cutting machine adopts Germany technology YAG laser (Or Fiber laser), spot fiexed, two-demensional table, X-Y worktable used exclusively by cutting, or X axis servo (straight line) motor drive, through a dedicated-user-friendly control software for editing and revise of the cutting, path.



Fast cutting speed, high precision, good effect, compatible well with AutoCAD, Coredraw and other professional cutting softwares.  Free modification with processing to obtain perfect cutting outcomes, no need the processing of traditional stamping dies. The advantages of narrow cutting slit, saving raw material, and reduction of produce cost have controbuted a lot to the world industries.



2, Applicable fields&materials

1) Hardware, high precision cutting, instrument, medical appliance,  glasses and horologe, handicraft, the spare parts of automobiles, Instrument and meter and other related industries

2) Furniture, Advertising, Garment, Decoration, Model manufacturing, Clothing industries

3)Acrylic, wood plank, double color plate, organic glass, plastic, metal, marble, leather, fabric, rubber and etc.



3, Optional configuration

Rotary device, Up&down wortable, automatic focusing system

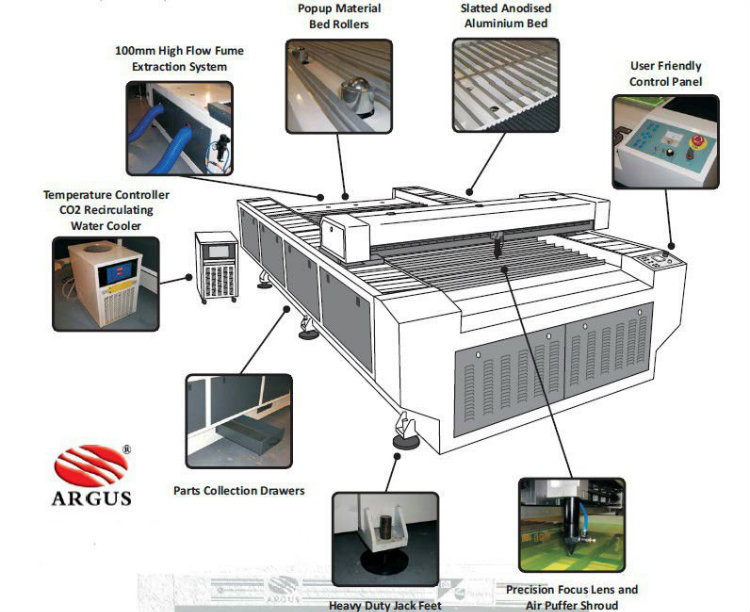

Main Components



Technical Parameters
Technical IndexTechnical Parameter
ModelSFC3015/SYC3015
Laser tubeYAG/Fiber laser tube 300W/600W/1000W
Focus lensImported from USA
Cutting Area3000*1500mm(Customize)
Coaxial red light positionAccurate position
Guide railTaiwan imported linear guide rail
MotorPanasonic servo-motor
WorktableAnodized aluminium  lamella
Up&down viable
Control systemPCI/USB   Oneline/Offline  Reading U flash
Support file formatPLT.BMP,DXF,T100,AI,DST,etc
Process MaterialNon-metal Materials and some metal
Max Idle Speed50m/min
MAX Cutting speedAccording to the laser power and target material
Repeated accuracy≤±0.03mm
Min. cutting character4mm
Max. cutting depth0-40mm(Up to the material)
Cooling wayscirculation of water cooling
Working temperature0-35°C
Working humidity5-95%
Working Power220V/50Hz/2kVA
Dimension3500*2100*1400mm
Net weight3000kg
Cubage10.29cbm

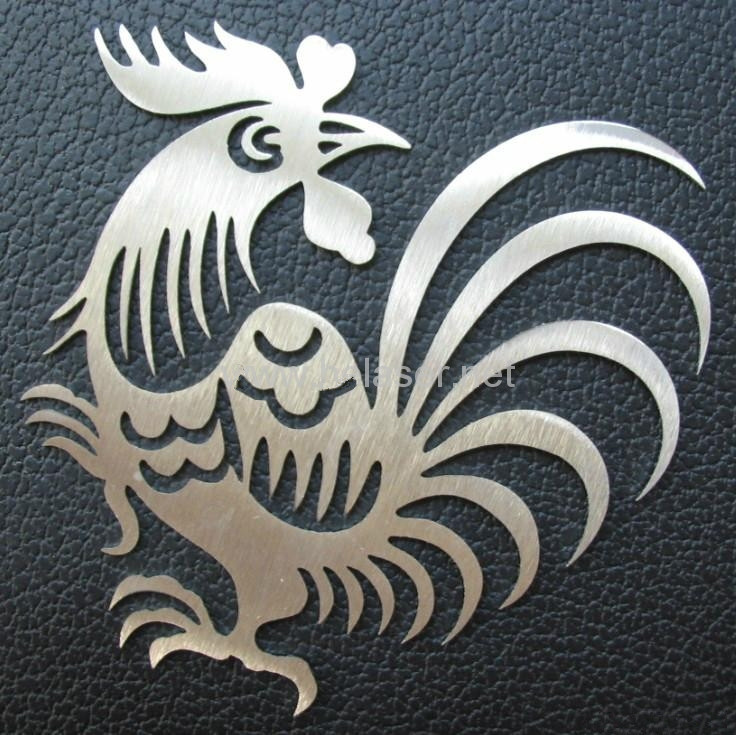

Samples Display




Applicable Fields & Materials:
The machine is widely applied in the fine engraving, cutting and hollowing out on nonmetals with all kinds of characters, graphs, images, trademarks and so on.
*Handcraft industry. Plywood,Glass,Marble,Density board,Gifts,Trophy, Marks, Key chains.
*Furniture, Wood,Bamboo,MDF, Home textile, Seat Cushions,Ceramic.
*Advertising industry, Advertising plate, Acrylic, Plastic, PVC,Signs.
*Garment,Jeans,Leather,Chemical leather, Shoes material.
*Decoration, Paper Board,Organic glass,Vases,Derma.
*Model manufacturing.

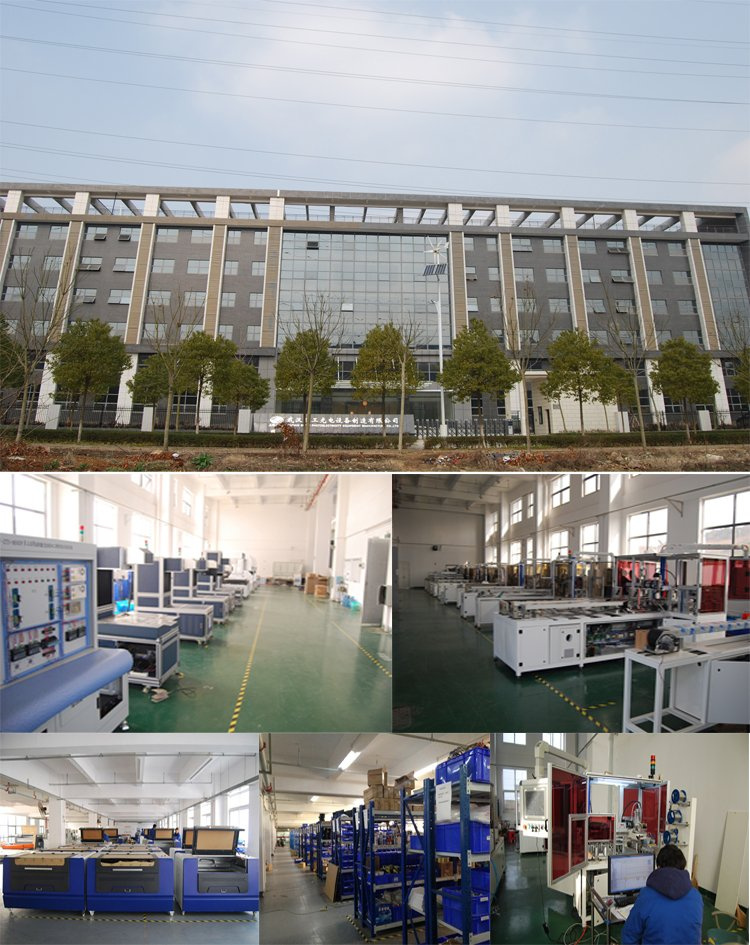

Company & Workshop
Wuhan Sunic Photoelectricity Equipment Manufacture Co.,Ltd (Sunic Laser) has been dedicated to the manufacturing of Laser equipments since 1998. We are specialized in designing, manufacturing as well as providing services for Laser processing machines and whole equipments for Solar PV production line. We offer complete solutions with Laser application for customers all over the world. Sunic Laser would like to be customer's technical consultant and support in Laser and solar equipments to make further development and progress together.

Our Certifications



Service&Maintenance

Pre-sales Service:

 1) According to customers demands, provide relevant technical guidance.
 2) Assist customers to design and make laser cutting & engraving solutions considering technical feasibility.
 3) Provide equipment demonstration for customers to investigate, make samples and do test, etc

After-sales Service:

1) 1 year warranty for laser machine and components;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.



Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.


The guarantee period shall be 1 year counting from the date on which the commodity arrives at the port of destination.
1) One year free maintenance, lifelong caring.
2) Free technical consultant and software updating.
3) Customer Service responding in 12hours.
4) Continuous support with software and hardware after free maintenance.


Packing&Delivery





FAQ

Q: Are you trading company or manufacturer ?

A: We are factory, and has been in the laser field for 20 years.


Q: How long is your delivery time?

A: Generally it is 3-7 days, it also depends on the machine model and quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge, but customers should pay the carrier cost.


Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.


Please feel free to contact us if you have any inquiries or questions. Thanks.

Contact:       Kofi
Company:    Wuhan Sunic Photoelectricity Equipment Manufacture Co., Ltd.
Mobile:         0086-15671685391
Add:             No.4 Huanglongshan North Road, East Lake High-Tech District, Wuhan, Hubei, China
Web:            www.arguslaser.net
Prod Model: SFC3015
Laser Source: Raycus Fiber Laser Source
Focus Lens: America
Laser Power: 700W/1000W
Working Area: 3000X1500mm
Worktable: Anodized Aluminium Lamella
Accuracy: 0.03mm
Cooling Way: Water Cooling
Min. Cutting Character: 0-8mm
Control System: PCI/USB Oneline/Offline Reading U Flash
Graphic Format Support: Ai, Plt, BMP, Dxf, Dst, T100, etc
The Sunic Laser Co., Ltd began production in 1998 and is now one of the largest producers of industrial LASER equipment in China. With more than 200 employees (combined experience totals more than 1000 years! ), we have self-operation export and import rights to well over 80 different countries.

Since 1998, we have consistently weeded out older technology to implement the latest available technology in all of our 30+ LASER machines. The unparalleled growth of our company is evidenced in our four factory relocations over the last 7 years - each new premises allowing us to double the production capacity of the previous. Our sales of Scribing Machines are 85% domestic, making us the largest market occupier in this sector (in mainland China).

Aside from the Solar Industry, we supply a wide range of Marking Machines, Cutting Machines, and Engraving Machines that use the finest available German LASER sources where applicable. From cutting edge (no pun intended) Fibre LASERS to high-power CO2 LASERS, we will ensure that we provide you with the highest quality machine for your project - whilst maintaining a competitive price! Our mission is to provide you with consistently high quality in all areas of our business from the machines we make, through to our after-sales service. Our goal is to help you grow your business such that you come back to us for more of our quality products in the future.
