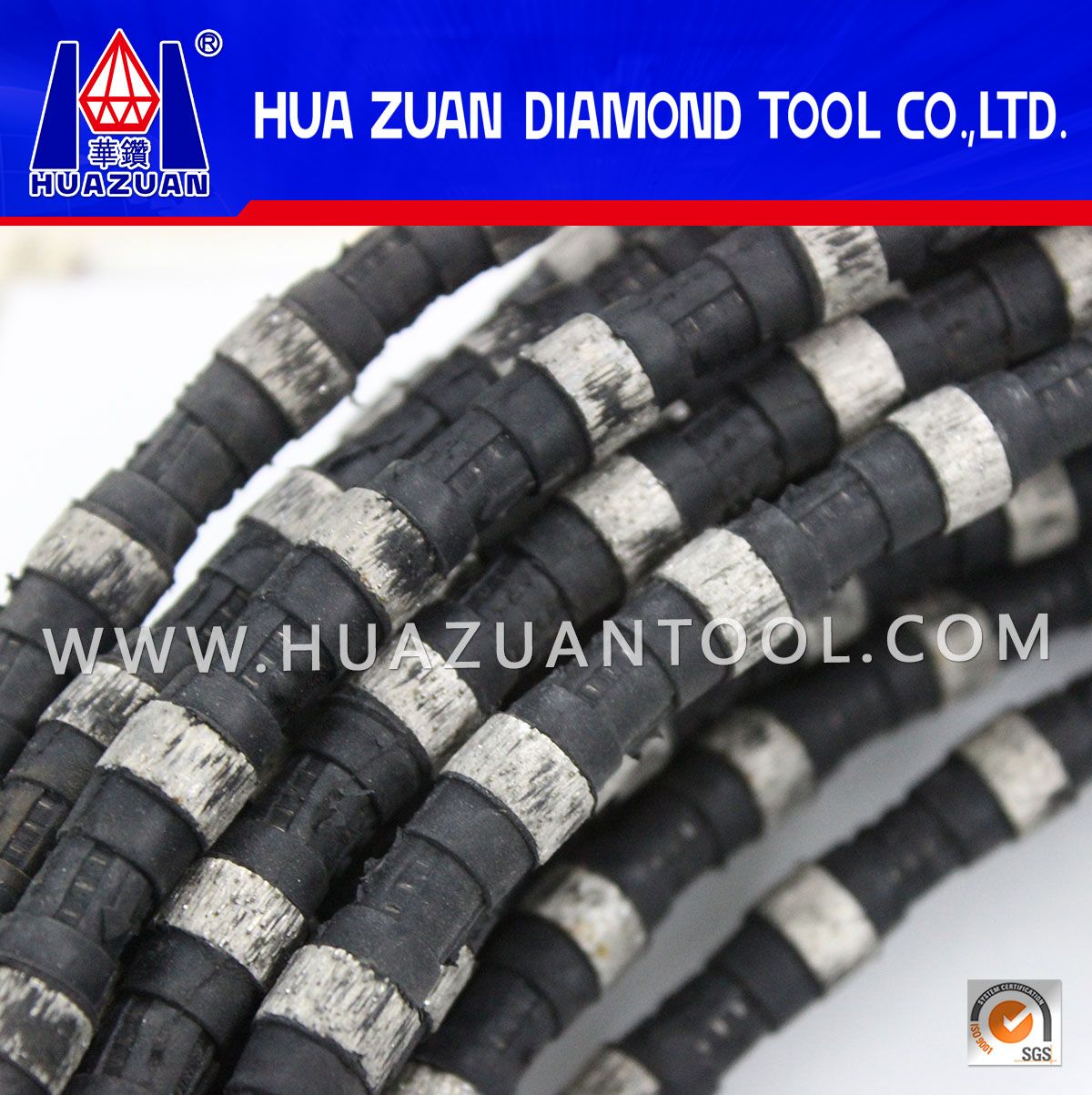

10.5mm Multi Wire Saw Machine Use Diamond Wire Saw

10.5mm Multi Wire Saw Machine Use Diamond Wire Saw
Price: US $ 42/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 10/Meter
Pay Type: L/C,T/T,Western Union,Money Gram
There are some specifications for your reference:
Diamond wire saw for Granite quarry
Compared with other methods,the use of diamond wire saw for granite quarrying reduces the waste of quarry resource, no noise ,no dust ,block regular,high output and working efficiency.
Beads diameterBeads/meterCoatingStone hardnessWire speed(m/s)Cutting speed(m²/h)Life (m²/m)
Φ10.5mm
Φ11mm
Φ11.5mm
40Rubber
Rubber + Spring
Soft25-308-1216-22
Middle22-254-88-15
Hard18-222-47-9
Φ10.5mm
Φ11mm
Φ11.5mm
Plastic
Plastic  +
Spring
Soft25-308-1216-22
Middle22-254-88-15
Soft18-222-47-9
For granite quarry we recommend rubber and plastic wire,this can protect the wire saw rope very well and increase the wire's strength.
Diamond wire saw for Marble quarry
Beads diameterBeads/meterCoatingStone hardnessWire speed(m/s)Cutting speed(m²/h)Life (m²/m)
Φ10.5mm
Φ11mm
Φ11.5mm
26/28SpringSoft36-3819-2235-65
Middle34-369-1820-35
Hard30-326-915-25
Φ10.5mm
Φ11mm
Φ11.5mm
33Plastic
Plastic  +
Spring
Soft36-3819-2235-65
Middle34-369-1820-35
Hard30-326-915-25
Φ10.5mm
Φ11mm
Φ11.5mm
RubberSoft36-3819-2235-65
Middle34-369-1820-35
Hard30-326-915-25
Spring , plastic(+spring ) and rubble diamond wire saw ,widely used for marble quarry.
Diamond wire saw for concrete cutting
Beads diameterBeads/meterCoatingApplicationWire speed(m/s)Cutting speed(m²/h)Life (m²/m)
Φ10.5mm
Φ11mm
Φ11.5mm
40Rubber  +
Spring
Normally reinforced22-252-55-7
High reinforced20-221.5-32-4
Steel /metal structure18-200.5-21-3
*Other specifications are available upon request.





Prod Model: HZ41542
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Wire Saw for Cutting Granite Marble Concrete
Hardness: Soft, Middle, Hard
Cutting Speed: 10-40
Wire Speed(M/S): 30-40
Technology: Sintered, Electroplated, Vacuum Brazed
Certification: ISO9001:2000, SGS
Beads Diameter: 7.2-11.5mm
Price: Competitive
Grade: a
Production Processes: More Than 70 Processes, 100% Quality Testing
Saw Type: Chain Saw
Application: Granite,Marble,Concrete
Type: Fixed
Power Source: Hydraulic
Brand: Huazuan
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
