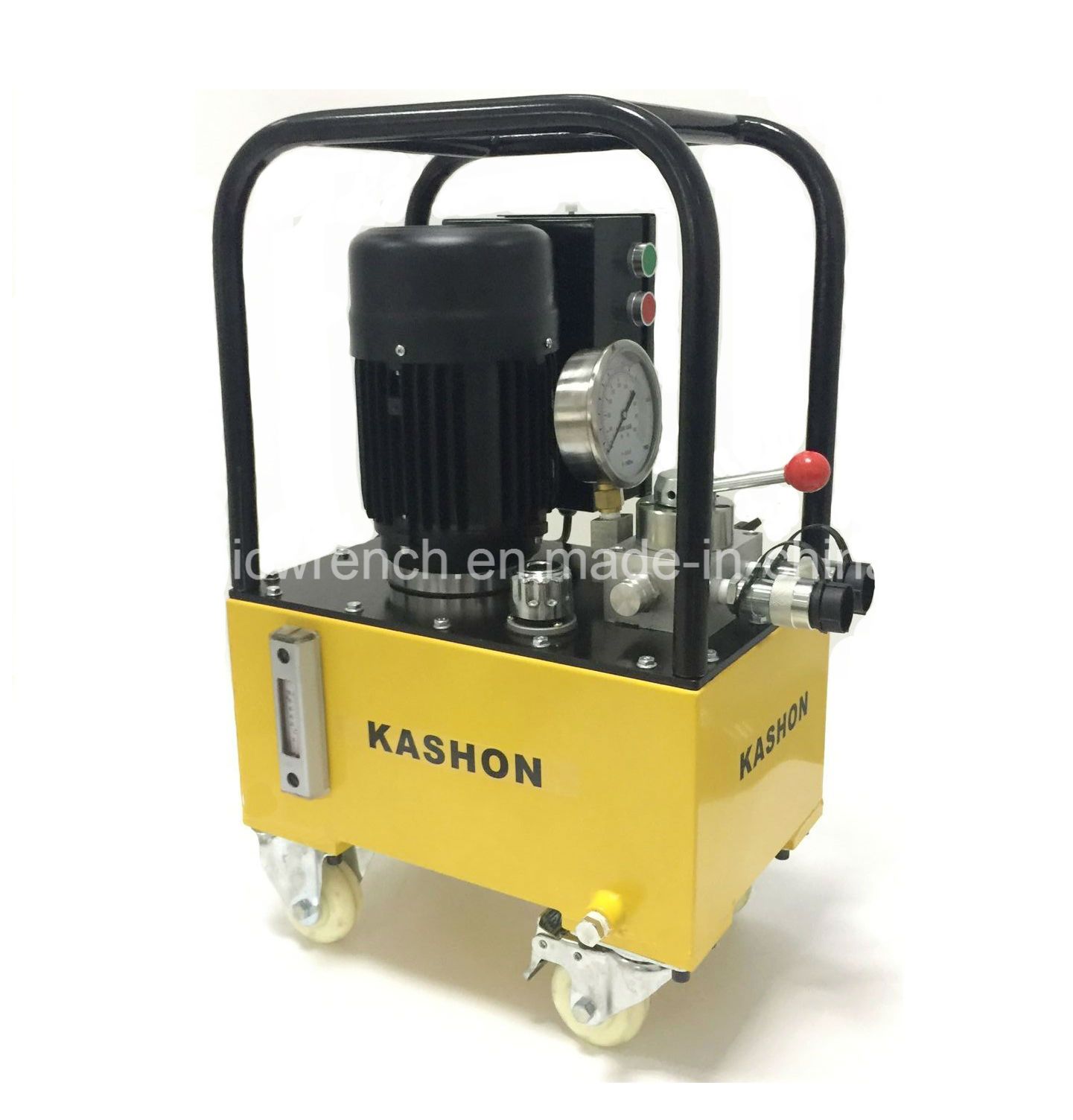

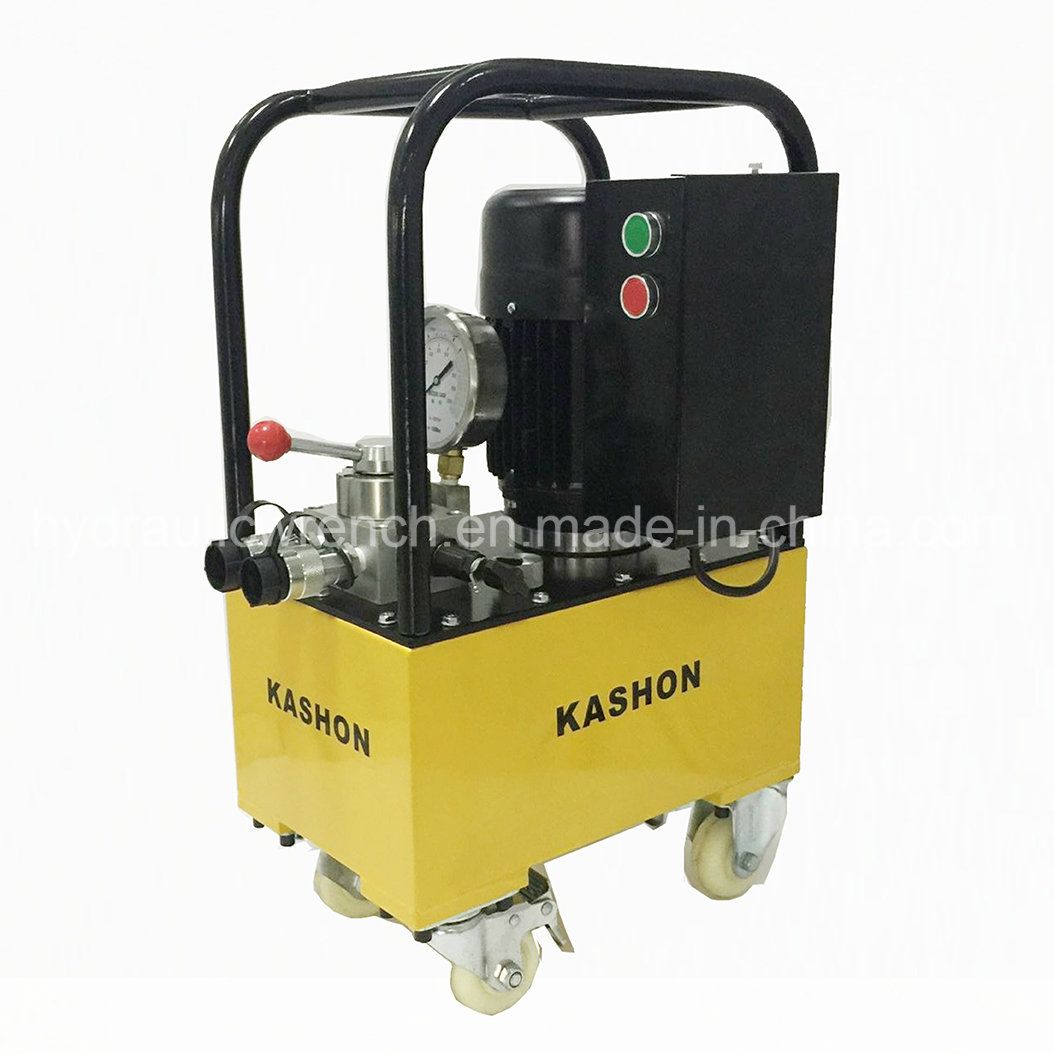

10, 000psi/700bar/70mpa Electric Hydraulic Pump
FEATURES:
Assembled with different tanks,valves,and manifolds to get different oil capacity and flow;
both single acting &double acting is possible;
the pump is specially for hydraulic cylinder of max pressure 700 bar
SPECIFICATIONS:
| Art.No | Valve Type | High Pressure Flow (L/min) | Oil Tank (L) | Usable Oil (L) | Power (KW) | Voltage |
| PEA321 | Manual Valve(Double acting cylinder ) | 1.0 | 12 | 9 | 1.5 | 220V 1ph,50HZ |
| PEA431 | Manual Valve(Double acting cylinder ) | 2.0 | 20 | 17 | 3.0 | 220V 1ph,50HZ |
| PEB321 | Manual Valve(single acting cylinder ) | 1.0 | 12 | 9 | 1.5 | 220V 1ph,50HZ |
| PEB431 | Manual Valve(single acting cylinder ) | 2.0 | 20 | 17 | 3.0 | 220V 1ph,50HZ |
| PEC321 | Solenoid Valve(single acting cylinder ) | 1.0 | 12 | 9 | 1.5 | 220V 1ph,50HZ |
| PEC322 | Solenoid Valve(single acting cylinder ) | 1.0 | 12 | 9 | 1.5 | 220V 1ph,50HZ |
| PEC421 | Solenoid Valve(single acting cylinder ) | 2.0 | 12 | 9 | 3.0 | 220V 1ph,50HZ |
| PEC422 | Solenoid Valve(single acting cylinder ) | 2.0 | 12 | 9 | 2.2 | 220V 1ph,50HZ |
| PEA331 | Solenoid Valve(single acting cylinder ) | 1.0 | 20 | 17 | 1.5 | 220V 1ph,50HZ |
| PEA332 | Solenoid Valve(single acting cylinder) | 1.0 | 20 | 17 | 1.5 | 220V 1ph,50HZ |
| PEC431 | Solenoid Valve(single acting cylinder ) | 2.0 | 20 | 17 | 3.0 | 220V 1ph,50HZ |
| PEC432 | Solenoid Valve(single acting cylinder ) | 2.0 | 20 | 17 | 2.2 | 220V 1ph,50HZ |
| PEH321 | Solenoid Valve(Double acting cylinder ) | 1.0 | 12 | 9 | 1.5 | 220V 1ph,50HZ |
| PEH322 | Solenoid Valve(Double acting cylinder ) | 1.0 | 12 | 9 | 1.5 | 220V 1ph,50HZ |
| PEH421 | Solenoid Valve(Double acting cylinder ) | 2.0 | 12 | 9 | 3.0 | 220V1ph,50HZ |
| PEH422 | Solenoid Valve(Double acting cylinder ) | 2.0 | 12 | 9 | 2.2 | 220V 1ph,50HZ |
| PEH332 | Solenoid Valve(Double acting cylinder ) | 1.0 | 20 | 17 | 1.5 | 220V 1ph,50HZ |
| PEH431 | Solenoid Valve(Double acting cylinder ) | 2.0 | 20 | 17 | 3 | 220V 1ph,50HZ |
| PEH432 | Solenoid Valve(Double acting cylinder) | 2.0 | 20 | 17 | 2.2 | 220V 1ph,50HZ |
| PGB311 | Manual Valve(Double acting cylinder ) | 0.3 | 12 | 9 | / | 220V 1ph,50HZ |
| PGA311 | Manual Valve(Double acting cylinder ) | 0.3 | 12 | 9 | / | 220V 1ph,50HZ |
PHOTOS:
Company Information:
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
FAQ:
Q1: How to make payment?
A1: Once order confirmed, we will prepare proforma invoice with our banking details.
Q2: How long does it take to process orders?
A2:It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2- 3 business days.
Q3: What is the packing method?
A3: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q4: How to ship?
A4: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q5: What is the warranty
A5: 12 months against B/L or AWB date
| Prod Model: | PEA |
|---|---|
| OEM Service: | Can Put Customers' Brand |
| Ship: | International |
| Feature: | Single Acting & Double Acting ,Electric |
| Color: | Follow Customer |
