Prod Model: |
Wire Sawing Machine |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Line Speed: |
0-50m/S |
Type: |
for Cutting Stone |
Mining Object: |
Stone, Granite, Marble, Limestone, Travertine |
Export Markets: |
Global |
Certificate: |
SGS |
Product Description

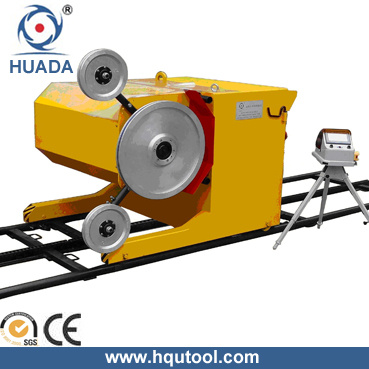

Wire Sawing Machine
Features:

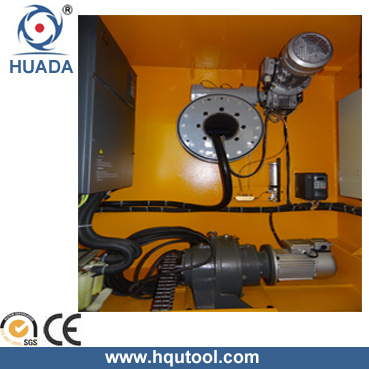

1. Controlled by dual inverter+PLC, make the diamond wire saw strain constantly and the speed of moving truck automatically controlled.
2. When under the automatic control state, the machine can track changes in the load so as to make the diamond wire saw work efficiently all the time by adjusting the move speed of the machine.
3. Protect the diamond wire saw from break, overload, lack of phase, terminal limit.
4. Have the easy-operating functions of electric turnover, electric horizontal movement and quick moving.
Standard Type fo r Marble |
Model | Main Motor Power | Length of Wire (m) | LinearSpeed (m/s) |
DWS-37AX-6P | 37KW | 20-80 | 0-40 |
DWS-45AX-6P | 45KW | 20-100 | 0-40 |
DWS-55AX-6P | 55KW | 20-120 | 0-40 |
DWS-75AX-8P | 75KW | 20-150 | 0-50 |
DWS-90AX-8P | 90KW | 30-160 | 0-50 |
DWS-110AX-8P | 110KW | 40-180 | 0-50 |
Standard Type for Granite |
Model | Main Motor Power | Length of Wire (m) | Line Speed (m/s) |
DWS-37AX-8P | 37KW | 20-80 | 0-30 |
DWS-55AX-8P | 55KW | 20-120 | 0-30 |
DWS-75AX-8P | 75KW | 20-150 | 0-50 |
DWS-90AX-8P | 90KW | 30-160 | 0-50 |
DWS-110AX-8P | 110KW | 40-180 | 0-50 |
Huada, set up by Huaqiao University, specializes in wire saw machine for 13 years, strictly according CE and SGS standard. Our market share is No.1 in China, the output is about 600 sets per year. The items are widely used in Brazil, South Africa, China, etc.
Huada company, set up by National Huaqiao University in 2001, specializes in diamond wire saw, wire saw machine & diamond tools. After years researching & developing with Huaqiao University Research Institute, we succeeded in making high quality diamond wire saw, stone quarry equipment & diamond tools. Our market share is No. 1 in China, and the items are widely used in Italy, Spain, Portugal, Finland, Sweden, Russia, Ukraine, Poland, Brazil, South Africa, Indonesia, etc.
We founded a new factory to produce the high quality resin bond diamond tools by Italian technology in 2011, which is used to Polish granite, marble, ceramic, quartz, concrete, etc.
Huada is the pioneer in the modern cutting techniques. Our diamond segments and blades are produced by advanced machines and we have a strict QC team who inspect each product to make sure all of them are 100% qualified.
Huada, has become a global reference in the production of diamond tools used for quarrying and stone cutting such as granite, marble, sandstone, ceremic, concrete, asphalt etc.
Thanks for taking Huada into consideration as your diamond tools & quarry equipments supplier!
