Vacuum Brazed Diamond Cutting Saw Blade for Tile Ceramics Marble

Vacuum Brazed Diamond Cutting Saw Blade for Tile Ceramics Marble
Price: US $ 10/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: CS, CW, CG

Product Description

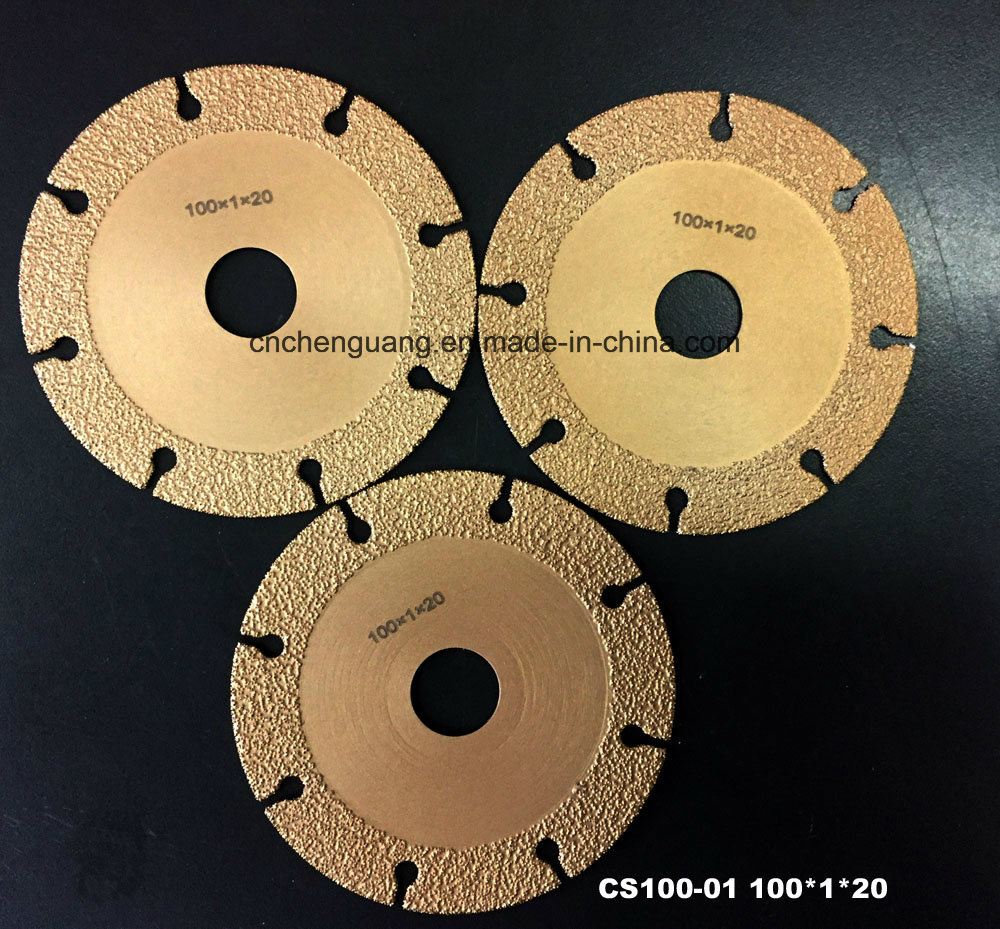

Vacuum Brazed Diamond Cutting saw blade for tile ceramics marble

Vacuum Brazing is a material jointing process that directly bonds diamond to the blade. It is a three steps process that creates a bond which is significantly stronger that other joining methods.Vacuum brazed diamond blades are made with a much higher quality process than typical sintered or laser welded diamond blades. Blades mostly have a mixture or diamond matrix of different materials that are bonded onto the steel core of the diamond blade. With the vacuum brazing process, the segments are coated in diamonds. Instead of regular diamond blades that wear away and almost re sharpen themselves, vacuum brazed blades use the exterior of the segment of the cutting edge.


Product Application

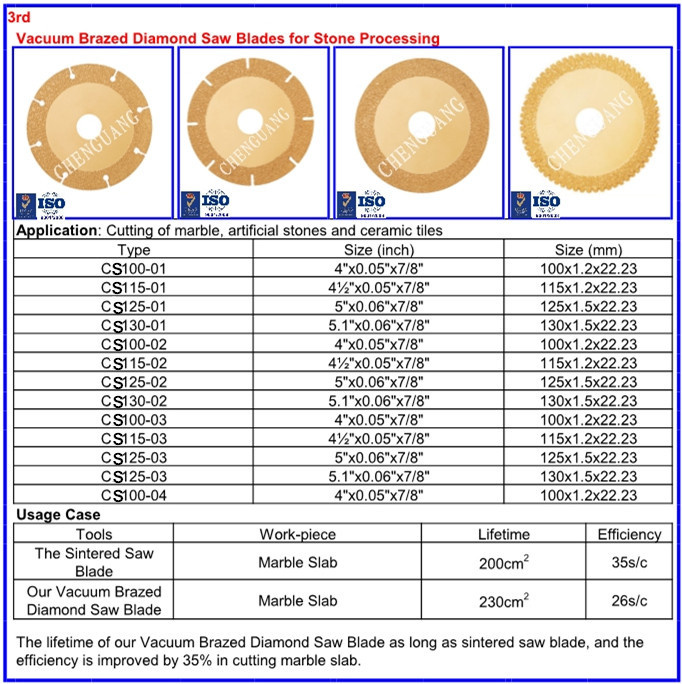

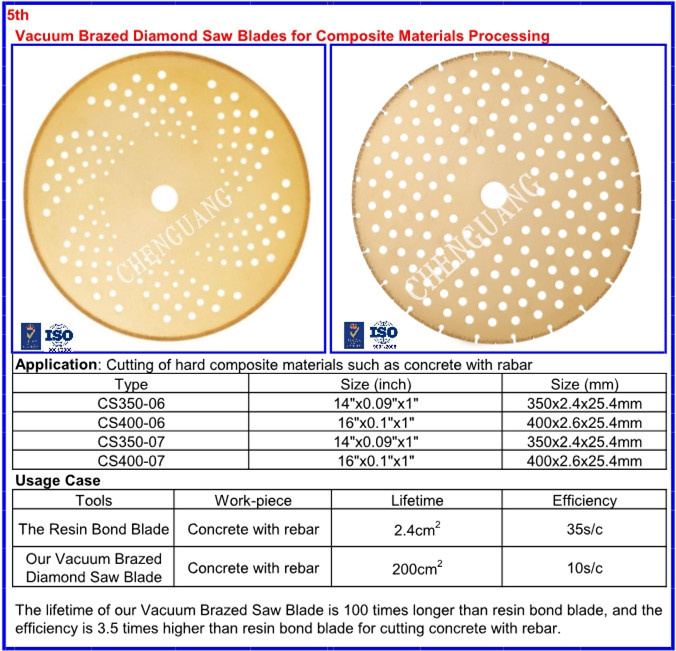

The Vacuum Brazed Diamond  Saw Blades are bestly used for cutting Marble , Granite ,  Ceramics and Bluestone in Stone Processing , cutting Concrete with rebar in construction industry, Cutting Metal  and Fiber Glass.

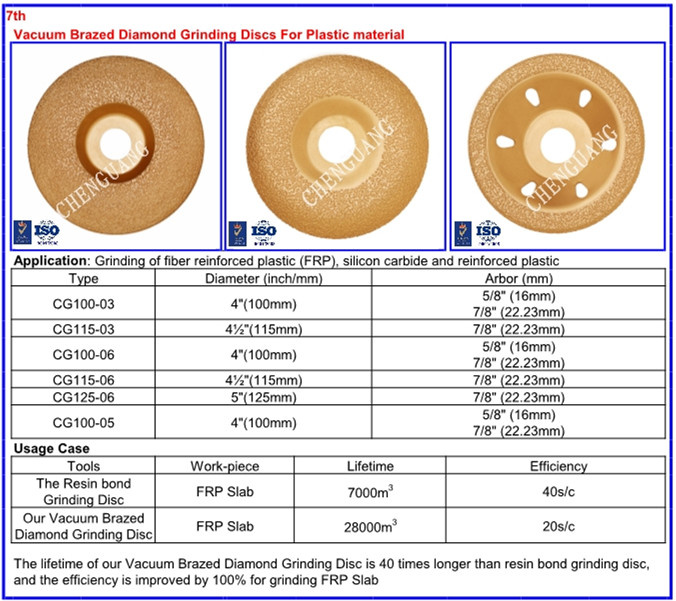

The Vacuum Brazed  Diamond Grinding Disc are widly used for grinding Marble, Ceramic Materials and Fiber Reinforced Plastic.

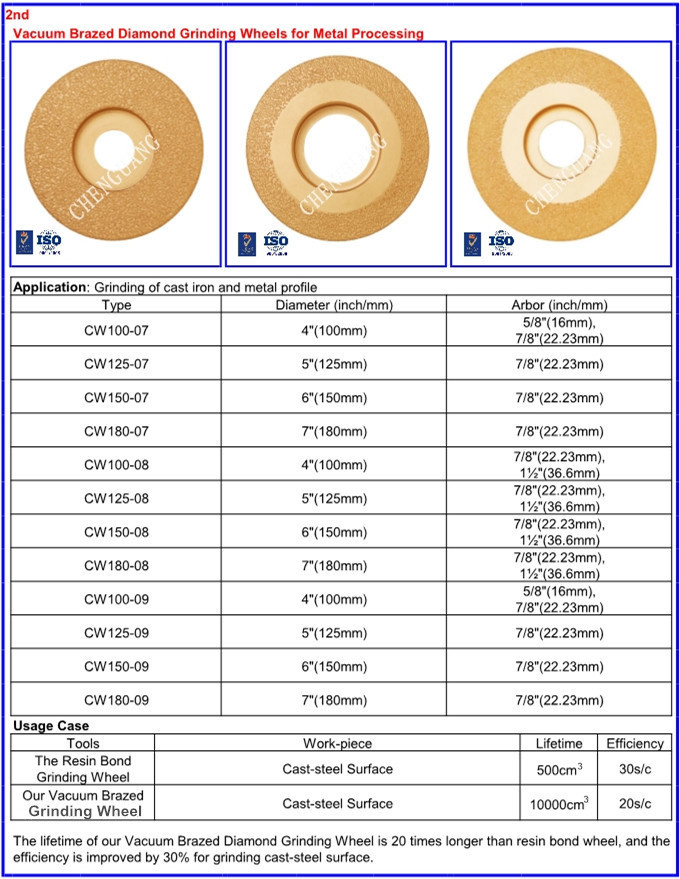

The Vacuum Brazed Diamond Grinding Wheel  are suitable for grinding metal in Foundry Industry.
Product Description
1) Best suitable for cutting Cast Iron, Marble, Ceramical Materials, Fiber glass, PVC Pipe and Concrete block.
2) Suitable for both Wet Cutting and Dry Cutting.
3)High degree of exposed diamond grains and sharp cutting
4)Characteristic of High Efficiency , longer working lifetime, more safe and Environment Frinedly Compared with resiniod Tools
Vacumm Brazing is a material joining process that directly bonds diamond to the blade. it is a three steps process that creates a bond which is significantly stronger than other joining methods.











Contact with us:
Ms. Una Hou

Changsha Chenguang Machinery&Electric Equipment Co. Ltd
Add: No123, ShaoShan Nan Road, Changsha, Hunan, China

Tel:  +86-731-84613726   +86-731-83521833
Fax:  +86-731-84613826
Mobile: +86 15200938145


Chenguang machinery & Electric Equipment Co. Ltd specialized in development, production, and marketing of ultra-hard materials.

We started to provide high quality synthetic diamond to domestic diamond tool manufacturers since1993. We utilize a wide range of advanced production equipment and test instrumentation in an environment using strict quality control procedures for all our products. As a diamond supplier; We provide a wide range of diamond products and solutions for many well-known Chinese enterprises. Among these enterprises are more than 20 well-known enterprises who have enjoyed at least 10 years with us; We are proud to mention that our products are routinely exported worldwide since 2010, the stable quality and professional service is well appraised by huge users.

Our main superhard matierial products include: Synthetic diamond, Diamond saw blade, Diamond Drill bit, welcome friends from home and abroad to cooperate with us and create a brilliant future.
