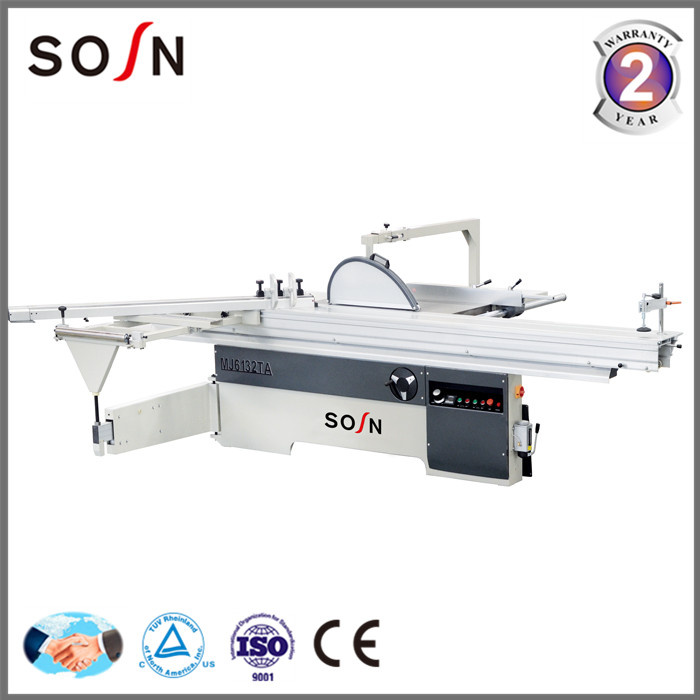

Tilting Altendorf Sliding Table Panel Saw (MJ6132TA)

Tilting Altendorf Sliding Table Panel Saw (MJ6132TA)
Price: US $ 1000-5000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: MJ6132TA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Saw Type: Sliding Table Panel Saw
Brand: Sosn
Voltage: 220V,380V
Motor Power: 5.5+1.1 Kw
Warranty: 2 Years
Weight: 700kg
Application: Wood Saw
Dimension Of Sliding Table: 3800*375mm
Overall Dimension: 3950*3150*900mm
Tilting Saw Blade: 45 Degree
Type: Table Panel Saw
Layout: Vertical
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Semiautomatic
Precision: High Precision
Certification: ISO

Product Description

Features

Apply to processing all kinds of density boards, shaving boards, wood-based panels,
PVCpanels, organic glass plates and solid wood and others with wood structure and similar hardness.

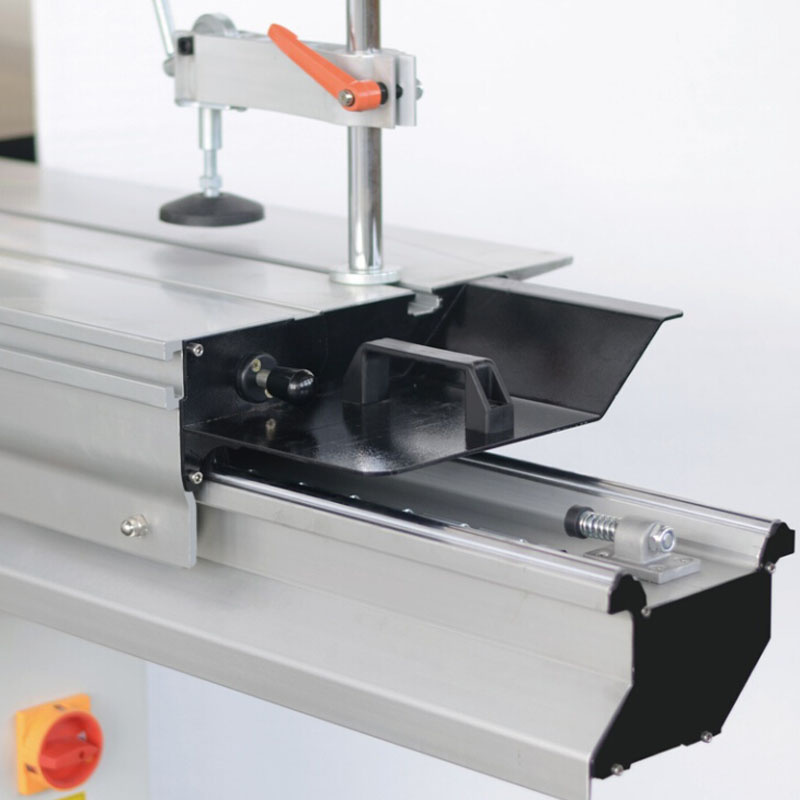

Movable table guide track is lplating chromium steel balls structure, exct and durable.

Made of high-strength extruded aluminum allory, movable table is high in strength and won't bend.
With oxidation treatment, movable table surface is beautiful and hardwearing.


Machine parameters
Dimension of sliding table3200*375mm
Gross cut capacity3200mm
  Width of cut between saw blade and rip fence  1250mm
  Saw blade diameter  300mm(250-300)
  Height of cut  (diameter: 300mm)  80mm
  Speed of main saw spiondle  4500/6000rpm
  Main spindle diameter  30mm
  Tilting saw blade  45 angle
  Main motor  5.5kw
  Scoring saw blade diameter  120mm
  Speed of scoring saw blade  8000r/min
  Scoring spindle diameter  20mm
  Scoring motor  1.1kw
  Net weight  750kg
  Gross weight (with wooden package)  900kg
  Overall dimensions  3350*3150*900mm

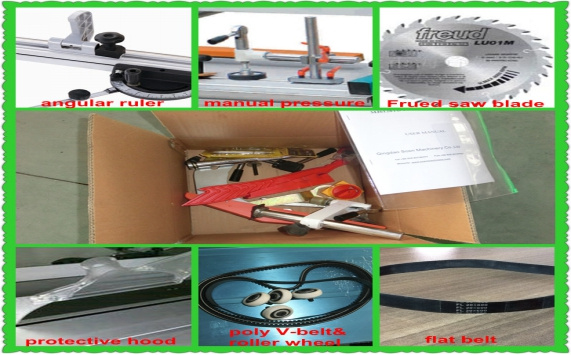

Spare part of SOSN panel saw

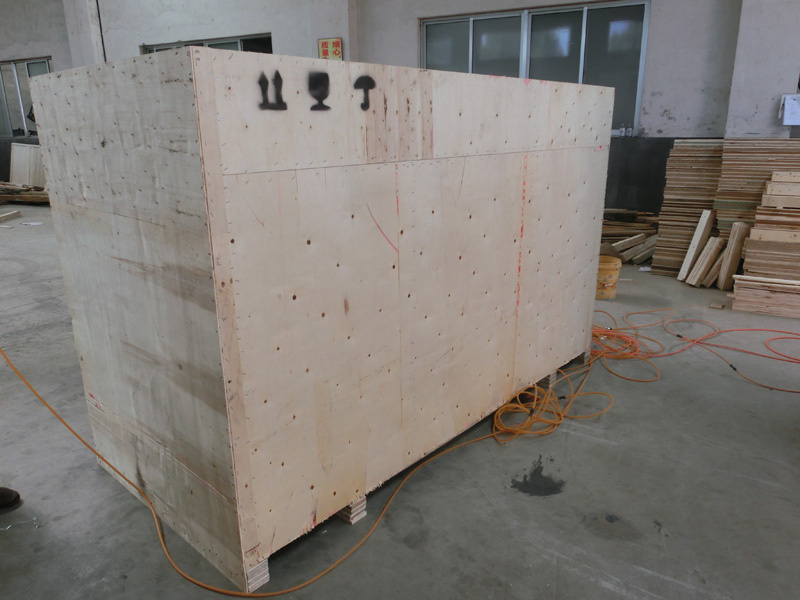

Wooden package of SOSN panel saw


Sosn advantages

1.professional manufacture with more than 20  years production experience in woodworking machines.

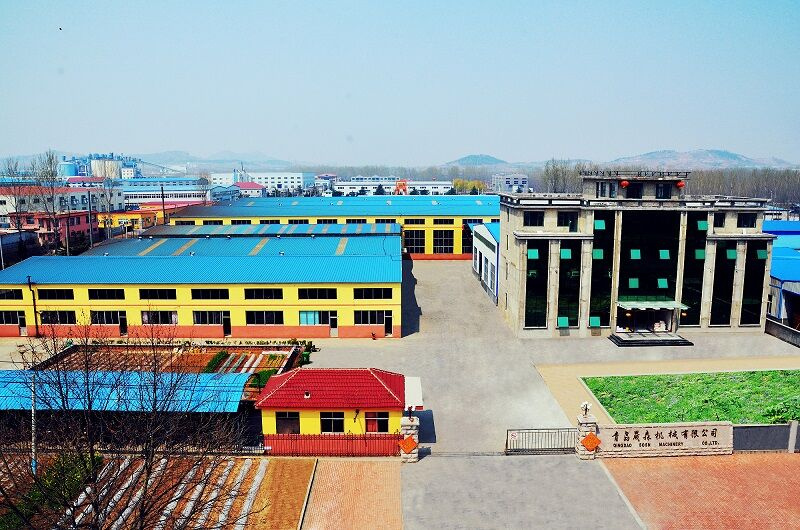

2.11,000 square meter workshop,first class skilled workers,near qingdao port,
3.5steps strict quality control,CE &ISO certificates
4.timely delivery with short production period
5.professional after-sale service available,email and calling is available in 24 hours.
6.more than 80 countries customers have enjoyed SOSN machines.

Welcome to SOSN


If there any question , will be pleasure to be in your service




Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
