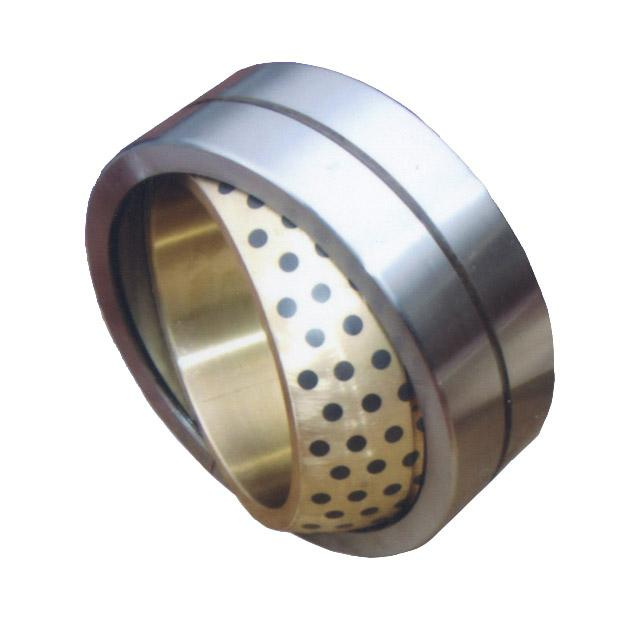

Self Lubricating Composite Bearing Bushing

Self Lubricating Composite Bearing Bushing
Price: US $ 0.5-7/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T
Prod Model: 8*12*12mm
Maximum Dynamic Loading: 120n/mm²
Self Lubricating Material: Graphite+Others
Working Temperature: -40ºC-300ºC
Working Enviroment: Water,Air,Oil and Grease
Maximum Sliding Speed: 0.4m/S
Rolling Body: Roller Bearings
The Number Of Rows: Double
Outer Dimension: Large (',200-430mm)
Material: Alloy
Load Direction: Thrust Bearing
Separated: Unseparated

Product Description

  1.Structure features:
1. Steel bronze powder with PTFE/Pb dry bearings 1. PTFE/Pb mixture 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surface of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder 0.20-0.35mm, provides Max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE-lead mixture.
3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating 0.002mm, provides good corrosion resistance.
5.Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. High chemical resistance, low absorption of water and swelling. Also performs well with lubrication.

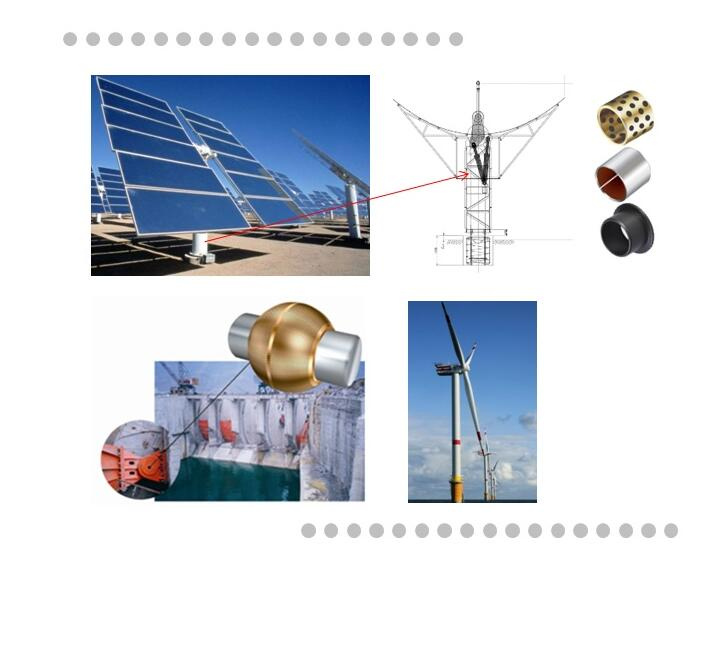

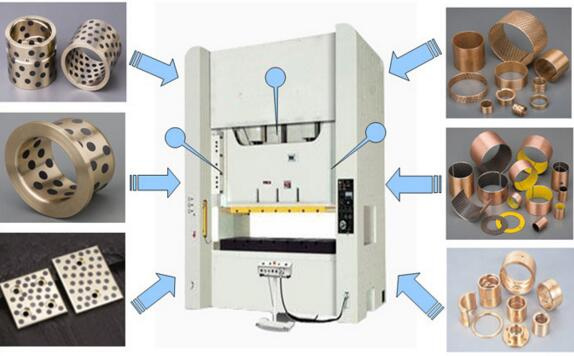

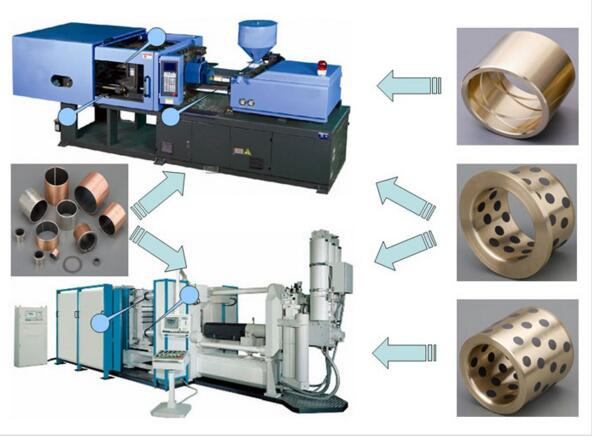

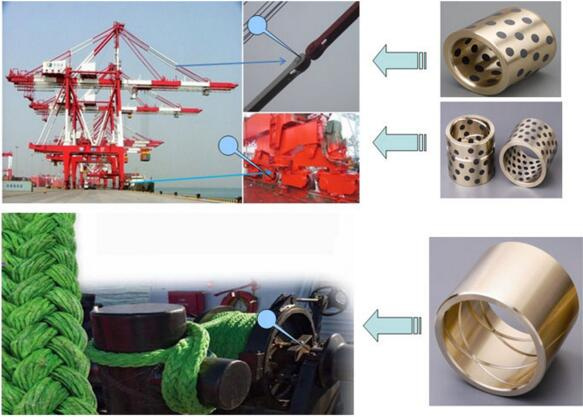

2.Typical Application:
an meet the demanding criteria for long life and trouble-free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...
And materials handling, marine engine, packaging, textile equipment, tools






3.
Technical. Data

Chinese Code
International counterparts

CB1776-87
International
Japan
(USA)
Geman DIN
Applications
 ISO1338JisASTM(UNS)
CuZn25Al6FeMn3
CuZn25Al6FeMn3
H5102
B30-92
DIN1709
High-load,low-speed, general use
CAC304C86300G-CuZn25A2.0598
CuZn25Al6FeMn3
CuZn25Al6FeMn3
H3102
B30-92
DIN1709
Super high load, low-speed, high duty
CAC304C86300G-CuZn25A2.0598
CuAl10Fe3
CuAl10Fe3
H5114
B30-92
DIN1714
Medium load, medium-speed, general use
CAC70395800GB-CuAl10Nl/2.1096
CuSn5b5Zn5
QSn5-5-5
H5111
B30-92
DIN1705
Medium load, medium-speed
CAC406C83600G-Cu5n5ZnPb/2.1096
DB5675-85

Fe250
ASTM

Low-load, low-speed
HT250ciass40
4. Our factory




Since 1997, E-Hu Group focus on designing, producing and selling different kinds of automobile parts. Now our mainly products are auto filter. Oil seal and O-ring, which used on European, America, Japanese and Korea series of cars, trucks and machine equipment.

Our head office is located in Changsha, Hunan, China, with a long history and very beautiful city. It is also Chair Mao hometown. We have invested in two factories, one is producing oil filter, fuel filter, air fuel, cabin filter and Hydraulic filters, and the other one is professional manufacturer of Oil seal and O ring. The factories cover about 10000 square meters, with more than 500 employees. The more important is we own advance technology and equipment, can be provide OEM&ODM service, to meet your sourcing needs.

The Oil seal and O ring we supply are made of different kinds of materials including NBR FKM, EPDM, PTFE. SI and so on, with more than 7000 kinds of sizes in stock, for your choice. We mainly produce oil filter, air filter, fuel filter, diesel filter and hydraulic filter used on the after-sales markets. They will be best replacement products of the world famous brand filters like MANLE, FRAM, MAN, WIX, PUROLATOR, WIX, BOSCH, JCB, SOFIMA, Perkins and so on, which suitable for car maker of Toyota, Honda, Ford, MAZDA, Nissan, BMW, BENS, Volvo, CATS, COUMMINS, Iveco, DAEWOO, Mitsubishi, HIMO etc.

E-HU has enjoyed all the benefits of advanced technology and some of the most innovative designs in oil filter industry. Gradually, E-HU's quality and reputation win the favor of customers worldwide. We equipped with proficient knowledge in exporting, our main markets in Middle East, Africa, Europe, Australia, America, and various other South American countries.

Best quality is our promise and The customer is our gold", stands as E-HU motto. We can provide quality certificates such as ISO9001, SGS, TUV and ISO16949. We are satisfied with the fact that we have achieved a high quality reputation. If you are seeking superior quality oil seal, and oil filter supplier for CAR, Truck and machine equipment, just choose E-HU. Expect your inquiries! ! Nice Customer service representatives are here waiting to assist you!
