Home Toolbuy Products Self Locking Forged Spring Snap Hook Used for Safety Harness

Self Locking Forged Spring Snap Hook Used for Safety Harness

Self Locking Forged Spring Snap Hook Used for Safety Harness
Price: US $ 2.85-3.02/Piece
Trade Terms: FOB,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Forged Steel Snap hook G7150
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

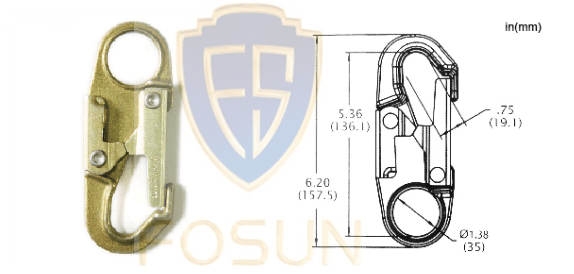

Open Gate: 19mm
Minor Axis: 16kn
Major Axis: 22kn
Min Tensil Strength: 22kn/5000lbs
Finish: White/Yellow Zinc Plating
Length: 158mm
Marking: Engraved
Material: Metal
Type: Hook
Brand: Fosun/as Your Request
Color: White/Yellow Zinc Plating

Product Description

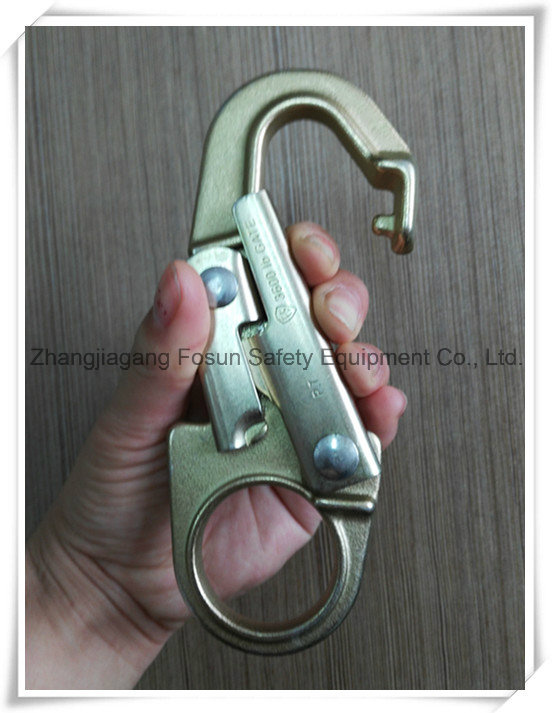

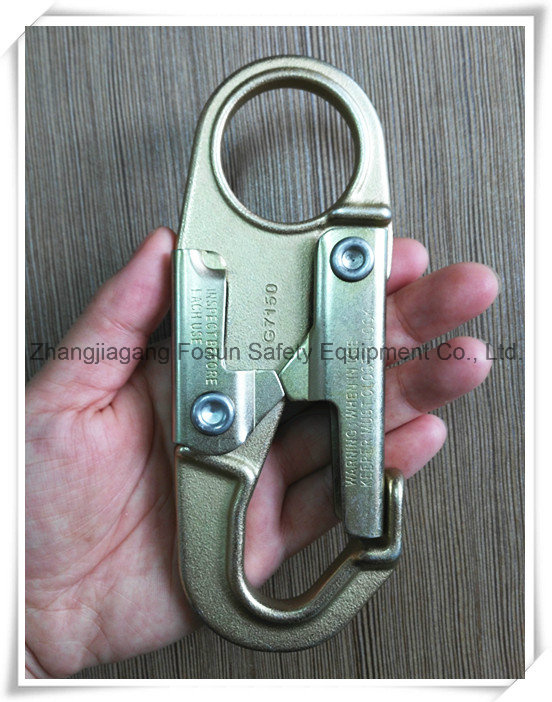

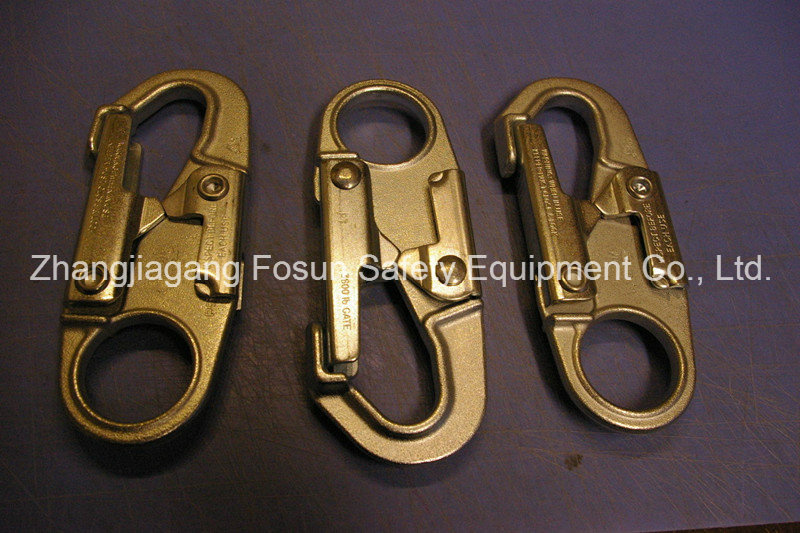

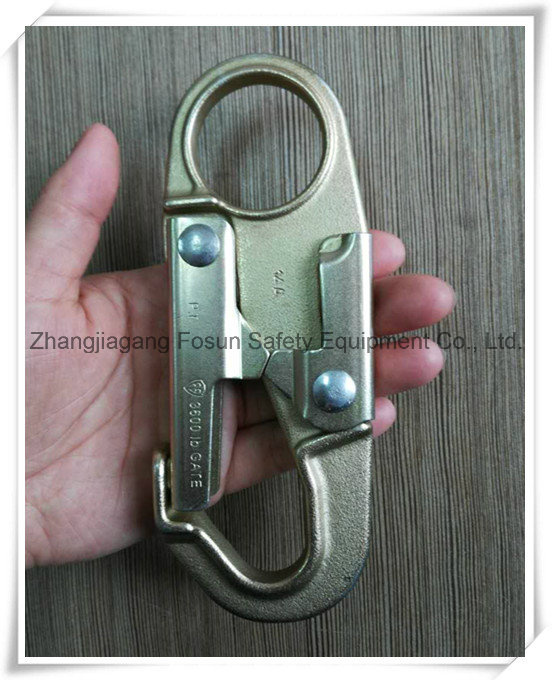

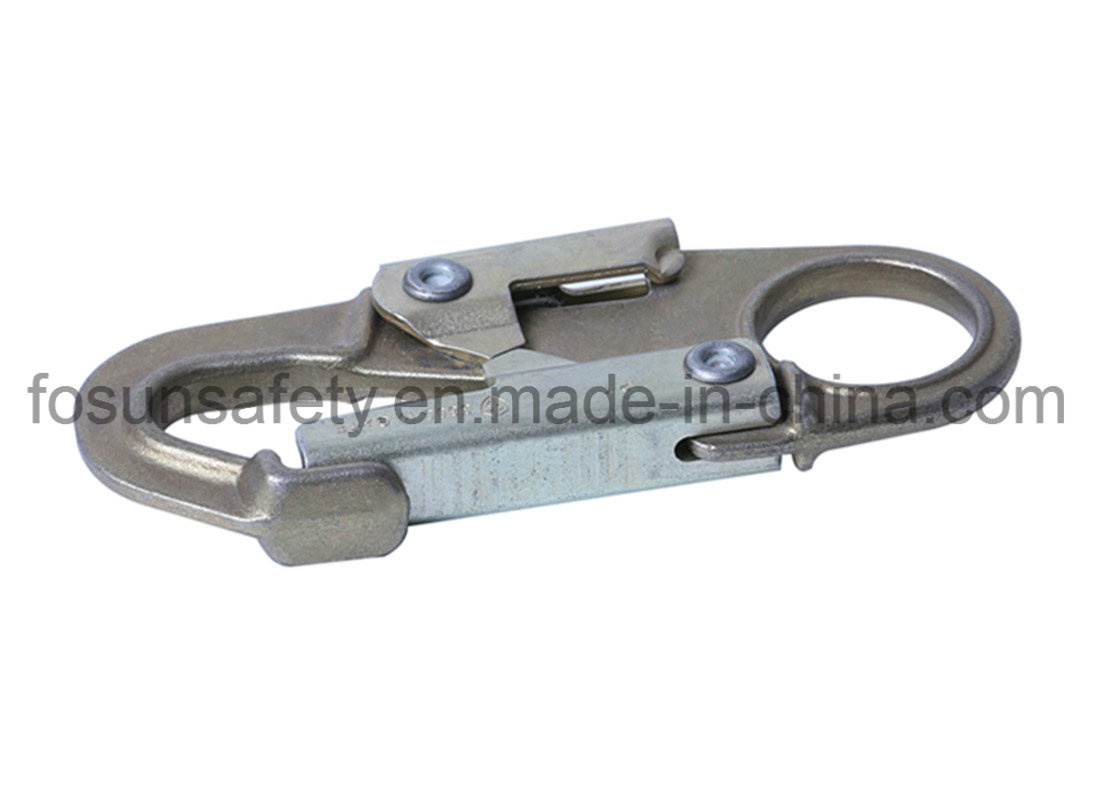

Self Locking Safety Spring Snap Hook Used for Safety Belt

Specifications:
G7150 3/4"Snap Hook
Drop Forged Steel
100% proof loaded to 3600 lbs(16kN)
Min tensile strength 5000 lbs(22.2kN)
Min gate strength 3600 lbs(16kN)
Min side load strength 3600 lbs(16kN)
Meets Or Exceeds:
ANSI/ASSE Z359.12-2009
CSA Z259.12-01
EN362-2004
Finished:White/Yellow Zinc Plating
Weight: 348gm



Product Name Galvanized steel snap hooks G7150
Material Steel
Specification Gate open 19mm, Galvanized
TechnologyForged
ApplicationLifting and connecting Accessories
Sample Support free samples (2-5pcs standard).
Port Shanghai, Ningbo
Payment Term30% deposit, 70%will be paid before delivery.
Trade TermFOB,CIF
Lead Time 20-30 working days after confirmed your order.
Service Competitive price, good quality and on time delivery.

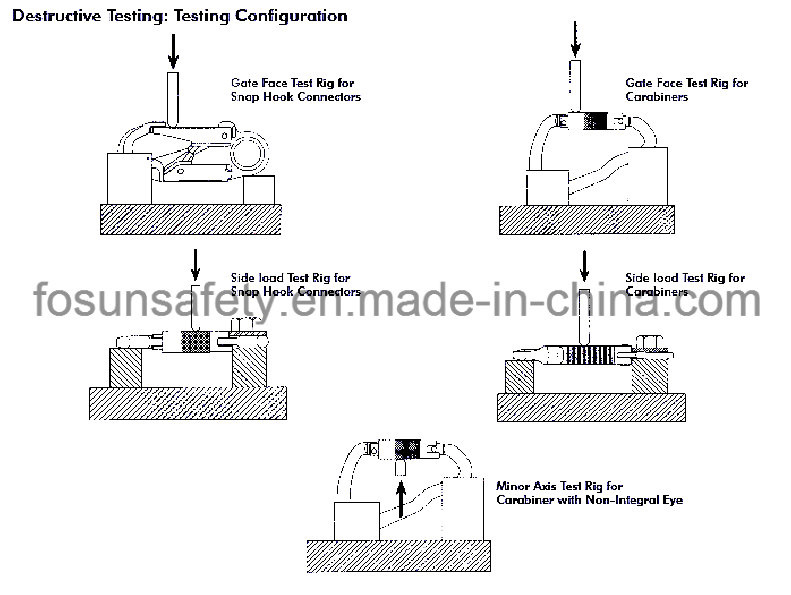

MINIMUM REQUIREMENTS AS OUTLINED FOR HOOKS AND CARABINERS PER STANDARD
StandardCSA Z259.12-01CSA Z259.12-11ANSI Z359.12-1999ANSI/ASSE Z359.1-2009EN 362:2004NFPA 1983-2006
Major Axis5000 lbs(22.2kN)5000 lbs(22.2kN)5000 lbs(22.2kN)5000 lbs(22.2kN)4500 lbs(20kN)***
Gate Face220 lbs(1kN)3600 lbs(16kN)220 lbs(1kN)3600 lbs(16kN)220 lbs(1kN)N/A
Side Load350 lbs(1.55kN)3600 lbs(16kN)350 lbs(1.55kN)3600 lbs(16kN)350 lbs(1.55kN)N/A
Minor AxisN/A3600 lbs(16kN)*N/A3600 lbs(16kN)******
* New Standard required Minor Axis Loading for connectors with non-integral eyes.
** EN:Basic Connectot 1575 lbs(7kN);Multi Use Connector 3378 lbs(15kN).
*** NFPA:Light Use...Major Axis gate closed 6069 lbs(23kN);Major Axis gate open 1574 lbs(7kN)
                  General Use...Major Axis gate closed 8922 lbs (39.7kN); Major Axis gate open 2473 lbs(11kN);Minor Axis 2473 lbs(11kN)

Our Advantage
1,10 years of rich experience in forging and production.
2,Using high quality materials, first-class equipment.
3,Stable products supply, good quality control and advanced technology.
4, Mark as customer's request, like customer's Company LOGO
5,Competitive factory price.
6,Free samples, you only pay the shipment charge.
7,Strict inspection before shipping.
8,Welcome customer's designs, OEM and ODM items.
9,On time delivery.
10,Good warranty and after-sales service.

Do you offer samples?
Yes, all products are available provided as samples for you to confirm the quality and color.

Do you accept sample order or small order?
Yes, we supply sample order for customer as well.

Can we have our logo on the product?
Absolutely! As long as ordered quantity meets our m.o.q and provide us with your drawing, we are able to place your logo on the product.

Can you help customer to design their own products?
Yes, Not only customize works, we also help you create special design products according to your needs. However you need to provide us the details. We will offer you samples before order confirmed.

What is the process of ordering and cooperating with your company?
1, Search for the products you prefer
2, Solve problems and confirm the products
3, Quote the selected products
4, Types of payment
5, Delivery method
6, After-sale service

How long will we receive the goods?
Basically, we do not have any stock in our warehouse, the products we offer to you are all-new. As you know , Products stored in the warehouse for a long time will not only lose the luster of the product itself, but also affect the use of the term. Therefore, according to our company policy, we usually start to arrange the production after order confirmed. The delivery time is normally 20-45 days after receiving down payment and also depend on the quantity
Zhangjiagang FoSun Safety Equipment Co., Ltd. is located in the beautiful and rich, economically developed city along the Yangtze river - Zhangjiagang. With Shanghai to the east and Nanjing to the west, North pillow Yangtze River, we enjoy convenient water and land transportation. Our factory was founded in 2005, with over 10 years' experience, we have established a complete and scientific quality management system. Meanwhile, we are committed to manufacturing and developing, safety hooks, carabiners, d-rings, buckles and rope-grabs. In the last years, we have been working hard and getting outstanding achievements, most popular items have been certified by CE and got CE certificates like self locking form snap hooks.

We have a strong supply capacity. Like G9120, we can offer 1000000 pieces /year. The whole producing process, including the design, research, development and testing, is done in our company. We also have a provision to make products according to your special require and have many facilities in-house to ensure quality and on-time delivery.

For first-class products quality, efficient and attentive services, and great added value, we have earned great reputation and support from customers worldwide. Besides, we do not only manufacture products designed by us but also welcome customers' designs, OEM and ODM items. We are looking forward to having chance to cooperate and build business relationships with you.

Set up in 2005

The first connectors manufacturer in China with brand "FOSUN".

Over 10 years of experience in this field;

Business Range

- All safe belts hardware accessories

- Stamping & Forging

Staff: Around 45 in total

Building Area: Around 5, 000 Square Meters
