Resistance to High Pressure Aluminum Silicon Glass/ Tempered Borosilicate Glass-Sight Glass

Resistance to High Pressure Aluminum Silicon Glass/ Tempered Borosilicate Glass-Sight Glass
Price: US $ 15/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: tempered borosilicate sight glass
Shape: Flat
Appearance: Flat Tempered
Standard: GB/T 531-92
Steel Degree: Tempered Glass
Thickness Of Flat Tempered Glass: 19MM
Thickness Of Curve Tempered Glass: 19MM
Fragment State: I
Technics: Chemical Tempered
Flatness: Conforming Article
Usage: Auto Manufacturing

Product Description

Hebei Xukang Meter Manufacturing Co., Ltd. It is a highly specialized production: microcrystalline glass, high temperature resistant, resistant to high pressure glass, explosion-proof glass, high pressure liquid level gauge glass, glass, one-way perspective 7-14 um ir, UV ultraviolet glass, filter, complete sets of sight glass, high temperature resistant sealant, mica seals manufacturer,And through ISO9001:2008 quality system certification.



Our company has a large number of domestic leading level of grinding, polishing, plating, hot bending, vacuum laminating, high-speed engraving, laser cutting, ultra-high pressure water cutting, precision automatic grinding machine, tempered furnace, impact testing machine, pressure testing machine and other advanced processing equipment and high-tech testing equipment, military quality, civilian price, gaining the hair, are invincible!

Fist product "far infrared window glass used for pressure vessels, high pressure liquid level meter aluminum silicon glass, glass lens, explosion-proof glass, high borosilicate glass, quartz glass lens", such as a large number of standardization, seriation of high-end products are widely used in the domestic each big laboratory, electric power, metallurgy, communications, geological exploration, pressure containers, ships, nuclear power plants, petrochemical, mining equipment and other high-end industry system!

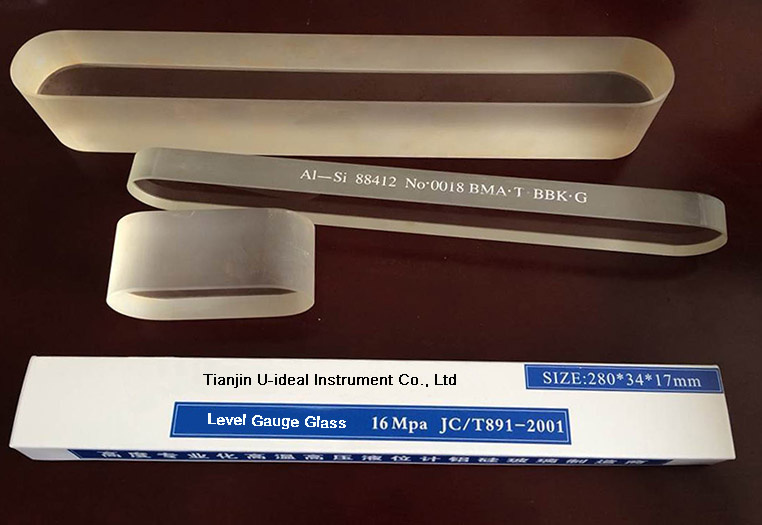

High pressure liquid level gauge glass is introduced: specifications:
80*21*17,80*24*21,108*24*17,108*24*21,118*24*17,118*24*21,130*24*17,130*24*21,130*26*19,140*34*17,160*34*17,165*34*17,190*34*17,218*34*17,220*34*17,250*34*17,265*26*19,280*34*17,320*34*17,340*34*17,370*34*17,400*34*17
(other non-standard specifications according to the customer drawings processing customized) standards: 891-2001 "high pressure liquid level gauge glass" main ingredients: alumina 15%), silica (58%) and so on bending strength: 220 Mpa or greater, the compressive performance: 16 Mpa and 22.5 Mpa main use: nuclear power-stations boiler steam package such as high pressure water level gauge, deep sea exploration equipment, high pressure oil facilities, such as supercritical fluid extraction device observation window.
                                                  Specification     Temperature   Pressure
1.Resistance to high pressure aluminum silicon glass  80*24*17    500ºC       16 Mpa

2 Resistance to high pressure aluminum silicon glass    80*24*21     500ºC      22.5Mpa
3 Resistance to high pressure aluminum silicon glass 108*24*17    500ºC      16Mpa
4Resistance to high pressure aluminum silicon glass   108*24*21       500ºC     22.5Mpa
5 Resistance to high pressure aluminum silicon glass 118*24*17      500ºC     16Mpa
6 Resistance to high pressure aluminum silicon glass 118*24*21      500ºC     22.5Mpa
7 Resistance to high pressure aluminum silicon glass 130*24*17       500ºC    16Mpa
8 Resistance to high pressure aluminum silicon glass 130*24*21       500ºC    22.5Mpa
9 Resistance to high pressure aluminum silicon glass 130*26*19       500ºC    22.5Mpa 10 Resistance to high pressure aluminum silicon glass 140*34*17     500ºC    16Mpa
11 Resistance to high pressure aluminum silicon glass  190*34*17     500ºC    16Mpa
12 Resistance to high pressure aluminum silicon glass 218*34*17     500ºC    16Mpa
13 Resistance to high pressure aluminum silicon glass 220*34*17     500ºC    16Mpa
14 Resistance to high pressure aluminum silicon glass 250*34*17     500ºC    16Mpa
15 Resistance to high pressure aluminum silicon glass 265*26*19      500ºC   22.5Mpa
16 Resistance to high pressure aluminum silicon glass 280*34*17      500ºC   16Mpa
17 Resistance to high pressure aluminum silicon glass 320*34*17      500ºC   16Mpa
18 Resistance to high pressure aluminum silicon glass 340*34*17      500ºC    16Mpa
19 Resistance to high pressure aluminum silicon glass 370*34*17      500ºC    16Mpa
20 Resistance to high pressure aluminum silicon glass 400*34*17      500ºC    16Mpa
21 Resistance to high pressure aluminum silicon glass  Ф28*16           500ºC    22.5Mpa 22Resistance to high pressure aluminum silicon glass    Ф31.6*12.7     500ºC  22.5Mpa
23 Resistance to high pressure aluminum silicon glass   Ф33*16           500ºC   22.5Mpa

 Note:
  Our company is a highly specialized resistance to high temperature and high pressure aluminum     silicon glass manufacturers, arbitrary rules can be customized, warehouse has a large number of   spot, welcome to call us for inspection.



Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.

Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.

Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.

Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.

Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge

Welcome to contact us, we will reply you in 24hours.
