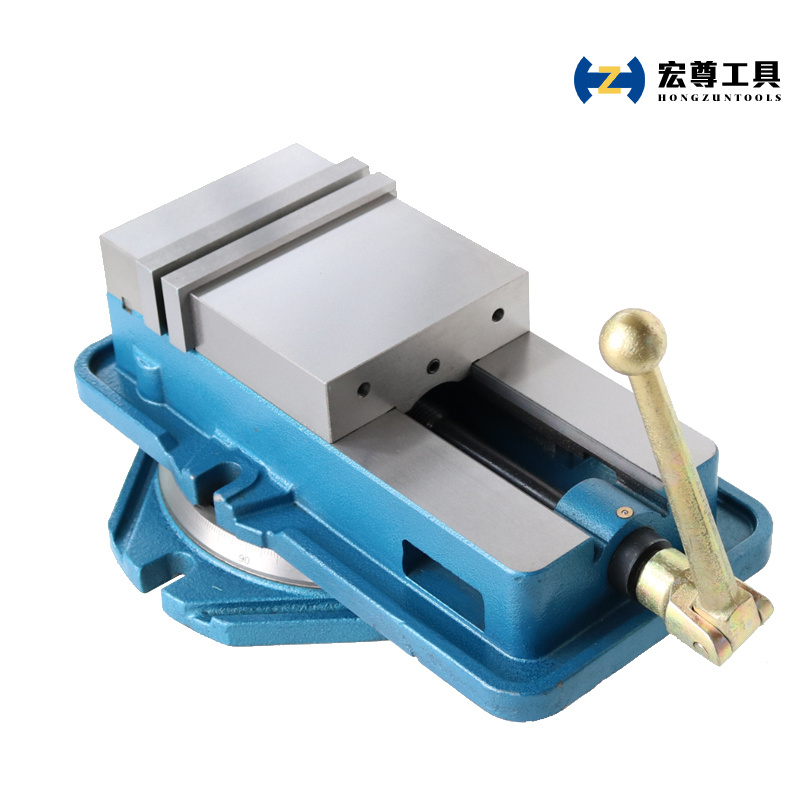

Qm16160 Milling Drilling Machine Bench Clamp

Qm16160 Milling Drilling Machine Bench Clamp
Price: US $ 48.99-49.99/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: QM16160
Product Name: Qm16160 Milling Drilling Machine Bench Clamp
Model No.: Qm16160
Width Of Jaw: 160 mm
Height Of Jaw: 45 mm
Total Height: 157 mm
Max Opening: 160 mm
G.W.: 35kgs
N.W.: 34kgs
Qty/CTN: 1 PCS
CTN Size: 45X32X18 Cm

Product Description



Product name: QM16160 milling drilling machine bench clamp
Product specification:

Swivel base:
Model NO.Width Of Jaw(mm)Height Of Jaw(mm)Max.Opening(mmG.w./N.w.(kgs)Q'ty/Ctn(pcs)Packing Size(cm)
QM161001003210017/16136X25X15
QM161251254012522/21141x27x17
QM161601604516035/34145x32x18
QM16160L1604520037/36148x32x18
QM162002005022051/50156X36X20

Fixed base:
Model NO.Width Of Jaw(mm)Height Of Jaw(mm)Max.Opening(mmG.w./N.w.(kgs)Q'ty/Ctn(pcs)Packing Size(cm)
QM16100F1003210014/13136X25X13
QM16125F1254012518/17141x27x13
QM16160F1604516026/25145x32x14
QM16160LF1604520028/27148x32x14
QM16200F2005022041/40156X36X26
QM16250F2657029096/88175X40X21

Product feature:

• It is one of main attachments for milling, drilling machine, it is particularly suitable for the finishing of precision parts.
• The accurancy of vise (parallelism and squareness ) is 0.025mm/100mm.
• The special segment in the movable jaw forces the vertical pressure downward when the horizontal pressure works, so that this jaw does not lift the workpiece.
• These units can be ordered separately or with swivel base.

• Four positions allow extra capacity to change opening of jaw.

Product packing:
* Export Carton or as request.
Product shipment:
* Port of loading: Qingdao, China.
* Delivery time: 45 days after payment.

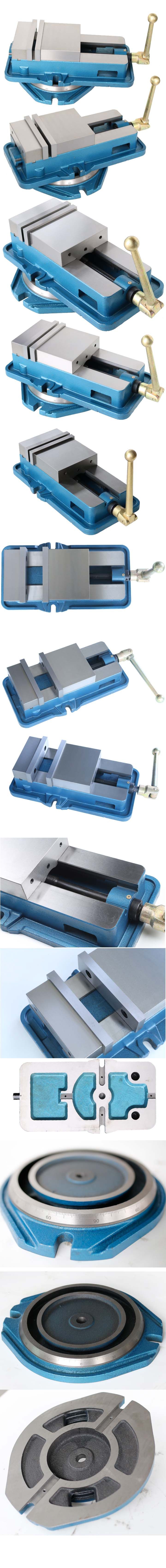

Product pictures:
