Professional Electric Wood Cutting Cross Saw

Professional Electric Wood Cutting Cross Saw
Price: US $ 10700-13000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: SF601
Blade Diameter: 450mm
Dedusting Interface: Contains
System: Siemens
Power: 8.25kw
Electrical Components: Schneider
Voltage: 380V, 3phase, 50Hz
Feeding Method: Servo Drive
Cutter Axle Rotation Speed: 3500rpm
Cutting Tolerance: in +/-1mm
Brand: Saifan
Layout: Horizontal
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Semiautomatic
Precision: High Precision
Certification: ISO
Type: Wood Cross Saw

Product Description

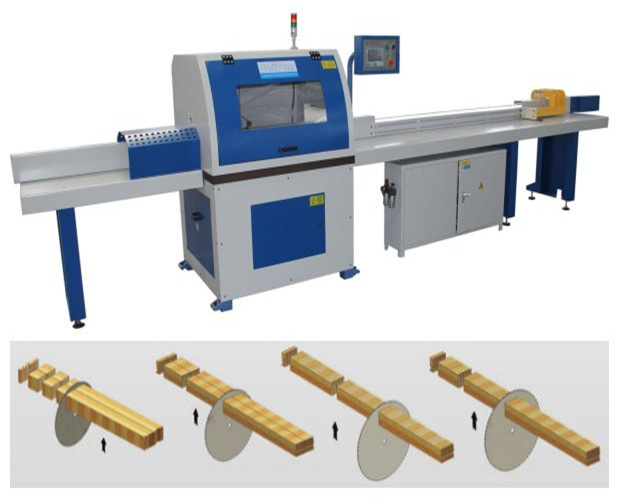

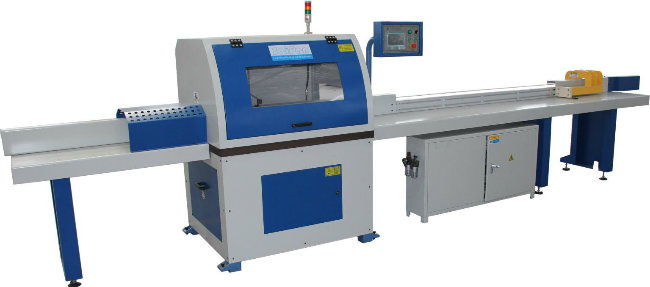

Automatic Wood Cutting Off Saw


An video of this machine working
https://youtu.be/fLws5IjzRFA


1) Products Description
Advantages: SIEMENS PLC control

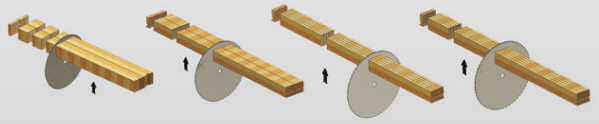

                   Free combination cutting off size,
                   Servo motor automatic feeding,
                   Crosscutting, continuously and automatically cut wood.

Parameters
Cutting lengthMax. 2m/ 4m/ 6m
Cutting height10-120mm
Cutting width30- 200mm
Cutting sectional area120*120mm/100*200mm
Feeding speed5-30m/min
Cutting speed35-40pcs/min
Blade diameter450mm
Cutter axle rotation speed3500rpm
Feeding methodServo drive
Pressing methodCylinder, air pressure 0.5-0.7Mpa
Cutting toleranceIn +/-1mm
System working dimension6.4mX1mX1.5m, 7.4mX1mX1.5m, 9.4mX1mX1.5m
Deducting interfaceContains
Electrical componentsSchneider
PLC Touching screenSiemens
Total power8.25kw

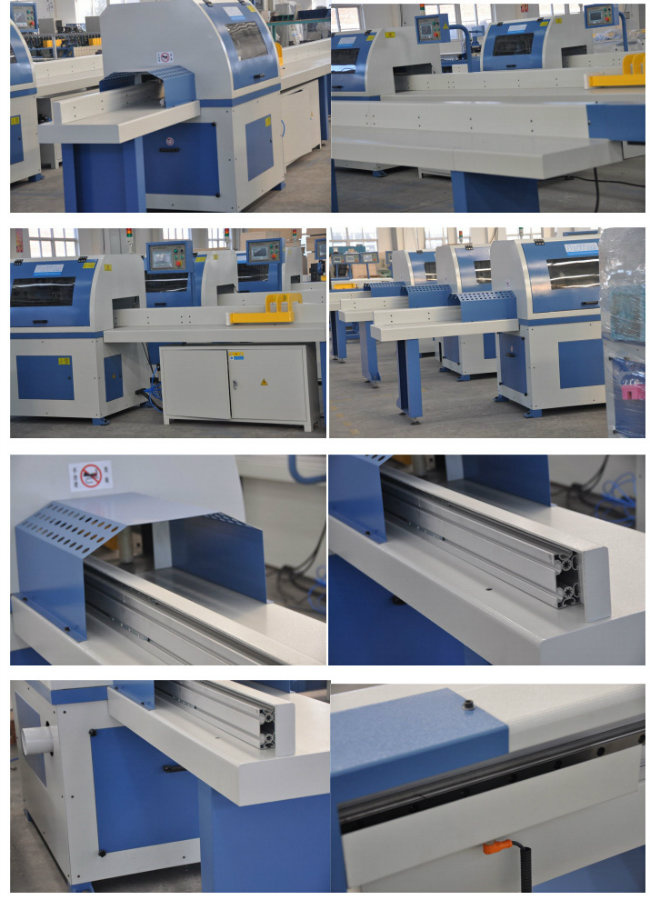

2) Products Show

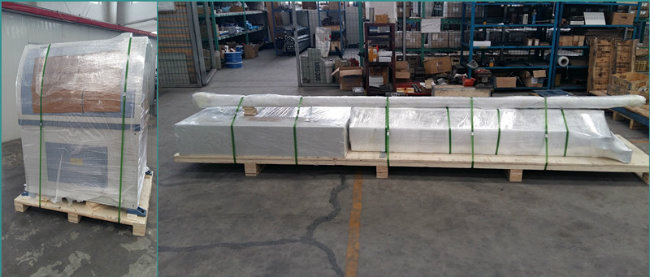

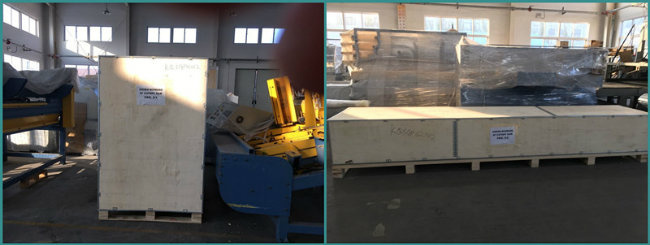

3) Package

1) The whole machine is disassembly into four parts.
2) Machine packed with wrapping film and fixed by plastic belt.
3) Packing the machine in 2 plywood boxes.




4) Company Information

1) Founded in 2003.
2) Owns 2 factories manufacturing nailess plywood box machinewood pallet machinewood crate machine, nailless plywood box.
3) Owns 70% Market Share(Nailless plywood box machine) in China.
4) Expertized in R&D, Manufacturing, Marketing, Training, and Service.
5) Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6) Supply Technical Solution base on Cost Analysis and Optimal Allocation.




5) After Service

 1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.

FAQ
1) How quick we can get the parts from you?
As long as the problem with parts, we will send you free accessories by express, and you can get the parts in 4~5 days usually.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What's the cutting section of this saw?
This saw max cutting section is
120*120mm/100*200mm (thickness*width).
5) How many workers needed for this machine?
Just need 1 worker, when wood material placed on working table, machine feeding the wood automatic, then just need worker take the finished wood.


Contact Information
Tel:+86 0532-80922156 Mobile: +86 18562586817
Qingdao Saifan Packaging Machinery Co., Ltd
Qingdao High-Class Service Import & Export Co., Ltd

www.qdsaifan.com  www.saifanchina.com  www.hicasmachinery.com
No.8 Changbaishan Road, Shuangyuan road Airport Industrial Area, Qingdao, Shandong, China.

Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
