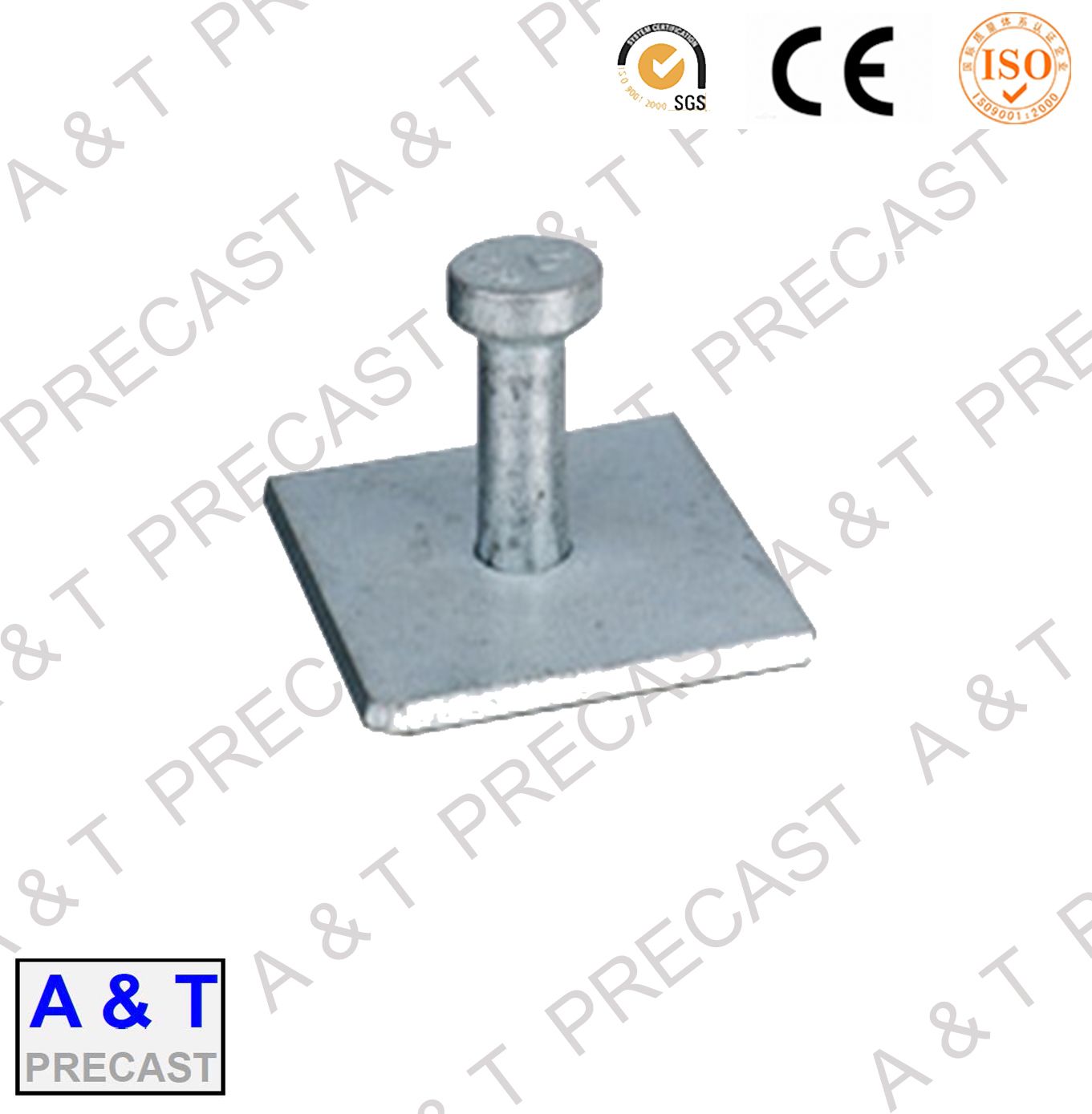

Precast Concrete Lifting Foot Anchor for Building and Construction

Precast Concrete Lifting Foot Anchor for Building and Construction
Price: US $ 2.6-3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P
Prod Model: 1.3ton-32ton
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Condition: Sand Blasting / Zinc/ HDG
Safety: 3 Times Tensile Strength Test
Package: White Tissue Within Wooden Crate
Original: Qingdao
Trade Mark: at OEM ODM
Shipping Port: Qingdao
Production Capability: 300, 000 PCS / Month
Type: Fasteners

Product Description



AT PRECAST,a manufacturer of precast concrete accessories including the Lifting Systems , Anchoring systems, Coil and Ferrule Inserts, with more than 13 years experience.

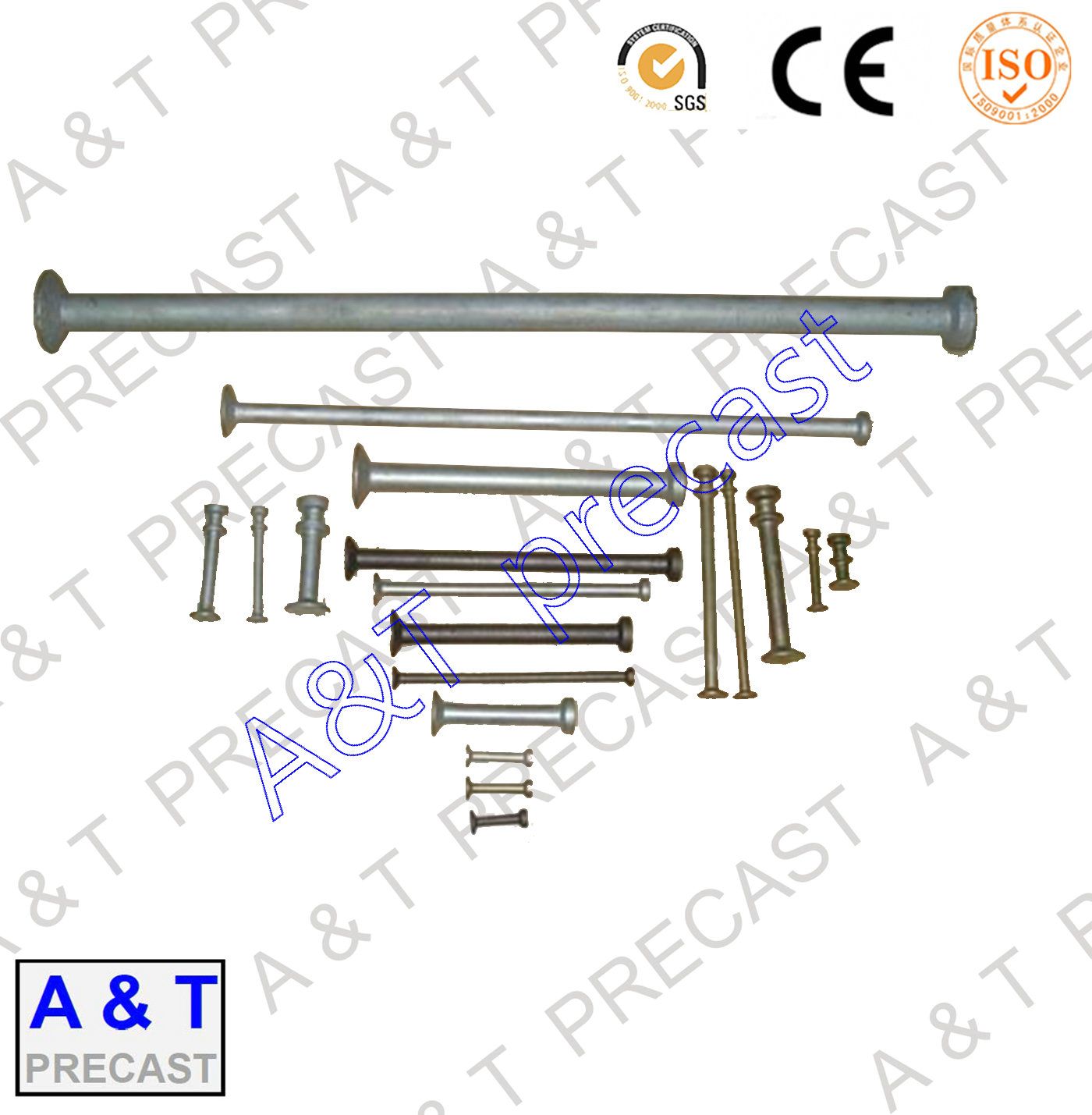

The spherical head anchor lifting system is cast into the concrete together with a recess former which will be removed afterwards. The quick and easy lifting cluth is used to lift and transport the concrete unit, loads in any direction can be carried. Anchors with load capacity up to 32tonnes are available.

1, The spherical head anchor size and dimension table


Material: St52-3 or similar with material certificate of each delivery, forged
     Load     1.3T     2.5T     4T     5T     7.5T     10T     15T     20T     32T
     Length     40     55     55     75     95     115     120     165     200
     mm     55     65     65     85     100     135     140     200     250
           65     85     75     95     105     140     165     240     260
           85     120     95     100     120     150     180     300     280
           120     140     100     110     140     170     240     340     700
           240     170     120     120     150     200     300     500     1200
                 240     170     170     165     210     400     1000
                 270     210     180     200     340
                       240     240     300     540
                       300     340     540     650
                       340     480     680
     D1     10     14     18     20     24     28     34     39     50
     D2     19     26     36     36     47     47     70     70     88
     D3     25     36     45     50     60     70     85     98     135
     H1     5     7     9     9     11     11     15     15     27
     H2     8     10     13     13     18     18     26     28     38
     S1     2     3     3     3     3.5     4     4.5     5     8
     S2     5     7     8     10     12     14     17     20     30
     R1     19     24     30     30     37     37     46     46     69
     Tensile Strength     500N     490N     485N     480N     500N     488N     498N     500N
     Breaking     16%     16%     16%     16%     16%     16%     16%     16%


Anchor size table with code

CodeSizeSurfaceWeight (kg)Quantity / BagPackage
ATLA0013-401.3X40Plain/H.D.G0.048200Bag/Crate
ATLA0013-551.3X55Plain/H.D.G0.055200Bag/Crate
ATLA0013-651.3X65Plain/H.D.G0.062200Bag/Crate
ATLA0013-851.3X85Plain/H.D.G0.074200Bag/Crate
ATLA0013-1201.3X120Plain/H.D.G0.094200Bag/Crate
ATLA0013-2401.3X240Plain/H.D.G0.163100Bag/Crate
ATLA0025-552.5TX55Plain/H.D.G0.124100Bag/Crate
ATLA0025-652.5TX65Plain/H.D.G0.132100Bag/Crate
ATLA0025-852.5TX85Plain/H.D.G0.155100Bag/Crate
ATLA0025-1202.5TX120Plain/H.D.G0.194100Bag/Crate
ATLA0025-1402.5TX140Plain/H.D.G0.21650Bag/Crate
ATLA0025-1702.5TX170Plain/H.D.G0.25050Bag/Crate
ATLA0025-2402.5TX240Plain/H.D.G0.34525Bag/Crate
ATLA0025-2702.5TX270Plain/H.D.G0.3825Bag/Crate
ATLA0040-554.0TX55Plain/H.D.G0.286100Bag/Crate
ATLA0040-654.0TX65Plain/H.D.G0.298100Bag/Crate
ATLA0040-754.0TX75Plain/H.D.G0.31100Bag/Crate
ATLA0040-954.0TX95Plain/H.D.G0.3350Bag/Crate
ATLA0040-1004.0TX100Plain/H.D.G0.3450Bag/Crate
ATLA0040-1204.0TX120Plain/H.D.G0.3650Bag/Crate
ATLA0040-1704.0TX170Plain/H.D.G0.4750Bag/Crate
ATLA0040-2104.0TX210Plain/H.D.G0.53650Bag/Crate
ATLA0040-2404.0TX240Plain/H.D.G0.5850Bag/Crate
ATLA0040-3004.0TX300Plain/H.D.G0.6825Bag/Crate
ATLA0040-3404.0TX340Plain/H.D.G0.78025Bag/Crate
ATLA0050-755TX75Plain/H.D.G0.32050Bag/Crate
ATLA0050-855TX85Plain/H.D.G0.3650Bag/Crate
ATLA0050-955TX95Plain/H.D.G0.37725Bag/Crate
ATLA0050-1005TX100Plain/H.D.G0.3925Bag/Crate
ATLA0050-1105TX110Plain/H.D.G0.41525Bag/Crate
ATLA0050-1205TX120Plain/H.D.G0.4425Bag/Crate
ATLA0050-1705TX170Plain/H.D.G0.5625Bag/Crate
ATLA0050-1805TX180Plain/H.D.G0.58225Bag/Crate
ATLA0050-2405TX240Plain/H.D.G0.72425Bag/Crate
ATLA0050-3405TX340Plain/H.D.G0.962BulkBag/Crate
CodeSizeSurfaceWeight (kg)Quantity / BagPackage
ATLA0050-4805TX480Plain/H.D.G1.36BulkBag/Crate
ATLA0075-957.5TX95Plain/H.D.G0.6425Bag/Crate
ATLA0075-1007.5TX160Plain/H.D.G0.6720Bag/Crate
ATLA0075-1057.5TX200Plain/H.D.G0.7015Bag/Crate
ATLA0075-1207.5TX200Plain/H.D.G0.7315Bag/Crate
ATLA0075-1407.5TX200Plain/H.D.G0.8115Bag/Crate
ATLA0075-1507.5TX200Plain/H.D.G0.84215Bag/Crate
ATLA0075-1657.5TX200Plain/H.D.G0.8915Bag/Crate
ATLA0075-2007.5TX200Plain/H.D.G1.0115Bag/Crate
ATLA0075-3007.5TX200Plain/H.D.G1.3615Bag/Crate
ATLA0075-5407.5TX540Plain/H.D.G2.24BulkBag/Crate
ATLA0075-6807.5TX540Plain/H.D.G2.75BulkBag/Crate
ATLA0100-8510TX85Plain/H.D.G0.825Bag/Crate
ATLA0100-10010TX100Plain/H.D.G0.8920Bag/Crate
ATLA0100-11010TX110Plain/H.D.G0.920Bag/Crate
ATLA0100-11510TX115Plain/H.D.G0.9220Bag/Crate
ATLA0100-14010TX140Plain/H.D.G1.0615Bag/Crate
ATLA0100-15010TX150Plain/H.D.G1.0915Bag/Crate
ATLA0100-17010TX170Plain/H.D.G1.1810Bag/Crate
ATLA0100-20010TX170Plain/H.D.G1.3510Bag/Crate
ATLA0100-21010TX170Plain/H.D.G1.410Bag/Crate
ATLA0100-34010TX340Plain/H.D.G1.98BulkBag/Crate
ATLA0100-54010TX340Plain/H.D.G3.1BulkBag/Crate
ATLA0100-65010TX650Plain/H.D.G3.4BulkCrate
ATLA0100-68010TX680Plain/H.D.G3.57BulkCrate
ATLA0150-12015TX120Plain/H.D.G1.6710Bag/Crate
ATLA0150-14015TX140Plain/H.D.G1.79510Bag/Crate
ATLA0150-16515TX165Plain/H.D.G2.0510Bag/Crate
ATLA0150-18015TX180Plain/H.D.G2.210Bag/Crate
ATLA0150-24015TX240Plain/H.D.G2.710Bag/Crate
ATLA0150-30015TX300Plain/H.D.G310Bag/Crate
ATLA0150-40015TX400Plain/H.D.G5BulkCrate
ATLA0200-16520TX165Plain/H.D.G2.7210Crate
ATLA0200-20020TX200Plain/H.D.G2.995Crate
ATLA0200-24020TX240Plain/H.D.G3.2995Crate
ATLA0200-30020TX300Plain/H.D.G3.95Crate
ATLA0200-34020TX340Plain/H.D.G4.375Crate
CodeSizeSurfaceWeight (kg)Quantity / BagPackage
ATLA0200-50020TX500Plain/H.D.G5.93BulkCrate
ATLA0200-100020TX1000Plain/H.D.G11.05BulkCrate
ATLA0320-20032TX200Plain/H.D.G5.55BulkCrate
ATLA0320-25032TX250Plain/H.D.G6.32BulkCrate
ATLA0320-26032TX260Plain/H.D.G6.7BulkCrate
ATLA0320-28032TX280Plain/H.D.G7.1BulkCrate
ATLA0320-70032TX700Plain/H.D.G13.44BulkCrate
ATLA0320-120032TX1200Plain/H.D.G20.99BulkCrate

The marking is customized on foot and head. Emboss or concave letters,
Example: AT 2T5 L170
***Stainless steel DIN 1.414 is in available.
***Surface can be black, sandblasted, Electro Zinc or Hot Dip Galvanized.

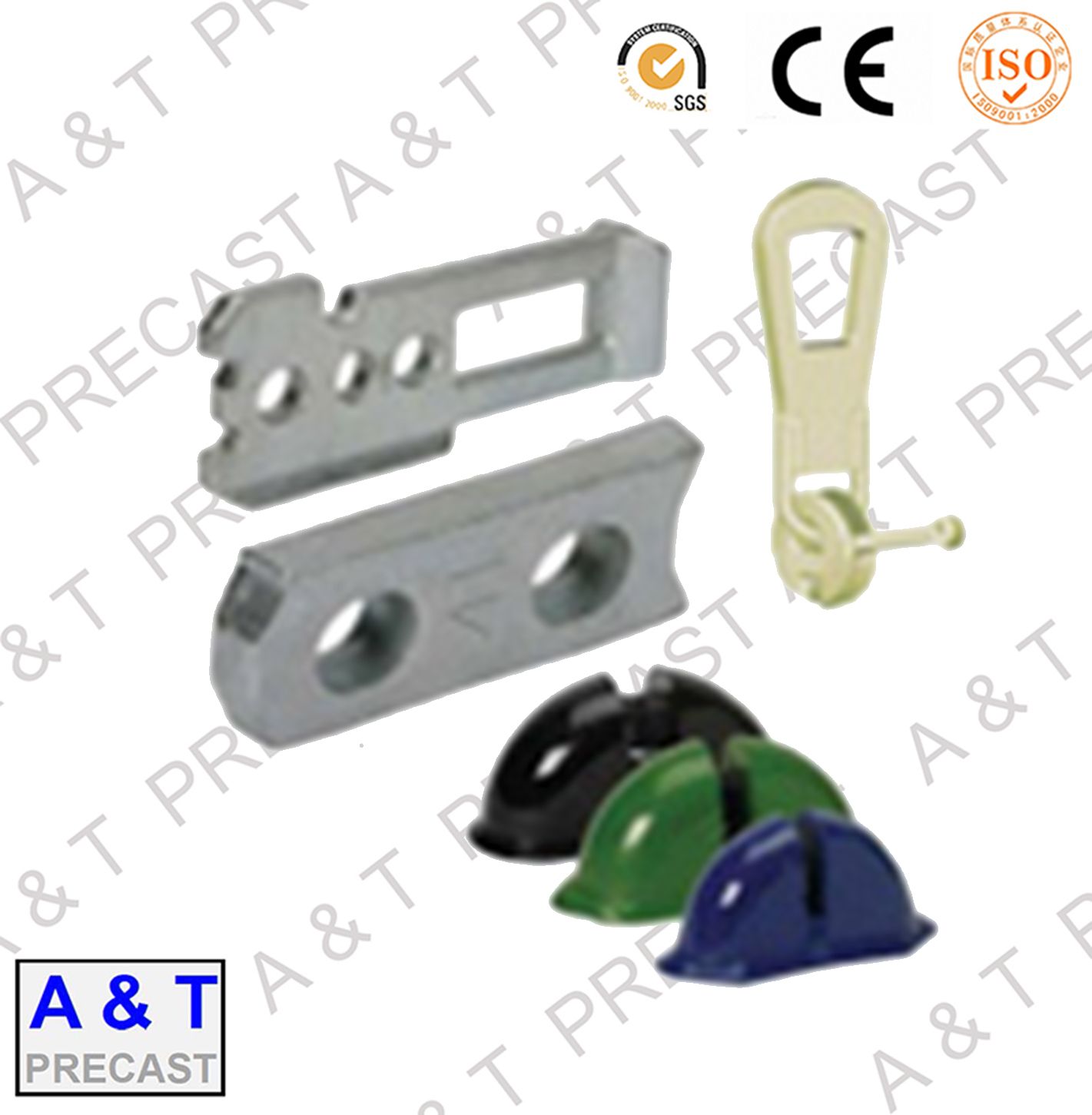

Other  AT lifting system product.


ABOUT US:

As your one-stop source, AT PRECAST,we design, manufacturer and distribute precast concrete accessories including the Lifting Systems and Anchoring systems Coil and Ferrule Inserts. for Concrete and Prefabricated area.

As a leader in developing concrete accessory products, our main goal is to produce products that are safer, faster and more cost efficient.

With more than totally 50 years working experience, our entire staff is dedicated to provide you with the best customer service and competitive prices. Our sales force are able to answer your questions quickly and offer you technical support .

Assurance,

 100% quality manufacturing.
 We guarantee that our products meet your supplied specifications
 Extremely competitive pricing
 Delivery to your port or front door
 4 ---- 8 week lead times
 We handle all paperwork
 Partial container orders
 Flexible payment options
 Unique tooling options
 Full range of packaging options from bulk to retail ready
 Complete testing services available

FAQs

1. Where is your location?

We are located in Qingdao City of China and are closed to Airport. It takes 30minuts by car from Liuting Airport our company.

2. How long has the company been established?

AT INDUSTRY was established in 2009. There is 6 years exporting experiences.

3. How many employees do you have?

Administration / sales    4
Engineering / design as our partner     8
Production as our partners 120
Quality assurance / inspection   10

4. Which countries do you export to?

U.S.A, Germany, France, Italy, UK, Brazil, Middle east of Asia, Thailand,

5. What proportion of your goods are exported?

100% of our production are exported to all over the world.

6. How long does it take to receive samples?

a) Pattern:30-45days after order
b) Sample:30days after pattern finishing.
c) The lead time is the general production period and does not include the transportation time.

7. New product development process

Got tooling order and sample order with 50% deposit---Hold a meeting with the relation dept. to ensure the developing schedule---Design pattern, fixture and gauge and making them in our house---mold steel buying---Machining---Inspection---Send out the sample with initial inspection report.

8. How long is the manufacturing lead time?

Mass Production: 90days after sample approval by yours.
The lead time is the general production period including the transportation time.
We could make some special production arrangement effectively if customer has urgent need.

9. What basis can we buy goods?

We generally offer customers prices FOB& CIF (Carriage, Insurance & Freight). The CIF includes the freight cost to your nominated sea port.
We do provide clearance of goods which needs to be handled by a local freight forwarder.
All local costs and taxes are the responsibility of the buyer. We are happy to offer advisement on shipping if required.

10. What are the payment terms?

Payment terms are negotiable and will improve for long term customers.
During the initial stages, we request 50% of tooling fee in advance with the balance payable on acceptance of samples.
Production orders can be negotiable. We prefer 50% deposit and the balance by T/T before sails. But sometimes T/T 30 days after sails would also acceptable.

11. Which currency can we buy in?

We can deal in USD / Euro currency / GBP.

12. How long does it take to ship goods from China by sea?

It takes about 5 weeks to European ports plus 1 week customs clearance, so you can get the container within 6 to 7 weeks. It takes about 2 weeks to east coast and 3 weeks to west coast US ports. All sea goods are shipped from Qingdao Port.

13. How long does it take to ship goods from China by air?

It takes about 7 days to all major destinations.

14. Can we visit the factory to conduct an audit?

Yes, you are welcome to visit our partner factory by prior agreement.

15. How do we retain client confidentiality?

We are happy to sign Confidentiality Agreements with customers and will honor them.

16. Which languages do we do business in?

Although we do business with many countries around the world, we can only communicate effectively in Chinese English.
All information supplied should therefore be supplied in this form.

17. Is there a minimum volume of business required to conduct international purchasing?

There are no minimum volumes, but the prices of the goods, plus the fixed costs of importing makes it more economical to buy in high volumes. All potential customers will be assessed on an individual basis to determine if it appears a viable option for all parties to develop a relationship.

18. What type of parts you are specialized in?

Our business contains two areas,
one is for construction precast including lifting system, rigging hardware metal parts.

Another is customized metal business of quality sand castings, investment castings, lost foam castings, hot forgings, cold forgings, stampings, machined parts, injectionmolded plastics parts, etc.

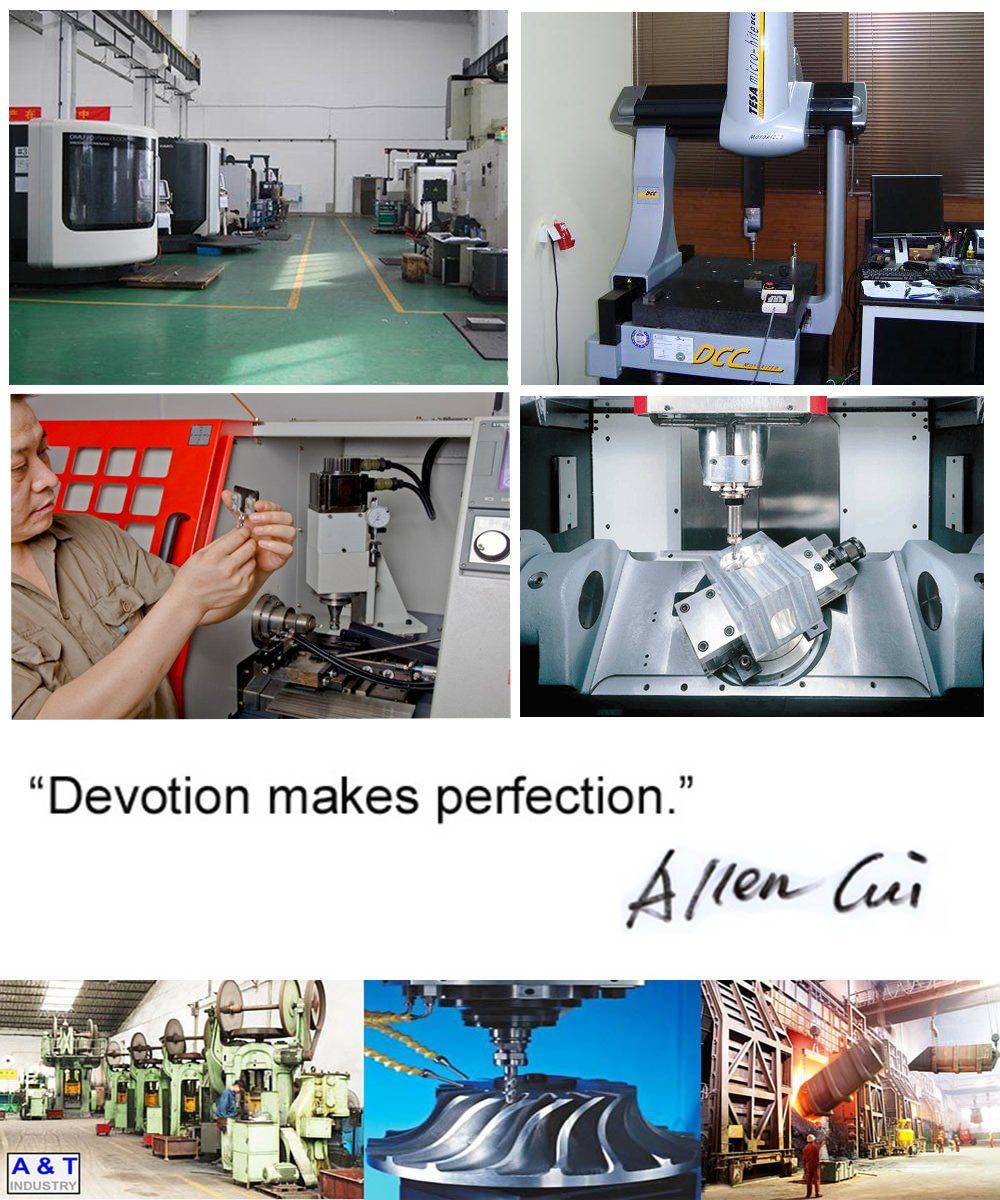

19. Which kind of equipments do you have?

Forging friction press 160Ton, 300Ton, 630Ton, 1200Ton
Casting furnace of 200kg, 500kg,1000kgs, 2000kgs
Press of 63ton, 120tons
CNC Machining center
CNC Vertical Lathe
CNC Lathe center
Boring machine
Drilling machine



A&T Industry is a contract manufacture and exporter of quality sand castings, Investment castings, lost foam castings, hot forgings, cold forgings, stampings, Machined parts, injectionmolded plastics parts, etc.

We are a dedicated team of customerfocused industry professionals with extensive experience in manufacturing, materials engineering, quality assurance, logistics management and inventory control.

We utilize our experience and sources advantage to provide our customers with cost effective and valuebased solutions to meet their engineering and design needs while exceeding their quality and procurement requirements.

A&T Industry is located in Qingdao, a major seaport, Olympic Host City and Industrial center of China.

Assurance,

• 100% quality manufacturing.

• We guarantee that our products meet your supplied specifications

• Extremely competitive pricing

• Delivery to your port or front door

• 48 week lead times

• We handle all paperwork

• Partial container orders

• Flexible payment options

• Unique tooling options

• Full range of packaging options from bulk to retail ready

• Complete testing services available
