Pneumatic Power Source and Cranes Application Small Winch with Remote Control

Pneumatic Power Source and Cranes Application Small Winch with Remote Control
Price: US $ 8500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: JQHS50
Type: Construction Winch
Carrying Capacity: Weight Level
Tonnage: 5T
Running Mode: Moving
Feature: Explosion-Proof
Standard: National Standards
Driven Type: Pneumatic/Air

Product Description

Pneumatic Power Source and Cranes Application Small Winch with Remote Control


Introduction:

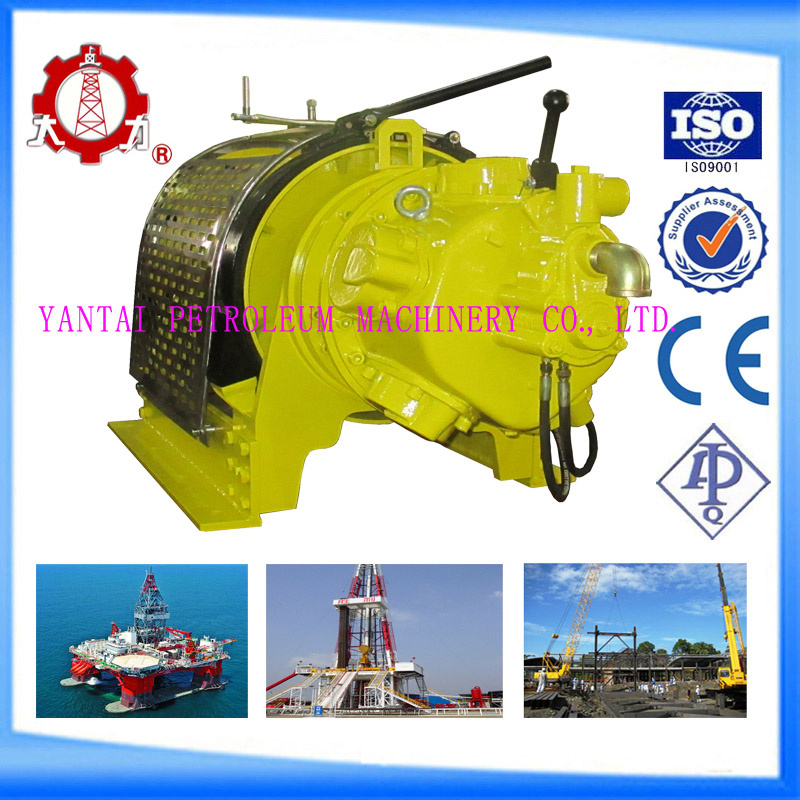

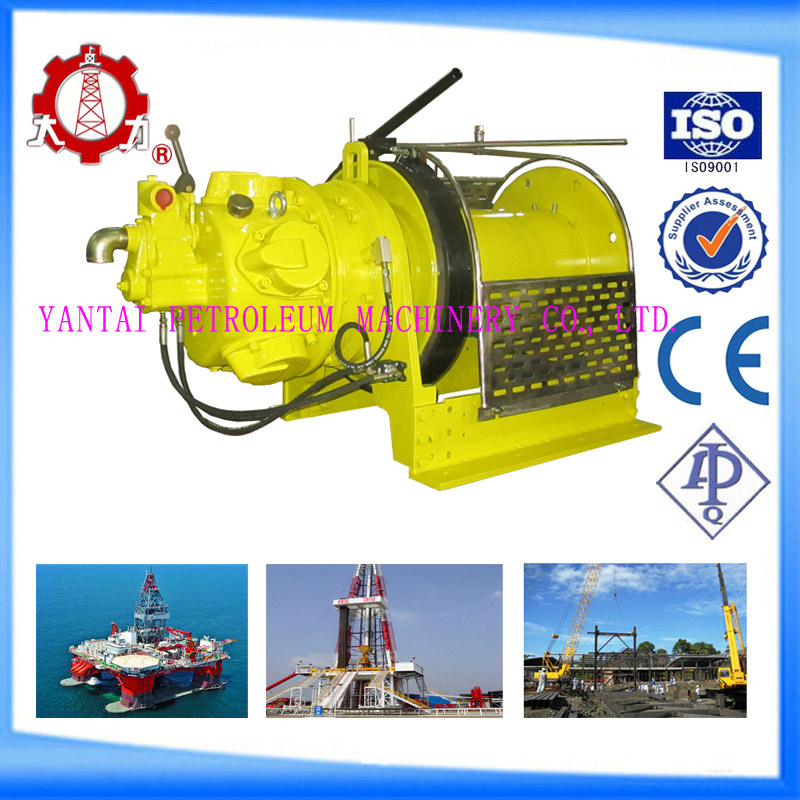

The JQHS50 Air Winch adopts compressed air as power to drive the TMH17 piston air motor, transferring torque to drum through the second Gear Reducer. By operating manual diversion valve on the motor, the winch can perform hoisting, lowering and stopping actions to the wire rope. Considering security, it is specially designed with hand and foot double manual brakes for fear of unexpected accidents.
The Double-braking Air Winch is especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields off-sea and inland, etc. (Its maximum load is up to 5 ton


Features:
1. Compact in size and light in weight, portable to move and easy to install;
2. Simple and reliable operation with little noise;
3. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
4. Low maintenance relieves your anxiety and assures you to use it freely.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
6. Especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields, etc;
7. The Normal Pull Force can be tailor-made to your requirement;
8. Good after-sale service with high quality;
9. ISO, API, CCS approved.


Technical Parameters:
Working Air Pressure0.7-0.9 MPa
Rated Load(1st layer)50 kN
Rope speed0-10 m/min
Drum diameter345 mm
Wheel diameter620 mm
 length610 mm
Rope capacity19mm*260M
Motor Air Inlet sizeRc1 1/4″
Valve Exhaust SizeRc1 1/4″ and Rc1 1/2″
Brake typeAuto Disc Brake+ Manual Band Brake
Emergency Stop & Overload ProtectionYes
Rope Spooling DeviceManual Type
Safety ProtectionDrum Guard
 Cylinder Number5 PCS
Air motorCylinder Diameter130 mm
 Rated Power17 kW
 Consumption247 L/S
DimensionLength*Width*Height1725mm*915mm*1035mm
Weight840 kg

Any questions, please contact:
Tina Duan (Oversea Sales Manager)
Yantai Petroleum Machinery Co., Ltd.
Tel: +86-535-6087576
Mob: +86-15053522870 Fax: +86-535-6083272
Add: No.201 Shangkuang West Road,Zhifu District,Yantai.Shandong,China
Web: www.powerpetro.cn
As the earliest manufacturer for Pneumatic machinery, Yantai Petroleum Machinery Co., Ltd (originally named Yantai Petroleum Machinery Plant) is located in the beautiful coastal city, Yantai. In the past 30 years, we are mainly engaged with the research, design, manufacturing, installation and technical services for Pneumatic and Hydraulic equipment. We possess National-approved Municipal Research & Development Center upgrading our technology to be first-class of the world, and Quality-Control Centre to ensure first-rate quality for our equipment. Our main products cover: Pneumatic Winches, Remote-controlled Pneumatic Winches, Hydraulic Winches, Pneumatic Motors, Drilling Rod Kelly Spinners, Tap Kelly Spinners, Roller Fairleads, Pneumatic Pre-supply Oil Pumps and Hydraulic Pre-supply Oil Pumps, of over 10 series and totally more than 30 varieties, which are all widely used in oilfields, mining, shipbuilding, engineering machinery, metal processing industry, chemical industry, medicine, etc.

As National Key Enterprise in Pneumatic field, our Pneumatic Winches have already been awarded "Shandong Famous-Brand Product", and our other equipment also wins favors from all our customers. To guarantee 100% quality for each of our products, we are equipped with first-rate performance testing systems to strictly comply with the Quality Regulations, and we have already obtained the Certification of ISO 9001: 2008 Quality Control System. Our products enjoy stable domestic market share, and have been delivered far to America, Europe, Middle East and other regions of the world, gaining worldwide reputation and leading place in this industry.

We, Yantai Petroleum Machinery Co., Ltd are willing to devote ourselves and make more contributions to machinery and welcome friends from all over the world to have more cooperation with us.
