Pn63 M/F Screwed 2PC Ball Valve with Special Oval Handle

Pn63 M/F Screwed 2PC Ball Valve with Special Oval Handle
Price: US $ 3.9-4.5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: WB-02MF
Handle Color: Blue, Red,Yellow
Certificate: ISO9001,TUV Ce
Export Area: Worldwide
Material: Stainless Steel
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Household Usage
Nominal Pressure: 1000wog
Function: Water,Oil,Gas

Product Description

New Handle!!!

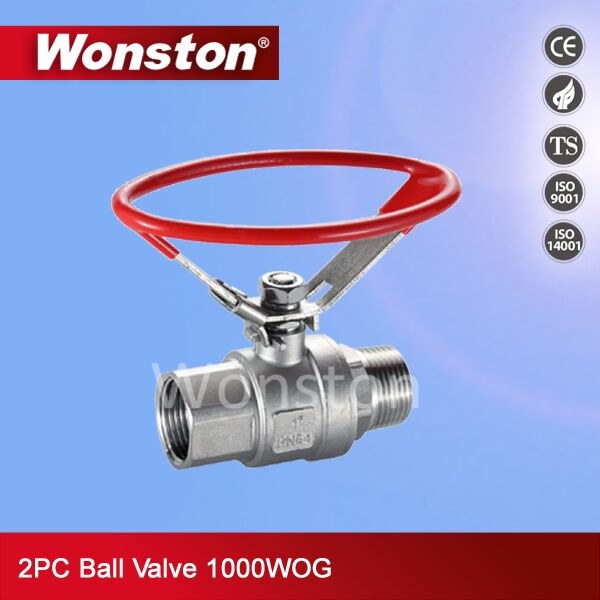

Oval Handle  2PC Ball Valve With Female/Male Thread End 1000WOG

Features and Benefits:

Size 1/4"--- 4"(DN6-DN100)
Connection typeInside thread
Temperature Range-29ºC~150ºC~300ºC ETC
Working pressure1.6Mpa~6.4Mpa
Type of threadNPT, BSPT, BSP, PT, DIN2999 ETC
Applicable mediumWater,oil,gas
FeatureFull port  design, floating ball,blow-out proof stem
  Main Material
Part nameMaterials
1.Body SS201   SS304  SS316  SS316L WCB
2.Bonnet SS201   SS304  SS316  SS316L WCB
3.Valve seat PTFE, RPTFE, PPL
4.BallSS201   SS304  SS316  SS316L
5.Seal ringPTFE, RPTFE, PPL
6.Stem SS201   SS304  SS316  SS316L
7.Packing PTFE, RPTFE, PPL
8.GlandSS201  SS304
9.HandleSS201  SS304
10.NutSS201  SS304






FAQ
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 100pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 12 months after leaving our factory. We can repair or change because of the quality problems.
Q4: Payment
A4: Mainly T/T, L/C are applicable for us. Payment Term: 30% in advance, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture ANSI,DIN, JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions.

Wonston provides the right solutions

Wonston is a leading manufacturer of ball valves. Founded in the early 1996's, the company expanded into the design and production of 1, 2, 3- piece ball valves, gate valve, globe valve, check valve etc, which are widely used in the following industries: Chemical, petrochemical, oil refinery, energy, offshore drilling, marine, pulp and paper, pharmaceutical, biotech, food and beverage and others.

The company occupies a land area of 18, 000 square meters, has 100 staff, with nc lathe, milling machine, radial drilling machine, laser marking machine etc, and testing equipments such as spectrometers, chemistry analyzers, plug gauge, pressure test machine etc to ensure quality. The company has acquired ISO14001, ISO9001 and ce authentication.

Wonston products have been exported to America, Europe, Russia, Middle East, Asia, Africa etc.

Advanced design and flexibility

Research, development and continuous technological advances ensure that wonston stays in the forefront of the industry. Wonston's expertise in valve design means that the company can supply not only standard valves, but also complex, custom-designed valve packages for many applications. As a result of its on-going modification and upgrading of current valve designs, together with the development of new valve products, wonston offers the highest degree of sophisticated products that meet customers' requirements.

Our mission

Wonston complies to the management idea: "combine the talents, improve whole system, ensure the safety, achieve competitive product, service sincerely, strive for a first-rate" be market-oriented. We believe that under the help and support from the customers and friends, wonston can make a huge achievement and create bigger refulgence.

Performance and reliability

In industries where performance, quality and reliability are essential, wonston ball valves and other products are a secure choice. Each valve is manufactured to strict technical specifications, guaranteeing customer satisfaction, more than 5 times quality from beginning to the end ensure each valve was 100% eligibility.
