Murata Machines Spare Parts Icbt Yarn Cutter

Murata Machines Spare Parts Icbt Yarn Cutter
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: DHYC001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 24VDC
Shred Instantaneous Current: <70mA
Shred Pull-in Current: <15mA
Shred Ability: 300d
Match Machine: Chemical Fiber Spinning Equipment
Material: Plastic
Certification: CE
Customized: Non-Customized
Condition: New
Classification: Yarn Cutter

Product Description

Product Description

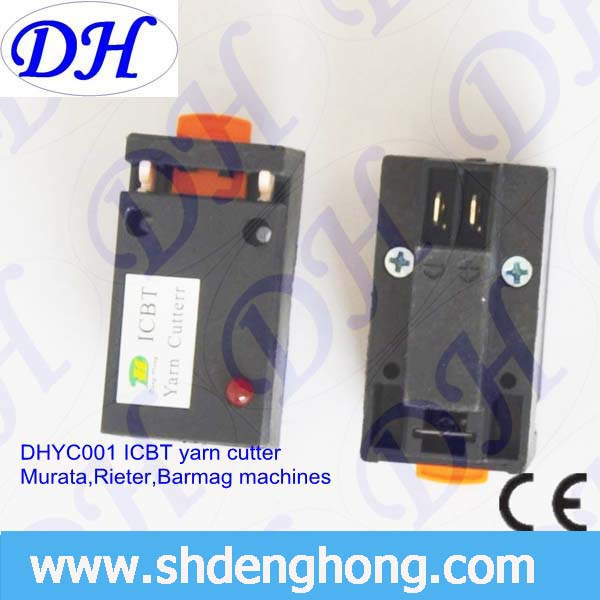

ITEMDHYC001  Texturing machinery 24VDC ICBT yarn cutter
MaterialPlastic Housing
Working voltage24 VDC
Shred current<70mA
Shred pull-in current<15mA
Response time 0.1 seconds
Shred ability 300D
Guarantee One year without operatio mistake
Origin Shanghai, China
Application Textile machine


Features

  • Compact construction
  • Solid plastic housing
  • Accurate cutting of yarn


Functions



In Chemical Fiber machine, fore-spinning machines, when the breakage of stoppage of one or more yarns are detected by the sensor, the sensor will give the operate on duty an alarm with a visible LED flaring signal. It will simultaneously send out an electrical signal to the yarn cutter in order to cut off the broken yarn and grip the cut end by the device attached to the yarn cutter itself.

In winding, spinning, twisting machines, the yarn should be cut off when the bobbin is full. The yarn cutter will work together with meter counter.



Working Principle



The yarn passes through the groove of the yarn cutter, led by two guiders. When the yarn stops moving or break, the yarn sensor sends out an electrical signal to order the yarn cutter to release the blade. The broken yarns will be cut off and gripped by the yarn cutter.



Company Information

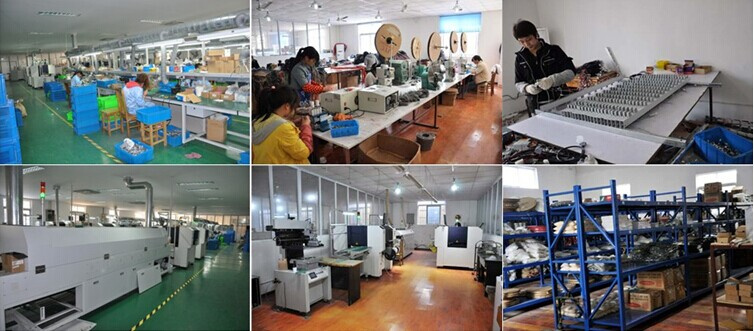

Shanghai Denghong Mechanical & Electrical Manufacturing Co.,Ltd is the professional manufacturer of Various Yarn breaking detection sensor, Yarn cutter with about 10 years of experience, which have strong R&D and engineering capabilities.



Packaging and Shipping:



Samples are free, you only need pay the shipping fee.

Delivery time: Samples 1-3 working days and
Orders for 3-7 working days.


Our srtongest point is that we consult. So anything you want to know about our products, please ask us!
Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Old name: Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.

The main products of our company:

I. Yarn cutter: Suitable for various textile machines

II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor

III. Meter counter: Multi-Function and easy operation

Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.

With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers.

Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.

The main products of our company:

I. Yarn cutter: Suitable for various textile machines

II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor

III. Meter counter: Multi-Function and easy operation

Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.

With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers
