Manual sheet metal shearing machine, mechanical sheet metal shears

Manual sheet metal shearing machine, mechanical sheet metal shears
Price: US $ 1000-10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Q11-3X1300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutting Thickness: 3mm
Cutting Width: 1300mm
Brand: HAVEN
Power Supply: 380V/50Hz/3pH
Machine Color: As your demand

Product Description

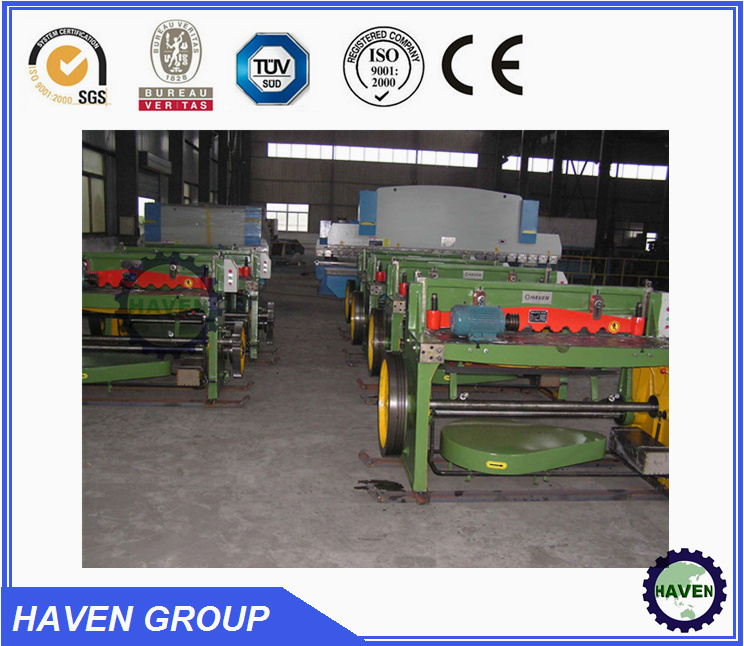

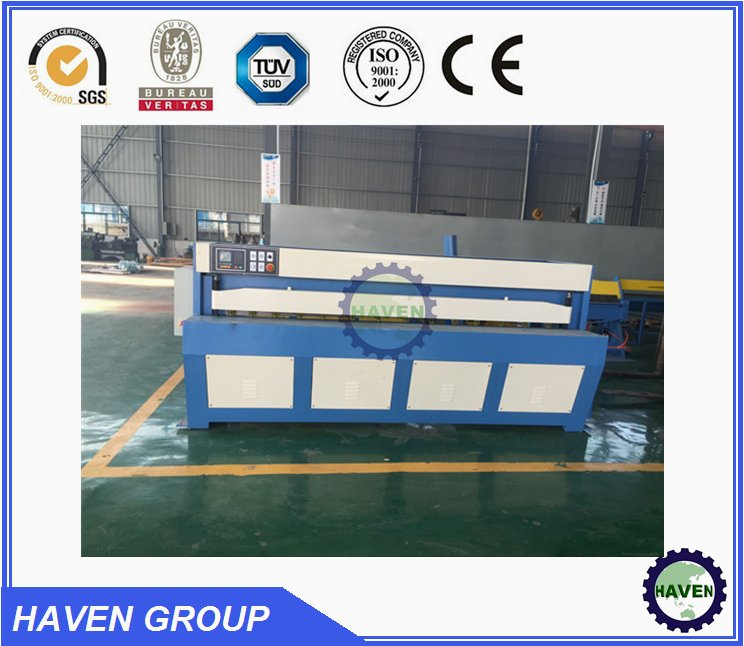

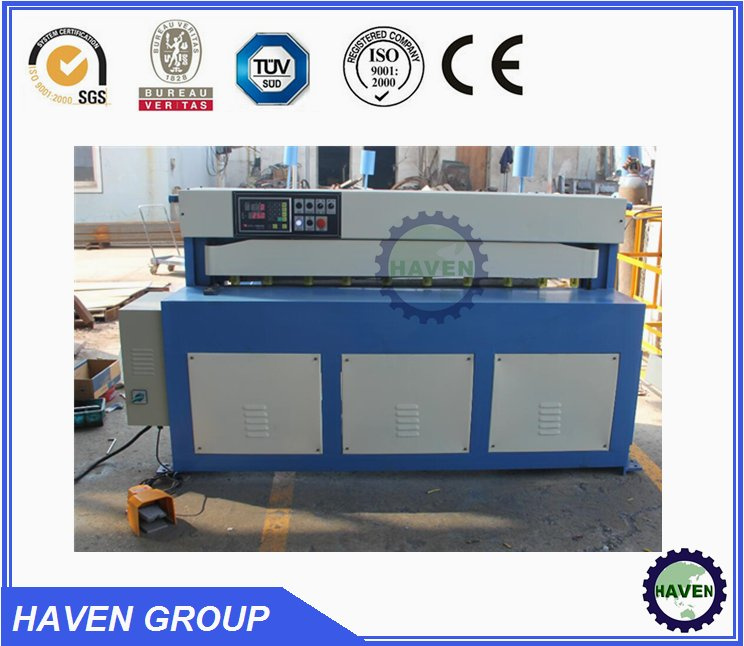

Q11 series shearing machine




Main functions:
Single-side open-type mechanical down driving system with safety stability, compact construction,
Ease of operation and modern appearance.
Equipped with rotary-key clutch, it can be sensitive operated with Iow noise, low maintenance and long service life.
With Iow cutting angle and inclined shear direction, bowing and twist of the material is kept to a minimum.
Adjustable butterfly-spring hold-down device for minimum displacement of sheet-plate so cutting precision is ensured.
Easily operated gear shaft back gauge with scale works great for shearing in batches.
Model No.Q11 3.5x1200AQ11 3.5x1300AQ11-3.0x1300
Shearing thickness3.5 mm3.5 mm3.0 mm
Shearing width (mm)1200 mm1300 mm1500 mm
Shearing angle (°)2°25′2°25′2°25′
Strokes per minute565656
Back gauge range (mm)0~350 mm0~350 mm0~350 mm
Height of worktable(mm)800800800
Motor (kw)3 kw3 kw3 kw
Net Weight (kg)1420 kg1500 kg2200 kg
dimensions2080x1520x1280mm2180x1520x1280mm2380x1520x1280mm

Model No.Q11 4x2000Q11 4x2500Q11 4x3200Q11 6x2000Q11 6x2500
Shearing thickness4 mm4 mm4 mm6 mm6 mm
Shearing width (mm)2000 mm2500 mm3200 mm2000 mm2500 mm
Shearing angle (°)1°30′1°30′1°18′1°45′1°45′
Strokes per minute5656565656
Back gauge range (mm)0~500 mm 0~500 mm0~500 mm0~500 mm 0~500 mm
Motor (kw)5.5 kw5.5 kw7.5 kw7.5 kw7.5 kw
Net Weight (kg)3300 kg3600 kg4800 kg4100 kg4500 kg
We, Shaanxi Haven Equipment Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.

With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.

Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.

Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.

Our target is: High quality, efficient service, reliable honesty.
