Made in China Glassdoor Glass Hardware Fitting

Made in China Glassdoor Glass Hardware Fitting
Price: US $ 4-8/Set
Min Order: 100/Set
Pay Type: Western Union,Paypal
Prod Model: DA-222
Pitch-Row: 4mm
Load Weight: 120kg
Surface Finishing: Satin

Product Description










Specification:

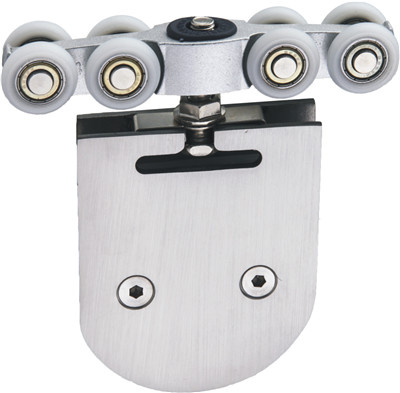

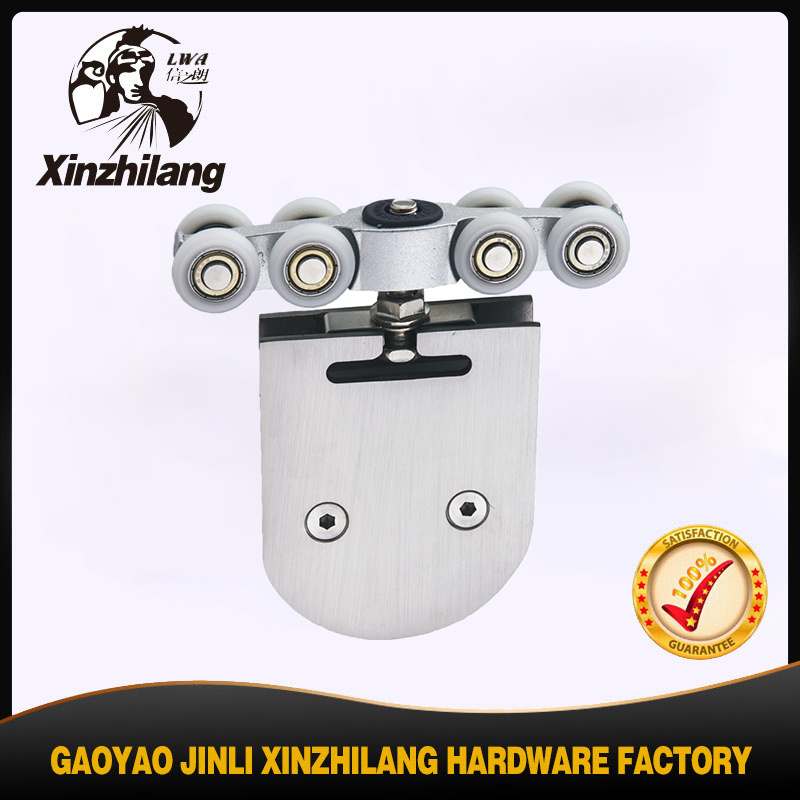

Brand Name:XINDAItem Name:Glass Door Hang Wheel
Item No:DA-222Body Material:Iron
Finish: SatinShape:Semi-circular
Wheel QTY:8 WheelsApplication:10-12mm Tempered Glass
Load Weight:120KGItem Weight:1785g






Advantage:

1.The wheel body adopts the special structure of three layers, the inner layer adopts precision ball bearings, the middle layer is designed into a reverse hook shape, effectively solve the inner and outer layer shedding.
2.Super silent hanging wheel, sliding almost no sound.
3.
The use of high-precision CNC machining equipment production, to ensure that the four round of the hanging wheel side, the force is uniform, push and pull 150 thousand times without damage.
4. Installation quick and easy. General load bearing 100-120kg.




Packaging and transportation:
Packing details: in export standard packing: Blister/set, 20sets / carton or according to your requirements.
Delivery detail: according to your order is usually 7 ~ 10 day.


Remarks:
In order to achieve safety and best use effect, please pay attention to and observe the following items when using this product:

  (1) Before the installation of reasonable calculation of the size of the material, to maintain a reasonable gap, the ordinary hanging wheel down the amount of 6~10mm. The lower end of the hanging door generally need to keep the 5~8mm clearance, to prevent the uneven ground caused by sliding smooth.
  (2) Use do not bang the door, may cause damage to parts.
  (3) Rational use of the limit device, tighten the limit screw.
  (4) Be sure to tighten the lock nut when assembling the folding door. Reinforce the need with glue.
  (5) The glass door must be tempered or affixed to the explosion-proof membrane.
  (6) General hanging rails installed on the wall below, if the lifting rail installed on the wall surface, to increase steel bracket fixed lifting rail.




1.WHAT IS YOUR MOQ?
Usually our MOQ is 1000pcs. But we also accept lower quantity for your trial order. Please feel free to tell us how many pieces you need, we will calculate the cost correspondingly, hoping you can place large orders after checking quality of our products and know our service.

2.HOW LONG IS THE SAMPLE LEAD TIME?
For existing samples, it takes 2-3 days. Most of them are free. If you want your own designs, it takes 7-10 days , subject to your designs whether they need new MOLD, etc. Anyway, we will response fast to your requests.

3.HOW LONG IS THE PRODUCTION LEAD TIME?
It normally 15 days for MOQ. We have existing production for our standard models and fast production capacity to ensure the fast delivery.

4.WHAT IS YOUR PAYMENT TERM?
Our payment term is 30% deposit according to the contract and balance before delivery by PayPal or Western Union.



XINZHILANG(XZL) COMPANY PROFILE

Gaoyao XINZHILANG Hardware Factory, funded in 2003, cover the area of 5000 square meters, is the one of leading manufacturers of glass suction, sliding door wheel, riveter, caulking gun in Guangdong.

Our factory well equipped with a complete series of die casting machine, pressing machine, laser machine, automatic welding machine, polishing machine.

"Quality first, Reputation first, Service first" is our principle. We pay attention to every details, keep study. With rich experience and advanced equipments and technique, effective management system in running our factory, now we already have our own brands: "DETO" "CAC" "Anderson" and "Gold", which are famous at home and abroad.

Our products are novel in design, various in styles, delicate in workmanship, excellent in quality. Our products are export to EU, US, Southeast Asia, and the Middle-east Area. We won the good reputation in our field. Review the past and look forward to the future. We will work harder and continue to improve our products and services.
