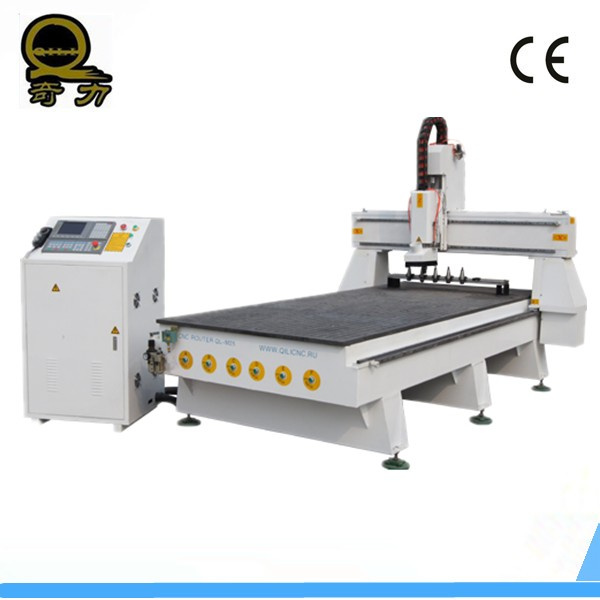

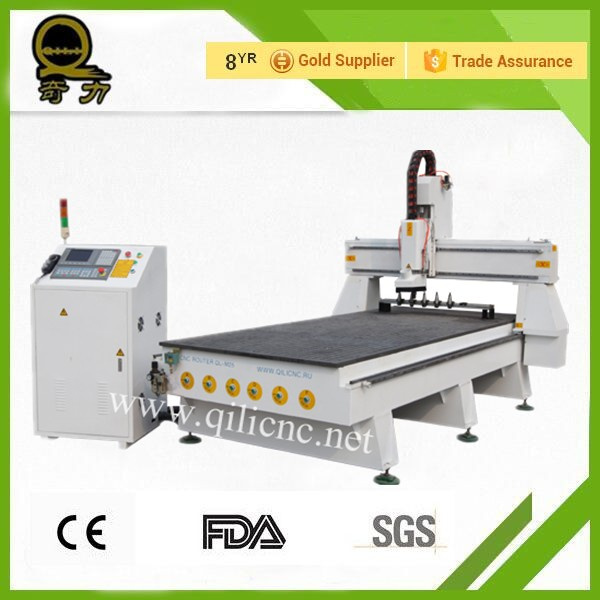

Linear Auto Tool Change CNC Router Machine 6 Cutter

Linear Auto Tool Change CNC Router Machine 6 Cutter
Price: US $ 24000set
Min Order: 1set
Pay Type: L/C,T/T
Prod Model: QL-M25
Machine Structure: Thick Wall Square Tube Lathe
Working Size X*Y*Z: 1300mm*2500mm*200mm
Table Type: Vacuum
Transmission: Rack and Gear
Guide Rail: Hiwin Square Guide Rail
Motor And Driver: Yaskawa Servo Motor and Driver
Working Voltage: 380V/50Hz
Auto Tool Changer Numbers: 6 PCS
Spindle Layout: Horizontal
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: SGS

Product Description

linear auto tool change CNC router machine 6 cutter

Product Overview

QL-ATC CNC Router series are at the service of high-end customers with high demand in automation, for its application suitable to 24hrs/day mass production. All the configuration are in high-end configuration for best performance and best quality and efficienty.

Product Features

1. Heavyduty thickwalled square tube lathe in good rigidity, is capable of large workload, maintaining solid shape and non-deformed.

2. Highend CNC control system from Taiwan, achieves automated intelligent control on functions, such as work area protection, processing cross-border protection auto working speed. Off-line operation of multiple levels of 3d processing is capable.

3. Advanced document pre-processing functions ensures speed and accuracy of operation.

4. Control panel of 7' Led, multipartition keyboard provide convenience and independence for user.

5. Automatic tool changer saves time for manual tool changing to improve efficiency.

6. Servo system from Japan is the core of drive system, with a large torque and complete security system.

Application:

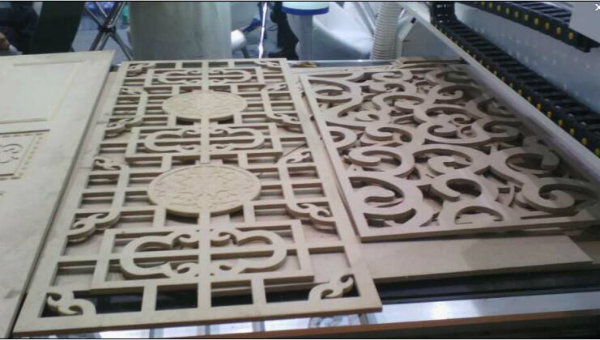

Plate furniture, rosewood furniture, solid wood doors, decorative materials, etc.
ModelQL-M25-IQL-M25-II
Working Area(X*Y*Z, mm)1300*2500*200
Machine StructureSquare tube structure lathe bed and vacuum table
Tool MagazineLine type , 6 pcsHat type , 8pcs
Work HoldingBy Vacuum
Overall Dimensions(mm)3300*2250*2000
Precision(mm)0.07
Positioning accuracy(mm)0.02
Repeatability(mm)0.02
Idling Speed(mm/min)30,000
Working Speed(mm/min)20,000
Spindle6.0KW, water-cooling (0-24000rpm)
Available Tools(mm)φ 3.175~ φ 12.7
Working Voltage380V/50HZ
Control SystemTaiwan Syntec System
Commend CodeG Code*.u00*.mmg*.plt
Drive SystemJapanese YASKAWA Servo System

Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.

The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
