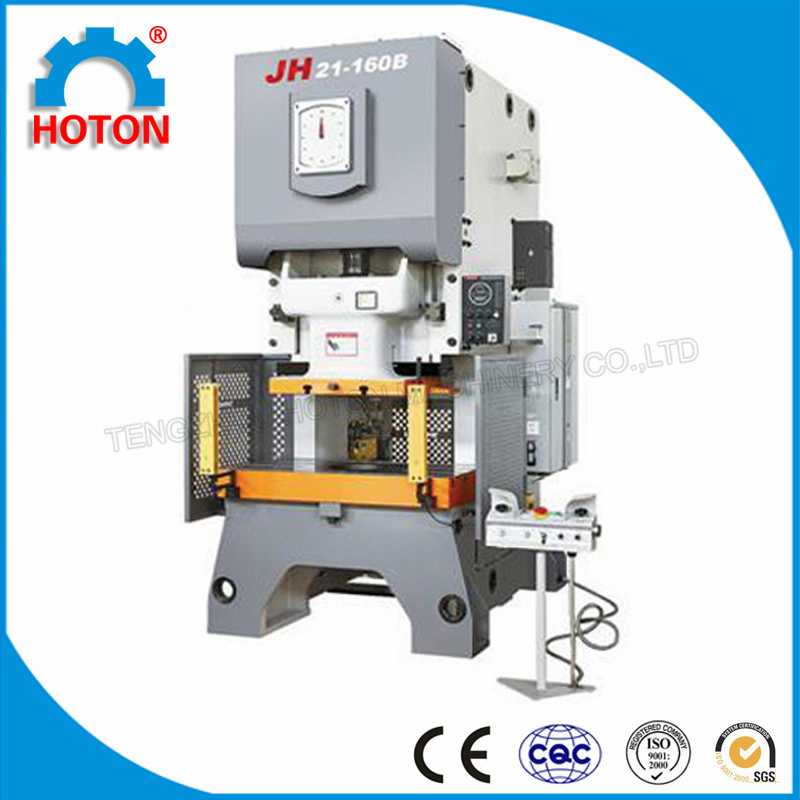

JH21 Series Power Punch Press Machine (JH21-25 JH21-45)

JH21 Series Power Punch Press Machine (JH21-25 JH21-45)
Price: US $ 1000-10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: JH21-25B JH21-25 JH21-45 JH21-63
Capacity: 250kn
Slide Stroke: 60mm
Max.Die Height: 200mm
Motor: 3KW
SPM: 100(Min/1)
Controlling Mode: Artificial
Automatic Grade: Manual
Power Source: Pneumatic
Precision: Normal Precision
Type: Mechanical Press
Slider Drive Mechanism: Mold Forging

Product Description

JH21 SERIES OPEN BACK PRESS FEATURES:
JH21series open back press with dry clutch and hydraulic overload protector
Welded body with steel plate and high intensity.
Main motor is made by Siemens.
Adopts combined pneumatic friction clutch and brake.
Cluster gear adopts the flooding oil lubrication.
Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.
Equipped with hydraulic overload protecting device.
JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.
H21-45 can equip with die set height adjustment motor, the value will be displayed by digital.
JH21-25B, JH21-45 and above type equipped with balance cylinder.
Duplex valves imported.
Electric compelling grease lubrication system.
Balancing cylinder adopts manual lubrication system.
One set of blowing device.
Controlled by PLC with international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.
SPECIFICATIONS:
MODELJH21-25BJH21-25JH21--45JH21-63JH21-80JH21-110JH21-125
CapacitykN25025045063080011001250
Nominal Strokemm3344566
Slide Strokemm6080100120140160160
SPMFixedmin-11001008070605050
Variable80-12080-12070-9060-8050-7040-6040-60
Max. Die Heightmm200250270300320350350
Die Height Adjustmentmm50506080808080
Between Slide Center & Framemm160210230300300350350
Bolster (FB×LR)mm300×680400×700440×810580×900580×1000680×1150680×1150
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)mm130×260φ170×
20×φ150
φ180
×30×φ160
φ200
×40×φ180
φ200
×40×φ180
φ260
×50×φ220
φ260
×50×φ220
Bolster Thicknessmm7080110110120140140
Bolster Opening (Dia./FB×LR)mm200×270260×250300×300390×460390×520420×540420×540
Slide Area (FB×LR)mm270×330300×360340×410400×480420×560500×650540×680
Shank Hole (Dia.×Dpth)mmφ40×60φ40×60φ40×60φ50×80φ50×80φ60×80φ60×80
Between Columnsmm448450550560640760760
Main Motor PowerkW335.55.57.51111
Outline Size (FB×LR×H)mm1150×
1050×2050
1300×
1050×2050
1390×
1200×2400
1580×
1210×
2520
1640×
1280×2700
1850
×1450×
3060
1850
×1490×
3060
Net Weightkg2200260034505400700093409900
