Jh21 High Speed Eccentric Punching Machine/Air Pressure Power Press

Jh21 High Speed Eccentric Punching Machine/Air Pressure Power Press
Price: US $ 300-69999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: JH21
Product Name: Jh21 High Speed Eccentric Punching Machine/Air Pre
Safety Protection: Photoelectric Protection
Electrical: Chnt
Body: Cast
Function: Metal Processing
CNC Feeding System: Available
Worktable: Inclinable
Material: Aluminum, Ss, Ms, etc
Application: Metal Process
Color: Customizable
Type: Deep Throat Punching Machine
Controlling Mode: Artificial
Automatic Grade: Automatic
Power Source: Mechanical Drive
Precision: High Precision

Product Description

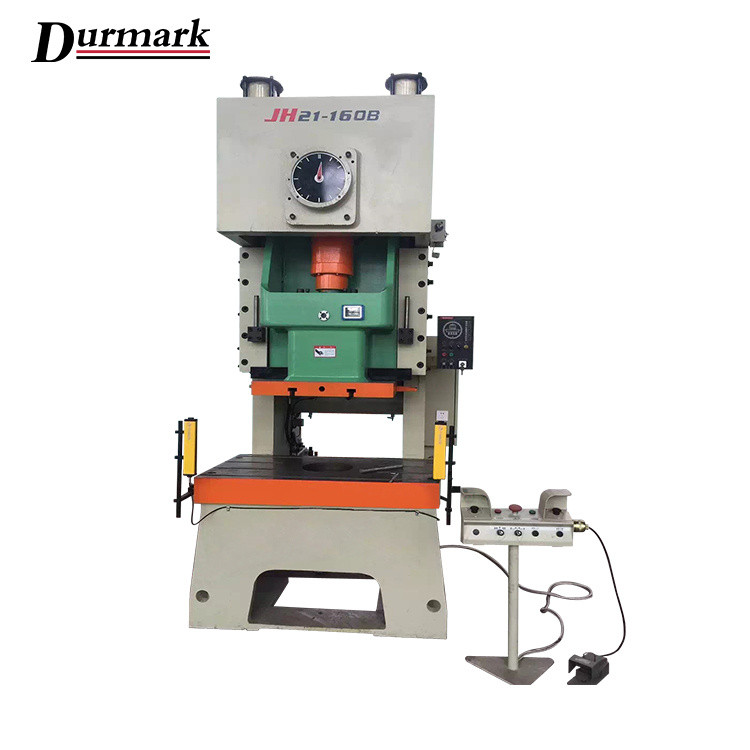

JH21 High speed eccentric punching machine/air pressure power press

With high rigidity design in machine frame, welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.


Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.

In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.

The crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.

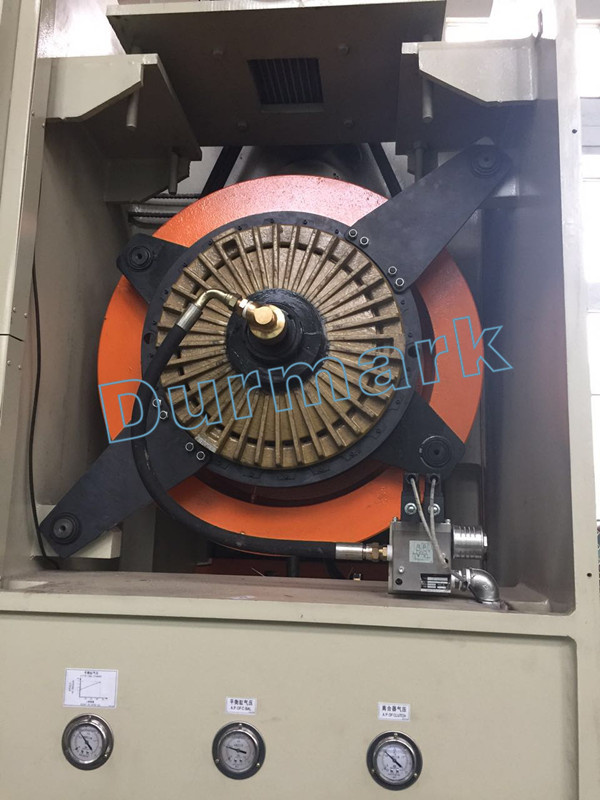

Reliable high sensitive clutchtbrake and international up-to-date twin electromagnetic valve, overloading protector can guarantee the precision and safe production.



NoNameJH21-80T
1Nominal force(KN)800
2Nominal force stroke(mm)5
3Slider stroke(mm)140
4Slider stroke times(time\min)60
5Maximum height for die loading320
6Adjustment range for die loading height80
7Distance between slider center line and the fuselage300
8Worktable size580*1000
9Work table blanking hole sizeD2D200*40*D180
10Slider bottom size420*560
11Shank hole sizeD50*Depth80
12Distance between columns(mm)640
13Bolster thickness(mm)120
14Tilting degree(degree)1640*1280*2700
15Motor(kw)7.5


Main Features

1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;

2.Vertical located crankshaft, compact structure;

3.The crankshaft undergoes grinding treatment after high frequency quenching;

4.Lengthened rectangular guideway with a surface of bronze plate;

5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise

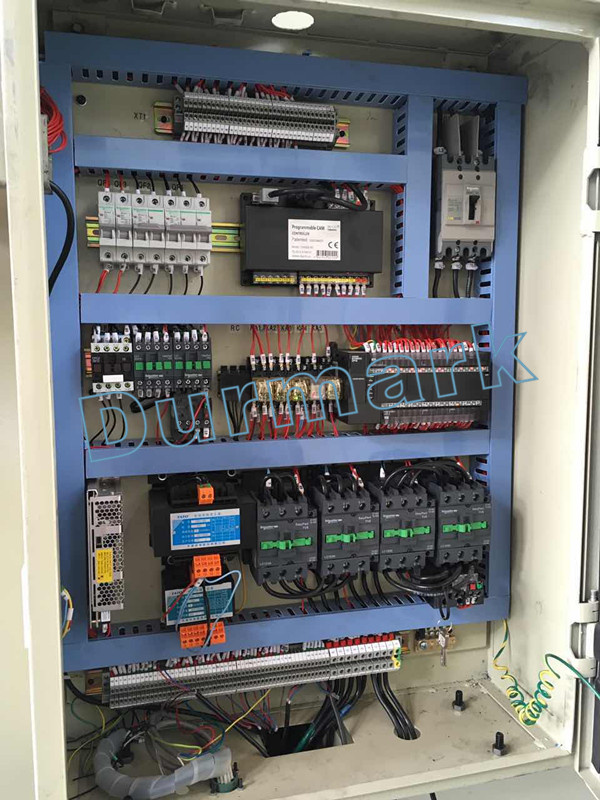

6.PLC control and imported safety dual valve;

7.Wet clutch and hydraulic overload protector.


Packing & Delivery
Plastic film, wooden package, or as requirement.
Delivery Detail:        15 days

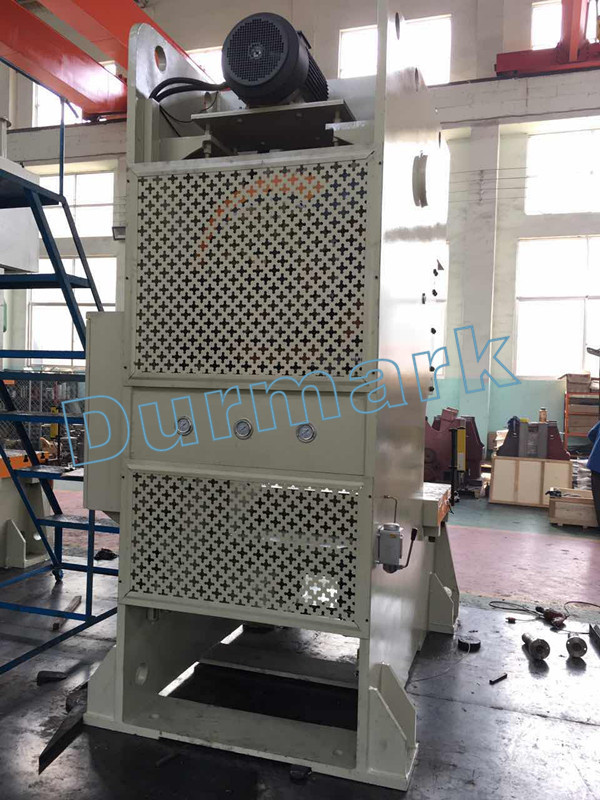

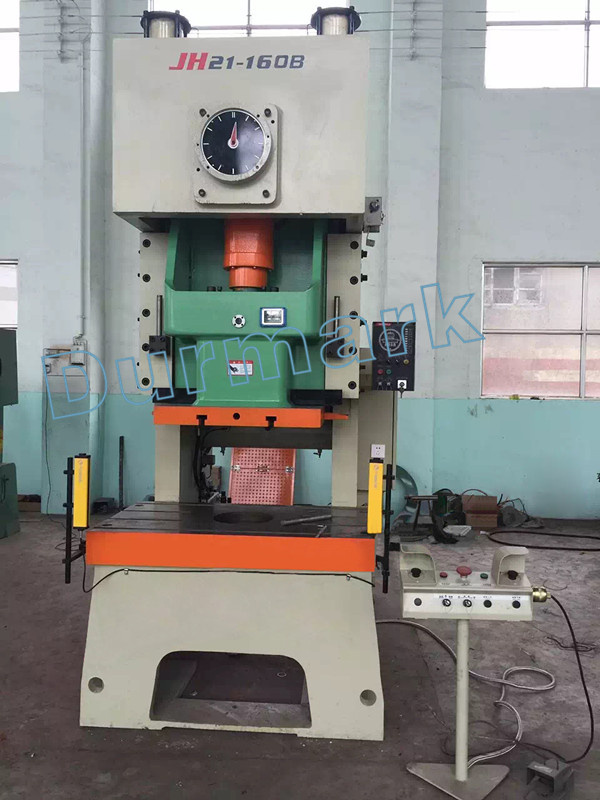

Detailed Images

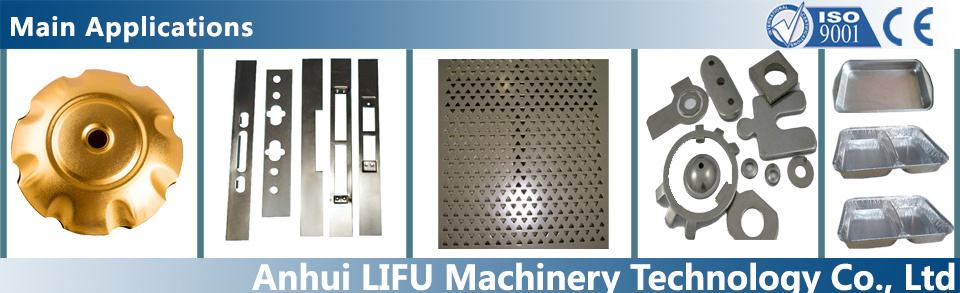

Main application

Our Service

Pre-sales Service:

1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.

After-sales Service:

1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .


FAQ
How about your machine quality? We are worry about the quality.

RE: Durmark company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount?

RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
