J23-63 New Mechanical Power Presses Punching Machine Used Power Press Machine

J23-63 New Mechanical Power Presses Punching Machine Used Power Press Machine
Price: US $ 4550-5000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: J23-63
Type: General Punching Machine
Controlling Mode: Artificial
Automatic Grade: Manual
Power Source: Mechanical Drive
Precision: Normal Precision

Product Description

Product Description

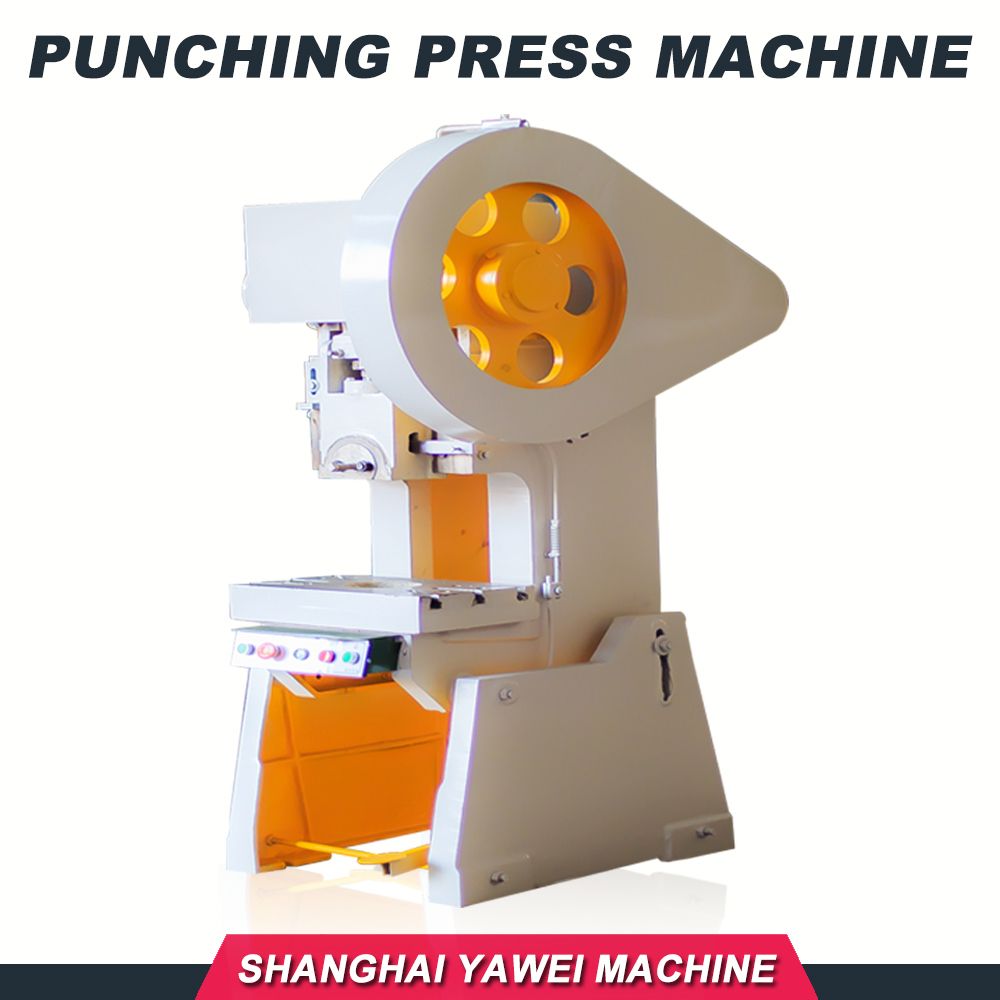

Mechanical punching machine
The SHANGHAI YAWEI® product designs combine accuracy, speed, flexibility, durability, reliability and advanced
technology to deliver machines with the highest performance-to-price ratio in the industry.

Specifications
1.High precision,Wide application
2.EU CE Certification
3.CQC,ISO9001:2008
4.High performance,
5.Easy to operation.

1. Introduction to the structure and properties
-1,We provide a huge gamut of precise engineered power press machines that include C type power press, pillar type
power press etc. To assure the quality of the power press machines, they are manufactured from the genuine raw
materials that are procured from the reliable vendors. Heavy duty power press machines are perfect for pressing,
trimming, straightening, assembly and disassembly of various components. Long lasting trouble free performance,
low maintenance and high speed are some of its salient features. We have carved a niche as one of the distinguished
power press machines exporters from China

- 2,Frame: The frame is made of steel construction and their heavy cross section and rigid design assure minimum
deflection and accurate alignment cast iron legs will be supplied up to 30 ton press.
- 3,Crank Shaft: Crank Shaft materials are made of special alloy steel to withstand the effective load sitted in busher
with high accuracy.

- 4,extended by four triangular rail, easy adjustment.

- 5,Gears Clutch: The Gears are made of cast steel or fabricated and it teeth are generated by hobbing. The clutch is
provided of Pin / Rolling key type also it is rigid and well supported for the mass production clutch can gives continuous
stoke.

- 7, Flywheel: The Flywheel is made of high grade castiron and is balanced for storng and releasing adequate energy
for the pressing operations.

- 8,Electrical control is installed PLC, 8 group cam controller, reliable action (optional accessory).

- 9,Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliablepiece of friction material
semi-metallic friction material SMFM-88, less pollution, long life. With the transfer torque, rotational inertia is small,
smooth transmission, flexible operation , convenient of installation and maintenance (optional accessory).

- 10,Lubrication: An accurate Lubrication system has been proved for lubrications the sliding surface and moving parts.

- 11,Table & Ram: Table and Ram are mad of high grade heavy duty cast iron & properly seasoned. They are perfectly
aligned to bach other to obtain high accuracy & precision press operation.

- 12,Machine is with both hands button and foot switch to achieve continuous, single and inching practices.

Reliability:
SHANGHAI YAWEI® has a strict policy for the choice of its components, on the basis of an extensive experience acquired
over decades. All components are certified in accordance with European standards and their main sources are Germany,
USA, Holland, Italy and Switzerland.
SPECIFICATIONS FOR Mechanical Punch Machine / Press Machine
Main performance parametersModel J23-63T
Nominal Pressure KN630
Stroke mm80
Strokes Times Time/Min 50
Max. Seal height mm 250
Die Height Adjustment mm50
Slider tripmm-
Distance between Block Center and Machine mm 250
Workbench Size mm420×650
Size (MOULD)mmØ50×70
Workbench plate of thickness mm70
Slider Bottom of Size mm 240×280
Main Motor KW 5.5
Overall Dimensions mm 1740×1100×2250

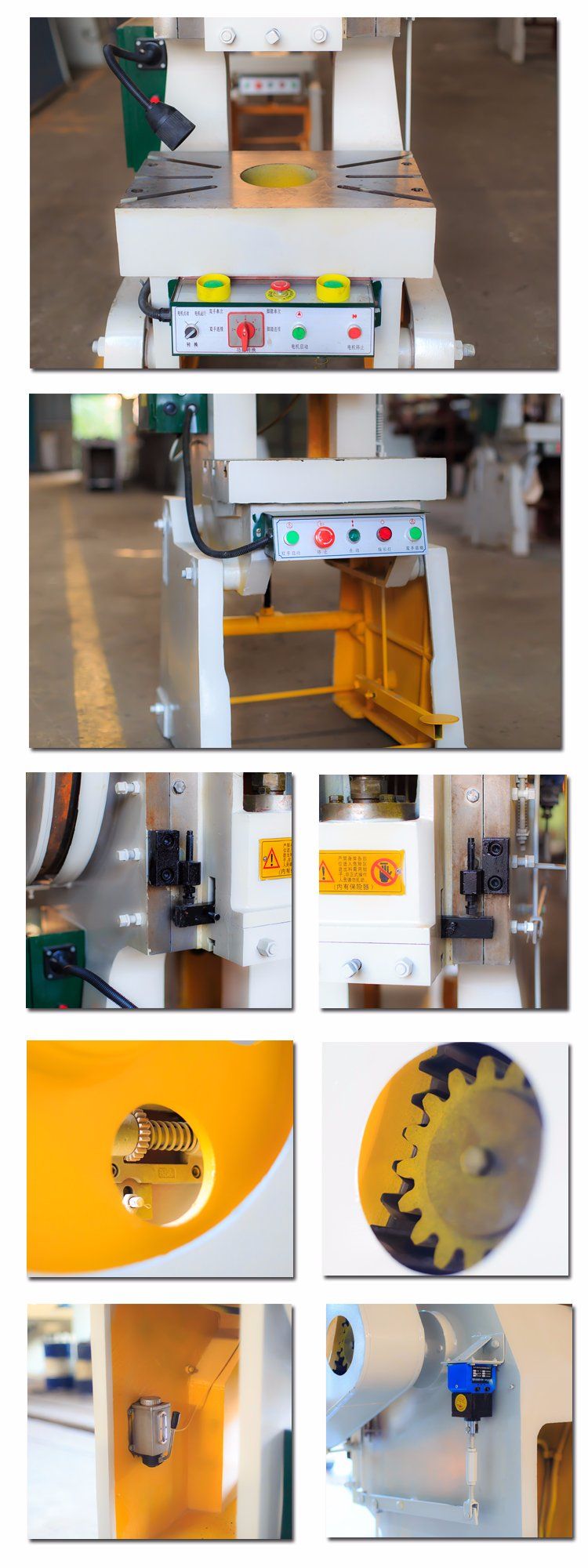

Detailed Images

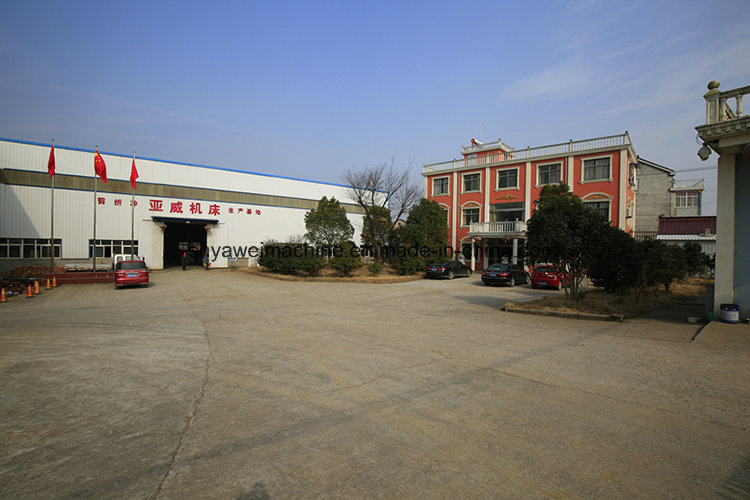

Our Company

Shanghai Yawei Machine tool manufacturing co., LTD(delta) is located in China Shanghai urban and rural integration
model of the sample located in Jiading district of Shanghai,the gate-way machine for fusion to undertake international
industrial transfer and Shanghai Yangzi river delta has become a new trend in the regional cooperation,the machine tool
company choose promotion CCTV,China central television(CCTV)-1 unit,the Shanghai world expo exhibitors Anhui Huade
machine tool manufacturing CO.,LTD for cutting,folding ,punching machine production cooperative unit.


OUR PRODUCT
The gateway machine tools specializing in the production of sales:QC12 series digital display, CNC hydraulic shearing
machine; QC11 digital display type shearing machine,CNC hydraulic gate;WC67 series digital display,CNC bending
machine and three ,five cylinder bending machine; Electro hydraulic Servo CNC Bending machine;Q35 series hydraulic
combined punching and shearing machine,W11S series roller plate bending rolls;J23 series.J 21 series open-style press.
Pipe bending machine and shearing machine blade,bending machine ,model and other products.
. Yawei machine comprehensive advantage relying on the powerful production technology,advanced equipment and
advanced services strategy measures to implement the new system,new mechanism,new equipment,new technology
means of strategy,efforts to promote the development and progress of China's machine tool industry industry pioneer.
. Yawei machine in line with "For products,by the sincerity"spirit of enterprise based on Shanghai,services across the
country,facing the world.Our work goal is to meet customer needs an dedication to provide users with high-quality products
and high-quality service,widely at home and abroad to make friends from all walks of life,hand in hand to cooperate,
altogether will create the glorious future of the new brilliance!


Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

*"To achieve and maintain excellence in quality and services and to strive for continuous improvement with a view to ensure total customer satisfaction at competitive price "
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Our guarantee time is 14 months from B/L Date ,If any component is damaged during guarantee time, we can send the component to the customer By DHL,TNT freely .
* Our factory can send our engineer to the customer's factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
* Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.

Packing & Delivery
Packaging
Size180(L) * 120(W) * 230 (D)CM
Weight2.7Ton
Packaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shanghai Yawei Machine tool manufacturing Co., Ltd(delta) is located in China Shanghai urban and rural integration model 'of the' sample located in Jiading district of Shanghai, the gate-way machine for fusion to undertake international industrial transfer and Shanghai Yangzi river delta has become a new trend in the regional cooperation, the machine tool company choose promotion CCTV, China central television(CCTV)-1 unit, the Shanghai world expo exhibitors Anhui Huade machine tool manufacturing Co., Ltd for cutting, folding, punching machine production cooperative unit.

The gateway machine tools specializing in the production of sales: QC12 series digital display, CNC hydraulic shearing machine; QC11 digital display type shearing machine, CNC hydraulic gate; WC67 series digital display, CNC bending machine and three, five cylinder bending machine; Electro hydraulic Servo CNC Bending machine; Q35 series hydraulic combined punching and shearing machine, W11S series roller plate bending rolls; J23 series. J 21 series open-style press. Pipe bending machine and shearing machine blade, bending machine, model and other products.

Yawei machine comprehensive advantage relying on the powerful production technology, advanced equipment and advanced services strategy measures to implement the new system, new mechanism, new equipment, new technology means of strategy, efforts to promote the development and progress of China's machine tool industry industry pioneer.

Yawei machine in line with "For products, by the sincerity"spirit of enterprise based on Shanghai, services across the country, facing the world. Our work goal is to meet customer needs an dedication to provide users with high-quality products and high-quality service, widely at home and abroad to make friends from all walks of life, hand in hand to cooperate, altogether will create the glorious future of the new brilliance!
