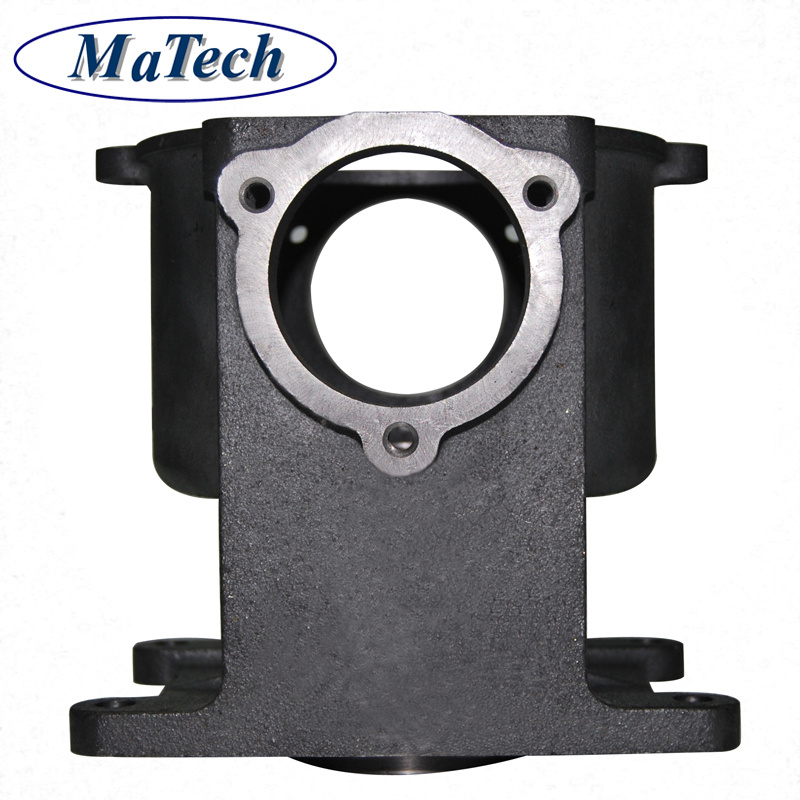

ISO9001 Factory Customized Precision Iron Sand Casting for Transmission Housing

ISO9001 Factory Customized Precision Iron Sand Casting for Transmission Housing
Price: US $ 1.24-1.46kg
Trade Terms: FOB
Min Order: 200kg
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: IC2016022974
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Ggg50, Option Ggg60, ASTM80-55-06
Blank Process: Sand Casting
Casting Tolerance: CT9-11 for Iron Casting
Machining Process: Drilling, Milling, Boring etc.
Rough Surface Roughness: Ra25-100
Casting Blank Weight: Range From 0.01kg-1000kg
Lead Time: 45 Days for Iron Casting
Service For Iron Casting: OEM, ODM for Iron Casting
Casting Blank Size: as Customer Request
Casting Serive: Technical Support and Services
Casting Method: Sand Casting
Casting Metal: Cast Iron
Casting Form Usage Count: Permanent
Standard: According to Customer Requirement
Machining Tolerance: 0.005mm-0.01mm-0.1mm
Surface Roughness: Ra25-100
Surface Treatment: Dacromat Coating, Finish Painting
Certification: as Customer Request
Casting Form Material: Ggg50, Option Ggg60, ASTM80-55-06

Product Description



General Products
 Application/Service Area


Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.


 Main blank Process for Casting

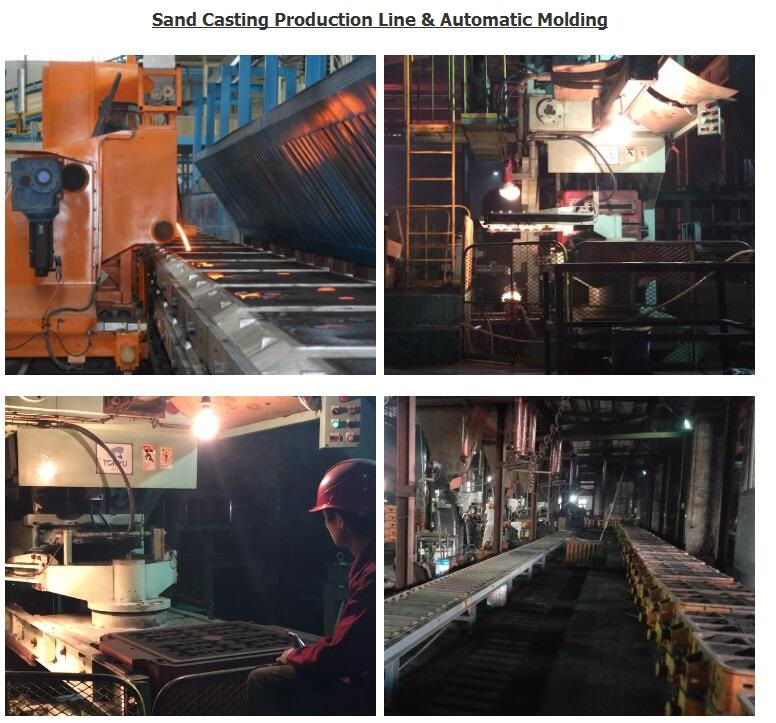

Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting


 Blanks Tolerance -Casting  Tolerance

CT9-10 for  Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand  casting Process

 Applicable Material


See Table Below (Ductile Iron Casting, Grey Iron Casting)
OR According to customer requirement


 Casting Blank Size  /Dimensions

2 mm-2000mm / 0.08inch-79inch  for casting iron, according to customer requirement

 Casting Blank Weight

Range from 0.01kg-1000kg for casting iron

 Applicable Machining Process


CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and  etc.


 Machining Tolerance

From 0.005mm-0.01mm-0.1mm

 Machined Surface Quality

Ra 0.8-Ra3.2, according to customer requirement

 Applicable Heat Treatment


Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching


 Applicable Finish Surface  Treatment


Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.


 MOQ

For iron casting : 100pcs
For Machining : 50pcs

 Lead Time

45days from the receipt date of deposit for iron casting


Ductile Iron Casting Material Comparison Table:

Cast iron with nomular graphite
DIN EN 1563

Germany
DIN 1693

France
NF

Great Britain
BS

Netherlands
NEN

Sweden
MNC

USA
ASTM A536

EN-GJS-350-22-LT

GGG-35.3

FGS 370-17

370/17

GN 38

0717-15

----

EN-GJS-400-18-LT

GGG-40.3

    ----

----

----

----

60-40-18

EN-GJS-400-15

GGG-40

FGS-400-12

420/12

GN 42

0717-02

60-40-18

EN-GJS-400-10

----

----

420/12

----

----

65-45-12

EN-GJS-500-7

GGG-50

FGS-500-7

500/7

GN 50

0727-02

65-45-12/
80-55-06

EN-GJS-600-3

GGG-60

FGS-600-3

600/3

GN 60

0732-03

80-55-06

EN-GJS-700-2

GGG-70

FGS-700-2

700/2

GN 70

0737-01

100-70-03

EN-GJS-800-2

GGG-80

FGS-800-2

800/2





120-90-02

EN-GJS-1000-5 (DIN EN 1564)

GGG-100B/A

----

----

----

----

850-550-10

EN-GJS-AX NiSiCr35 5 2

GGG-
NiSiCr 35 5 2

FGS-
Ni35Si5Cr2

S5S

----

----

Type D-5S


Grey Iron Casting Material Comparison Table:

Cast iron with lamellar graphite
DIN EN 1561

Germany
DIN 1691

France
NF

Great Britain
BS

Netherlands
NEN

Sweden
MNC

USA
ASTM A48

EN-GJL-150

GG-15

Ft 15 D

Grade 150

GG 15

01 15-00

20 B / 25 B

EN-GJL-200

GG-20

Ft 20 D

Grade 180/220

GG 20

01 20-00

25 B / 30 B

EN-GJL-250

GG-25

Ft 25 D

Grade 220/260

GG 25

01 25-00

35 B / 40 B

EN-GJL-300

GG 30

Ft 30 D

Grade 300

GG 30

01 30-00

40B / 45 B

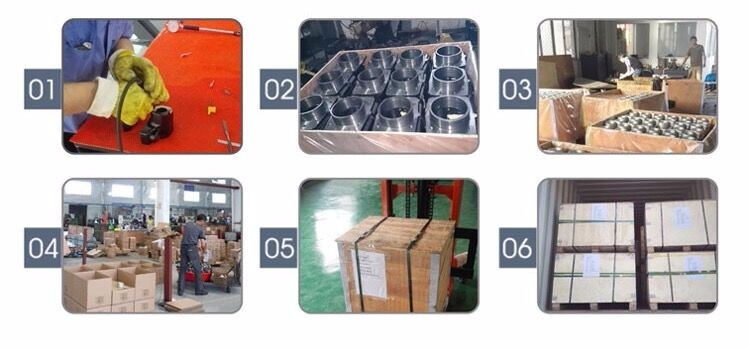

Our Package :




Packing & Delivery  (Show As Above):
Inner Packing →Strong & waterproof plastic big is packed inside, to keep the product in safe condition.
Or as customer requests.


Outer Packing →Multilayer wooden box with strong bandages, used for standard export package.
Or customized as per customer's requirements.

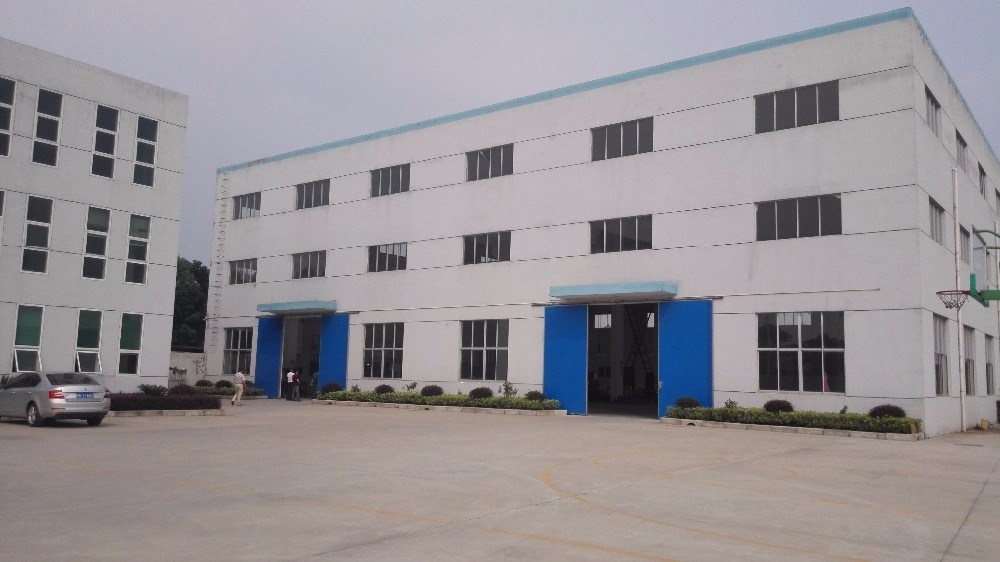

Our Company



                       Shanghai Matech Machinery Manufacture Co., Ltd.
                                                                                                   --Branch of Matech Industry Ltd.



We specialize in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system etc.

With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house.
We are mastering key competence to supply quality mechanical parts and assembly to our customers for both Chinese and Export Market .

To satisfy different mechanical and functional requirements from our customers we are making a big range of metal products for our clients on base of different blanks solutions and technologies.
These blanks solutions and technologies include processes of Iron Casting, Steel Casting, Stainless Steel Casting, Aluminum Casting and Forging.

During the early involvement of the customer's design process, we are giving professional input to our customers in terms of process feasibility, cost reduction and function approach.



                You are welcome to contact us for technical enquiry and business cooperation.








Contact Us:



FAQ:
1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.

2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost,
and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied,
the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.


Shanghai Matech Machinery Manufacture Corporation, branch of Matech Industry, provide high quality sanitary valve, ball valve, gate valve for food, wine, chemistry and oil industry. As a 15 years manufacture in foundry and machining business areas Matech also produce iron casting, steel casting, aluminum casting, stainless steel casting and forging parts for vehicle and agriculture machine, pump and valve, transportation system and other industrial customers all over the world.

We are focus on metallurgical technology, foundry engineering, manufacturing and assembly test to fulfill customers' high requirements and secure high reliable quality for each delivery. As a successful supplier in supplying products to both European and North American market and quality system certified manufacture we prize the honor we have gained from the customers and market on quality, delivery, service and cost control. Matech Team is always ready to listen to the customer's voice and build value to our customer's application and business. We provide early involvement on design support and review input eg. Manufacturing feasibility analysis for the specified project of our customers when this is needed by our cutomers.

Matech team members have more than twenty years experience on Valve making, foundry, mechanical engineering, manufacturing and quality assurance. MATECH promise and secure the quality for all the products delivered.

You are welcome to enquire and order products from Matech Industry, including Valve and Pump, mechanical parts made by iron casting, steel casting, stainless steel casting, aluminum casting, forging and fabrication. We produce products according to your special requirements and the standards of European or American Countries.
