Indoor Outdoor a-4PT Mist Air Cooler Standing Cooling Foggy Fan

Indoor Outdoor a-4PT Mist Air Cooler Standing Cooling Foggy Fan
Price: US $ 780-950/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: A-4PT
Color: Black/Green/Blue/Purple
Capacity: 94L
Vol./Freq.: 220V/50Hz
Plastic Type: ABS Material for Main Body
Product Name: a-4PT Mist Air Cooler
Water Consumption: 7 Hours
Power: 320W
Net Weight: 58kgs
Blade Material: Aluminum Alloy
Type: Floor Standing
Humidifier Type: Impeller / Cool Mist
Usage: Industry
Certification: SASO
Humidity Control: Automatic

Product Description

Newest Design A-4PT /320W 220v 94L Water Cooling Fan




Applications for A-4PT Mist air cooler

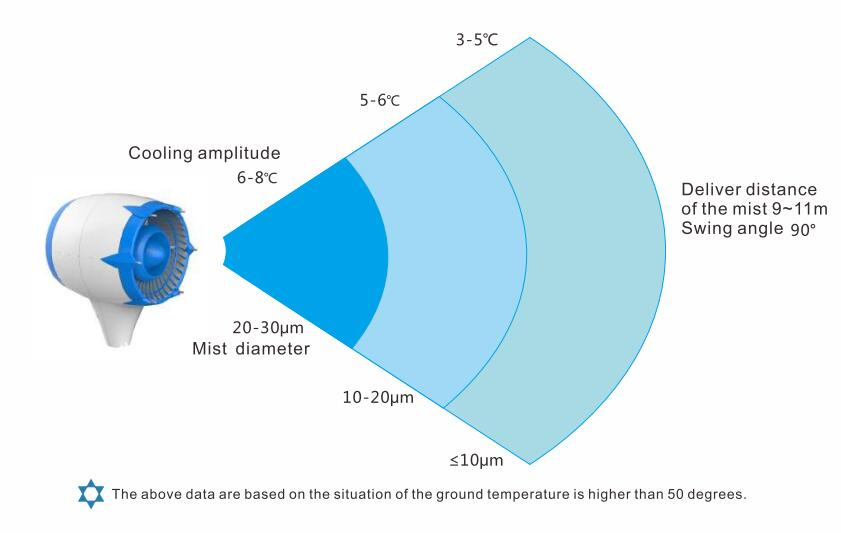

*  Decrease temperature: At least 3-8ºC within short times.

*  Increase relative humidity.

*  Reduce dust effectively.

*  Purify air.

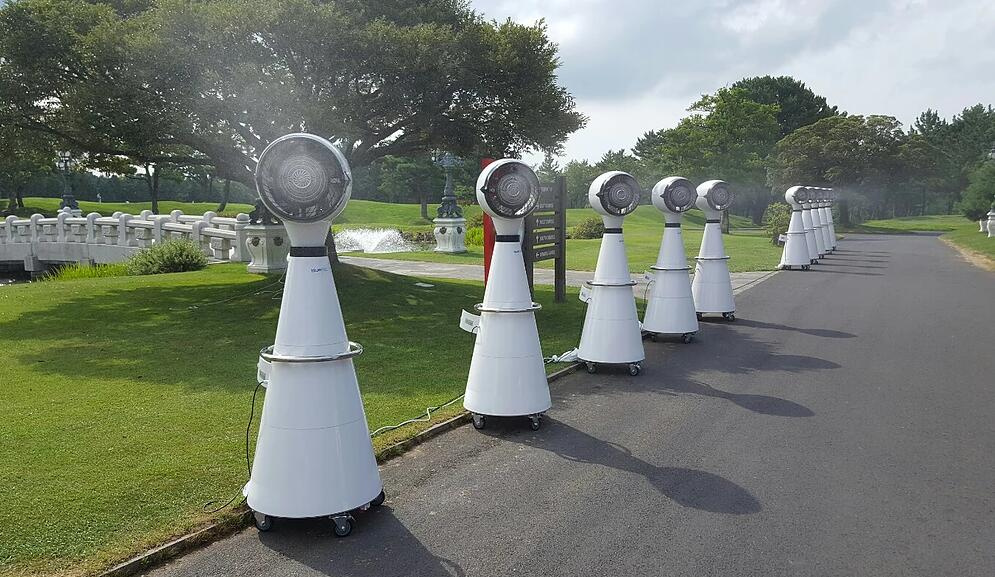

*  Occasions: Outdoor restaurant& cafe, garden, bus station, walking street, play ground, or any

     place which needs cooling.

*  We keep on making improvement for the existing products and developing new products so

     as to meet the market demands.


Technical Data
Model   PowerVolumeNoiseEffective AreaWater CapacityWater ConsumptionFan Size(mm)N.W
(kw)(m³/hdB(A)(m2)(L)(L/h)L*W*H(KG)
A-4C0.322450≤ 679594 7-10 700 700 2000 59.5
A-4PT0.342450≤ 6995947 700 700 200058
WT-4C0.322450≤ 671126 7-10470 635 1166 30
(Automatic inflow)
D-6C0.2715000≤ 678060 8-10 670 750 1880 48
DW-6C0.2715000≤ 67806 8-10670586106525.4
(Automatic inflow)




Remarks:

1. The letter "C" means centrifugal and the letter "P" represents high pressure.

    The A-4C is centrigual system, the A-4PT is high pressure system.

2. The main material is high quality ABS plastic.

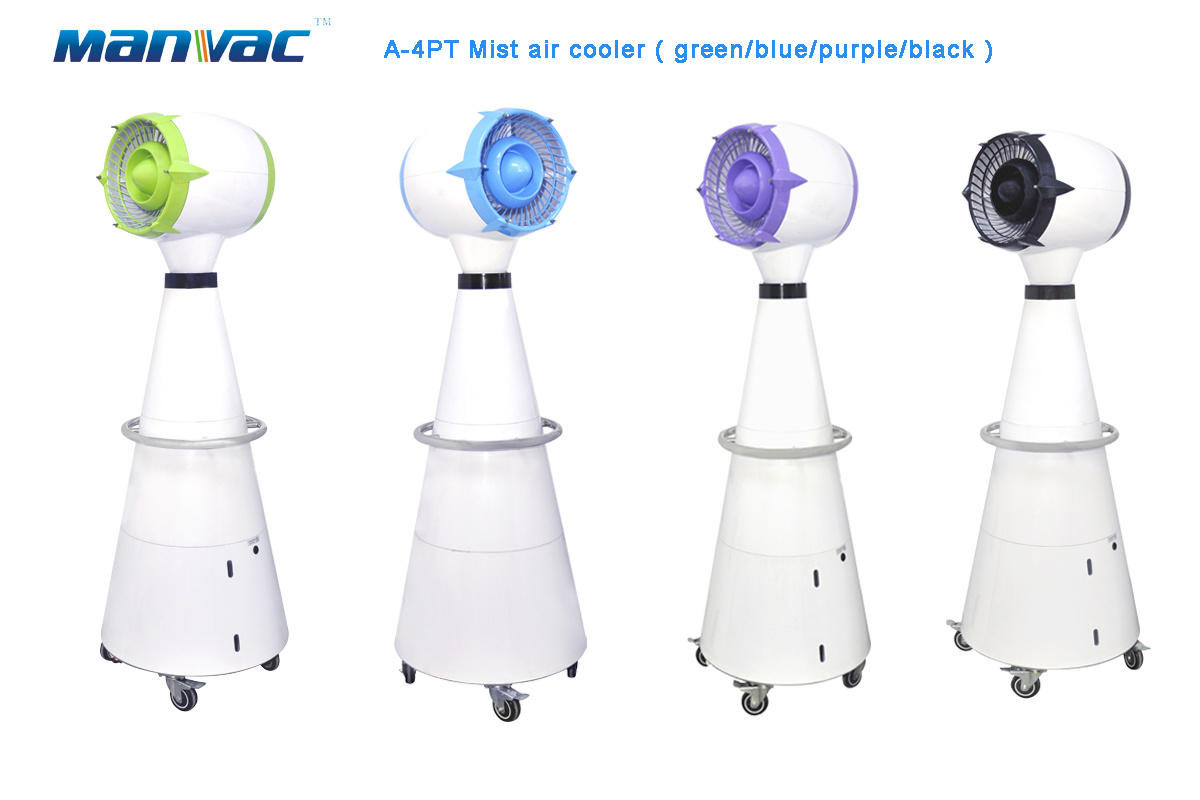

3. For WT-4C,A-4C,A-4PT three models four colors are available ( green/blue/purple/black )

    For D-6C, DW-6C, only whiite is available.






Manvac Technik Limited Establish in July 2002, Factory space 6000m2.

In August 2002, the first Japanese type turbo air blower come to China mainland.

In March 2003, 8 series of turbo air blower come to Chinese market.

In March 2004, the first container of turbo air blower China.

From May 2005, China Mainland assembling factory established.

In August 2006, China mainland design center established.

In May 2007, the first high pressure ring blower developed successfully

In October 2007, the first multistage turbo blower developed successfully.

In December 2007, move to new factory, totally cover an area of 6000 square meter.

In August 2008, ISO9001 standard approved.

In 2010, we developed 8 series, 70 kinds of low pressure, middel pressure and high pressure side channel blowers.

In the field of plastics industry, food industry, chemical or pharmaceutical industry or even in the sector of environment. Wide range of Products: Side channel blower with high efficiency motor, NSK and SKF bearings.

Dia casting machine, CNC machining equipment, automatic wire winding machine, electric test machine,

Rotor balancing machining machine, impeller balancing testing and machining machine etc.

Professional R&D, Technicists and management.

Quality First, Customer first.

CCC, CE, Energy and environment protection Certificate. CE: CLGD1208131398. / CCC: 2013010401601841.

Light weight, small volume, low nosi, oil-free and fast delivery.

We are willing to learn from you, support you and develop with you.
