Hose Crimper/Manual Hydraulic Hoses Crimping Machine/Hydraulic Hose

Hose Crimper/Manual Hydraulic Hoses Crimping Machine/Hydraulic Hose
Price: US $ 1000-3000SET
Min Order: 1SET
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: HH91H
Product Name: Finnpower Style Hose Crimping Machine/Crimper
Crimping Range: 1/4" to 2"
Max Crimping Force: 530t
Scale Accuracy: 0.01mm
Opening Without Dies: 122mm
Oil Pump Displacement: 5ml/Rad (380V 50Hz);2.5ml/Rad(220V 50Hz)
Overall Dimensions: 700*900*1400mm
Dies Sizes: 16,20,23,27,31,36,41,47,53,63mm
Weight: 350kg
Warranty: 3 Years

Product Description

Hose crimper/manual hydraulic hoses crimping machine/hydraulic hose

Product description:

Model HH91H hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.


This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

HH91H hose crimping machine mainly technical parameters:





HH91H Hose Crimping Machine Main Features And Advantage:

1) Using forge steel machine head, more durabler than general steel.

2) CNC operation panel, simple controls and operation.

3) CNC system, high crimp accuracy which is within 0.01mm.

4) Equipped with a foot pedal, very convenient for free hand operate.

5) Magnetic dies (Patented), very convenient to remove and install dies.


HH91H Hose Crimping Machine Application:

Model P52 CNC hose crimping machine has equipped with computer numerical control system, fast crimp and good quality. This machine features high crimp accuracy, big force, low noise and easy to operate. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. DX68 crimper is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, especially large pipes and irregular shape pipes.

Our facrtory have bulit for more than 20 years,we pay attention to control quality and make customers satisfied every time.We strictly choose the best quality raw material,imported motor,magnetic valve,first class design cylinder,updated panel,standard dies,high precision crimping,the tolerance can control within 0.01mm,above all,it has proves our machine quality is best in China.

HH91H Hose Crimping Machine Photo Details:

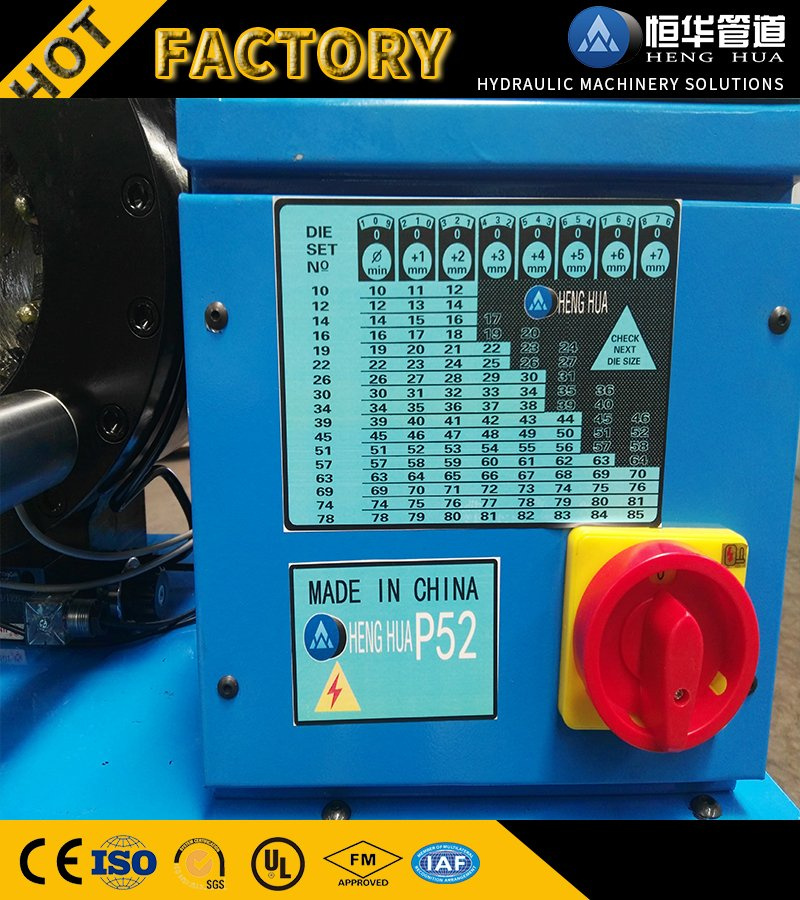

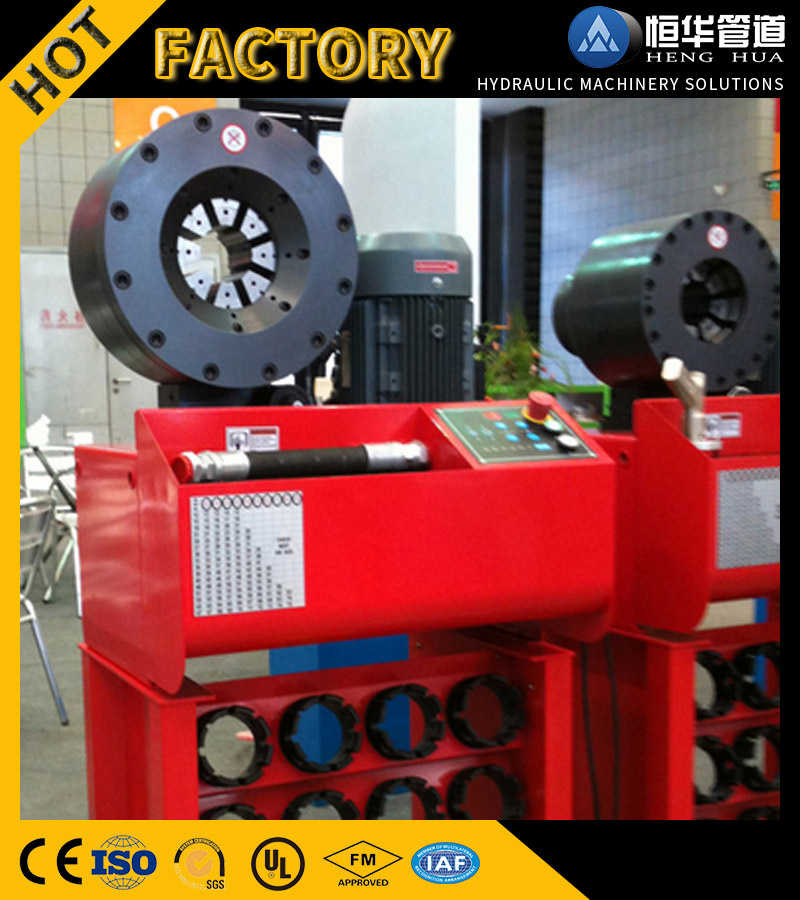

1.Overall introduction:

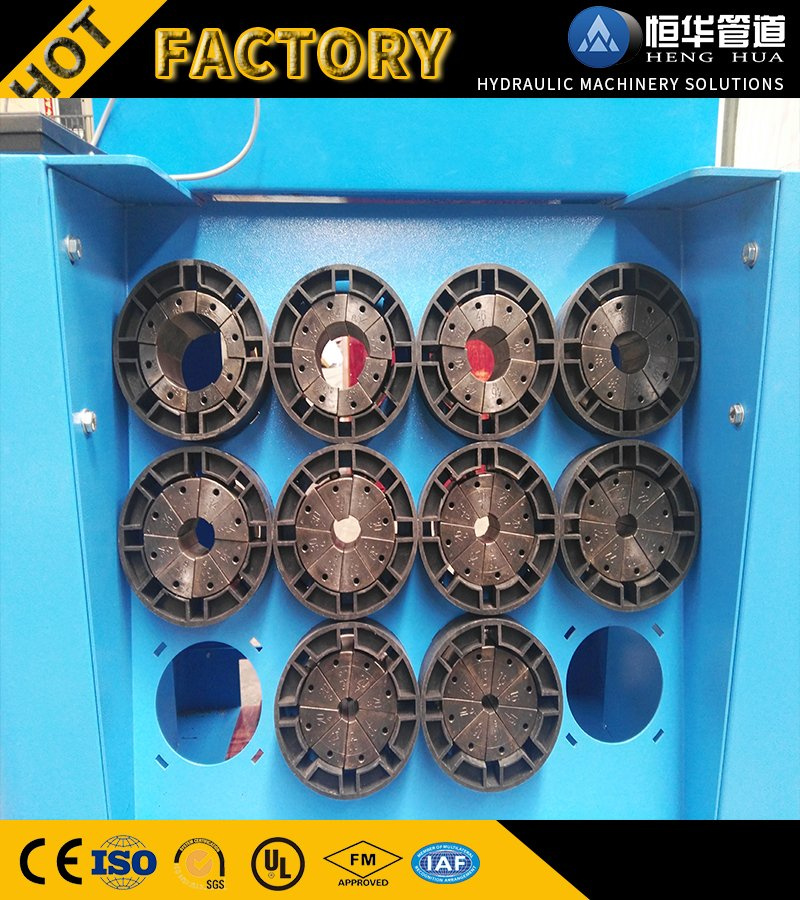

2. Machine dies rack:

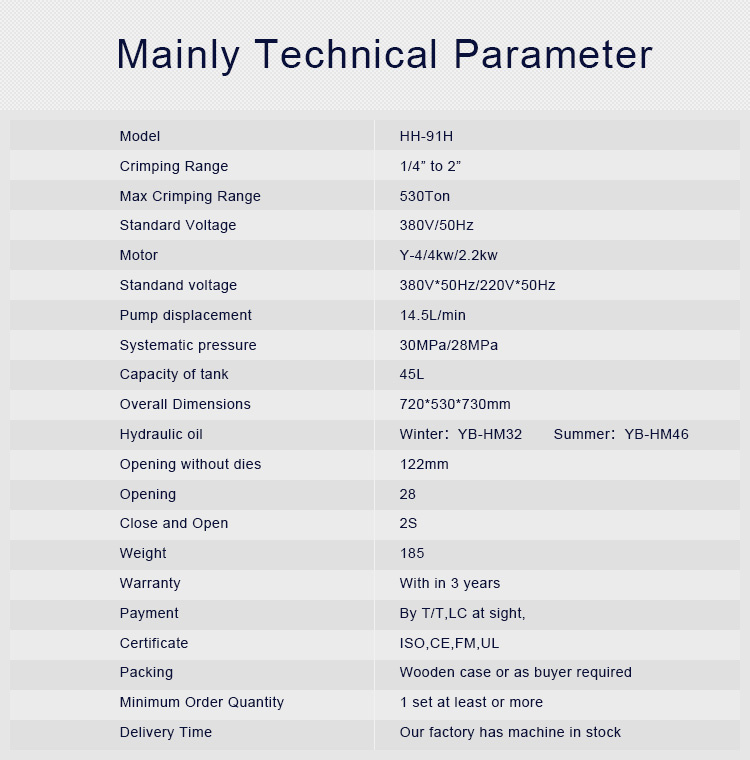

3.Technical parameters:


4.Packing photo:


About our factory informations:

HENGHUA Crimpers, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years. HENGHUA Crimpers supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.
HENGHUA Crimpers have covered more than 20 domestic provinces and cities in China's markets and exported to more than 80 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.

Our factory service:

We win with below advantages

1.Have quality ganranty and enjoy high reputation in global market

 2.Rich experience in producing different hose crimping machines

3.Strictly processed control and advanced management

 4.Best service,competitive price and excellent credit.

 5.Having various hydraulic hoses and hose crimping machines with different types and models

 6.Perfect equipment and Superior technology.

 7.Meet international standard and passed the ISO9001:2000 certificate.

8.Nearby Tianjin port,we can delivery goods fast and prompt

9.We are manufacturer and focus on machines manufacturing for many years


Kindly reminder

1.Before using the machine,pls read and take care of the manual operation .

 2.Pls confirm that the voltage coincide with the standard of ours

 3.Don't allow children,elderly people and the disabled to touch even make use of the machine.

 4.When the machine go out of service,pls turn off the power source.

FAQ:


Why choose HENGHUA?



1.High Quality CE UL ISO approved DX68 hose crimping machine.

2.Great Affordable manual hose crimping machine,Best Quality you ever have.

3.Samway produce the hose crimping machine up to 800mm diameter hose with 2500 ton pressing force.

4.Fast delivery, nomally 7 working days on board.



Why choose for us?



1. Complete workshop hydraulic hose crimping machine with full set of dies (and quick change tool).

2. Customers can be assured of our e-mail and phone support , and longer-term service plans.

3. WE got ISO certificate and CE certificate. You can feel assured of our product

4. OEM or Customer Made service are available. U can send your drawings and the detailed requirements of hydraulic

hose crimping machine to us. Professional reply and promot attention will be assured.

5. MOQ: 1 set for your testing

6. All the machines 100% test before delivery.

7. Every order can be promised fast delivery. Normally within 7 workdays.

8. Hose cutting machine , hose skiving machine , hydraulic hose and hose fittings are our main

products, We will save much time for you.



1.Question:Are you the manufacture or trading company?
Answer:We are the manufacture for crimping machine over 20 years.



2.Question:What about the price?
Answer:Competitive price,the advanced technology and high quality you ever have.



3.Question:How many certificate do you have?
Answer:CE,UL,ISO



4.Question:How long the delivery time?
Answer:The machines are in stock now.usually about 3-7 days after you payment.



5.Question:What is the MOQ?
Answer:we would like to provide 1 set for you test.



6.Question:What is the payment?
Answer:T/T,L/C can be accepted.



7.Question:If I can not find the machine which I need,what should I do?
Answer:Pls contact me on line or inquiry,write down your request and email,I will reply you as soon as possible.


Our factory contacts:





Tianjin Henghua Pipeline Technology Co., Ltd is the member of HeBei Bohai GROUP a professional manufacturer. As far, we have three branches for 3 main machines. We adhere to "quality oriented, credibility first" business philosophy, striving to provide users around the world perfect machines at the advantages of our strong brand, technology and services.

We have skillful production people and strong R&D technicians who have accumulated over 26 years experience in machinery, "Best quality, best service and most competitive price" is our principle.

Drilling rigs

Our brand is recognized worldwide for our high quality, reliability and our customer service. Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Henghua has a professional team of engineers with rich experience in the design, production and inspection.

Hydraulic Machines

We produce high quality Hose crimping machine, hose cutting machine, hose assembly, hose skiving machine, flexible axle crimping machine, and nut crimping machine and so on. They are widely used in navigation, military industry, engineering machinery, and mine exploitation, steel, shipping manufacture, oil field, drilling rigs, flexible axle produce, agricultural equipment etc. Our products are well accepted all over the country and in Southeast, Asia, Africa etc.

Concrete grinding machine

We had been engaged in developing and manufacturing floor polishing machines, floor washing machines, vacuum cleaners, floor scarifier, diamond tools and various accessories. We have our own manufacture bases in Tianjin and some other well cooperation partners. Some of our products have passed the CE, ISO9001 quality control system certificates.

We strongly believe that the friendship and trust given by our customers are the great treasure we have and the constant improvement & innovation in quality, cost and service will continue our group's growing.
