Home Toolbuy Products High Pressure Rubber Hydraulic Oil Hose for Machinery

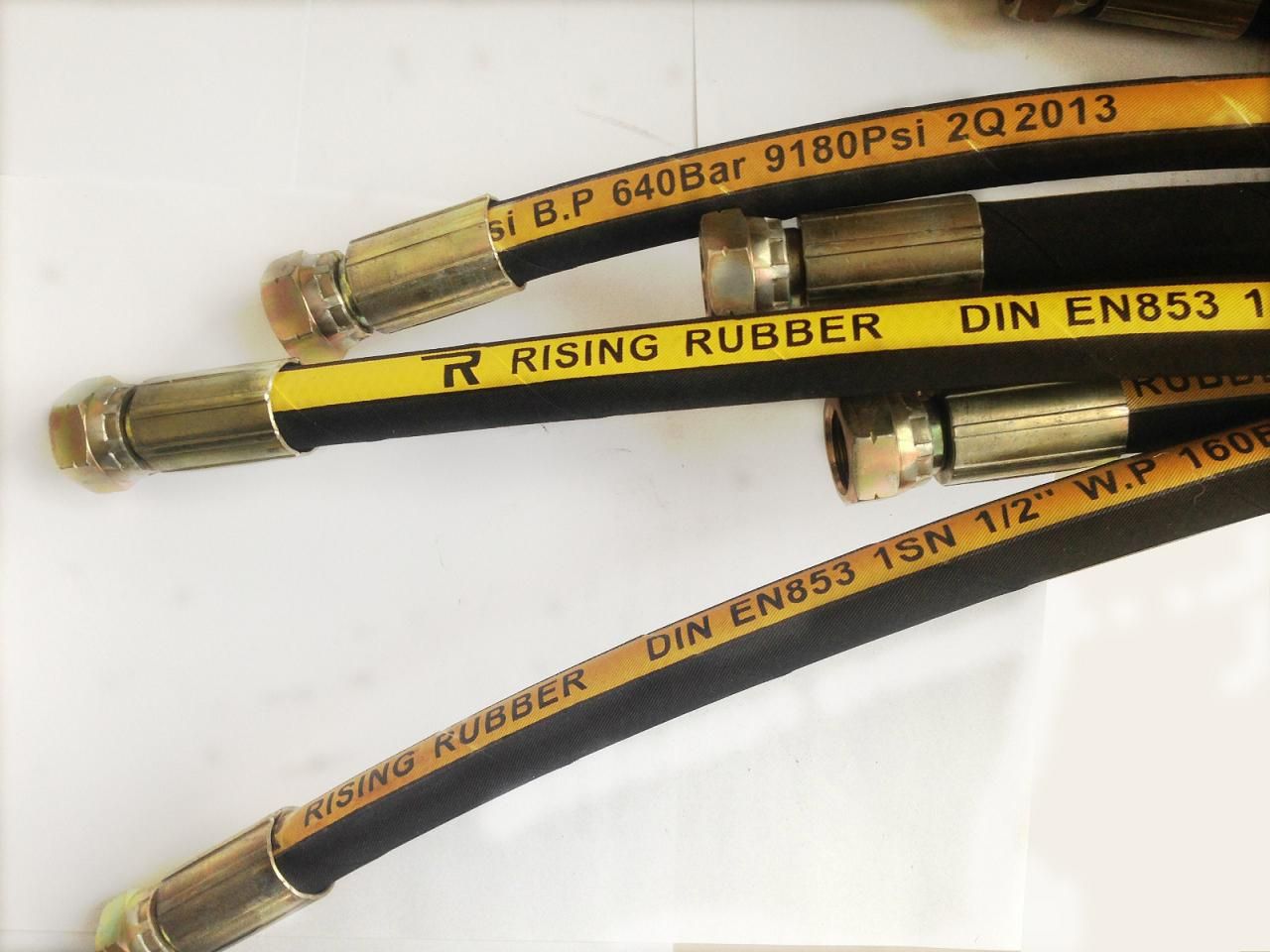

High Pressure Rubber Hydraulic Oil Hose for Machinery

High Pressure Rubber Hydraulic Oil Hose for Machinery
Price: US $ 0.75-0.8/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 2000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 3/16"-4"
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard: DIN En 853
Reinforcement: High Tensile Steel Wire Braid
Feature: Oil and Weather Resistant, High Pressure
Certification: SGS, Ce, ISO
Temperature: -40 Degree Celsius to 100 Degree Celsius
Length: 20, 40, 50, 100 Meter
Size: 3/16"-4"
Surface: Wrapped or Smooth
Quality Guarantee: 12 Months After Delivered
Applicant: Automobile, Machinery, Spurting The Oil Paint
Material: Natural Rubber
Capability: Rubber Oil Hose
Color: Black

Product Description

Product Description

Hydraulic Hose Best Quality Rubber Product



Complete Range of  Size from 3/16" to 4"
Various Color: Black, Red, Blue, Yellow, Gray
Different Surface: Smooth or Wrapped

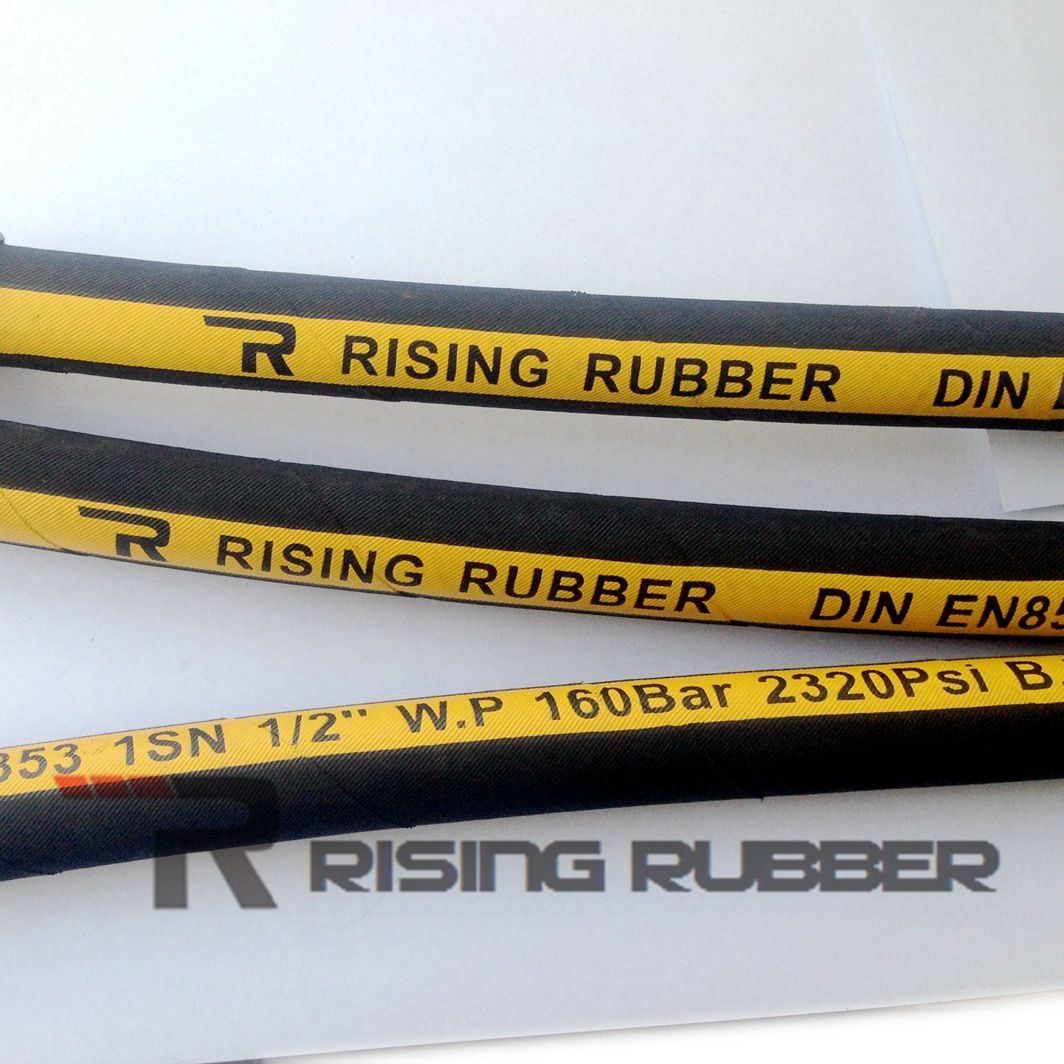

Different Marking: Printing or Engraved

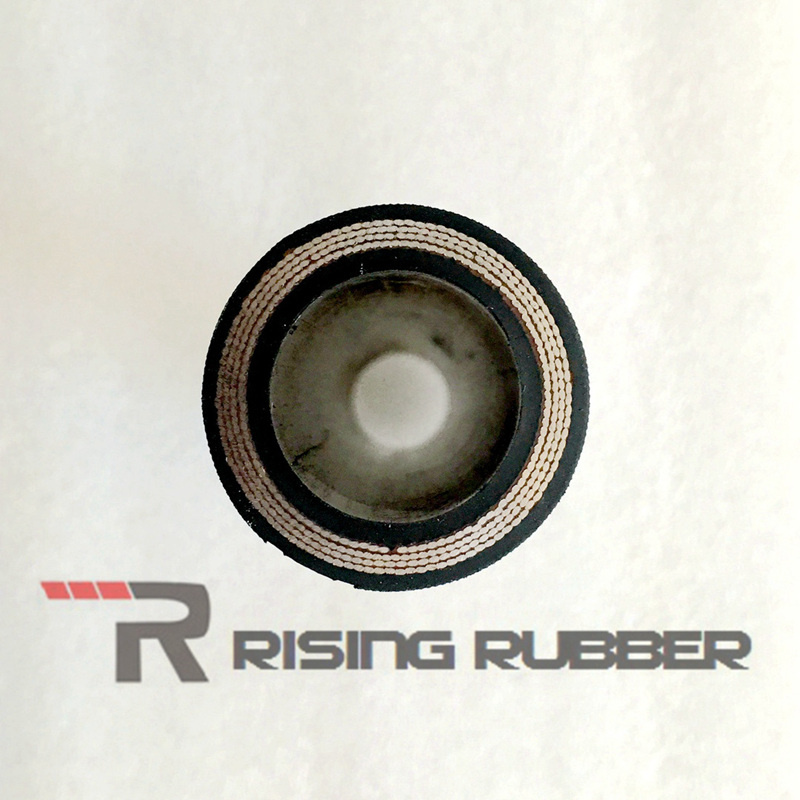

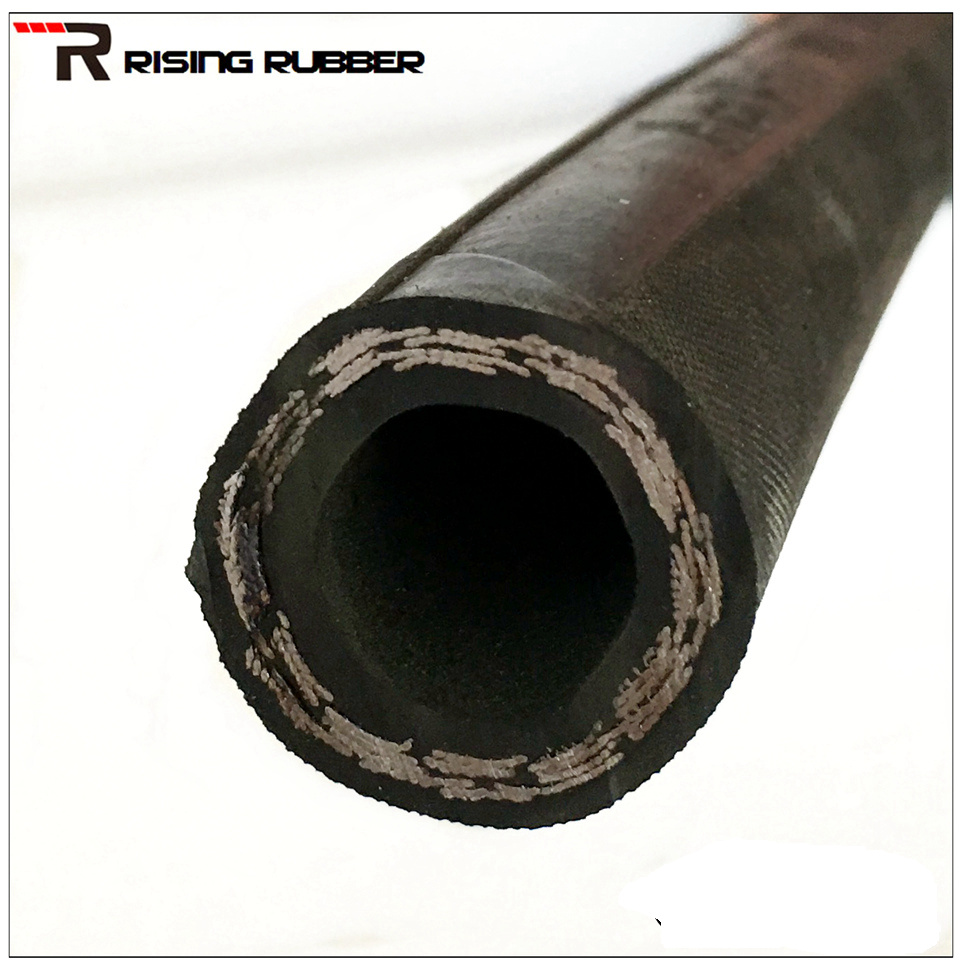

Tube: Oil resistant synthetic rubber
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 degree centigrade To +100 degree centigrade




This Steel Wire Hose is mainly intended for diverse applications in the fields of forestry, agriculture, construction and others. It is integrated with a bend radius capability which allows an intuitive mounting and routing. This also enables a longer hose life in various curving applications and some of the bent tube fitting needs.

It is enclosed with a black and oil resistant cover which is also integrated with a synthetic rubber. Its cover also comes with a color-optional line of marking. Its tube is black in color and is built with an oil-resistant tube material which enables high pressure and high temperature functionality.

DNHose I.DWire O.DHose O.DWorking PressureBurst PressureMinimum Bend RadiusWeightLength
inchmmmmmmMPapsiMPapsimmkg/mmetres
53/16"4.89.511.825363010014280890.1950/100
61/4"6.411.113.422.5327090128401020.2150/100
85/16"7.912.71521.5312085122801140.2450/100
103/8"9.515.117.418261572102801270.3350/100
131/2"12.718.320.61623206491801780.4150/100
165/8"15.921.423.71318905274202030.4550/100
193/4"1925.427.710.515304260002410.5850/100
251"25.433.335.68.812803550203050.8850
321 1/4"31.840.543.56.39202536004191.2320/40
381 1/2"38.146.850.657302028605081.5120/40
512"50.860.26445801622806351.9720/40

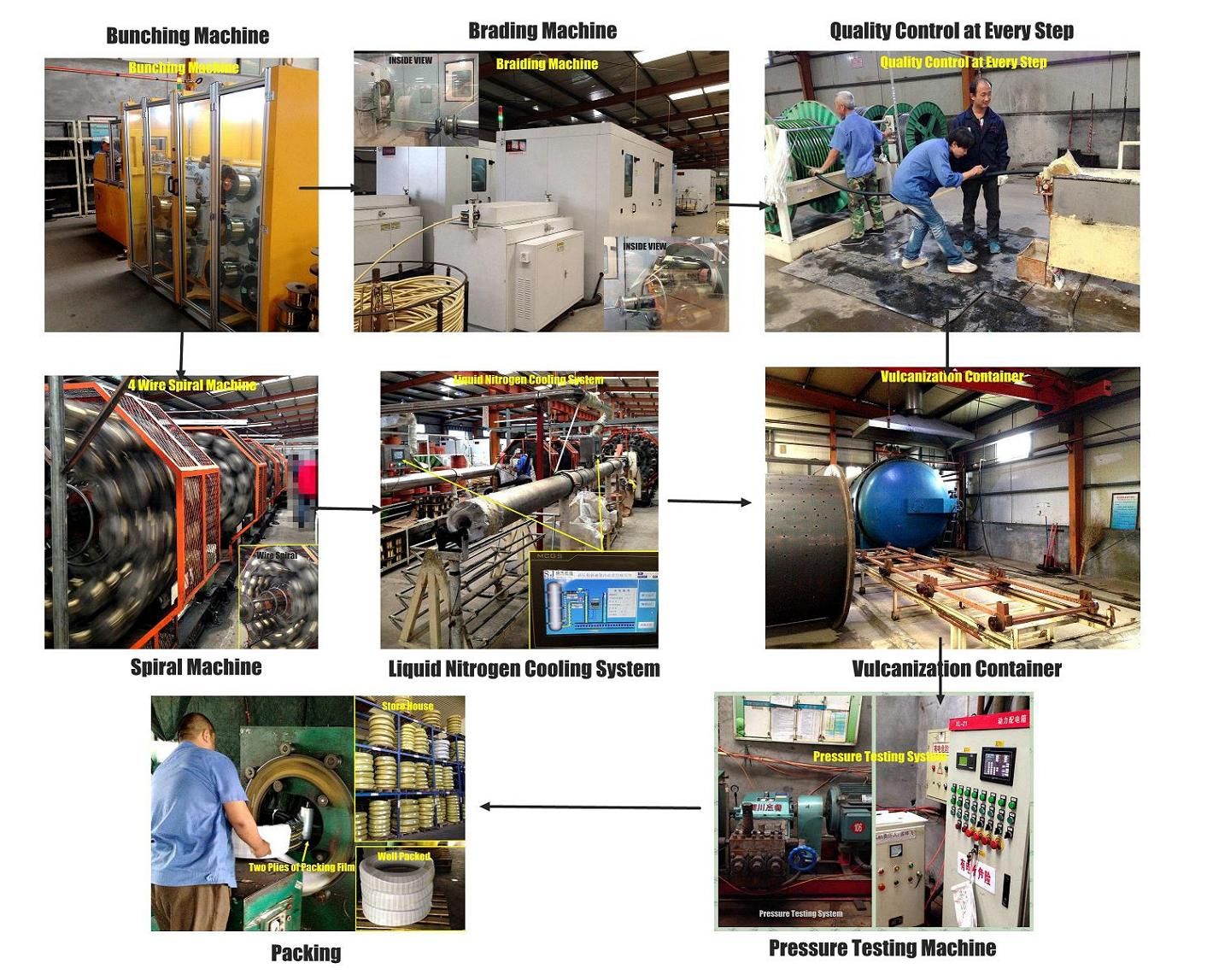

PRODUCING PROCESS
---show you how our hose is produced. Visit our factory online.

Packaging & Shipping


COMPANY INFORMATION


-Anniversary capacity reaches 8 000 000 meters of rubber hoses and PVC hoses
-Leading technology, precise and efficient procedure control system, advanced production line and testing equipment.
-Machines from German, South Korea and Italy. (Mayer from German, RB-II,RB-III from South Korea,  VP High Speed Braiding Machine from Italy and bunching machines,impulse machines and wrapping machines.)
-Cooperation with professional university and research institutes.
-Four high international standard laboratories covering semi-finished products, finished products, raw material chemical analyst and procedure test.
-Certifications include ISO 9001:2008 Quality Management System Certification, ISO 14001:2004 Environment Management System Certification, OHSMS18001 Occupational health and safety management system certification.
-Passed Third-Party Test by CE, SGS and BV etc.
-Products being exported to more than 40 countries and areas like US, Italy, Spain, UK, Russia, Brazil, Argentina etc.



RELATED PRODUCT

We have full series of SAE and EN standard, including:
Wire braided: SAE R1/DIN EN 1SN, SAE R2/DIN EN 2SN, SAE R16, SAE R17
Wire spiral: SAE R9, R12, R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE R3, SAE R6, SAE 5
Teflon: SAE R7, SAE R8


INDUSTRIAL HOSE
Air hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Water hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Suction hose--Water suction hose, water discharge hose, oil suction hose, oil discharge hose.
Sand blast hose--High abrasion resistant tube.
Welding hose--Oxygen hose, Acetylene hose, Propane hose, Twin hose

PVC HOSE
PVC Steel Reinforced Hose--for water suction and conveying.
PVC Fiber Reinforced Hose--For food grade liquid.
PVC Helix Suction Hose--plastic spiral reinforced.
PVC Garden Hose--for home and agriculture usage.
PVC Layflat Hose--agriculture irrigation and industry watering.

HOSE FITTINGS
HOSE PROTECTOR
SILICONE HOSE
RADIATOR HOSE


If any need or questions, pls do not hesitate to contact me.

It's more than happy to be on your service.





FAQ ( Frequently Asked Question)

1. Is sample available? Shall I pay for sample or delivery?

Free samples and free delivery.

2. How long will I get my order?

General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.

3. How will my order be packed?

All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.

4. What should I do if I find quality problem in using?

12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.

5. Is it possible to visit your factory?

We warmly welcome you to visit our factory at any of your convenient time.


About us

- Anniversary capacity reaches 8 000 000 meters of rubber hoses and PVC hoses

- Leading technology, precise and efficient procedure control system, advanced production line and testing equipment.

- Machines from German, South Korea and Italy. (Mayer from German, RB-II, RB-III from South Korea, VP High Speed Brading Machine from Italy and bunching machines, impulse machines and wrapping machines. )

- Cooperation with professional universities and research institutes.

- Four high international standard laboratories covering semi-finished products, finished products, raw material chemical analyst and procedure test.

- Certifications include ISO 9001: 2008 Quality Management System Certification, ISO 14001: 2004 Environment Management System Certification, OHSMS18001 Occupational health and safety management system certification.

- Passed Third-Party Test by CE, SGS and BV etc.

- Products being exported to more than 40 countries and areas like US, Italy, Spain, UK, Russia, Brazil, Argentina etc.
