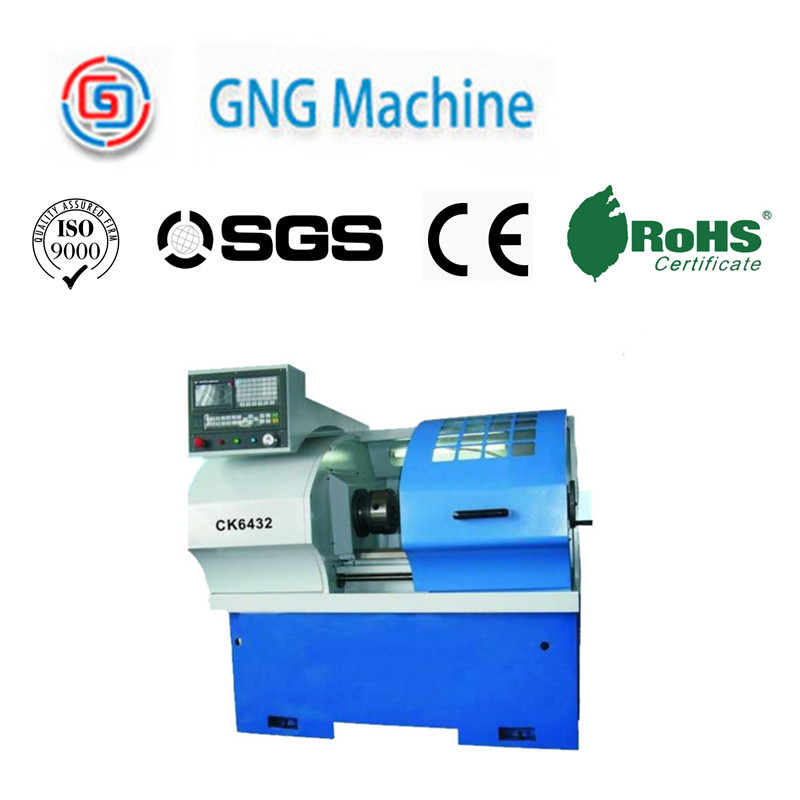

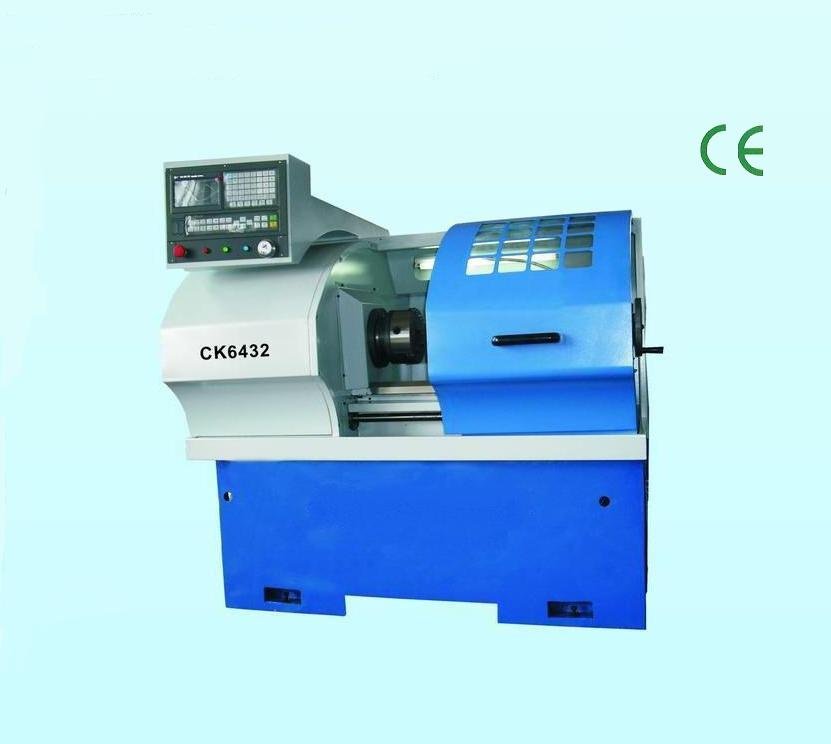

High Precision CNC Lathe Machine Ck6432

High Precision CNC Lathe Machine Ck6432
Price: US $ 6720/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: CK6432
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max.Swim Over Bed: 360mm
Max.Swim Over Carriage: 150mm
Max.Length Of Work Piece: 450/700mm
Range Of Spindle Speed: 150-2000rpm
Spindle Bore: 60mm
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Table
Precision: Precision

Product Description



Min.Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T

Quick Details
Condition: New
Type: Horizontal
CNC or Not: CNC
Automatic Grade: Automatic
Max. Swing Diameter: 360mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CK6432
Voltage: 380V
Power(W): 3700W
Certification: CE
After-sales Service Provided: No overseas service provided

Packaging & Delivery
Delivery Detail: 30-45days

Specifications
precision cnc lathe machine model CK6432
May opt different style
May supply bare lathe
Precision lathe machine


CNC lathe machine CK6432X450/700

Specifications:

Max.swim over bed-Φ360mm

Max.swim over carriage-Φ150mm

Max.length of work piece-450/700mm

Range of spindle speed 150-2000rpm

Spindle bore-Φ60mm

Taper of spindle bore-MT6

Stations of tool post-4/6 or gang-type tool carrier

Max.size of tool post-20x20mm

Min.setting unit of motor(Servo/stepper)-(Z)cross 0.001mm

(X)cross 0.001mm

Moving speed of post(Servo/stepper)-(Z)cross 7.6m/min

(X)long 4m/min

Taper of tailstock quill-MT4

Max.rang of tailstock quill-100mm

Motor power-3.7kw

Standard Configuration:
* GSK CNC System
* GSK X.Z Axes Feeding Motor and Driver(Step or Servo)
* Two Speed or Frequency Conversion Spindle Motor
* Manual 3-jaw Chuck
* Gang Tool Holder or 4 station Tool Post
* Manual Tailstock
* Thread Function
* Hand Wheel
* Manual or Automatic Lubrication System
* Coolant Pump
* INVT Inverter or MITSUBISHI Inverter

Optional Configuration:
* CNC System required by Customers.
(FANUC, SIEMENS, MITSUBISHI,LNC, GREAT etc.)
* Follow Rest
* Hydraulic Chuck
* Hydraulic Tailstock

*Pneumatic Collet
* Pneumatic Chuck
* Pneumatic Tailstock
* Full-enclosed Shield for Guide Way
* 6-station Electric Tool Turret

Standard Accessories:
* Adjusting Screw Bolt and Iron Pad(1 set)
* Tool Post Spanner(1 pc)
* Open-ended Spanner(2 pcs)
* Allen Wrench(3 pcs)
* Cross Head Screw Driver(1 pc)
* Flat Tip Screw Driver(1pc)
* Jaw(3 pcs)
* Flange(1 pc)
* Fuse Tube(3 pcs)
Qingdao G&G Machinery Co., Ltd. is doing business with machinery importers from all over the world. We have exported many kinds of machinery and tools for many years.

Our products are Engineer lathes, MIni Lathe, CNC lathe, CNC CENTER, Log Splitter, Concrete MIxer Turning Tools, Wood Chuck., Drill presses, Wood working machinery, wood cutting band saws, metal-cutting machinery, engineer lathes, mini lathes, transportation and power machinery, wheel barrows, Planers & thicknessers, dust collectors, Metal cutting band saws, Multi-function mixers, bench vice. The above-mentioned products are all made in China. We welcome all the friends from all over the world to visit our company for trade talks.

Main Business:

As a professional machinery manufacture and exporter, we provide many kinds of machines, such as metal lathe, milling /Milling machine, Log Splitter, Concrete Mixer, Wood working machinery, Wood Turning Tools and wood chuck, wood cutting band saws, metal-cutting machinery, engineer lathes, mini lathes, transportation and power machinery, wheel barrows, Planers & thicknessers, dust collectors, Metal cutting band saws, Multi-function mixers, bench vice.
